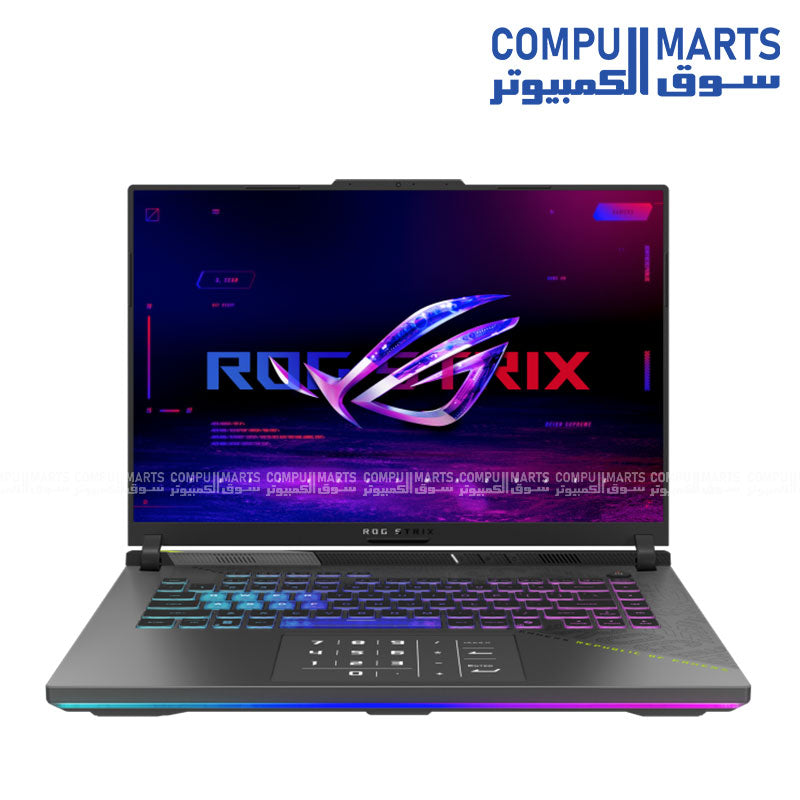

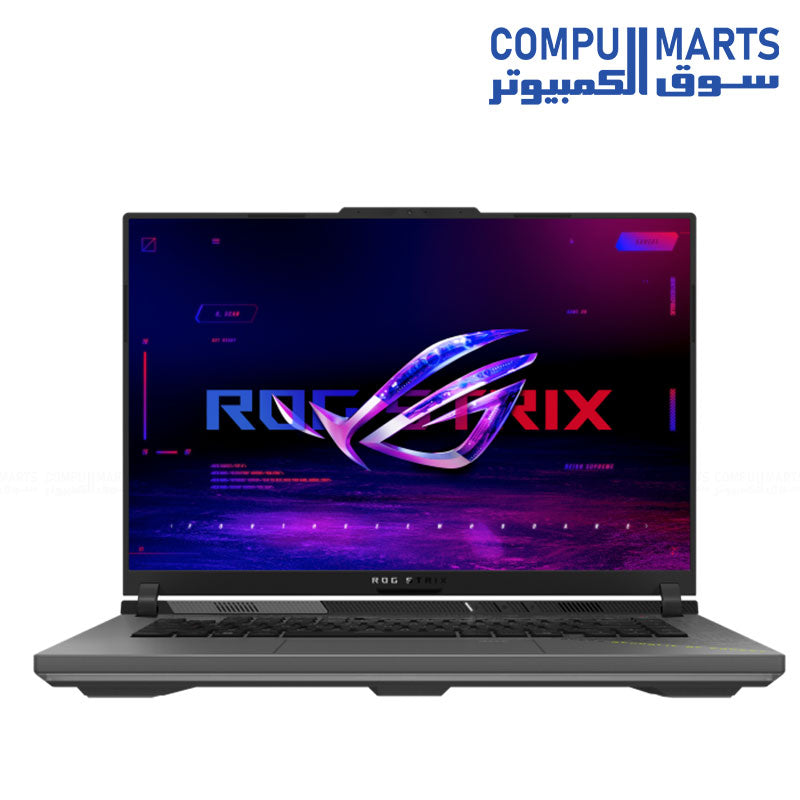

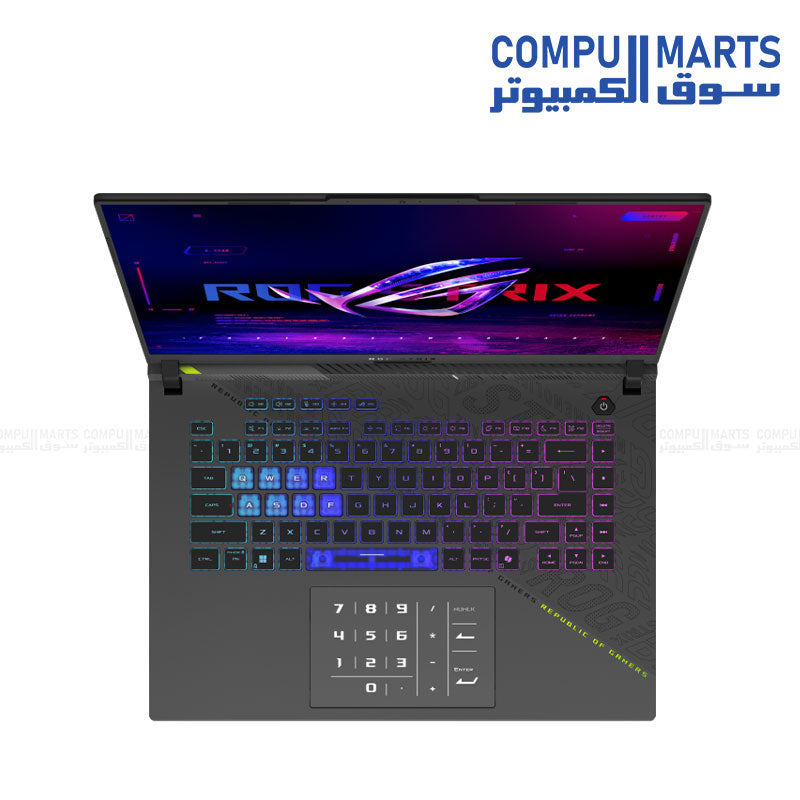

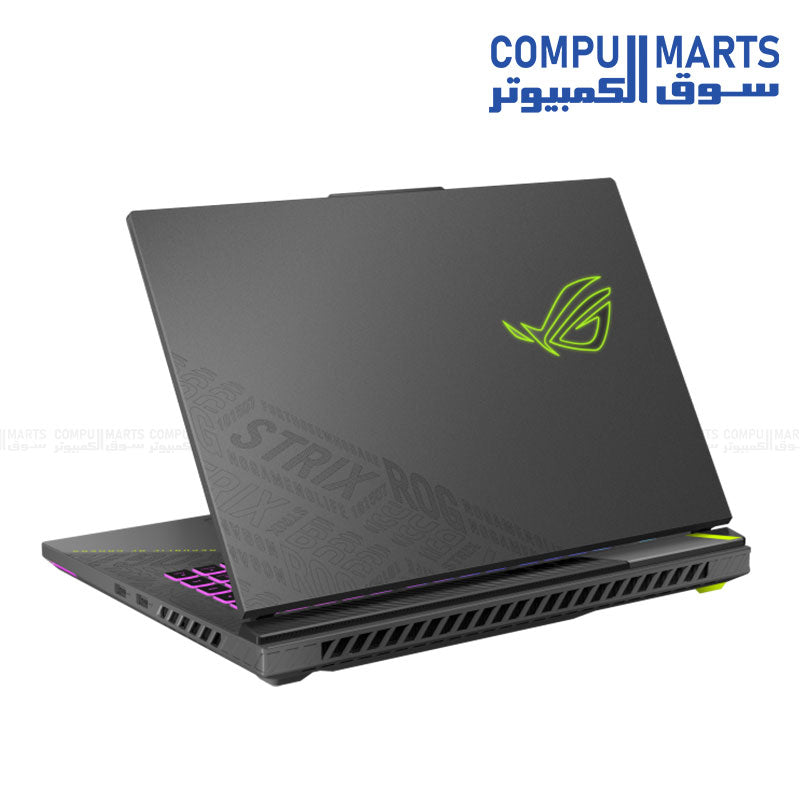

ASUS ROG Strix G16 G614PR-RV009W Ryzen 9 8940HX - RTX 5070 Ti 12GB - 32GB RAM - 1TB SSD - 16″ 165Hz WUXGA - WIN 11

Part No

90NR0NJ7-M000E0

Sales Model Name

G614PR-RV009W

EAN Code

4711636031349

UPC Code

199291031340

WEEE

3.223

BASE UNIT

VSNR0NJ7-BU2000

Marketing Name

ROG Strix G16

Operating System

Windows 11 Home

Office

1-month trial for new Microsoft 365 customers. Credit card required.

Color

Eclipse Gray

Dimension (W x D x H)

35.4 x 26.4 x 2.26 ~ 3.04 cm (13.94" x 10.39" x 0.89" ~ 1.20")

Weight

2.50 Kg (5.51 lbs)

Processor

AMD Ryzen™ 9 8940HX Processor 2.4GHz (80MB Cache, up to 5.3GHz, 16 cores, 32 Threads)

Chipset

N/A

Intergrated GPU

AMD Radeon™ Graphics

Discrete/Optimus

MUX Switch + NVIDIA® Advanced Optimus

Graphic

NVIDIA® GeForce RTX™ 5070 Ti Laptop GPU

Graphic Wattage

ROG Boost: 1565MHz* at 140W (1515MHz Boost Clock+50MHz OC, 115W+25W Dynamic Boost)

Graphic Memory

12GB GDDR7

Panel Size

16-inch

Resolution

FHD+ 16:10 (1920 x 1200, WUXGA)

Refresh Rate

165Hz

Response Time (G2G)

3ms

Viewing Angle

170

Panel Tech

IPS-level

Brightness

300nits

Contrast Ratio

1000:1

SRGB %

100%

Glare

Anti-glare display

Adaptive-Sync technology

G-Sync

Pantone

N/A

Support Dolby Vision HDR

Yes

Thermal Feature

ROG intelligent cooling

On board memory

N/A

DIMM Memory

16GB DDR5-5200 SO-DIMM *2

Total System Memory

DDR5 32GB

Memory Slot

2x SO-DIMM slots

Memory Max.

64GB

Storage

1TB PCIe® 4.0 NVMe™ M.2 SSD

M.2 slots support either SATA or NVMe

2

M.2 SSD Support List

1TB /2TB G4x4 Value PCIe SSD

Expansion Slot (includes used)

2x DDR5 SO-DIMM slots

2x M.2 PCIe

LAN

10/100/1000 Mbps

Wireless

Wi-Fi 6E(802.11ax) (Triple band) 2*2 + Bluetooth® 5.3 Wireless Card (*Bluetooth® version may change with OS version different.)

I/O Ports

1x RJ45 LAN port

1x Type-C USB 4 with support for DisplayPort™ / G-SYNC (data speed up to 40Gbps)

1x Type-C USB 4 with support for DisplayPort™ / power delivery / G-SYNC (data speed up to 40Gbps)

2x USB 3.2 Gen 2 Type-A (data speed up to 10Gbps)

Display output

1x HDMI 2.1 FRL

Camera

1080P FHD camera

Mic

Built-in array microphone

Keyboard Type

Backlit Chiclet Keyboard 4-Zone RGB

With Copilot key

Aura Sync

Yes

Touchpad

Touchpad

N/A

Speakers

2-speaker system with Smart Amplifier Technology

Audio

1x 3.5mm Combo Audio Jack

Built-in array microphone

Audio Tech

AI noise-canceling technology

Dolby Atmos

Hi-Res certification (for headphone)

Smart Amp Technology

Security

BIOS Administrator Password and User Password Protection

Trusted Platform Module (Firmware TPM)

Antivirus

McAfee® 30 days free trial

Battery

90WHrs, 4S1P, 4-cell Li-ion
