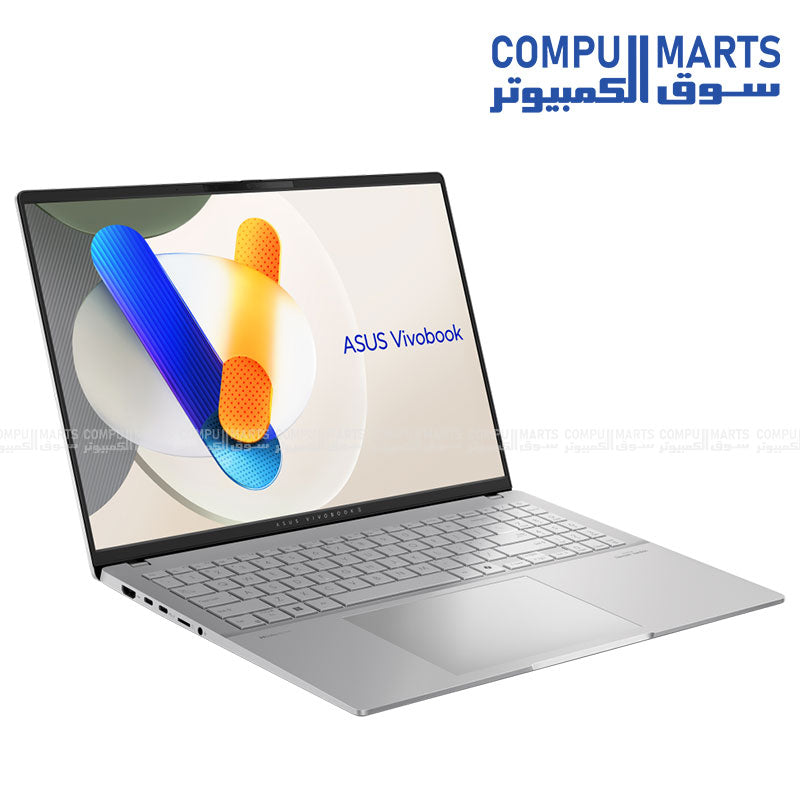

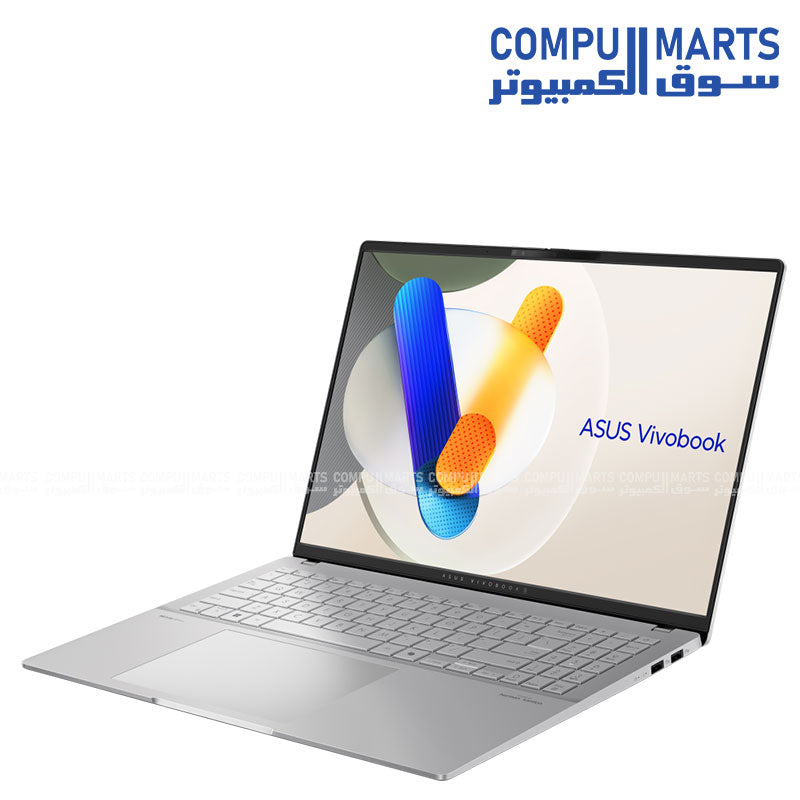

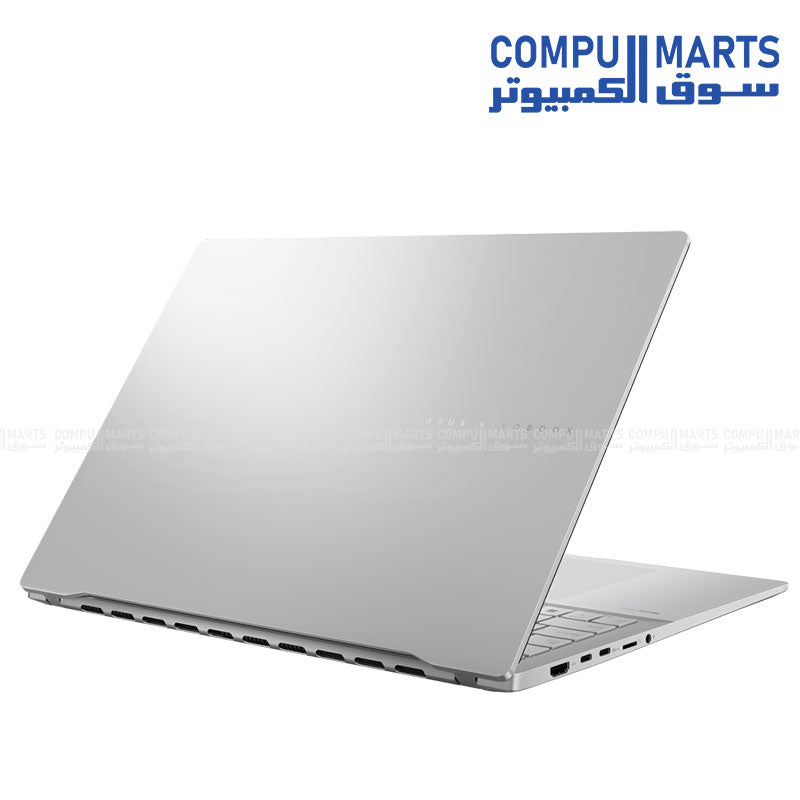

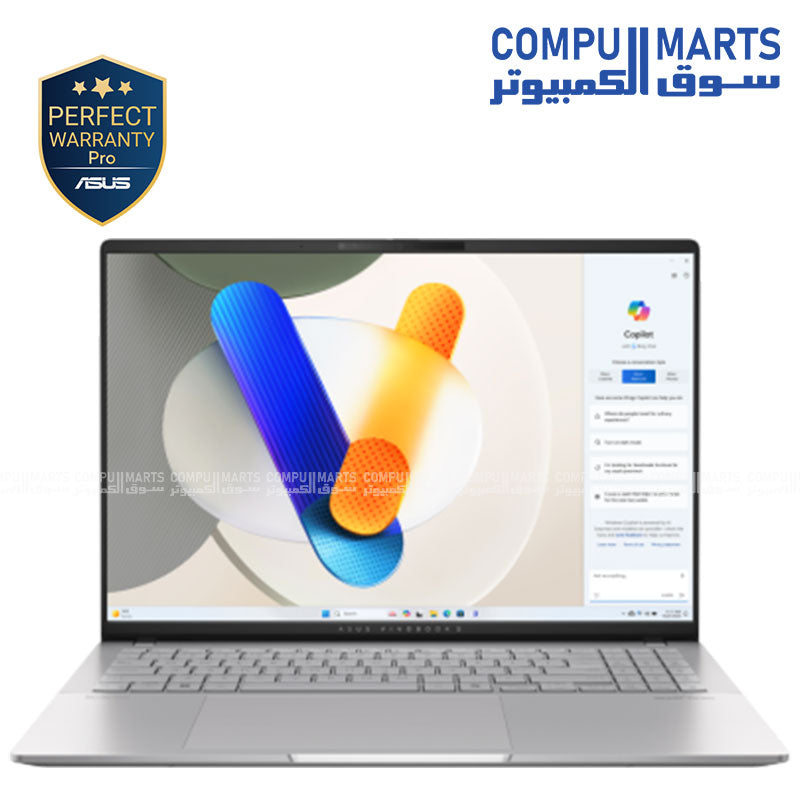

ASUS Vivobook S16 OLED M5606KA-RI417W Ryzen AI 7 350 24GB RAM 1TB SSD 16" 3K OLED 120Hz Cool Silver

Part No

90NB1593-M007J0

Sales Model Name

M5606KA-RI417W

EAN Code

4711387993453

UPC Code

197105993457

WEEE

1.25

BASE UNIT

VSNB1593-BU1000

Marketing Name

ASUS Vivobook S16 OLED

Operating System

Windows 11 Home - ASUS recommends Windows 11 Pro for business

Office

1-month trial for new Microsoft 365 customers. Credit card required.

LCD cover-material

Aluminum

LCD cover-color

Cool Silver

Top case-material

Aluminum

Top case-color

Cool Silver

Keyboard color

Silver

Bottom case-material

Aluminum

Bottom case-color

Cool Silver

Military grade

US MIL-STD 810H military-grade standard

Touch Panel

Non-touch screen

Panel Size

16.0-inch

Resolution

3K (2880 x 1800) OLED 16:10 aspect ratio

Refresh rate

120Hz refresh rate

Brightness

400nits

Peak Brightness

600nits HDR peak brightness

Color gamut

100% DCI-P3 color gamut

Gamut mapping

Yes

Contrast ratio

1,000,000:1

VESA CERTIFIED Display HDR

VESA CERTIFIED Display HDR True Black 500

Color depth

1.07 billion colors

Glare

Glossy display

Low blue light

70% less harmful blue light

TÜV Rheinland-certified

TÜV Rheinland-certified

Screen-to-body ratio

89%

Processor

AMD Ryzen™ AI 7 350 Processor 2.0GHz (24MB Cache, up to 5.0GHz, 8 cores, 16 Threads); AMD XDNA™ NPU up to 50TOPS

Chipset

N/A

Discrete/Share

Share

Intergrated GPU

AMD Radeon™ Graphics

Neural Processor

AMD XDNA™ NPU up to 50TOPS

Expansion Slot(includes used)

1x M.2 2280 PCIe 4.0x4

On board memory

24GB LPDDR5X on board

Total System Memory

LPDDR5X 24GB

Storage

1TB M.2 NVMe™ PCIe® 4.0 SSD

Front-facing camera

FHD camera with IR function to support Windows Hello ; With privacy shutter

on board Wireless

Wi-Fi 6E(802.11ax) (Dual band) 2*2 + Bluetooth® 5.3 Wireless Card (*Bluetooth® version may change with OS version different.)

Keyboard type

Backlit Chiclet Keyboard 1-Zone RGB with Num-key

With Copilot key

*Copilot in Windows (in preview) is rolling out gradually within the latest update to Windows 11 in select global markets. Timing of availability varies by device and market. Learn more: https://www.microsoft.com/en-us/windows/copilot-ai-features?r=1#faq

Touchpad

Precision touchpad

FingerPrint

N/A

I/O ports

1x USB 3.2 Gen 1 Type-C with support for display / power delivery (data speed up to 5Gbps)

1x USB 4.0 Gen 3 Type-C with support for display / power delivery (data speed up to 40Gbps)

2x USB 3.2 Gen 1 Type-A (data speed up to 5Gbps)

1x HDMI 2.1 TMDS

1x 3.5mm Combo Audio Jack

Micro SD card reader

Audio

Smart Amp Technology

Built-in speaker

Built-in array microphone

harman/kardon (Mainstream)

Voice control

N/A

Power

TYPE-C, 65W AC Adapter, Output: 20V DC, 3.25A, 65W, Input: 100-240V AC 50/60GHz universal

Battery

75WHrs, 4S1P, 4-cell Li-ion

Replaceable Battery

Yes

Dimension (W x H x D)

35.36 x 24.69 x 1.39 ~ 1.59 cm (13.92" x 9.72" x 0.55" ~ 0.63")

Weight (with Battery)

1.50 kg (3.31 lbs)

Weight (without Battery)

1.30 kg (2.87 lbs)

Antivirus

McAfee® 30 days free trial

Security

IR webcam with Windows Hello support

McAfee®

Security Lock

Microsoft Pluton security processor

Trusted Platform Module (Firmware TPM)

MyASUS feature

System diagnosis

Battery health charging

Fan Profile

Splendid

Function key lock

WiFi SmartConnect

TaskFirst

Live update

ASUS OLED Care

AI Noise Canceling

Built-in Apps

MyASUS

ScreenXpert

GlideX

Adobe Creative Cloud Hard Bundle

One-Month Membership of Adobe Creative Cloud All Apps, Individual.

The redemption duration from September 15, 2021 to August 31, 2025.

Ecolabels & Compliances

Energy star 8.0

RoHS

REACH

Reparability Index (for France)

9.2
