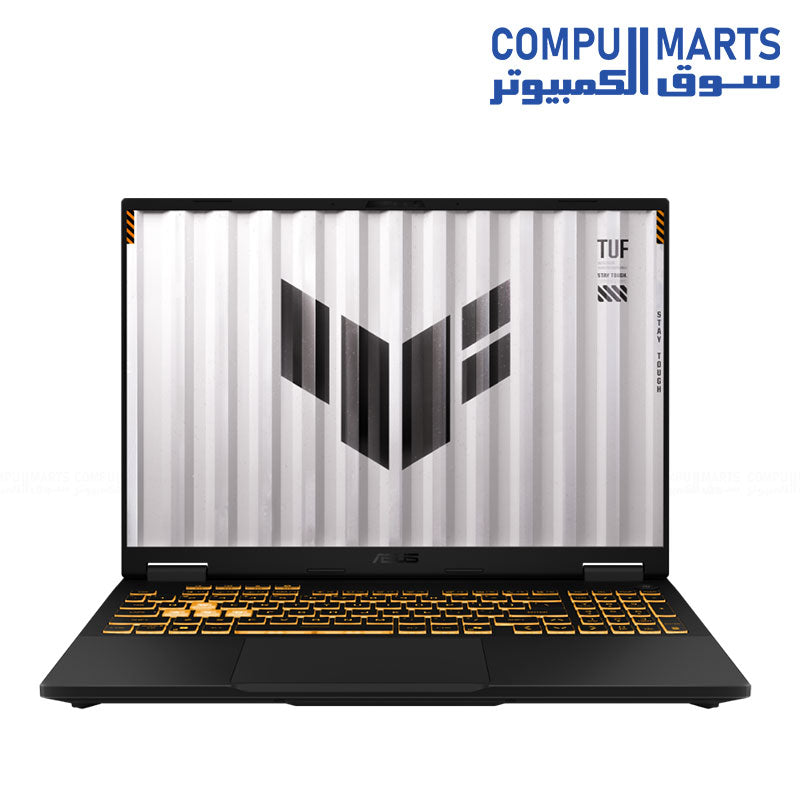

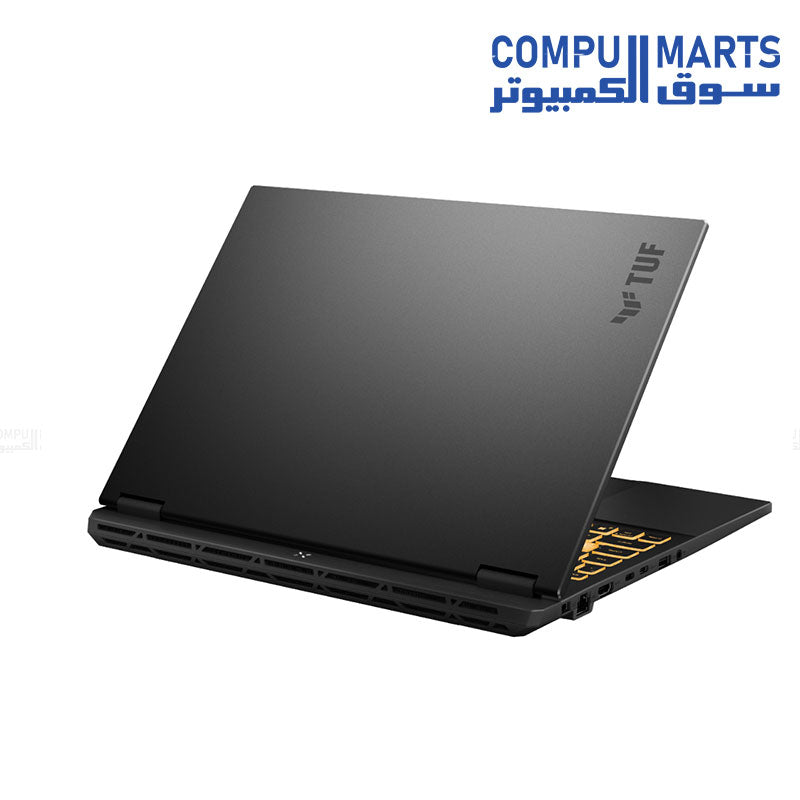

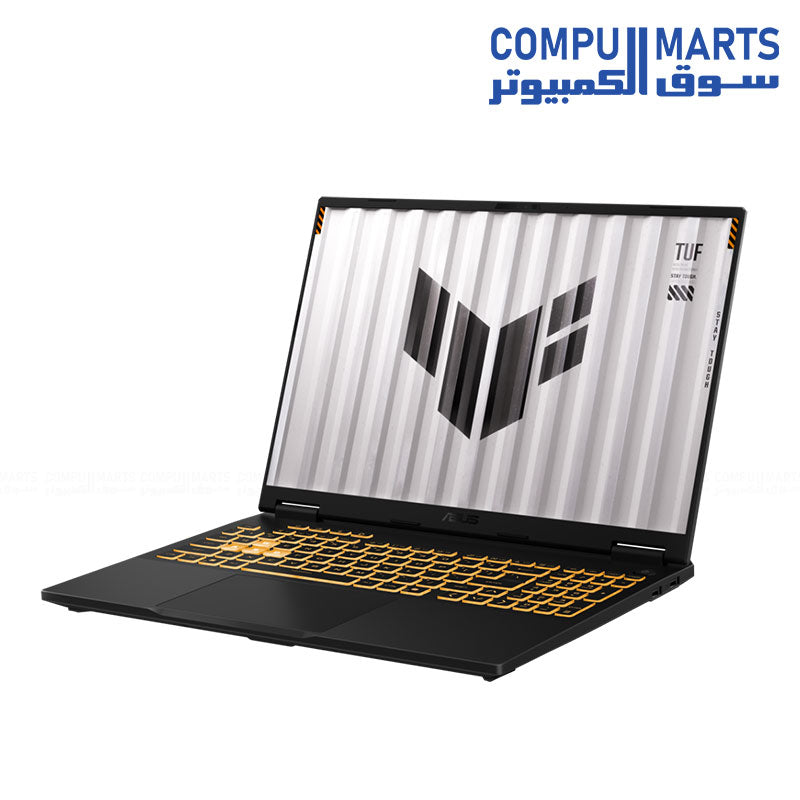

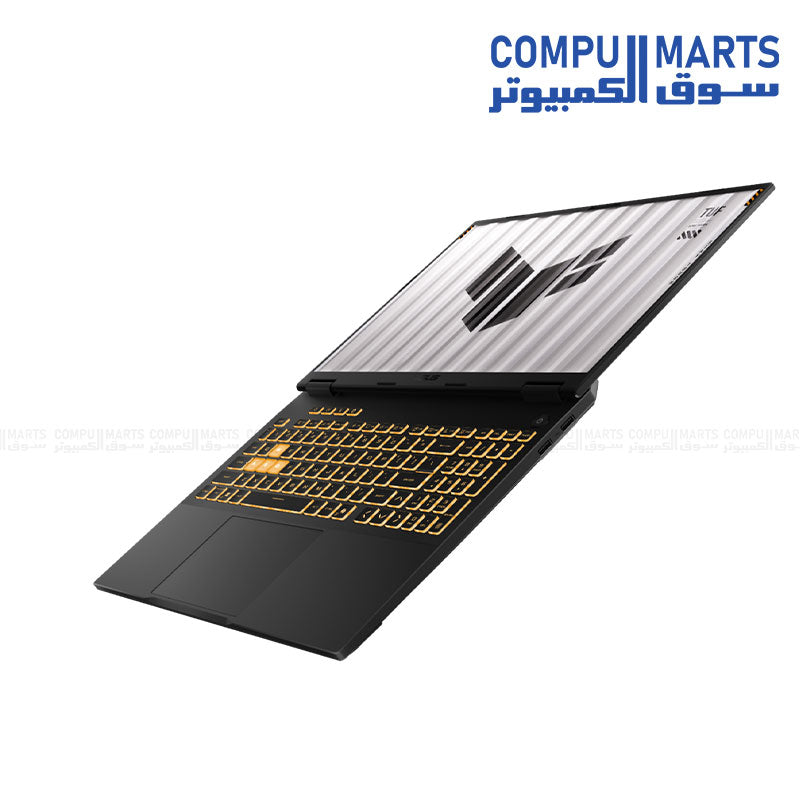

ASUS TUF Gaming A16 FA608PM-RV169W Ryzen 9 8940HX - RTX 5060 - 16GB DDR5 - 1TB SSD - 16" WUXGA 165Hz - Win11

Part No

90NR0MC1-M003T0

Sales Model Name

FA608PM-RV169W

EAN Code

4711636102377

UPC Code

199291102378

WEEE

2.777

BASE UNIT

VSNR0MC1-BU2000

Marketing Name

ASUS TUF Gaming A16

Operating System

Windows 11 Home

Office

1-month trial for new Microsoft 365 customers. Credit card required.

Color

Jaeger Gray

Dimension (W x D x H)

35.4 x 26.9 x 1.79 ~ 2.73 cm (13.94" x 10.59" x 0.70" ~ 1.07")

Weight

2.20 Kg (4.85 lbs)

Processor

AMD Ryzen™ 9 8940HX Processor 2.4GHz (80MB Cache, up to 5.3GHz, 16 cores, 32 Threads)

Chipset

N/A

Intergrated GPU

AMD Radeon™ Graphics

Discrete/Optimus

MUX Switch + NVIDIA® Advanced Optimus

Graphic

NVIDIA® GeForce RTX™ 5060 Laptop GPU

Graphic Wattage

115W (100W+15W)

Graphic Memory

8GB GDDR7

Panel Size

16-inch

Resolution

FHD+ 16:10 (1920 x 1200, WUXGA)

Refresh Rate

165Hz

Viewing Angle

85/85/85/85

Panel Tech

IPS-level

Brightness

400

Contrast Ratio

1000:1

NTSC %

72.00%

SRGB %

100.00%

Adobe %

75.35%

Glare

Anti-glare display

Adaptive-Sync technology

G-Sync

Pantone

N/A

Support Dolby Vision HDR

N/A

On board memory

N/A

DIMM Memory

16GB DDR5-5200 SO-DIMM

Total System Memory

DDR5 16GB

Memory Slot

2x SO-DIMM slots

Memory Max.

64GB

Multi-channel memory technology

Support dual channel memory technology

Storage

1TB PCIe® 4.0 NVMe™ M.2 SSD

M.2 slots support either SATA or NVMe

2

M.2 SSD Support List

M.2 512GB PCIe SSD

M.2 1TB PCIe SSD

M.2 2TB PCIe SSD

Expansion Slot (includes used)

2x DDR5 SO-DIMM slots

2x M.2 PCIe

LAN

10/100/1000 Mbps

Wireless

Wi-Fi 6E(802.11ax) (Triple band) 2*2 + Bluetooth® 5.3 Wireless Card (*Bluetooth® version may change with OS version different.)

I/O Ports

1x RJ45 LAN port

1x USB 3.2 Gen 2 Type-C with support for DisplayPort™ / G-SYNC (data speed up to 10Gbps)

1x USB 3.2 Gen 2 Type-C with support for DisplayPort™ / power delivery (data speed up to 10Gbps)

3x USB 3.2 Gen 2 Type-A (data speed up to 10Gbps)

Display output

1x HDMI 2.1 FRL

Camera

1080P FHD IR Camera for Windows Hello

Mic

Built-in array microphone

Keyboard Type

Backlit Chiclet Keyboard 1-Zone RGB

With Copilot key

Aura Sync

Yes

Touchpad

Touchpad

N/A

Speakers

2-speaker system

Audio

1x 3.5mm Combo Audio Jack

Built-in array microphone

Audio Tech

AI noise-canceling technology

Dolby Atmos

Hi-Res certification (for headphone)

Support Microsoft Cortana near field/far field (Microsoft service suspended in spring of 2023.)

Security

BIOS Administrator Password and User Password Protection

Trusted Platform Module (Firmware TPM)

Antivirus

McAfee® 30 days free trial

Battery

90WHrs, 4S1P, 4-cell Li-ion

Fast charging

Recharge from 0-50% in 30 minutes

Power

Rectangle Conn, 280W AC Adapter, Output: 20V DC, 14A, 280W, Input: 100-240V AC, 50/60Hz universal

Xbox Game Pass

Xbox Game Pass for PC_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass for PC. Eligible markets are determined at activation. Game catalog varies by region, device, and time.)
