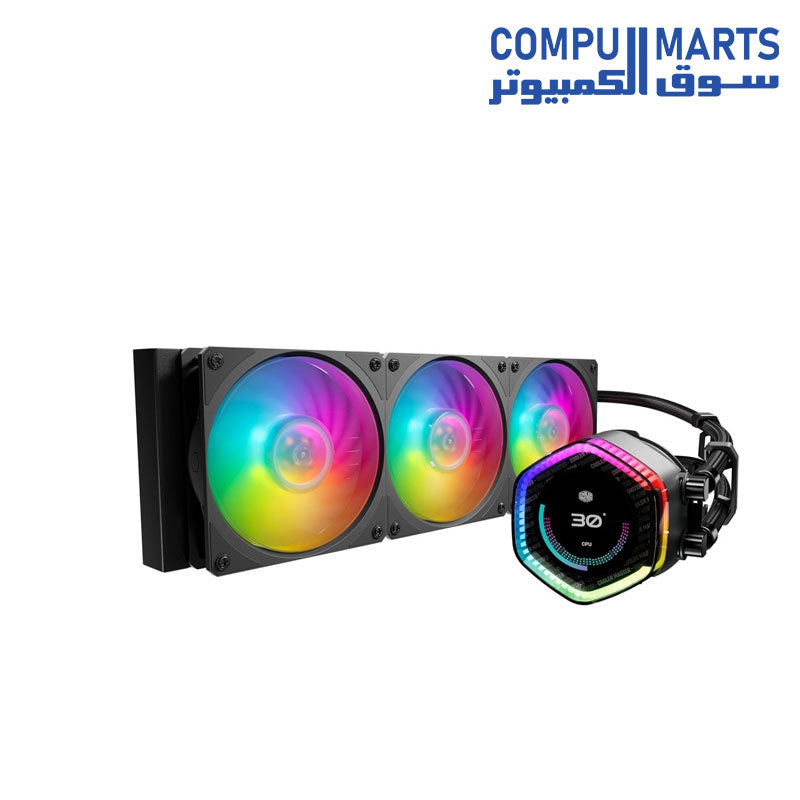

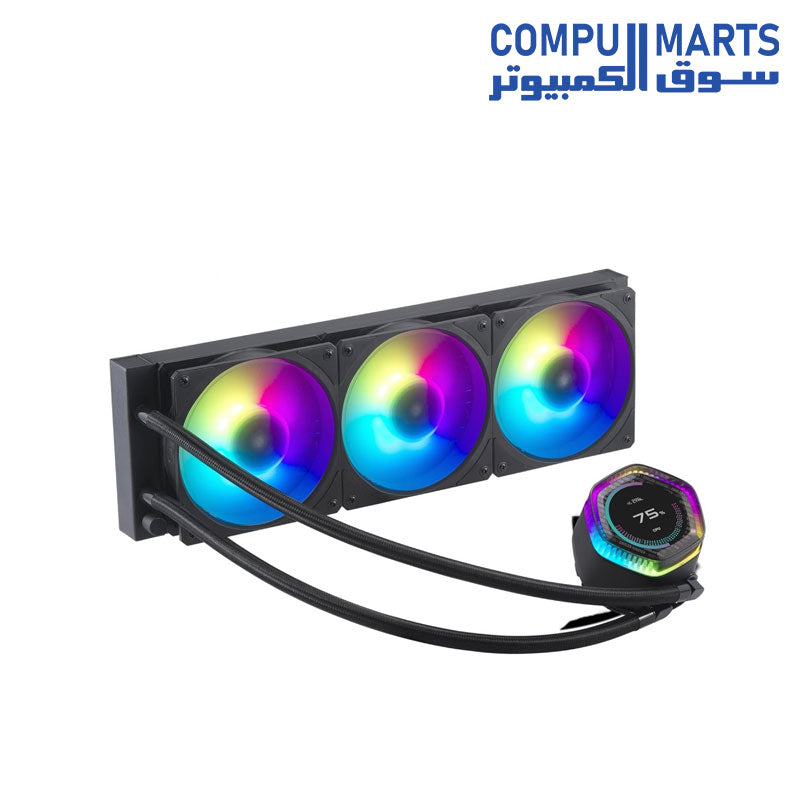

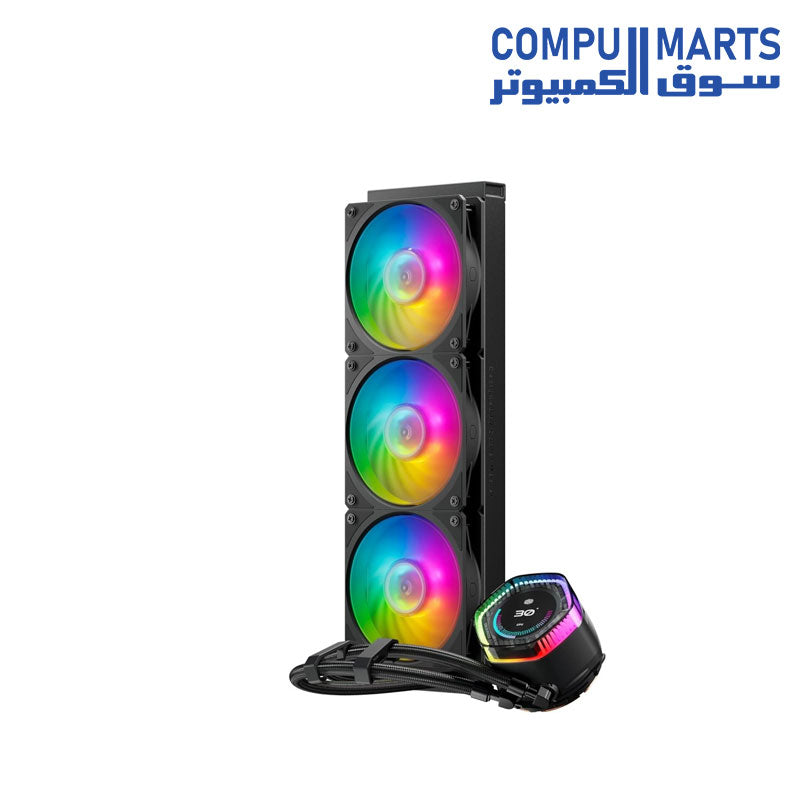

Cooler Master MasterLiquid ION 360 Liquid Cooler

Product Number

MLY-D36M-A24PZ-R1

Exterior Color

Black

CPU Socket

Intel LGA 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156

AMD AM5 / AM4

Radiator Material

Aluminum

Radiator Dimensions

394 x 119.6 x 27.2 mm / 15.5 x 4.7 x 1.1 inch

Pump Dimensions

88.3 x 83.6 x 65.7 mm / 3.5 x 3.3 x 2.6 inch

Pump MTTF

210,000 Hours

Pump Noise Level

20 dBA

Pump Connector

4-Pin + SATA

Pump Rated Voltage

12 VDC

Pump Power Consumption

6.75 W

Fan Dimensions (L x W x H)

120 x 120 x 25 mm / 4.7 x 4.7 x 1.0 inch

Fan Quantity

3 PCS

Fan LED Type

Addressable Gen 2 RGB

Fan Speed

0-2400 RPM ± 10%

Fan Airflow

75.2 CFM (Max)

Fan Noise Level

30 dBA (Max)

Fan Pressure

3.63 mmH₂O (Max)

Bearing

Loop Dynamic Bearing

Fan MTTF

200,000 Hours

Fan Power Connector

4-Pin (PWM)

Rated Voltage

12 VDC

Fan Rated Current

0.18A

Fan Safety Current

0.35A

RAM Clearance

N/A

Cooler Type

Liquid Cooler

Series

MasterLiquid Pro
