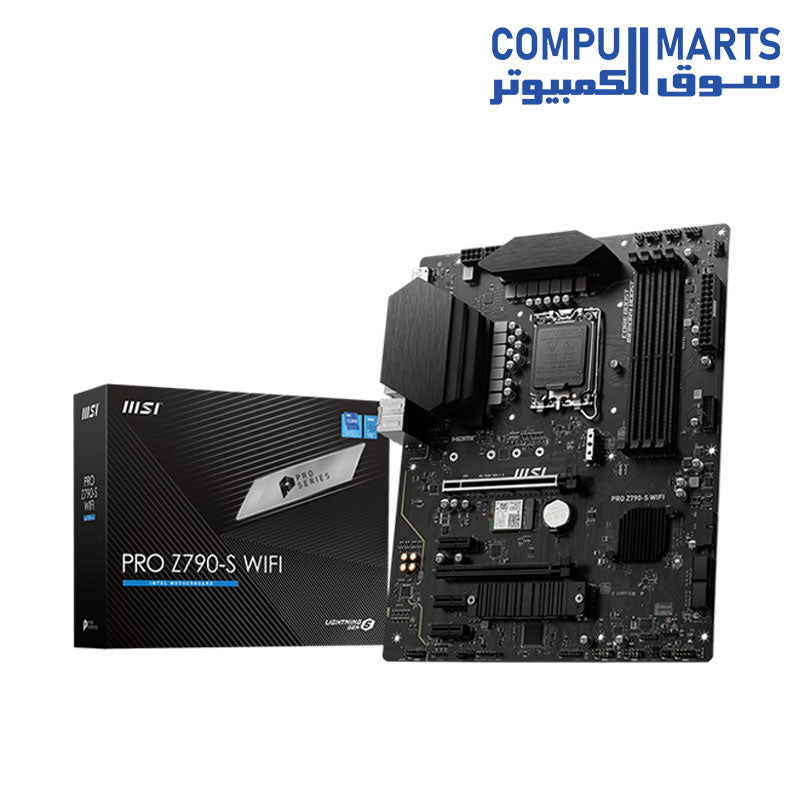

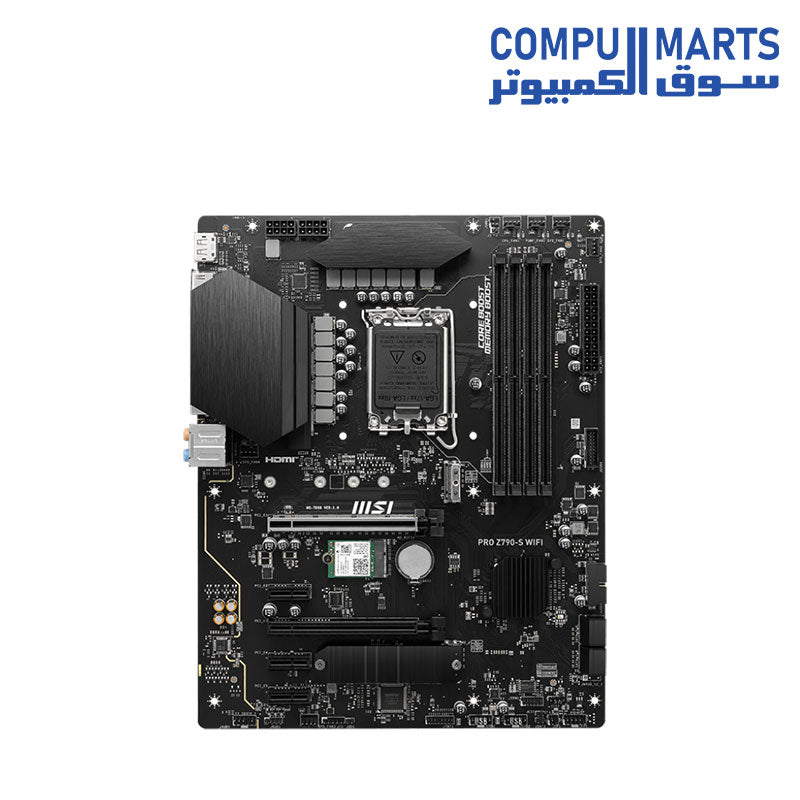

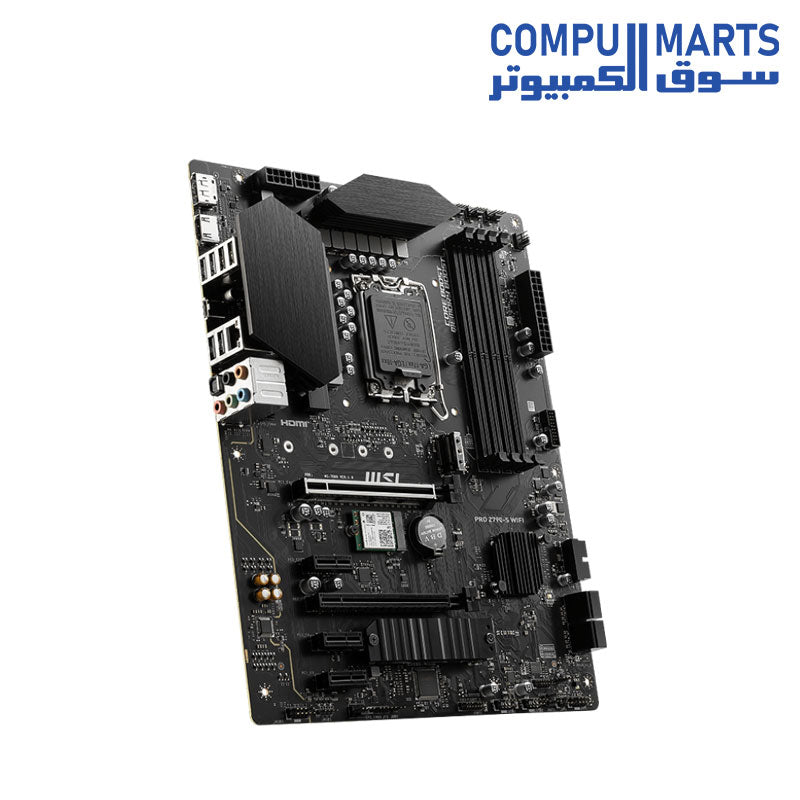

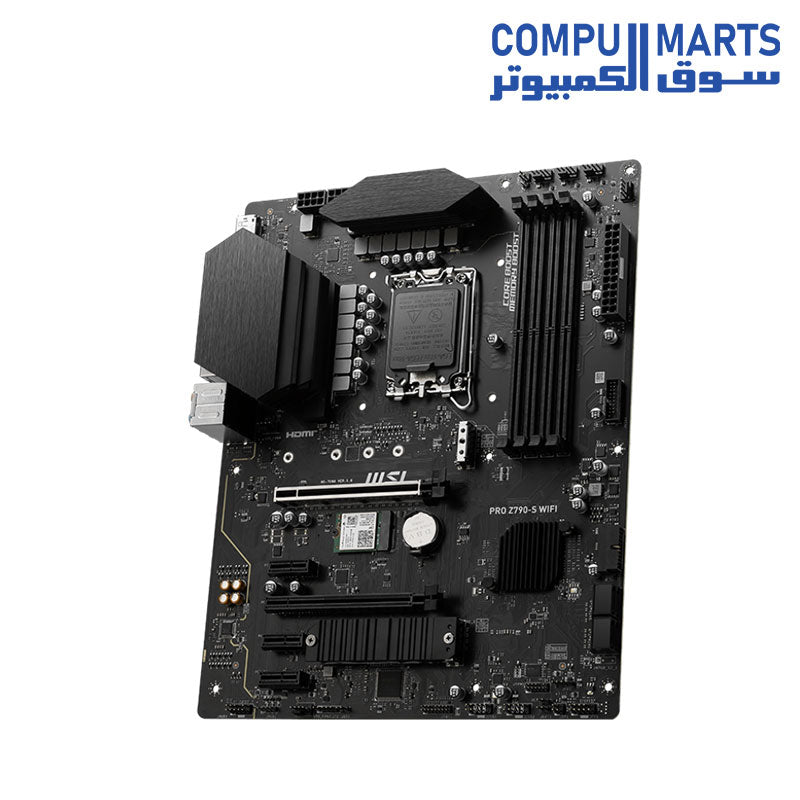

MSI PRO Z790-S WiFi ProSeries Motherboard (Supports 12th/13th/14th Gen Intel Processors, LGA 1700, DDR5

INTEL Z790

Support Intel  Core  14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors

LGA 1700

4x DDR5, Maximum Memory Capacity 256GB

Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max speed up to 6600+ MHz

• 1DPC 2R Max speed up to 6400+ MHz

• 2DPC 1R Max speed up to 6000+ MHz

• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel XMP 3.0 OC

Supports Dual-Controller Dual-Channel mode

Supports non-ECC, un-buffered memory

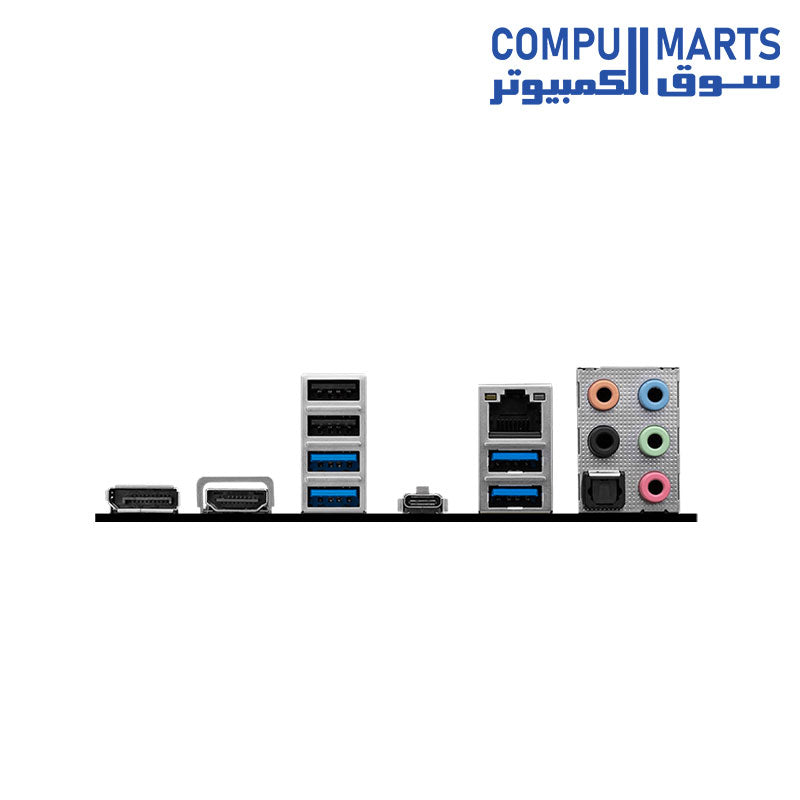

1x HDMI

Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz

1x DisplayPort

Support DP 1.4, maximum resolution of 4K 60Hz

Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

2x PCI-E x16 slot

3x PCI-E x1 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 3.0 supports up to x4 (From Chipset)

PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)

Realtek ALC897 Codec

7.1-Channel High Definition Audio

Supports S/PDIF output

2x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

4x SATA 6G

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

2x USB 2.0 (Rear)

4x USB 2.0 (Front)

4x USB 5Gbps Type A (Rear)

4x USB 5Gbps Type A (Front)

1x USB 20Gbps Type C (Rear)

Realtek  RTL8125BG 2.5Gbps LAN

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

4x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

4x USB 5Gbps Type A ports

Intel  Wi-Fi 6E

The Wireless module is pre-installed in the M.2_WIFI1 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth 5.3, FIPS, FISMA

 Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
 Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11
