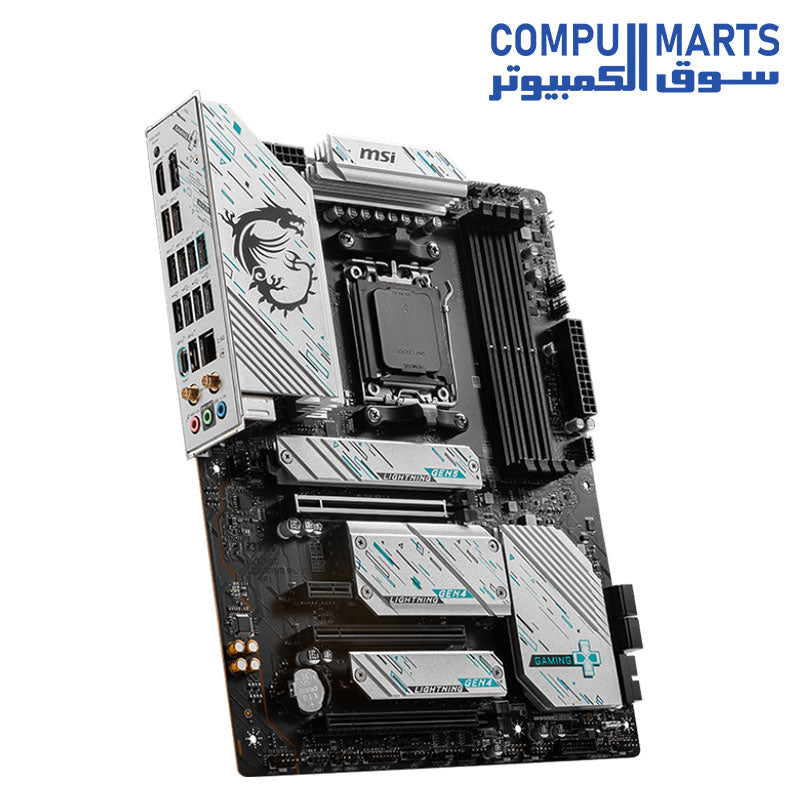

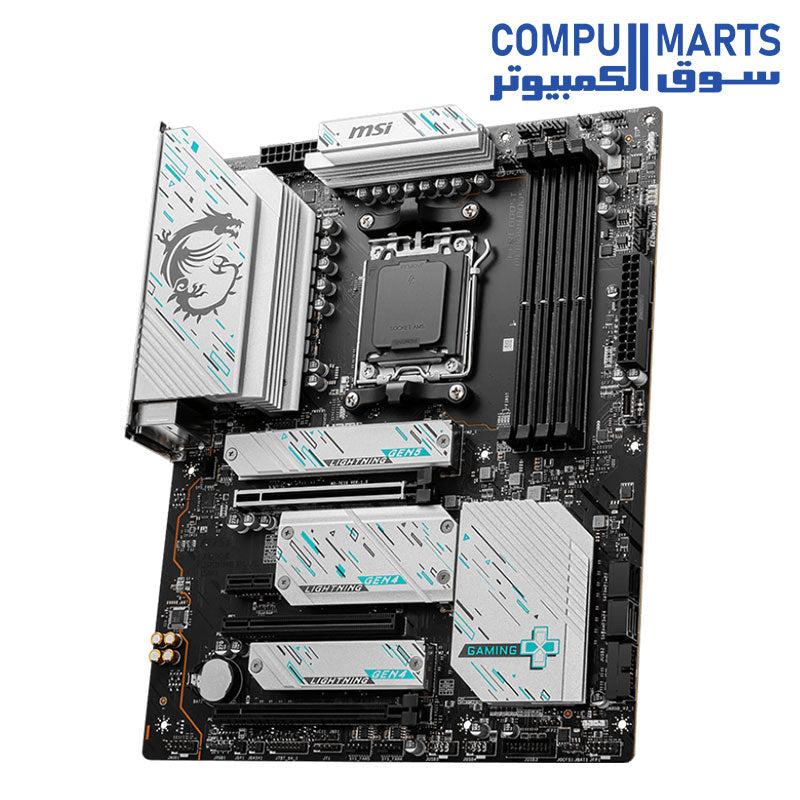

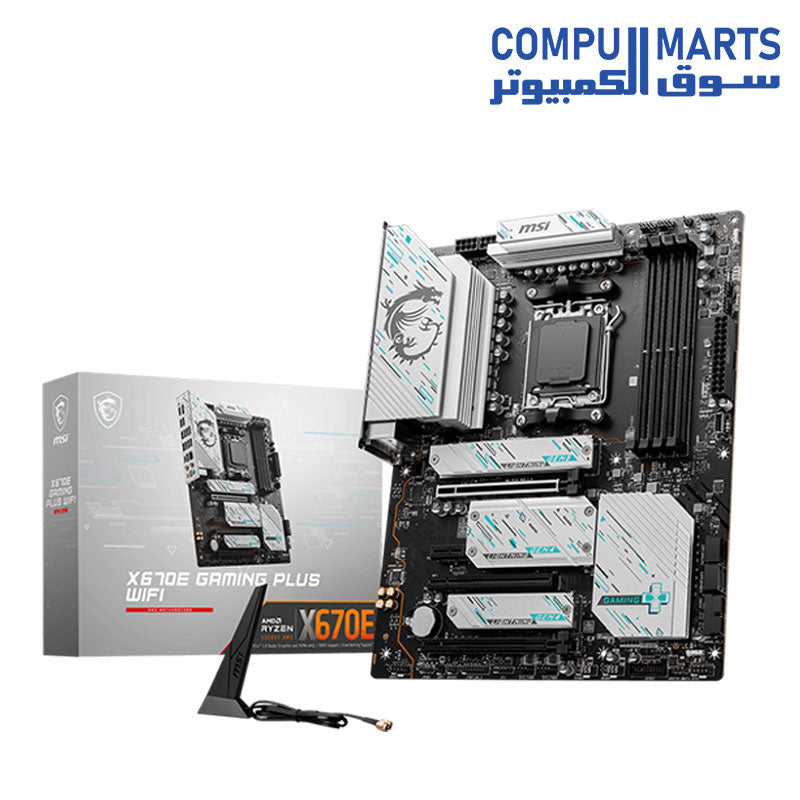

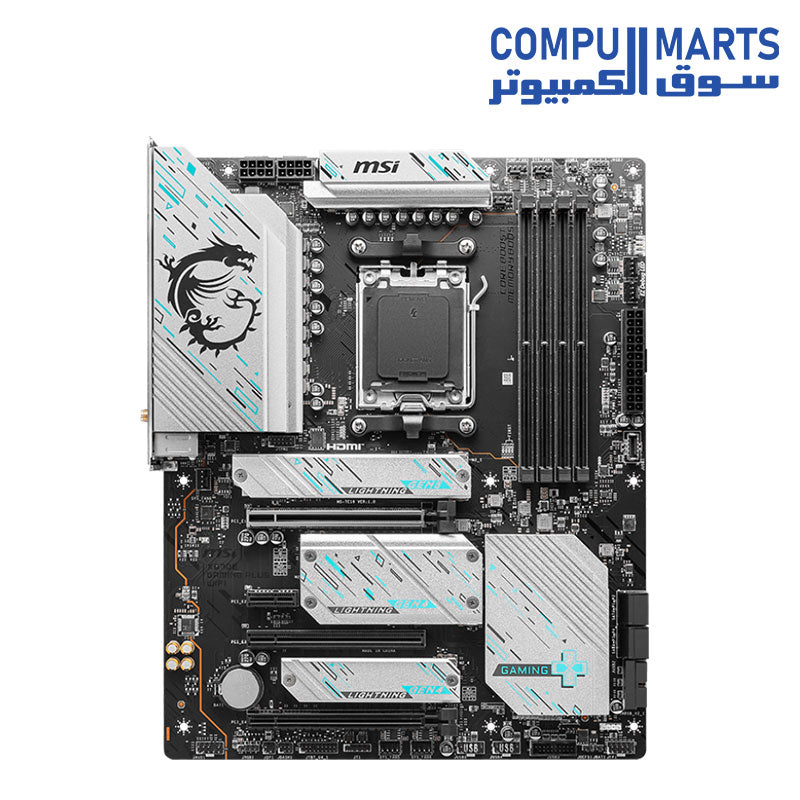

MSI X670E GAMING PLUS WIFI Motherboard

15,499.00 EGP
Shipping calculated at checkout.
👉 Promo Codes – CompuMarts

Delivery and Shipping

Fast shipping to your doorstep! Get your order delivered within 1-5 days based on location.

Subscribe to our newsletter

Sign up for exclusive offers.

Description

The MSI X670E GAMING PLUS WIFI Motherboard is an AM5 motherboard with the AMD X670 chipset, supporting AMD Ryzen 8000/ 7000 Series Desktop Processors and 4x DDR5 UDIMM, Maximum Memory Capacity 256GB. It supports DDR5 7800+(OC) memory, Dual-Channel mode, non-ECC un-buffered memory, and AMD EXPO. Storage connectivity includes 4x M.2 slots, with M.2_1 supporting up to PCIe 5.0 x4 and M.2_2, M.2_3, and M.2_4 supporting PCIe 4.0 x4, alongside 4x SATA 6G. Expansion includes 3x PCI-E x16 slots and 1x PCI-E x1 slot, with PCIe 5.0 support on PCI_E1. Networking includes AMD Wi-Fi 6E, Bluetooth 5.3, and Realtek RTL8125BG 2.5Gbps LAN. Display connectivity includes HDMI 2.1 and DisplayPort 1.4, while USB connectivity includes USB 2.0, USB 5Gbps Type A, USB 10Gbps Type A, USB 10Gbps Type C, and USB 20Gbps Type C. The motherboard also includes Realtek ALC897 Codec, 7.1-Channel High Definition Audio, RAID support, TPM 2.0 support, EZ Debug LED, Windows 11 64-bit and Windows 10 64-bit support, and an ATX PCB measuring 243.84mmx304.8mm. Shop the MSI X670E GAMING PLUS WIFI Motherboard at Compumarts in Egypt.

Key specs
CHIPSET AMD X670
CPU Supports AMD Ryzen 8000/ 7000 Series Desktop Processors
SOCKET AM5
MEMORY 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
MEMORY SUPPORT DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
MAX OVERCLOCKING FREQUENCY 1DPC 1R Max speed up to 7800+ MHz
MAX OVERCLOCKING FREQUENCY 1DPC 2R Max speed up to 6400+ MHz
MAX OVERCLOCKING FREQUENCY 2DPC 1R Max speed up to 6400+ MHz
MAX OVERCLOCKING FREQUENCY 2DPC 2R Max speed up to 5400+ MHz
MEMORY MODE Supports Dual-Channel mode
MEMORY TYPE Supports non-ECC, un-buffered memory
MEMORY TECHNOLOGY Supports AMD EXPO
AUDIO CODEC Realtek ALC897 Codec
AUDIO 7.1-Channel High Definition Audio
M.2 SLOTS 4x M.2
M.2_1 SOURCE From CPU
M.2_1 INTERFACE PCIe 5.0 x4
M.2_1 DEVICE SUPPORT 22110/2280 devices
M.2_2 SOURCE From CPU
M.2_2 INTERFACE PCIe 4.0 x4
M.2_2 DEVICE SUPPORT 2280/2260 devices
M.2_3 SOURCE From Chipset
M.2_3 INTERFACE PCIe 4.0 x4
M.2_3 DEVICE SUPPORT 2280/2260 devices
M.2_4 SOURCE From Chipset
M.2_4 INTERFACE PCIe 4.0 x4
M.2_4 DEVICE SUPPORT 2280/2260 devices
SATA 4x SATA 6G
M.2_2 SPEED PCIe 4.0 x2 speed when Ryzen 5 8500G is installed
LAN Realtek RTL8125BG 2.5Gbps LAN
ONBOARD GRAPHICS 1x HDMI
HDMI SUPPORT HDMI 2.1, maximum resolution of 4K 60Hz
DISPLAYPORT 1x DisplayPort
DISPLAYPORT SUPPORT DP 1.4, maximum resolution of 4K 60Hz
PCI-E X16 SLOTS 3x PCI-E x16 slot
PCI-E X16 CONFIGURATION Supports x16/x1/x4
PCI-E X16 CONFIGURATION Supports x16/x1/x4 (For Ryzen 7000 Series processors)
PCI-E X16 CONFIGURATION Supports x8/x1/x4 (For Ryzen 7 8700G and Ryzen 5 8600G processors)
PCI-E X16 CONFIGURATION Supports x4/x1/x4 (For Ryzen 5 8500G processor)
PCI-E X1 SLOT 1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
SATA RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
M.2 NVME RAID Supports RAID 0, RAID 1 for M.2 NVMe storage devices
USB 2.0 REAR 4x USB 2.0 (Rear)
USB 2.0 FRONT 4x USB 2.0 (Front)
USB 5GBPS TYPE A REAR 4x USB 5Gbps Type A (Rear)
USB 5GBPS TYPE A FRONT 4x USB 5Gbps Type A (Front)
USB 10GBPS TYPE A REAR 3x USB 10Gbps Type A (Rear)
USB 10GBPS TYPE C FRONT 1x USB 10Gbps Type C (Front)
USB 20GBPS TYPE C REAR 1x USB 20Gbps Type C (Rear)
WIRELESS AMD Wi-Fi 6E
WIRELESS MODULE The Wireless module is pre-installed in the M.2 (Key-E) slot
WIRELESS FEATURE Supports MU-MIMO TX/RX
WIRELESS BANDWIDTH Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
WIRELESS STANDARD Supports 802.11 a/ b/ g/ n/ ac/ ax
BLUETOOTH Bluetooth 5.3
WI-FI 6E NOTE Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
BLUETOOTH NOTE Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
POWER CONNECTOR 1x Power Connector(ATX_PWR)
CPU POWER CONNECTOR 2x Power Connector(CPU_PWR)
CPU FAN 1x CPU Fan
PUMP FAN 1x Pump Fan
SYSTEM FAN 6x System Fan
FRONT PANEL 2x Front Panel (JFP)
CHASSIS INTRUSION 1x Chassis Intrusion (JCI)
FRONT AUDIO 1x Front Audio (JAUD)
TBT CONNECTOR 1x TBT connector (JTBT, supports RTD3)
TUNING CONTROLLER 1x Tuning Controller connector(JDASH)
ADDRESSABLE RGB 2x Addressable V2 RGB LED connector (JARGB_V2)
RGB LED 2x RGB LED connector(JRGB)
TPM 1x TPM pin header(Support TPM 2.0)
USB4 CARD CONNECTOR 1x USB4 card connector (JTBT_U4_1, supports RTD3)
INTERNAL USB 2.0 4x USB 2.0 ports
INTERNAL USB 5GBPS TYPE A 4x USB 5Gbps Type A ports
INTERNAL USB 10GBPS TYPE C 1x USB 10Gbps Type C ports
LED FEATURE 4x EZ Debug LED
BACK PANEL PORTS DisplayPort; USB 3.2 Gen 2 10Gbps (Type-A); USB 3.2 Gen 1 5Gbps (Type-A); USB 2.0 (Type-A); 2.5G LAN; Flash BIOS Button; HDMI; USB 3.2 Gen 2x2 20Gbps (Type-C); Wi-Fi / Bluetooth; Audio Connectors
OPERATING SYSTEM Support for Windows 11 64-bit, Windows 10 64-bit
PCB INFO ATX
DIMENSIONS 243.84mmx304.8mm
BOX CONTENT MSI X670E GAMING PLUS WIFI Motherboard
