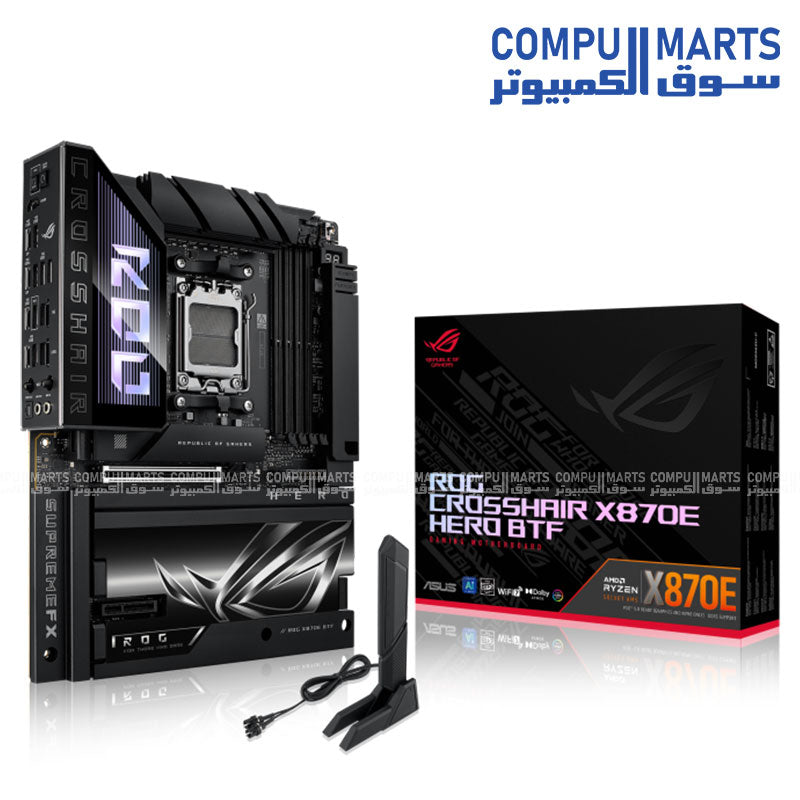

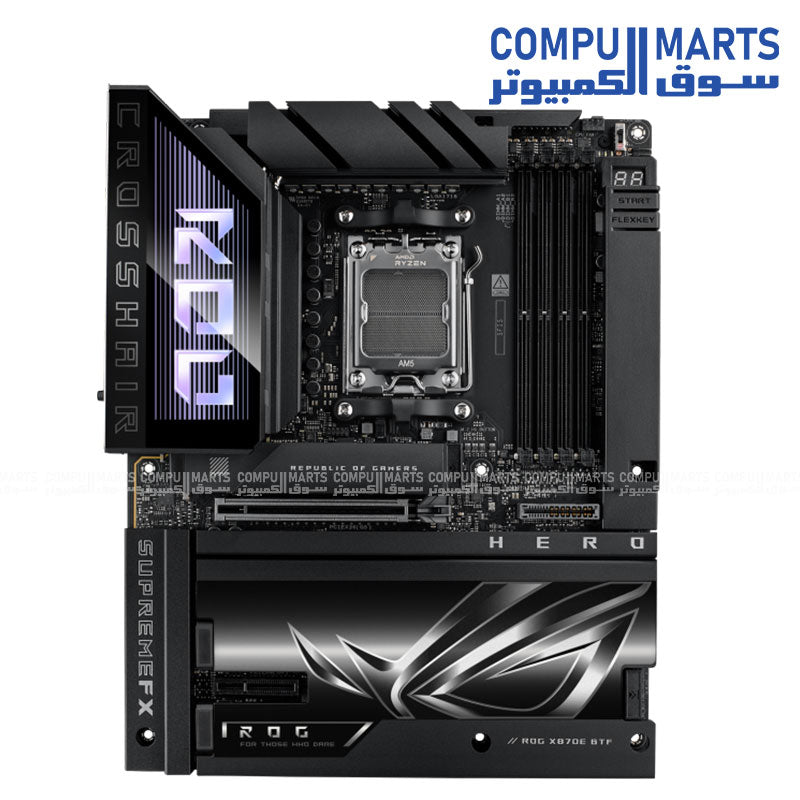

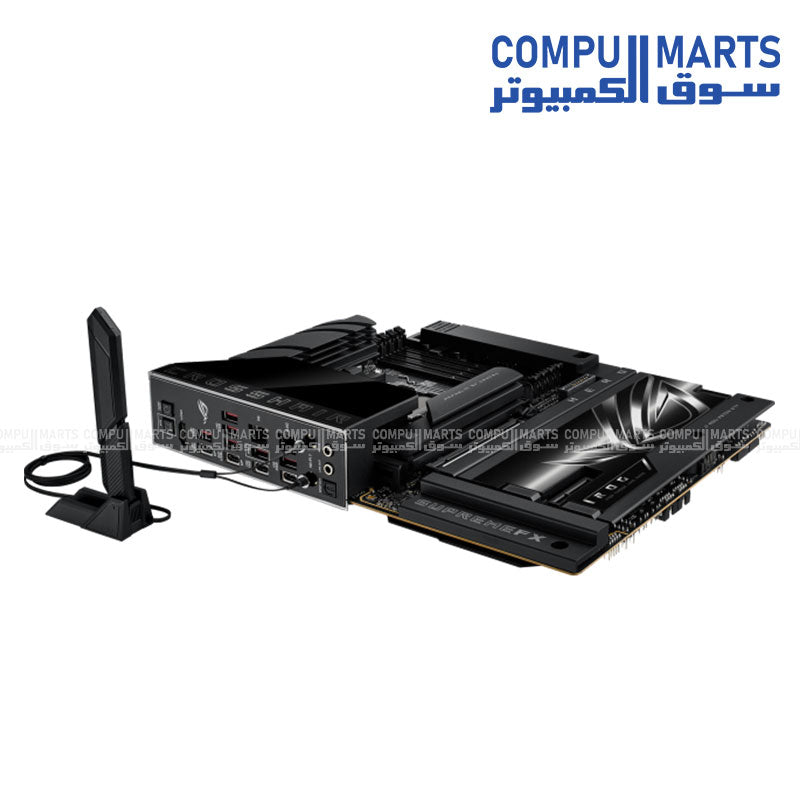

ASUS ROG Crosshair X870E Hero BTF – AM5 Motherboard – X870E Chipset – DDR5 256GB – WiFi 7 – USB4 – PCIe 5.0 – ATX
| Category | Details |
|---|---|
| Model | ROG CROSSHAIR X870E HERO BTF |
| CPU Support | AMD Socket AM5 (Ryzen 9000 / 8000 / 7000 Series) |
| Chipset | AMD X870E |
| Form Factor | ATX (30.5 × 24.4 cm) |
Memory
| Feature | Details |
|---|---|
| DIMM Slots | 4 × DDR5 (up to 256GB) |
| Supported Speeds | 8200+ MT/s (9000 series), 8600+ MT/s (8000 series), 8000+ MT/s (7000 series) |
| Architecture | Dual Channel |
| Technologies | EXPO, AEMP, DIMM Fit, On-Die ECC |
Graphics & Display Outputs
| Output | Details |
|---|---|
| HDMI | 1 × HDMI 2.1 (4K @ 60Hz) |
| USB4 Type-C Display Output | 2 × USB4 (40Gbps), supports DisplayPort 1.4a (4K @ 60Hz) |
Expansion Slots
| CPU Series | PCIe Slot Configuration |
|---|---|
| Ryzen 9000 / 7000 | 1 × PCIe 5.0 x16 (x16 or x8/x4/x4) |
| Ryzen 8700 / 8600 / 8400 | PCIe 4.0 x16 (x8) |
| Ryzen 8500 / 8300 | PCIe 4.0 x16 (x4) |
| Chipset | 1 × PCIe 4.0 x4 |
Storage
| Slot | Support |
|---|---|
| M.2_1 | PCIe 5.0 x4 (2242/2260/2280) |
| M.2_2 | PCIe 5.0 x4 |
| M.2_3 | PCIe 5.0 x4 |
| M.2_4 (Chipset) | PCIe 4.0 x4 |
| M.2_5 (Chipset) | PCIe 4.0 x4 |
| SATA | 4 × SATA 6Gb/s |
| RAID | RAID 0/1/5/10 (9000) – RAID 0/1 (8000) – RAID 0/1/10 (7000) |
Networking
| Type | Specifications |
|---|---|
| Ethernet 1 | Intel 2.5Gb LAN |
| Ethernet 2 | Realtek 5Gb LAN |
| Wireless | WiFi 7 (802.11be) 2×2 |
| Bluetooth | v5.4 |
USB Ports

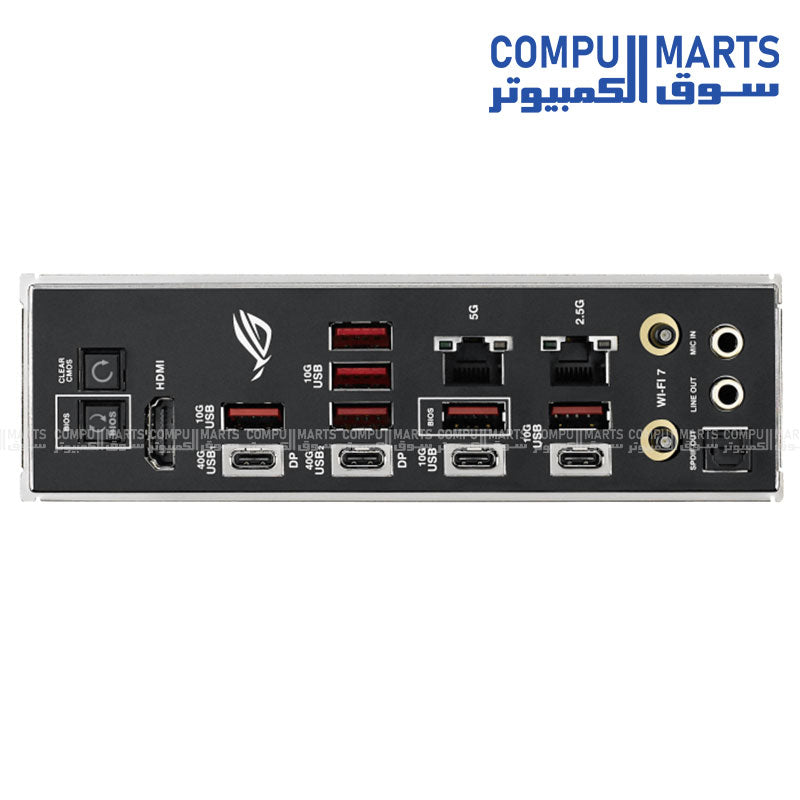

Rear I/O (10 Ports)
| Type | Quantity |
|---|---|
| USB4 40Gbps | 2 × Type-C |
| USB 10Gbps | 6 × Type-A + 2 × Type-C |
| HDMI | 1 |
| LAN | Intel 2.5Gb + Realtek 5Gb |
| Audio | 2 × Gold-plated jacks + Optical S/PDIF |
| Buttons | BIOS FlashBack, Clear CMOS |
Front I/O
| Type | Quantity |
|---|---|
| USB 20Gbps Type-C | 2 |
| USB 5Gbps headers | 2 headers (4 ports) |
| USB 2.0 headers | 2 headers (4 ports) |
Audio
| Component | Details |
|---|---|
| Codec | ROG SupremeFX ALC4082 |
| DAC | ESS ES9219 Quad DAC |
| Surround Sound | 7.1 HD Audio |
| SNR | 120 dB playback / 110 dB recording |
| Features | S/PDIF Out, Premium Caps, Shielding |
Internal Connectors
| Type | Details |
|---|---|
| CPU Fan | 1 |
| CPU OPT Fan | 1 |
| AIO Pump | 1 |
| Chassis Fan | 4 |
| W_PUMP+ | 1 |
| Power | 24-pin + dual 8-pin CPU + 12V-2X6 GPU power |
| RGB | 3 × ARGB Gen2 |
| Storage | 5 × M.2 + 4 × SATA |
| Other | Start button, Q-Connector, Thermal sensor |
