GIGABYTE  |  SKU: 4719331859398

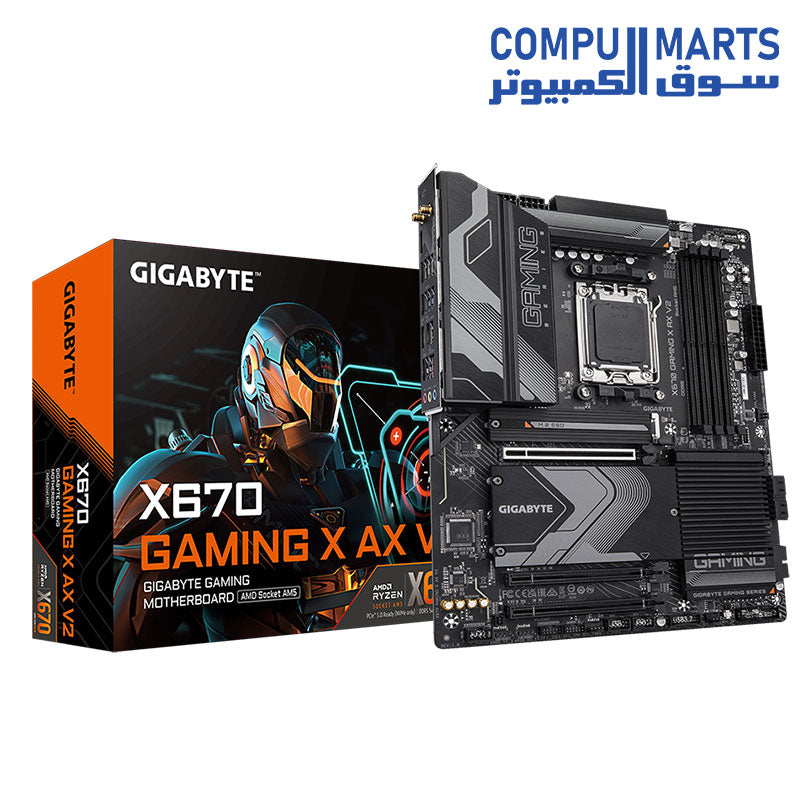

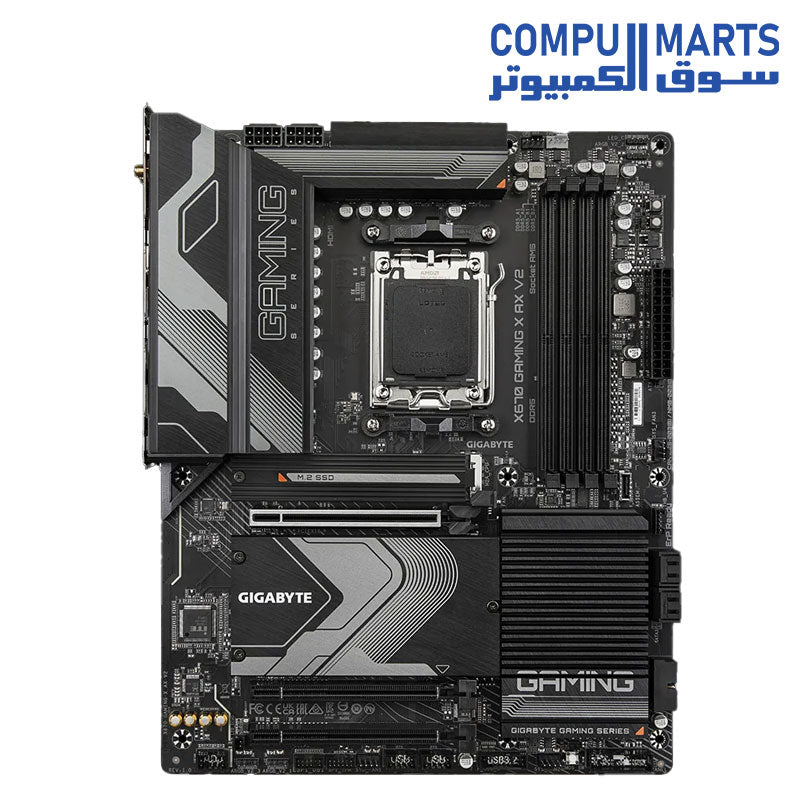

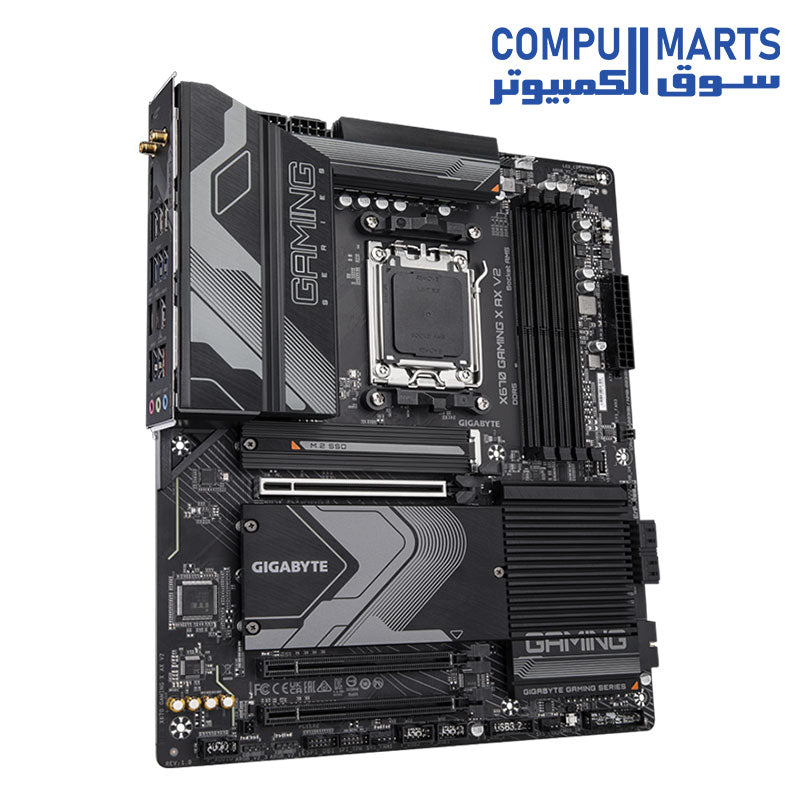

GIGABYTE X670 GAMING X AX V2 (rev. 1.0)

13,500.00 EGP
Coming Soon!

We're so excited about our upcoming releases that we just couldn't keep them under wraps anymore! Drop us your email in the box below, and we'll let you know when it's good to go :)

Description

GIGABYTE X670 GAMING X AX V2 (rev. 1.0)


  • CPU

    1. AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 Series Processors

  • Chipset

    1. AMD X670

  • Memory

    1. Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules

    2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory

    3. Dual channel memory architecture

    4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

    5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules

    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

  • Onboard Graphics

    Integrated Graphics Processor:

    1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

      * Support for HDMI 2.1 version and HDCP 2.3.

      ** Support native HDMI 2.1 TMDS compatible ports.

    (Graphics specifications may vary depending on CPU support.)

  • Audio

    1. Realtek Audio CODEC

    2. High Definition Audio

    3. 2/4/5.1/7.1-channel

       You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

  • LAN

    1. Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

  • Wireless Communication module

    Realtek Wi-Fi 6E RTL8852CE

    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

    2. BLUETOOTH 5.3

    3. Support for 11ax 160MHz wireless standard

    (Actual data rate may vary depending on environment and equipment.)

  • Expansion Slots

    1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

    1. AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode

    2. AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

    3. AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

      * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    Chipset:

    1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

    2. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)

  • Storage Interface

    1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs:

    1. AMD Ryzen 7000 Series Processors support PCIe 5.0 x4/x2 SSDs

    2. AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

    1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:

    1. AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs

    2. AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

    3. AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

    Chipset:

    1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB)

    2. 4 x SATA 6Gb/s connectors

    RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, and RAID 10 support for SATA storage devices

  • USB

    CPU:

    1. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

    2. 2 x USB 3.2 Gen 1 ports on the back panel

    CPU + USB 2.0 Hub:

    1. 4 x USB 2.0/1.1 ports on the back panel

    Chipset:

    1. 2 x USB Type-C ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)

    2. 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

    3. 4 x USB 2.0/1.1 ports available through the internal USB headers

  • Internal I/O Connectors

    1. 1 x 24-pin ATX main power connector

    2. 2 x 8-pin ATX 12V power connectors

    3. 1 x CPU fan header

    4. 1 x CPU fan/water cooling pump header

    5. 3 x system fan headers

    6. 3 x addressable RGB Gen2 LED strip headers

    7. 1 x RGB LED strip header

    8. 4 x SATA 6Gb/s connectors

    9. 4 x M.2 Socket 3 connectors

    10. 1 x front panel header

    11. 1 x front panel audio header

    12. 1 x USB Type-C header, with USB 3.2 Gen 2x2 support

    13. 2 x USB 3.2 Gen 1 headers

    14. 2 x USB 2.0/1.1 headers

    15. 1 x THB_U4 add-in card connector

    16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)

    17. 1 x power button

    18. 1 x reset button

    19. 1 x Clear CMOS button

    20. 1 x reset jumper

    21. 1 x Clear CMOS jumper

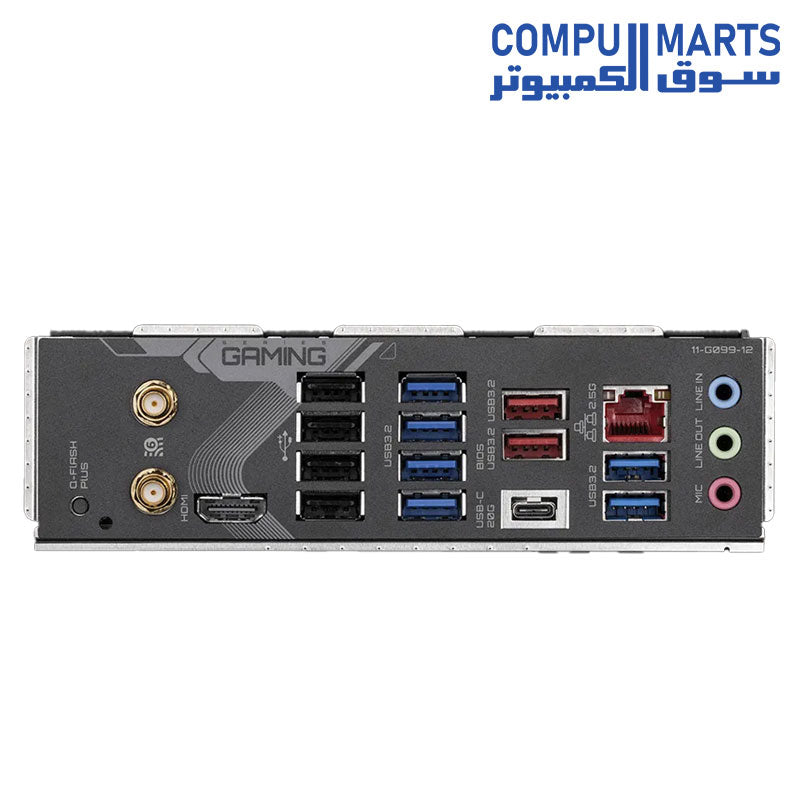

  • Back Panel Connectors

    1. 1 x Q-Flash Plus button

    2. 2 x SMA antenna connectors (2T2R)

    3. 1 x HDMI port

    4. 6 x USB 3.2 Gen 1 ports

    5. 4 x USB 2.0/1.1 ports

    6. 2 x USB 3.2 Gen 2 Type-A ports (red)

    7. 1 x USB Type-C port, with USB 3.2 Gen 2x2 support

    8. 1 x RJ-45 port

    9. 3 x audio jacks

  • I/O Controller

    1. iTE I/O Controller Chip

  • H/W Monitoring

    1. Voltage detection

    2. Temperature detection

    3. Fan speed detection

    4. Water cooling flow rate detection

    5. Fan fail warning

    6. Fan speed control



  • BIOS

    1. 1 x 256 Mbit flash

    2. Use of licensed AMI UEFI BIOS

    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

  • Unique Features

    1. Support for GIGABYTE Control Center (GCC)

      * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

    2. Support for Q-Flash

    3. Support for Q-Flash Plus

    4. Support for Smart Backup

  • Bundled Software

    1. Norton Internet Security (OEM version)

    2. LAN bandwidth management software

  • Operating System

    1. Support for Windows 11 64-bit

    2. Support for Windows 10 64-bit

  • Form Factor

    1. ATX Form Factor; 30.5cm x 24.4cm

  • AMD Socket AM5：Supports AMD Ryzen 7000 Series Processors

  • Unparalleled Performance：Twin 14*+2+2 Phases Digital VRM Solution

  • Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel XMP Memory Module Support

  • Next Generation Storage：1*PCIe 5.0 x4 and 3*PCIe 4.0 x4 M.2 Connectors

  • Mega-Heatpipe & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance

  • EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design

  • Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax

  • Extended Connectivity：HDMI, Dual USB-C 20Gbps and Upcoming GIGABYTE USB4 AIC Support

  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

  • * 7+7 phases parallel power design


  • 8+8 Solid Pin CPU Power Connector

  • Twin 14+2+2 Digital VRM Design

    • 60A DrMOS

    • 6-Layer 2X Copper PCB

    • PCIe 5.0 Ready Mid-Loss PCB

  • Advanced Thermal Design

    • Fully Covered MOSFET Heatsinks

    • 8 mm Mega-Heatpipe

    • 7 W/mk Thermal Conductivity Pad

    • Aluminum I/O Cover

  • Design Ready for PCI Express 5.0

    • 1*PCIe 5.0 x4 M.2 & 3* PCIe 4.0 x4 M.2 with M.2 Thermal Guard

    • 1*PCIe 4.0 x16 with Ultra Durable Armor

    • 1PCIe 3.0 x4 & 1PCIe 3.0 x2

  • PCIe EZ-Latch

  • Dual Channel SMD DDR5 Memory

  • Socket AM5 Supports AMD Ryzen
    7000 Series Processors

  • Smart Fan 6

    • 5*PWM/DC Fan Headers

    • Dual Fan Curve Mode

  • Multi-key

    • Multiple function set by BIOS

    • Reset/RGB Switch/Direct to BIOS/Safe Mode

  • 4*USB 2.0

  • 1*HDMI

  • 6*USB 3.2 Gen1 Type-A

  • 1*USB 3.2 Gen 2x2 Type-C

  • Q-FLASH PLUS Button

  • 2*USB 3.2 Gen2 Type-A

  • 2.5GbE LAN

  • Hi-Fi Audio

    • 8-Ch HD Audio

    • Audio Noise Guard

    • High-End Audio Capacitor

  • Front USB 3.2 Gen 2x2 Type-C

  • 4*SATA 6Gb/s

  • RGB FUSION

    • 3 x Addressable LED Headers

    • 1 x RGB LED Header

  • 24 Pin ATX Power Connector

  • Wi-Fi 6E 802.11ax with Ultra-high gain Antenna

  • M.2 EZ-Latch


Durable Performance

GIGABYTE Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform.

Digital VRM Design

14+2+2 Phases Digital VRM Solution

GIGABYTE UD series motherboards use a 14+2+2 phases digital PWM design to support AMD's new generation CPU by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability

EXPO & XMP Support

DDR5 EXPO & XMP Overclocking Up to 8000 and Beyond*

GIGABYTE is offering a tested and proven platform that the memory overclocking capability is able up to 8000 and beyond. All users need to do for achieving this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO/ Intel XMP capable, the EXPO/XMP function is activated and enabled on their GIGABYTE motherboard.

EXPO & XMP Support

Unlock DDR5 Voltage

Secure Mode
MB provides fixed 5V to Native DDR5 memory and built-in PMIC outputs locked 1.1v to memory IC.

    • • GIGABYTE exclusive circuit design unlocks Native DDR5 voltage control

    • • Transforms Native DDR5 memory module to Overclocked DDR5 memory

    • • Increases DDR5 memory overclocking performance and capability

    • • Supports all PMIC vendors for maximum compatibility

EXPO & XMP Support

GIGABYTE Exclusive DDR5 Circuit Design

Programmable Mode
GIGABYTE’s exclusive design unlocks Native DDR5 PMIC secure mode into programmable mode and control Native DDR5 voltage with wide range.

EXPO & XMP Support

Shielded Memory Routing

Note: The picture is for reference and may vary by mode.

All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.

EXPO & XMP Support

EXPO and XMP Dual Support

GIGABYTE AM5 MB supports both AMD EXPO and Intel XMP overclocking memory modules for maximal compatibility. MB will automatically detect both profiles format in SPD, users can choose to enable one of profiles from BIOS menu and easily reach overclocked memory performance.

EXPO & XMP Support

DDR5 Auto Booster

Automatically Boost the Native DDR5 frequency to 5000MHz while the system is under heavy loading by a single click.

EXPO & XMP Support

AMD EXPO and Intel XMP 3.0 User Profile
- SPD Re-defined or retrieve from database
- Performance Simulation
- Save/Load Profile
- Overclocked Performance
- Profile Clearance

Define and create your own SPD profile into Native, AMD EXPO™ and Intel® XMP 3.0 memory modules. One user-defined profile can be saved, loaded either locally or from/to an external storage device.

  • One empty SPD profile can be defined by users and carry to next computer

  • Quick memory performance simulation based on user input clock and timing parameters

  • Profile save and load function to share your memory parameters online


Thermal

Fully Covered MOSFET Heatsink

3X Large Surface
Increased surface area up to 3X larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs.
Real One-piece Build
TMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors' multi-piece design.

Thermal

M.2 Thermal Guard

The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

Thermal

6-Layer & 2X Copper PCB

2X copper PCBs design effectively lower the component temperature by its high thermal conductivity and low impedance.

Thermal

8mm Mega-Heatpipe

8mm Mega-Heatpipe has 30% wider diameter than traditional 6mm heatpipe and is able to transfer more heat under same time period.

Thermal

7 W/mK Thermal Pad


Future Connectivity

The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

802.11ax Wi-Fi 6E with GIGABYTE Ultra-high Gain Antenna

The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

* Photo for reference only.

2.5GbE LAN

Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.

PCIe 5.0/ 4.0 Hardware Design

GIGABYTE X670 Motherboards are ready to work with the PCIe 5.0/ 4.0 devices which are expected to experience 4 times bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.

* Photo for reference only.

Hi-Fi Audio

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.


Easy Friendly

Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

PCIe EZ-Latch

Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.


M.2 EZ-Latch

Attach and remove your M.2 module with ease.


Q-Flash Plus

Update the BIOS easily without installing the CPU, memory and graphics card. With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!

  • STEP 1: Plug 24pin & 8pin power supply cable on motherboard

  • STEP 2: Download motherboard BIOS file and rename to ""gigabyte.bin"", save to USB flashdrive, and plug USB flashdrive into Q-Flash USB port

  • STEP 3: Press Q-Flash Plus button, and motherboard will start updating BIOS automatically.

OC GUIDE

Smart Fan 6

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

Cooling Features

  • High Current Support: Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection

  • Precision Control: Multiple temperature/fan speed control points for precise fan curve

  • Dual Curve Mode: Slope/Stair dual mode for different user scenario

  • Fan Stop: Fan can stop completely below users' specified temperature point

Smart Fan 6 BIOS UI

  1. Improve fan curve UI: We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.

  2. Slope/Stair dual graph mode: Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.

  3. Manual Input: For advanced users, we provide fan speed manual input for more precise control.

  4. EZ Tuning: Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.

  5. Fan curve profile: Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS.

Note: The picture is for reference and may vary by model.


GIGABYTE Control Center

a unified software platform across a variety of GIGABYTE products.

RGB Fusion

customize the RGB lighting on the motherboard or devices that connect to it.

Reviews (0)
Back to top
