Description
Description
| Category | Specification Details |
|---|---|
| Chipset | AMD X870E |
| CPU Support | AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors (Socket AM5) |
| Memory | 4x DDR5 UDIMM, Max 256GB | Supports Up to 9200+ MT/s (OC) | AMD EXPO™ Support |
| Expansion Slots | 2x PCIe 5.0 x16 slots (supports x16/x0 or x8/x8 modes) | 1x PCIe 4.0 x4 slot |
| Onboard Graphics | 2x USB4® Type-C (DisplayPort 1.4 over USB-C), Max Resolution 4K @60Hz |
| Storage | Total 7x M.2 Slots (Up to 3x PCIe 5.0 x4) | 4x SATA 6Gb/s | M.2 XPANDER-Z Included |
| RAID | NVMe RAID 0/1/5/10 | SATA RAID 0/1/10 |
| Networking | 1x Marvell® 10Gbps LAN | 1x Realtek® 5Gbps LAN | Wi-Fi 7 (Up to 5.8Gbps) | BT 5.4 |
| Audio | Realtek® ALC4082 + ESS9219Q Combo DAC/HPA | 7.1-Channel High Performance Audio |

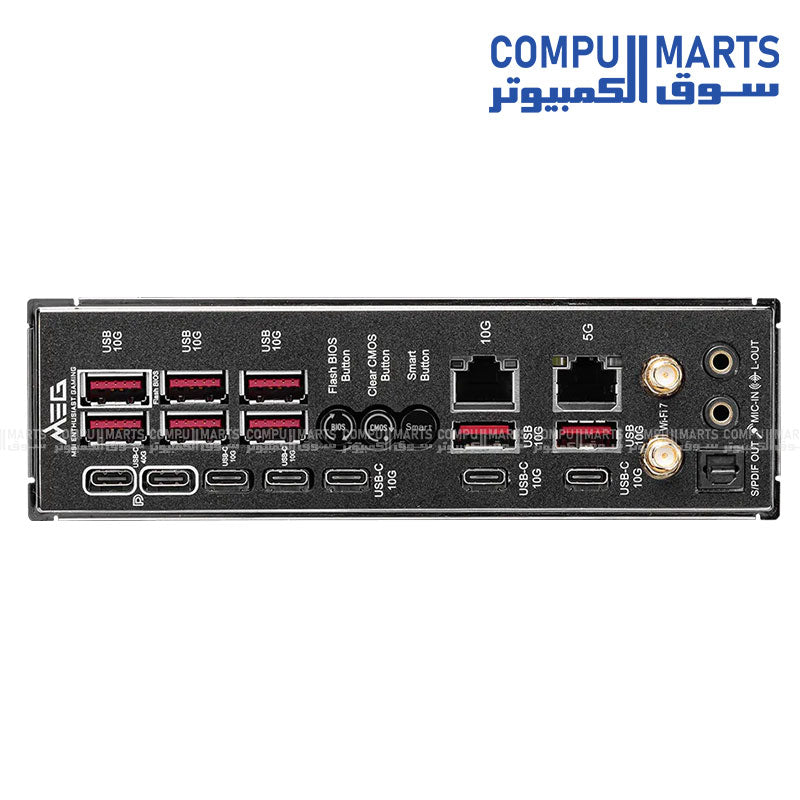

| USB Ports (Rear) | 2x USB 40Gbps (Type-C) | 5x USB 10Gbps (Type-C) | 8x USB 10Gbps (Type-A) |
| Internal I/O | 1x USB 20Gbps (Type-C) | 1x PD Quick Charge Connector | 2x Thermal Sensors |
| Special Features | Dynamic Dashboard III | EZ Digi-Debug LED | Flash BIOS & Clear CMOS Buttons |
| Form Factor | E-ATX (304.8mm x 277mm) |
