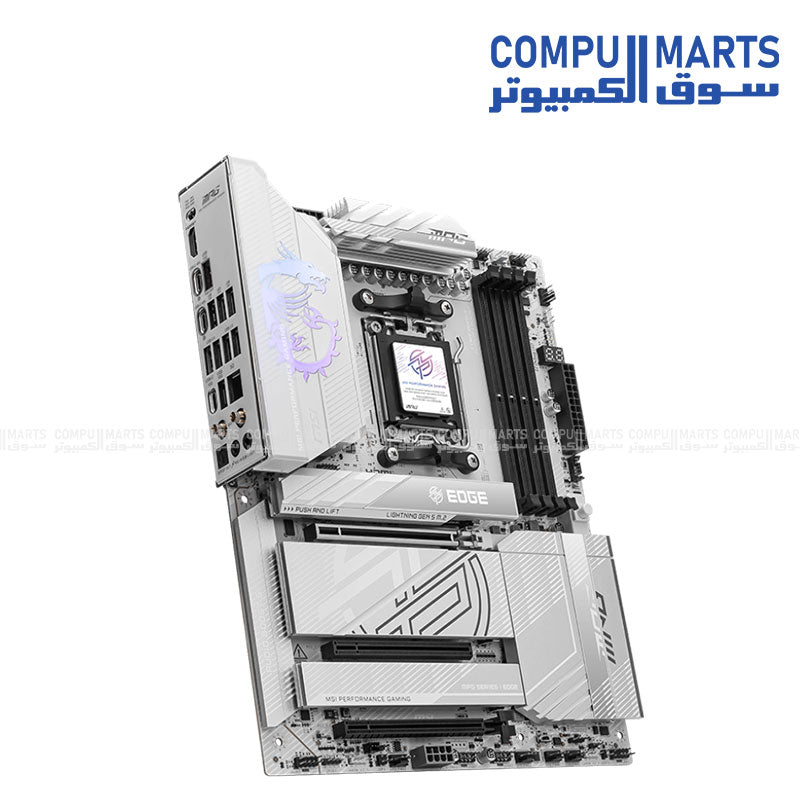

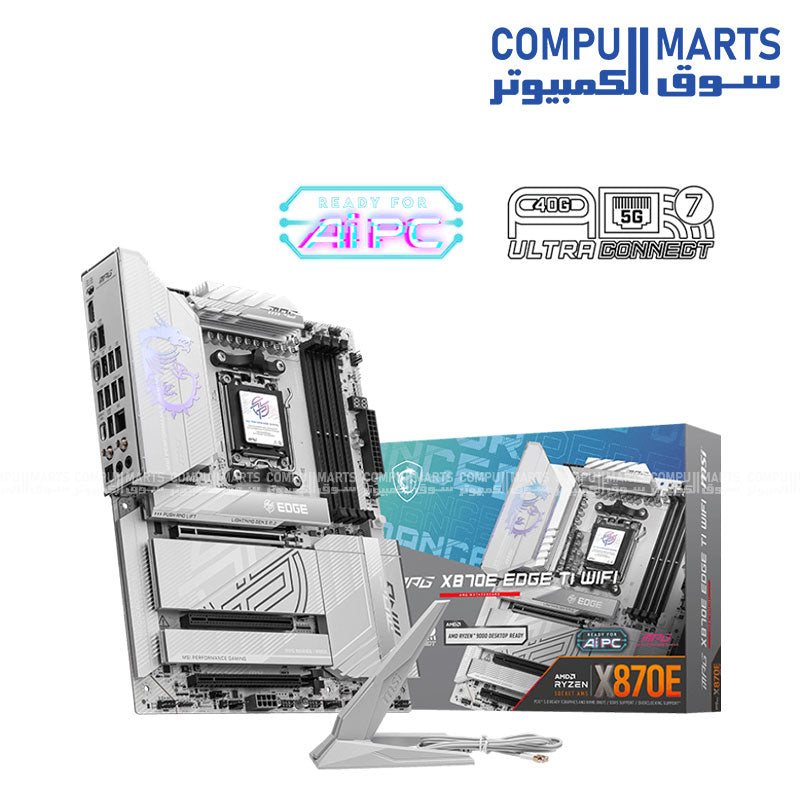

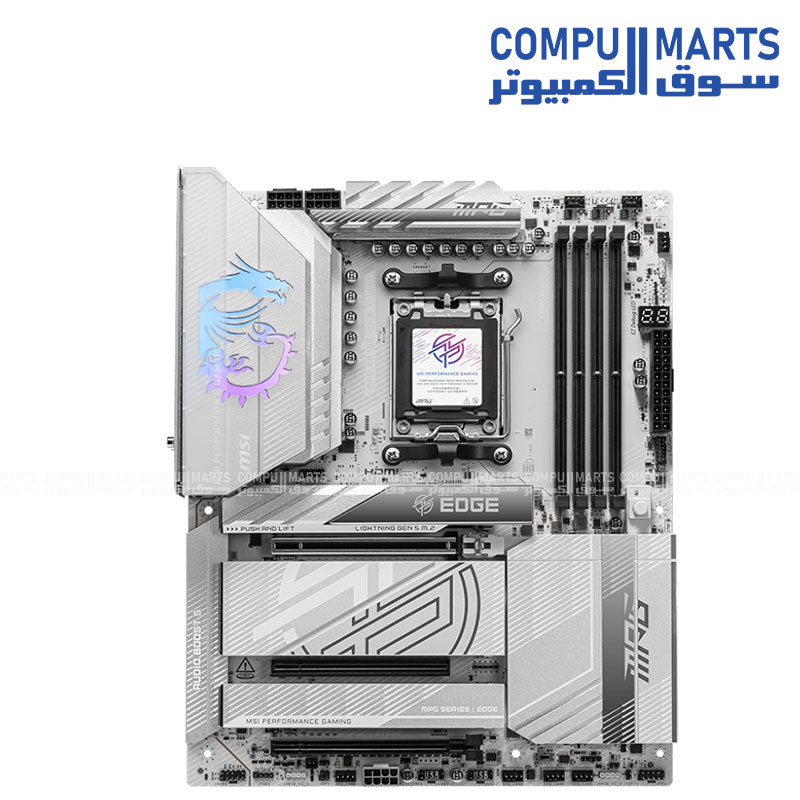

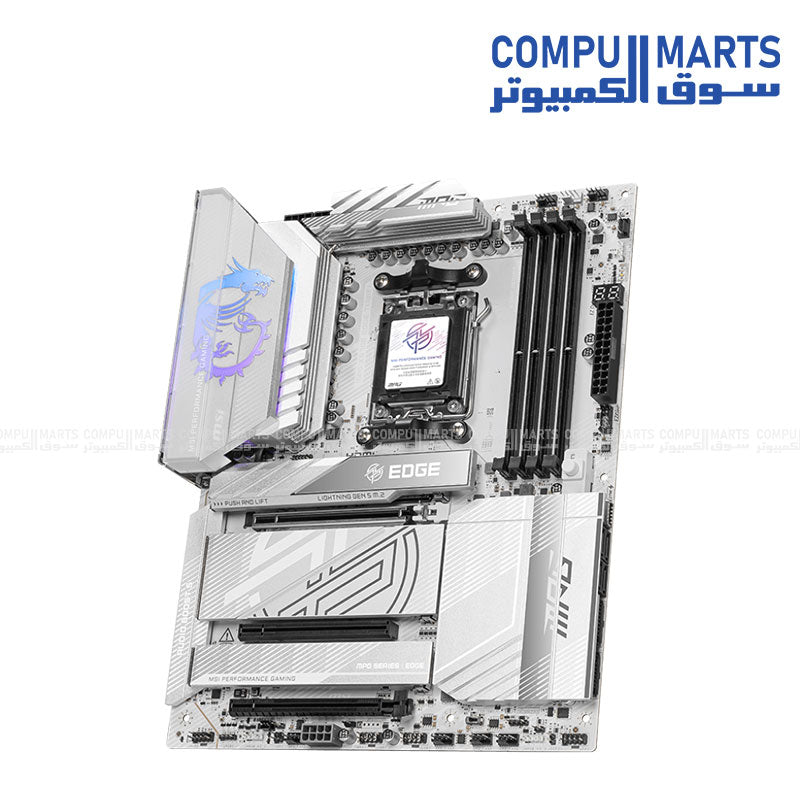

MSI MPG X870E EDGE TI WIFI – ATX AM5 Motherboard | X870E Chipset | DDR5 8400+MT/s | Wi‑Fi 7

MSI MPG X870E EDGE TI WIFI – ATX AM5 Motherboard | X870E Chipset | DDR5 8400+MT/s | Wi‑Fi 7

 Model Name MPG X870E EDGE WIFI
 CPU Support Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop
 Processors
 CPU Socket AMD Socket AM5
 Chipset AMD X870E Chipset
 Expansion slots 1x PCIe 5.0 x16 slot,
 1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x1 slot
 Display Interface Support 8K@60Hz as specified in HDMI 2.1 FRL
 2x USB4 ports support USB Type-C display outputs– Requires Processor Graphics
 Memory Support 4 DIMMs, Dual Channel DDR5 - 8400+MT/s (OC)
 Storage 2x M.2 Gen5 x4 128Gbps slot
 2x M.2 Gen4 x4 64Gbps slots
 4x SATA 6Gbps ports

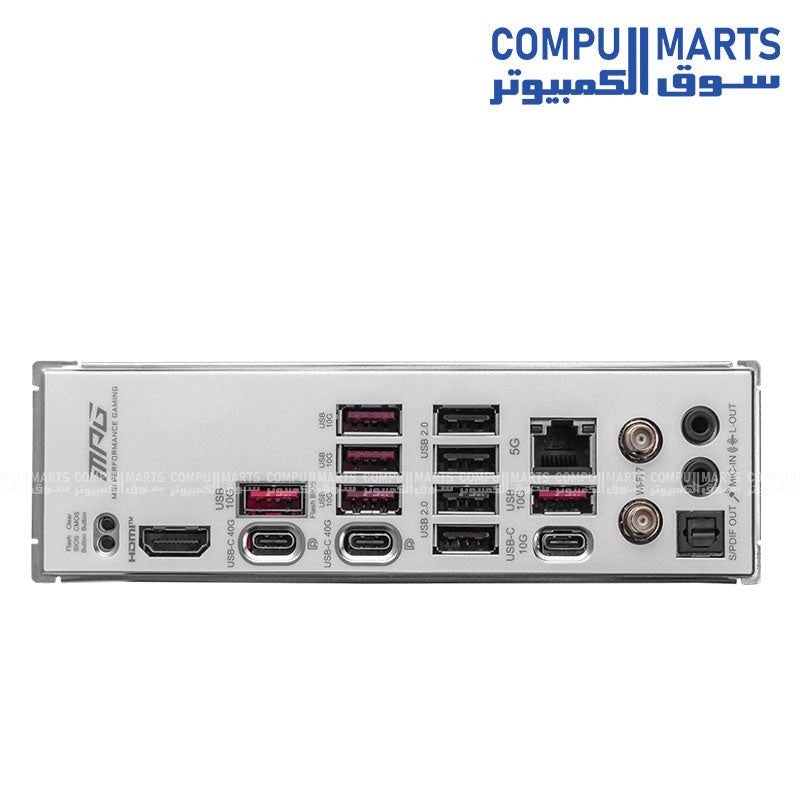

 USB ports 2x USB 40Gbps (2 Type-C),
 1x USB 20Gbps (1 Type-C),
 6x USB 10Gbps (1 Type-C + 5 Type-A),
 4x USB 5Gbps (4 Type-A),
 8x USB 2.0 Type-A
 LAN Realtek 5Gbps LAN
 Wireless /
 Bluetooth
 Wi-Fi 7 Solution, Bluetooth 5.4
 Audio 8-Channel (7.1) HD Audio with Audio Boost 5
 FEATURES
 Premium Thermal Design
 Heavy plated MOSFET heatsink with heat-pipe / high quality
 7W/mK MOSFET thermal pads / extra choke thermal pads /
 onboard M.2 Shield Frozr
 Wi-Fi 7
 The latest wireless solution with a new 160MHz channel,
 achieving a maximum transmission speed of 2.9Gbps, which is
 2.4 times faster than Wi-Fi 6/6E.
 EZ PCIe Release
 A simple press of a button to effortlessly lock or unlock the PCIe
 slot, simplifying the installation and removal of the graphics card.
 EZ M.2 Shield Frozr II
 The new tool-less design makes installing or removing your M.2
 SSD and Shield Frozr much easier
 Lightning Gen 5
 The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
 maximum transfer speed.
 Latest DDR5 Memory
 A huge step of DDR performance enhancement with the latest
 DDR5 memory and MSI Memory Boost technology.
 Quadruple M.2 Connectors
 Onboard quadruple M.2 connectors for the maximum storage
 performance.
 Lightning USB 40G
 Featuring a built-in USB 4 port, it offers a lightning-fast 40Gbps
 transmission speed.
 5G Network Solution
 Featuring premium 5G LAN to deliver better network experience.
 Wi-Fi 7
 The latest wireless solution with a new 320MHz channel,
 achieving a maximum transmission speed of 5.8Gbps, which is
 2.4 times faster than Wi-Fi 6/6E.
 Audio Boost 5
 Isolated audio with a high quality audio processor for the most immersive gaming experience
