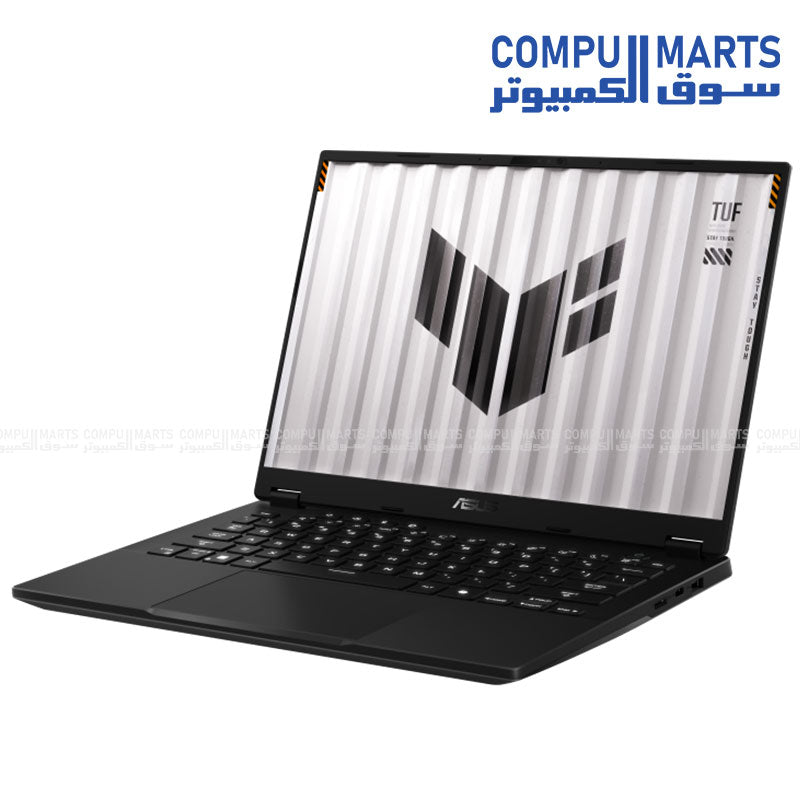

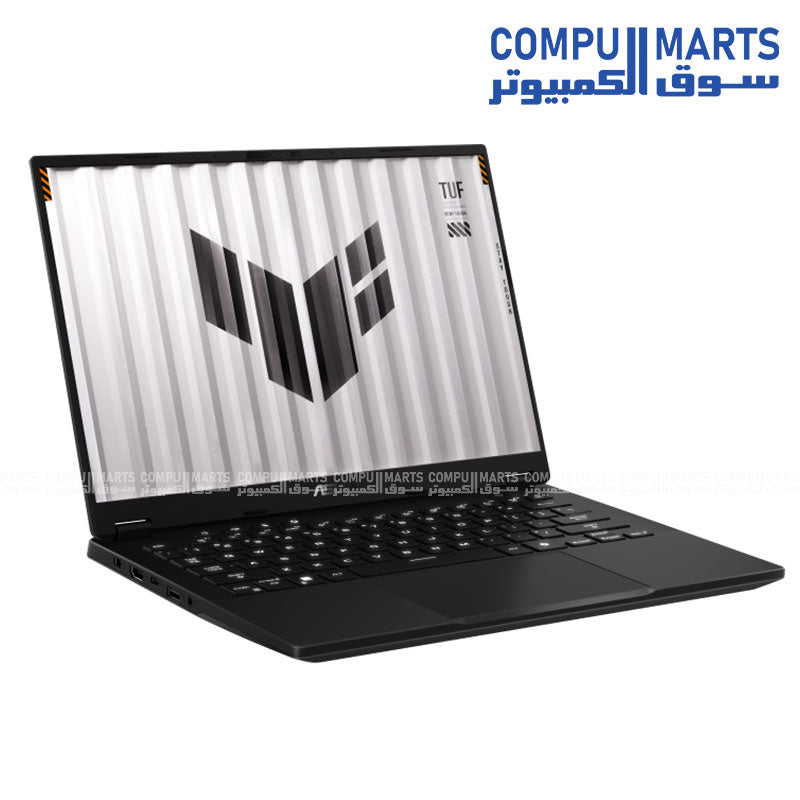

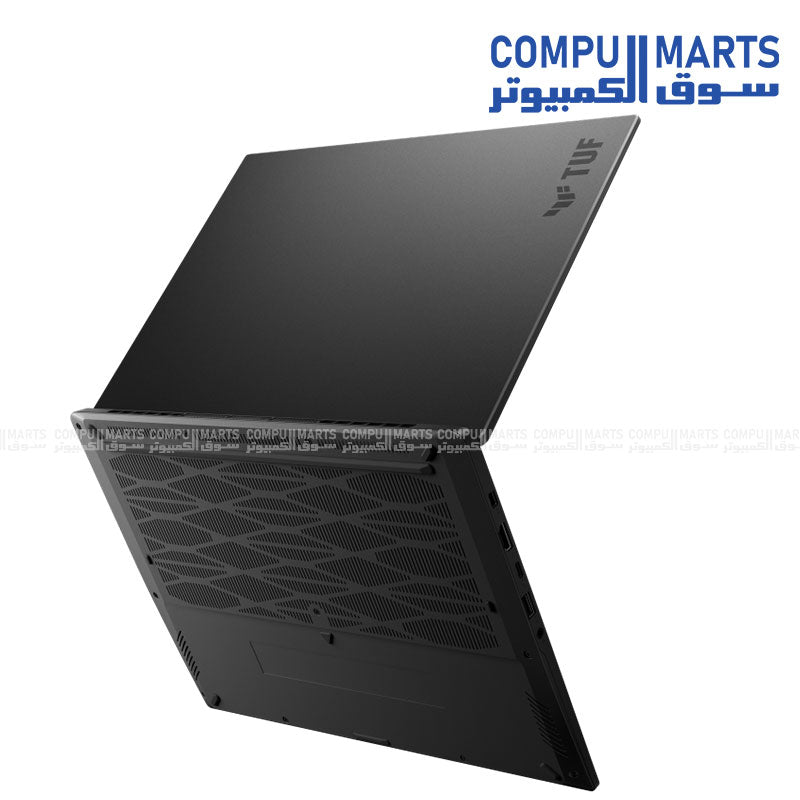

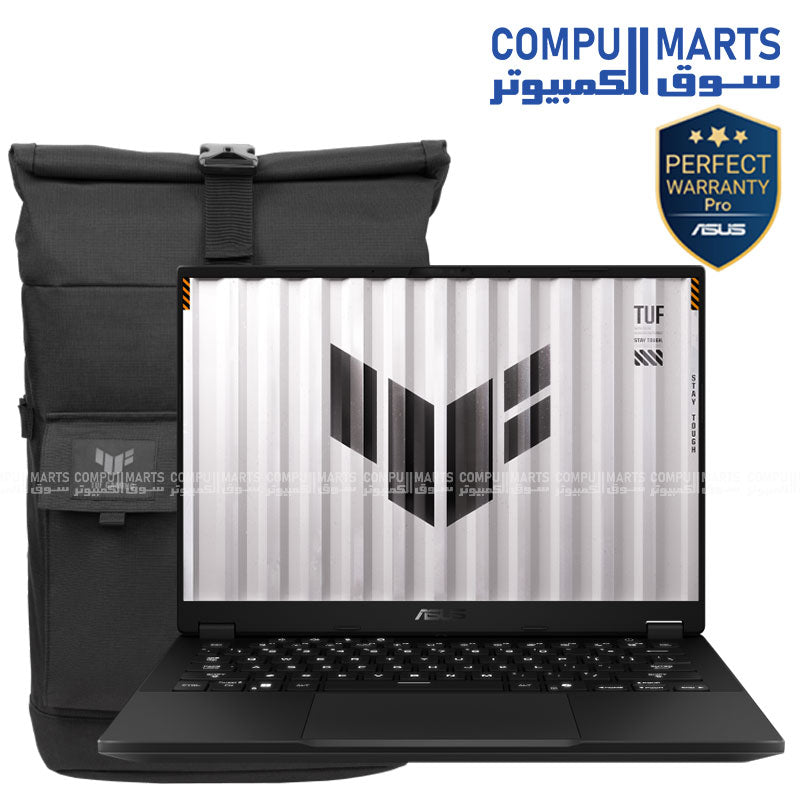

ASUS TUF Gaming A14 FA401KM-RG014W Ryzen AI 7 350 - RTX 5060 - 16GB RAM - 1TB SSD - 14″ 2.5K 165Hz

Part No

90NR0KG1-M00170

Sales Model Name

FA401KM-RG014W

EAN Code

4711636102360

UPC Code

199291102361

WEEE

2.086

BASE UNIT

VSNR0KG1-BU1000

Marketing Name

ASUS TUF Gaming A14

Operating System

Windows 11 Home

Office

1-month trial for new Microsoft 365 customers. Credit card required.

Color

Jaeger Gray

Dimension (W x D x H)

31.1 x 22.7 x 1.69 ~ 1.99 cm (12.24" x 8.94" x 0.67" ~ 0.78")

Weight

1.46 Kg (3.22 lbs)

Processor

AMD Ryzen™ AI 7 350 Processor 2.0GHz (24MB Cache, up to 5.0GHz, 8 cores, 16 Threads); AMD XDNA™ NPU up to 50TOPS

Chipset

N/A

Intergrated GPU

AMD Radeon™ Graphics

Discrete/Optimus

MUX Switch + NVIDIA® Advanced Optimus

Graphic

NVIDIA® GeForce RTX™ 5060 Laptop GPU

Graphic Wattage

1737MHz* at 105W (1687MHz Boost Clock+50MHz OC, 90W+15W Dynamic Boost)

Graphic Memory

8GB GDDR7

Neural Processor

AMD XDNA™ NPU up to 50TOPS

Panel Size

14-inch

Resolution

2.5K (2560 x 1600, WQXGA) 16:10 aspect ratio

Refresh Rate

165Hz

Viewing Angle

85/85/85/85

Panel Tech

IPS-level

Brightness

400nits

Contrast Ratio

1000:1

SRGB %

100.00%

Glare

Anti-glare display

Adaptive-Sync technology

G-Sync

Pantone

N/A

Support Dolby Vision HDR

N/A

On board memory

8GB*2 LPDDR5X 7500 on board

Total System Memory

LPDDR5X 16GB

Memory Slot

N/A

Memory Max.

16GB

How to upgrade memory

Not Available

Storage

1TB PCIe® 4.0 NVMe™ M.2 SSD

M.2 slots support either SATA or NVMe

2

M.2 SSD Support List

1TB PCIe® 4.0 NVMe™ M.2 SSD

2TB PCIe® 4.0 NVMe™ M.2 SSD

Expansion Slot (includes used)

2x M.2 PCIe

LAN

N/A

Wireless

Wi-Fi 6E(802.11ax) (Triple band) 2*2 + Bluetooth® 5.3 Wireless Card (*Bluetooth® version may change with OS version different.)

I/O Ports

1x Type-C USB 4 with support for DisplayPort™ / power delivery (data speed up to 40Gbps)

1x USB 3.2 Gen 2 Type-C with support for DisplayPort™ (data speed up to 10Gbps)

2x USB 3.2 Gen 2 Type-A (data speed up to 10Gbps)

1x card reader (microSD) (UHS-II)

Display output

1x HDMI 2.1 FRL

Camera

1080P FHD IR Camera for Windows Hello

Mic

Built-in array microphone

Keyboard Type

Backlit Chiclet Keyboard Single Light

With Copilot key

*Copilot in Windows (in preview) is rolling out gradually within the latest update to Windows 11 in select global markets. Timing of availability varies by device and market. Learn more: https://www.microsoft.com/en-us/windows/copilot-ai-features?r=1#faq

Aura Sync

N/A

Touchpad

Touchpad

N/A

Speakers

2-speaker system

Audio

1x 3.5mm Combo Audio Jack

Built-in array microphone

Audio Tech

AI noise-canceling technology

Dolby Atmos

Hi-Res certification (for headphone)

Support Microsoft Cortana near field/far field (Microsoft service suspended in spring of 2023.)

Security

BIOS Administrator Password and User Password Protection

Pluton Security Processor

Secured-core PC (Level 3)

Antivirus

McAfee® 30 days free trial

Battery

73WHrs, 4S1P, 4-cell Li-ion

Fast charging

Recharge from 0-50% in 30 minutes

Power

Rectangle Conn, 200W AC Adapter, Output: 20V DC, 10A, 200W, Input: 100-240V AC, 50/60Hz universal
