GIGABYTE A620M S2H Micro ATX Motherboard – AMD A620 Chipset, AM5 So...
GIGABYTE A620M S2H Micro ATX Motherboard – AMD A620 Chipset, AM5 Socket, DDR5 6400 MT/s (OC), 128GB Memory Support, PCIe 4.0, M.2, SATA 6Gb/s, DisplayPort, HDMI, D-Sub, Gigabit LAN is backordered and will ship as soon as it is back in stock.
Description
Description

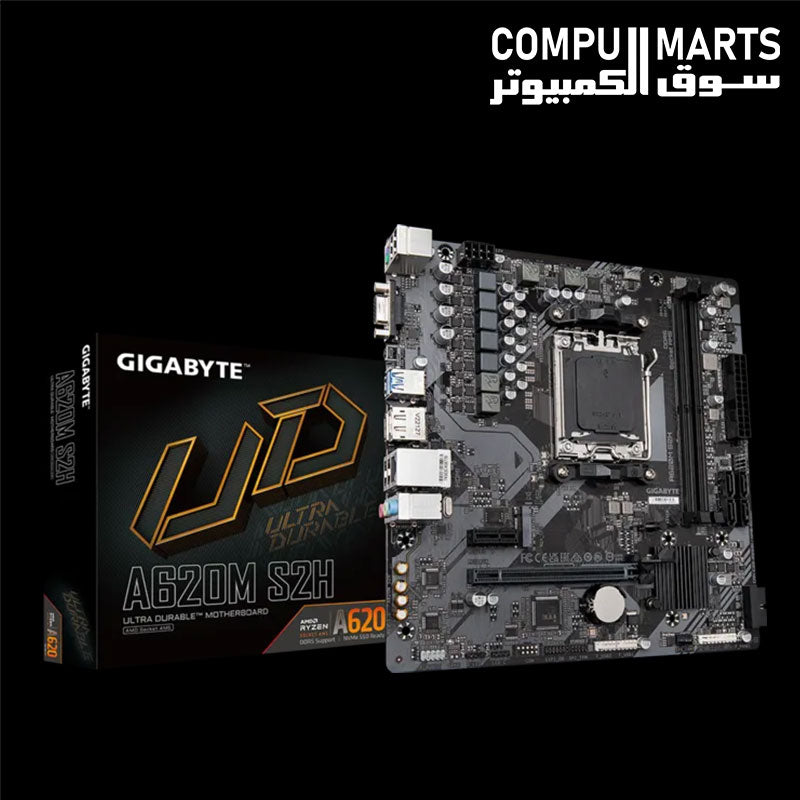

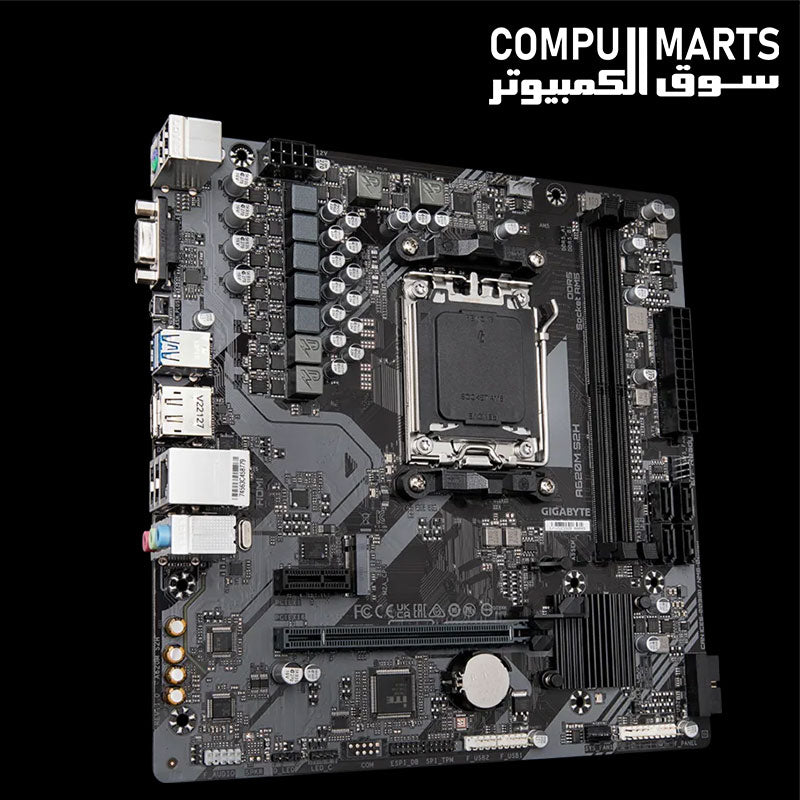

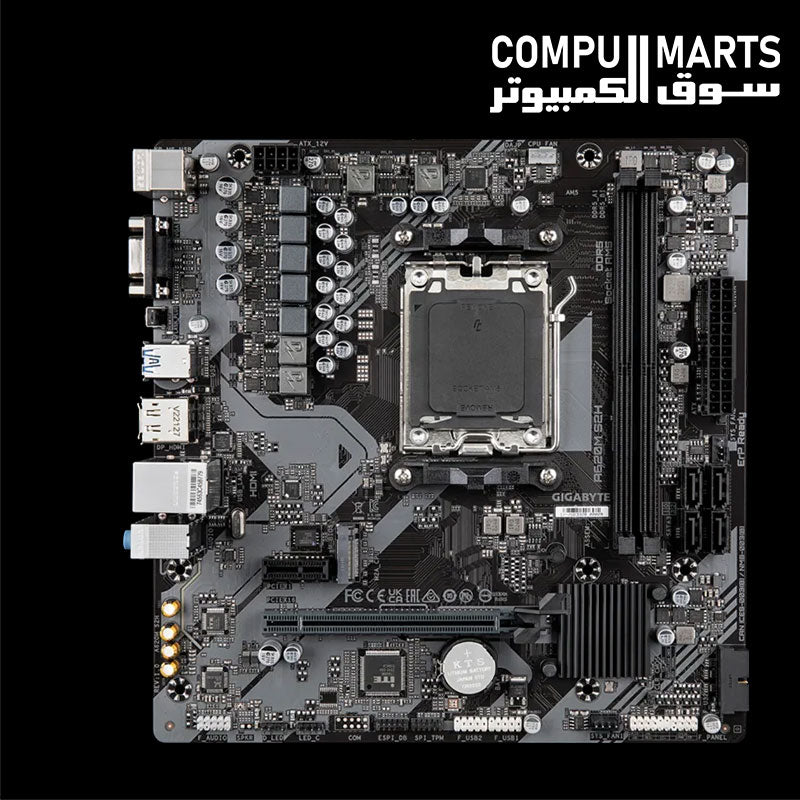

The GIGABYTE A620M S2H is a Micro ATX motherboard featuring the AMD A620 chipset and AMD Socket AM5 support for AMD Ryzen™ 7000, Ryzen™ 8000, and Ryzen™ 9000 Series Processors. It supports dual-channel DDR5 memory up to 128 GB, with supported memory data rates up to 6400 MT/s (OC). Storage connectivity includes one CPU-integrated M.2 connector supporting PCIe 4.0 x4/x2 SSDs with the listed Ryzen processor series and four SATA 6Gb/s connectors. Expansion includes a PCI Express x16 slot with processor-dependent PCIe 4.0 modes and one PCIe 3.0 x1 slot. Display connections include DisplayPort, HDMI, and D-Sub, while networking uses Realtek GbE LAN. For PC builds in Egypt, the GIGABYTE A620M S2H motherboard specifications are available to explore at Compumarts.
| MODEL | A620M S2H |
| CHIPSET | AMD A620 |
| CPU SOCKET | AMD Socket AM5 |
| PROCESSOR SUPPORT | AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors |
| MEMORY TYPE | DDR5 |
| MEMORY SLOTS | 2 x DDR5 DIMM sockets |
| MAXIMUM MEMORY | 128 GB |
| MEMORY SPEED | 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s |
| MEMORY ARCHITECTURE | Dual channel memory architecture |
| MEMORY PROFILES | AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| INTEGRATED GRAPHICS | Integrated Graphics Processor |
| D-SUB DISPLAY | 1920x1200@60 Hz |
| DISPLAYPORT | 3840x2160@144 Hz |
| DISPLAYPORT VERSION | DisplayPort 1.4 version |
| HDMI DISPLAY | 4096x2160@60 Hz |
| HDMI VERSION | HDMI 2.1 version |
| HDCP | HDCP 2.3 |
| SIMULTANEOUS DISPLAYS | Support for up to 3 displays at the same time |
| AUDIO CODEC | Realtek® Audio CODEC |
| AUDIO | High Definition Audio |
| AUDIO CHANNELS | 2/4/5.1/7.1-channel |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| PCI EXPRESS X16 | 1 x PCI Express x16 slot, integrated in the CPU |
| PCI EXPRESS X1 | 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| M.2 CONNECTOR | 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs |
| M.2 STORAGE SUPPORT | PCIe 4.0 x4/x2 SSDs |
| SATA CONNECTORS | 4 x SATA 6Gb/s connectors |
| NVME RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices |
| SATA RAID | RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| USB 3.2 GEN 1 | 2 x USB 3.2 Gen 1 ports on the back panel |
| USB 2.0/1.1 | 4 x USB 2.0/1.1 ports on the back panel |
| INTERNAL USB | 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers |
| INTERNAL POWER | 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector |
| FAN HEADERS | 1 x CPU fan header; 2 x system fan headers |
| LED HEADERS | 1 x addressable LED strip header; 1 x RGB LED strip header |
| INTERNAL STORAGE CONNECTORS | 1 x M.2 Socket 3 connector; 4 x SATA 6Gb/s connectors |
| FRONT PANEL | 1 x front panel header |
| FRONT PANEL AUDIO | 1 x front panel audio header |
| TPM HEADER | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| CLEAR CMOS | 1 x Clear CMOS jumper |
| BACK PANEL PS/2 | 1 x PS/2 keyboard/mouse port |

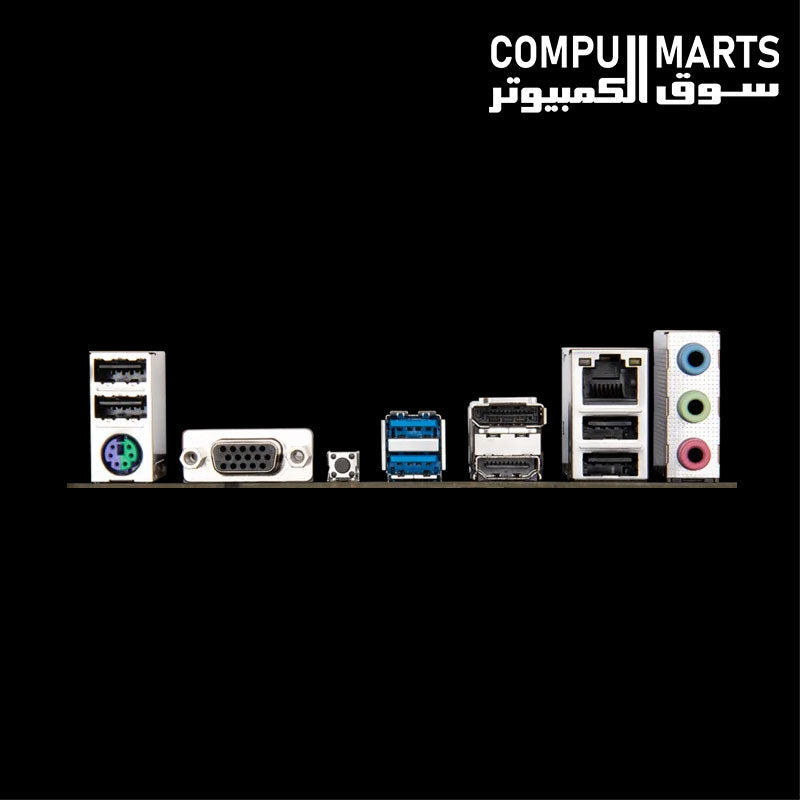

| BACK PANEL DISPLAY | 1 x D-Sub port; 1 x DisplayPort; 1 x HDMI port |
| BACK PANEL ETHERNET | 1 x RJ-45 port |
| BACK PANEL AUDIO | 3 x audio jacks |
| BACK PANEL Q-FLASH | 1 x Q-Flash Plus button |
| I/O CONTROLLER | iTE® I/O Controller Chip |
| HARDWARE MONITORING | Voltage detection; Temperature detection; Fan speed detection; Water cooling flow rate detection |
| FAN CONTROL | Fan fail warning; Fan speed control |
| BIOS | 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS |
| BIOS STANDARDS | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| SOFTWARE SUPPORT | Support for GIGABYTE Control Center (GCC) |
| FIRMWARE UTILITIES | Support for Q-Flash; Support for Q-Flash Plus |
| BUNDLED SOFTWARE | Norton® Internet Security (OEM version); LAN bandwidth management software |
| OPERATING SYSTEM | Support for Windows 11 64-bit; Support for Windows 10 64-bit |
| FORM FACTOR | Micro ATX Form Factor |
| DIMENSIONS | 23.0cm x 22.5cm |
