GIGABYTE B760M E DDR5 Motherboard – LGA1700, Intel B760, PCIe 4.0, Dual M.2

Name: GIGABYTE B760M E DDR5 Motherboard – LGA1700, Intel B760, PCIe 4.0, Dual M.2
Brand: GIGABYTE
Price: 5500.00 EGP
Availability: InStock

5,500.00 EGP

Shipping calculated at checkout.

Pickup available at Bostan Mall , 10th Floor , Bab Al Louq, Abdeen, Egypt

Usually ready in 24 hours

👉 Promo Codes – CompuMarts

Delivery and Shipping

Fast shipping to your doorstep! Get your order delivered within 1-5 days based on location.

Subscribe to our newsletter

Description

Category	Specification Details
CPU	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors; L3 cache varies with CPU
Chipset	Intel® B760 Express Chipset
Memory	Support for DDR5 7200(O.C.) to 4000 MT/s; 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity); Dual channel architecture; Support for ECC Un-buffered and non-ECC Un-buffered DIMM; Support for XMP modules
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub (1920x1200@60 Hz), 1 x DisplayPort 1.2 (4096x2304@60 Hz), 1 x HDMI 2.1 (4096x2160@60 Hz); Support for up to triple-display
Audio	Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; Support for S/PDIF Out
LAN	Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots	CPU: 1 x PCI Express x16 slot (PCIe 4.0 x16); Chipset: 1 x PCI Express x1 slot (PCIe 3.0 x1)
Storage Interface	CPU: 1 x M.2 (PCIe 4.0 x4/x2); Chipset: 1 x M.2 (PCIe 4.0 x4/x2) and 4 x SATA 6Gb/s; RAID 0, 1, 5, 10 support for SATA
USB	Chipset: 6 x USB 3.2 Gen 1 (4 back, 2 internal), 6 x USB 2.0/1.1 (2 back, 4 internal)
Internal I/O Connectors	1 x 24-pin ATX, 1 x 8-pin ATX 12V, 1 x CPU fan, 2 x system fan, 1 x RGB LED, 2 x M.2, 4 x SATA, Front panel headers (Audio, USB 3.2, USB 2.0), S/PDIF Out, TPM header, Serial port, Clear CMOS

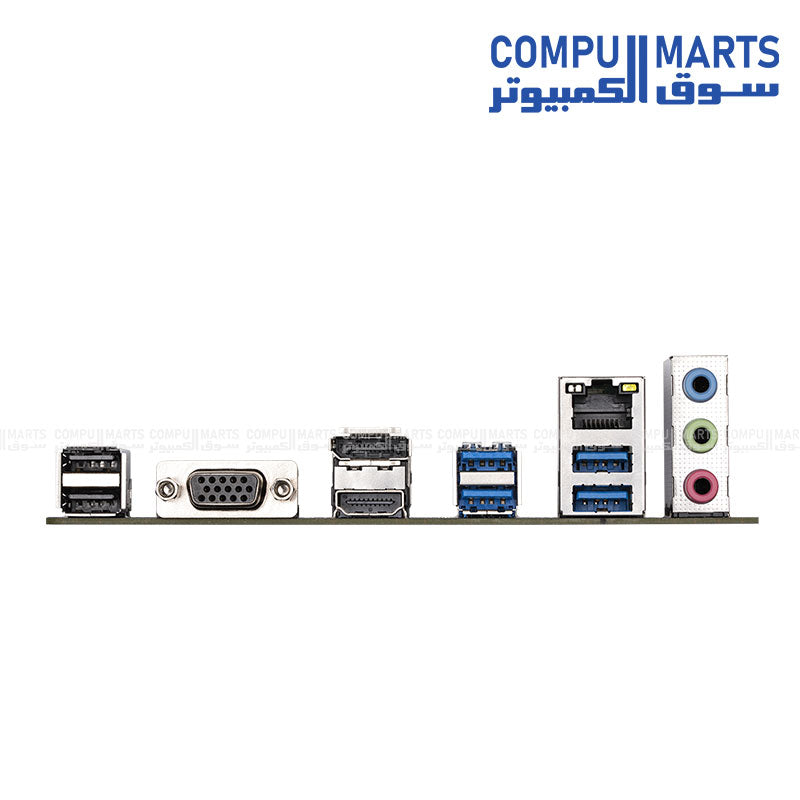

Back Panel Connectors	2 x USB 2.0/1.1, 1 x D-Sub, 1 x DisplayPort, 1 x HDMI, 4 x USB 3.2 Gen 1, 1 x RJ-45, 3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage, Temperature, Fan speed, Water cooling flow rate detection; Fan fail warning; Fan speed control
BIOS	1 x 128 Mbit flash; Licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC); Support for Q-Flash
Bundled Software	Norton® Internet Security (OEM version); LAN bandwidth management software
Operating System	Support for Windows 11 64-bit; Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 23.0cm x 21.5cm
