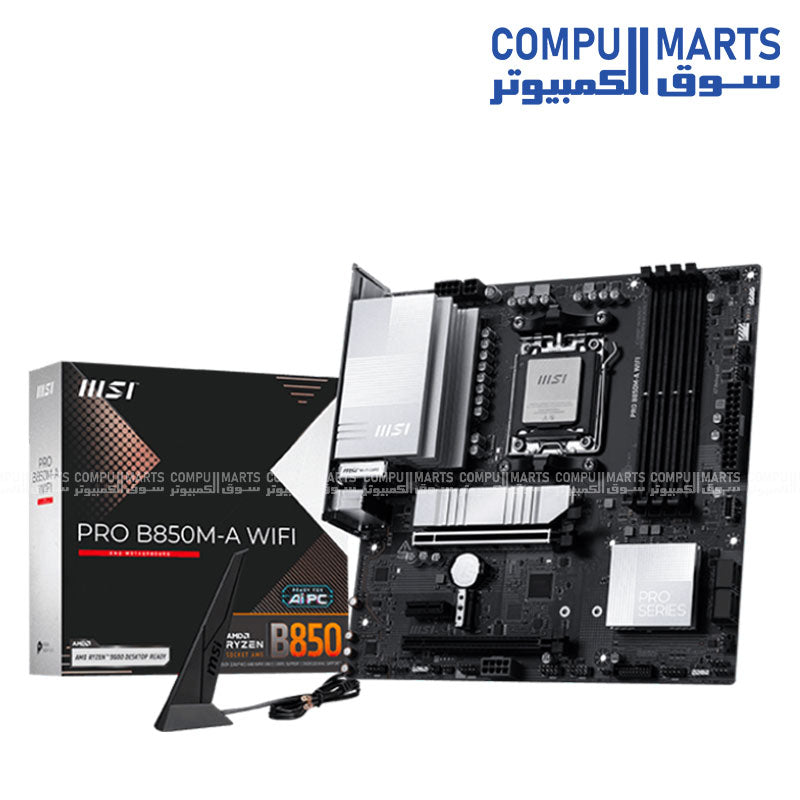

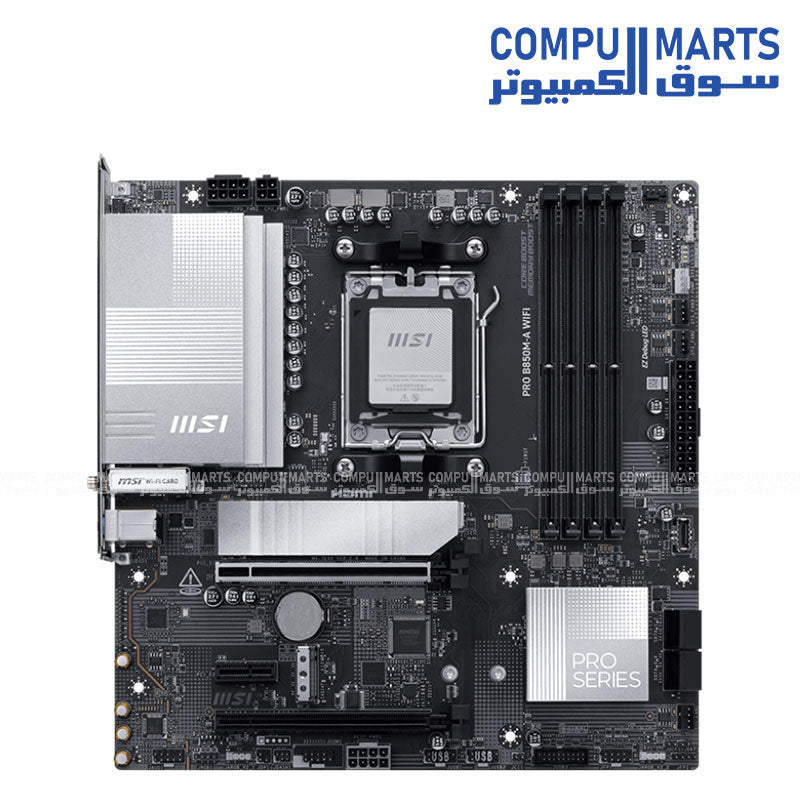

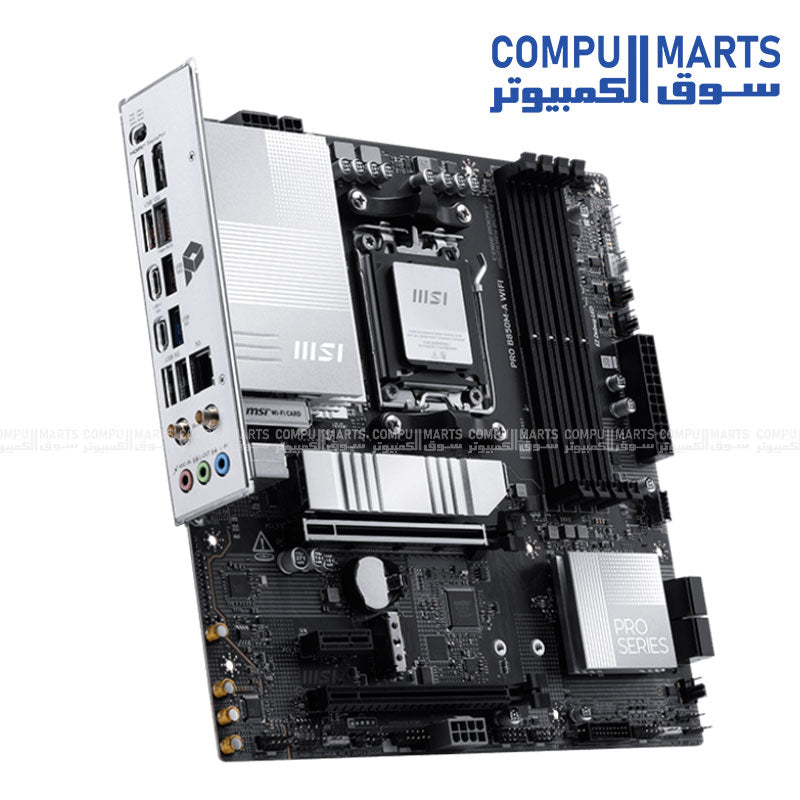

MSI PRO B850M-A WIFI Motherboard – AM5, DDR5, Wi-Fi 7, PCIe 5.0

Name: MSI PRO B850M-A WIFI Motherboard – AM5, DDR5, Wi-Fi 7, PCIe 5.0
Brand: MSI
Price: 8800.00 EGP
Availability: InStock

8,800.00 EGP

Shipping calculated at checkout.

Pickup available at Bostan Mall , 10th Floor , Bab Al Louq, Abdeen, Egypt

Usually ready in 24 hours

👉 Promo Codes – CompuMarts

Delivery and Shipping

Fast shipping to your doorstep! Get your order delivered within 1-5 days based on location.

Subscribe to our newsletter

Description

MSI PRO B850M-A WIFI Motherboard – AM5, DDR5, Wi-Fi 7, PCIe 5.0

Chipset	AMD B850
CPU	Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
Socket	AM5
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support	DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency	• 1DPC 1R Max speed up to 8200+ MT/s• 1DPC 2R Max speed up to 6400+ MT/s• 2DPC 1R Max speed up to 6400+ MT/s• 2DPC 2R Max speed up to 6000+ MT/s
Memory Features	Supports AMD POR Speed and JEDEC SpeedSupports Memory Overclocking and AMD EXPO™Supports Dual-Channel modeSupports Non-ECC, Un-buffered memorySupports CUDIMM, Clock Driver bypass mode only*
Memory Notes	* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.• The DIMM slots on this motherboard only have single-sided latches.• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/
Onboard Graphics	1x HDMI™Support HDMI™ 2.1, maximum resolution of 4K 60Hz1x DisplayPortSupport DisplayPort 1.4, maximum resolution of 4K 60Hz*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	2x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E1 Slot Details	• Supports PCIe 5.0 x16 (For Ryzen™ 9000 / 7000 Series processors)• Supports PCIe 4.0 x8 (For Ryzen™ 8700 / 8600 / 8400 Series processors)• Supports PCIe 4.0 x4 (For Ryzen™ 8500 / 8300 Series processor)
Audio	Realtek® ALC8977.1-Channel High Definition Audio
Storage	2x M.2M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280 / 2260 devicesM.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280 / 2260 devices4x SATA 6G
M2_1 Slot	• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000 / 7000 Series processors)• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
M2_2 Slot	• Supports up to PCIe 4.0 x4• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500 / 8300 Series processors)
M.2 Note	*Please refer to the manual for M.2 SSD heatsink restrictions.
RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devicesSupports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB	4x USB 2.0 (Front)3x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)3x USB 10Gbps Type A (Rear)2x USB 10Gbps Type C (Rear)1x USB 10Gbps Type C (Front)
LAN	Realtek® 8126VB 5G LAN
Internal IO	1x Power Connector (ATX_PWR)2x Power Connector (CPU_PWR)1x Power Connector (PCIE_PWR 8pin)1x CPU Fan1x Combo Fan (Pump_Sys Fan)3x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)1x Tuning Controller connector (JDASH)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector (JRGB)1x TPM pin header (Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports1x USB 10Gbps Type C ports
Wireless LAN & Bluetooth	Wi-Fi 7The Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.9GbpsSupports 802.11 a / b / g / n / ac / ax / beSupports Bluetooth 5.4**, MLO, 4KQAM
Wireless Notes	* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED Feature	4x EZ Debug LED1x EZ Memory Detection LED

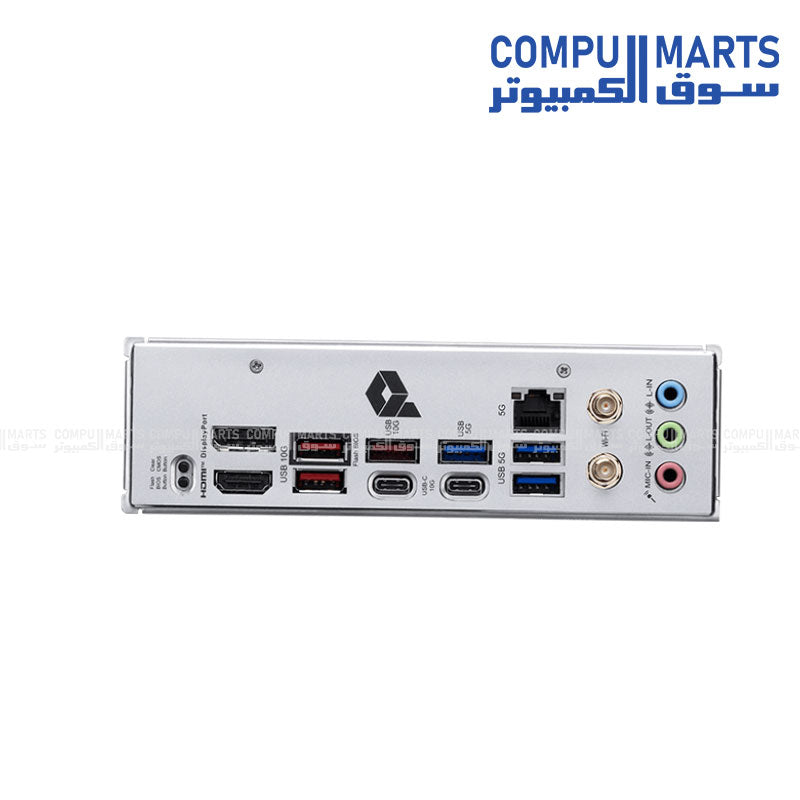

Back Panel Ports	Clear CMOS ButtonDisplayPortUSB 10Gbps Type-AUSB 10Gbps Type-AUSB 5Gbps Type-A5G LANWi-Fi / BluetoothAudio connectorsFlash BIOS ButtonHDMI USB 10Gbps Type-CUSB 5Gbps Type-A
Operating System	Support for Windows 11 64-bit
PCB Info	mATX
Dimensions	243.84mm × 243.84mm
