MSI

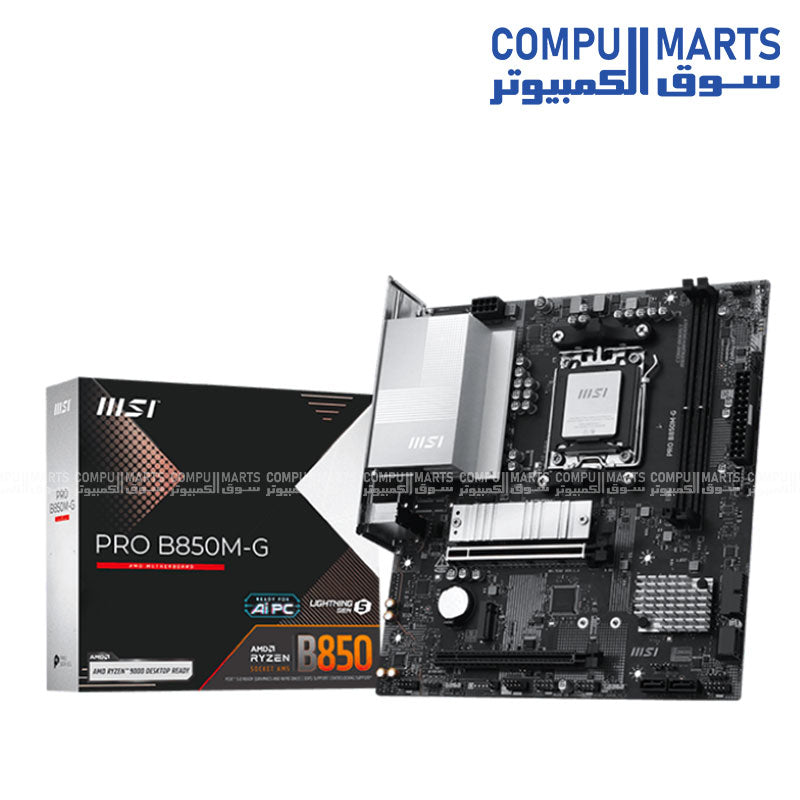

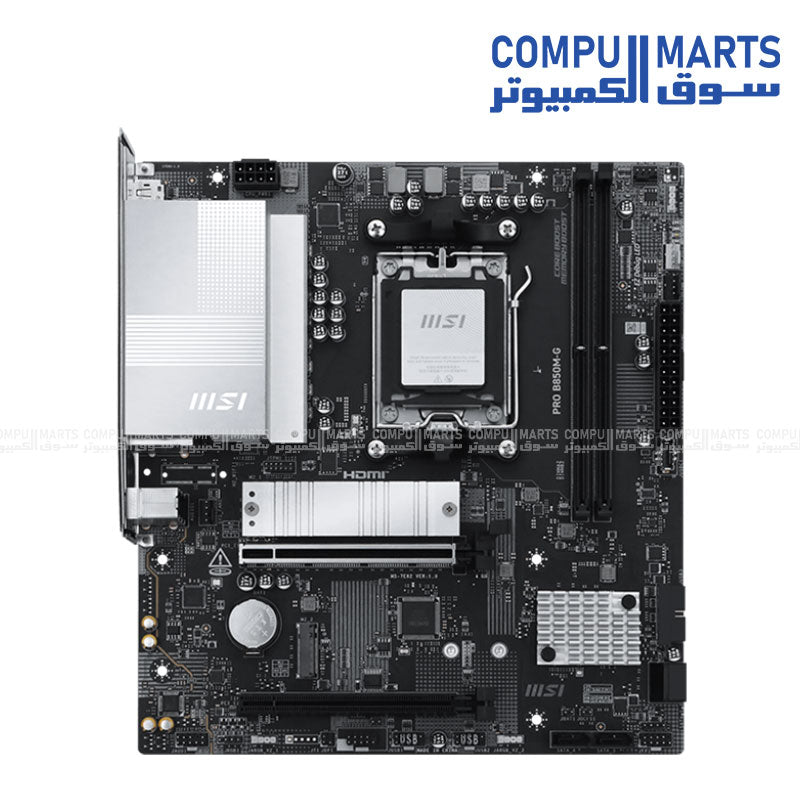

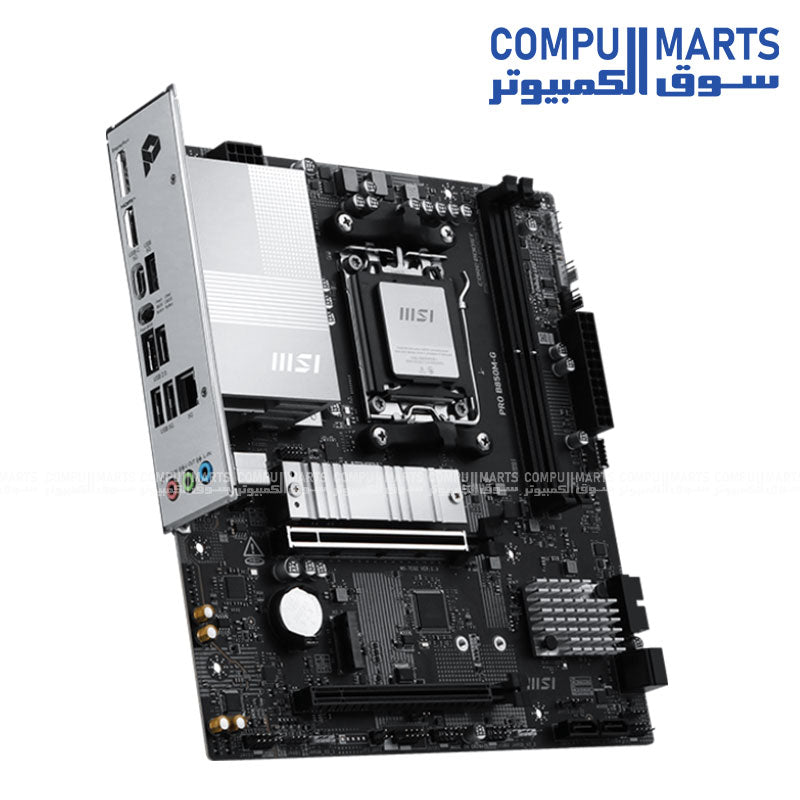

MSI PRO B850M-G Motherboard – AM5, DDR5, PCIe 5.0, 5G LAN

6,800.00 EGP
Shipping calculated at checkout.

Pickup available at Bostan Mall , 10th Floor , Bab Al Louq, Abdeen, Egypt

Usually ready in 24 hours
👉 Promo Codes – CompuMarts

Delivery and Shipping

Fast shipping to your doorstep! Get your order delivered within 1-5 days based on location.

Subscribe to our newsletter

Sign up for exclusive offers.

Description

MSI PRO B850M-G Motherboard – AM5, DDR5, PCIe 5.0, 5G LAN

Item

Details

Chipset

AMD B850

CPU

Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors

Socket

AM5

Memory

2x DDR5 UDIMM, Maximum Memory Capacity 128GB

Memory Support

DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s

Ryzen™ 9000 Series Processors max. overclocking frequency

• 1DPC 1R Max speed up to 8200+ MT/s• 1DPC 2R Max speed up to 8000+ MT/s

Memory Features

Supports AMD POR Speed and JEDEC SpeedSupports Memory Overclocking and AMD EXPO Supports Dual-Channel modeSupports Non-ECC, Un-buffered memorySupports CUDIMM, Clock Driver bypass mode only

Memory Notes

• The DIMM slots on this motherboard have single-sided latches.• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.

Onboard Graphics

1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz*1x DisplayPortSupport DisplayPort 1.4, maximum resolution of 4K 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot

2x PCI-E x16 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E1 Slot Details

• Supports PCIe 5.0 x16 (For Ryzen 9000 / 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen 8700 / 8600 / 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen 8500 / 8300 Series processor)

Audio

Realtek ALC8977.1-Channel High Definition Audio

Storage

2x M.2M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280 / 2260 devicesM.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280 / 2260 devices4x SATA 6G

M2_1 Slot

• Supports up to PCIe 5.0 x4 (For Ryzen 9000 / 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)

M2_2 Slot

• Supports up to PCIe 4.0 x4
• Supports up to PCIe 4.0 x2 (For Ryzen 8500 / 8300 Series processors)

RAID

Supports RAID 0, RAID 1, and RAID 10 for SATA storage devicesSupports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

2x USB 2.0 (Rear)
4x USB 2.0 (Front)
3x USB 5Gbps Type A (Rear)
1x USB 5Gbps Type C (Rear)
2x USB 5Gbps Type A (Front)
1x USB 10Gbps Type C (Front)

LAN

Realtek 8126VB 5G LAN

Internal IO

1x Power Connector (ATX_PWR)
1x Power Connector (CPU_PWR)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector (JRGB)
1x TPM pin header (Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports

LED Feature

4x EZ Debug LED1x EZ Memory Detection LED

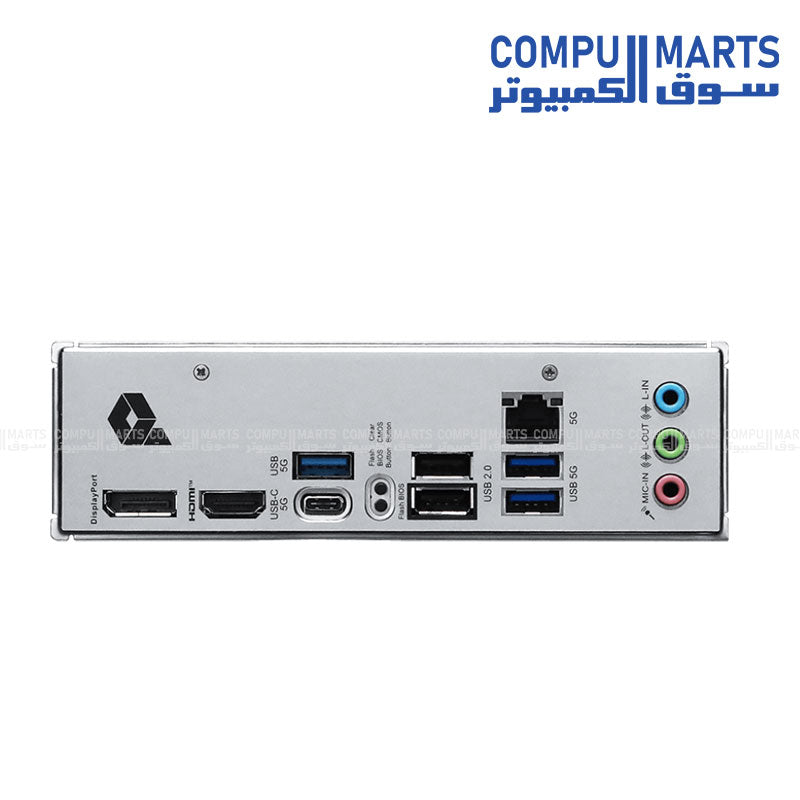

Back Panel Ports

DisplayPortHDMIUSB 5Gbps Type-AClear CMOS ButtonUSB 2.05G LANAudio connectorsUSB 5Gbps Type-CFlash BIOS ButtonUSB 5Gbps Type-A

Operating System

Support for Windows 11 64-bit

PCB Info

mATX

Dimensions

226mm × 243.84mm
