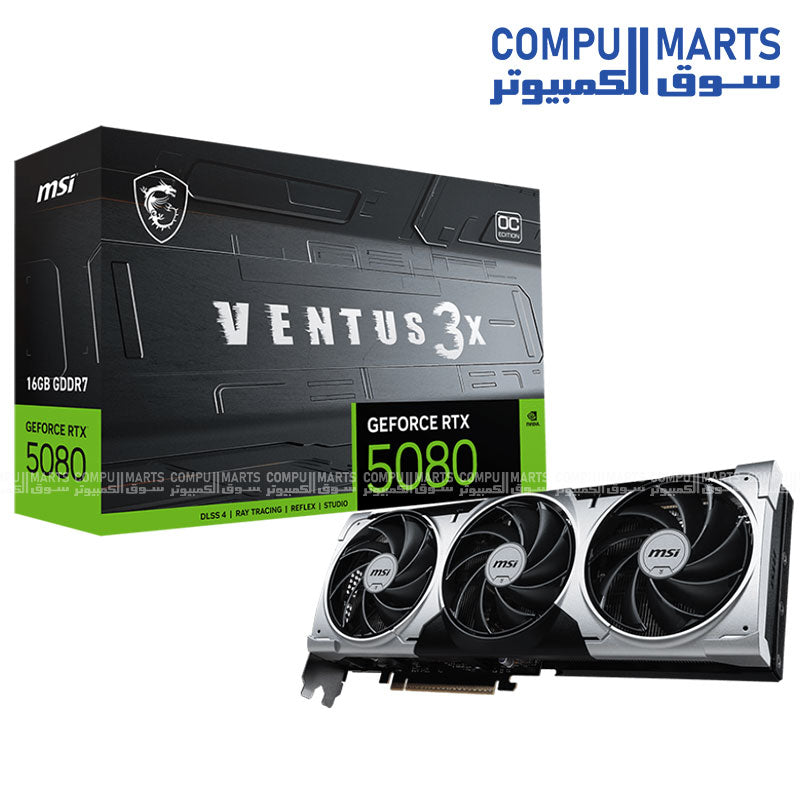

MSI GeForce RTX 5080 16GB VENTUS 3X OC PLUS Graphics Card – PCIe 5.0 – GDDR7 – Triple Fan Cooling – 4K/8K Gaming

MSI GeForce RTX 5080 16GB VENTUS 3X OC PLUS Graphics Card – PCIe 5.0 – GDDR7 – Triple Fan Cooling – 4K/8K Gaming

SPECIFICATIONS
Marketing Name GeForce RTX 5080 16G VENTUS 3X OC
PLUS
Model Name G5080-16V3CP
Graphics Processing Unit NVIDIA
 GeForce RTX 5080
Interface PCI Express
 Gen 5
Core Clocks
Extreme Performance: 2655 MHz (MSI
Center)
Boost: 2640 MHz
CUDA®
 CORES 10752 Units
Memory Speed 30 Gbps
Memory 16GB GDDR7
Memory Bus 256-bit
Output
DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up
to 4K 480Hz or 8K 120Hz with DSC, Gaming
VRR, HDR)
HDCP Support Y
Power consumption 360 W
Power connectors 16-pin x 1 (ATX 3.1 PSU recommended)
Recommended PSU 850 W
Card Dimension (mm) 303 x 121 x 49 mm
Weight (Card / Package) 1105 g / 1618 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC®
 technology Y
Digital Maximum Resolution 7680 x 4320

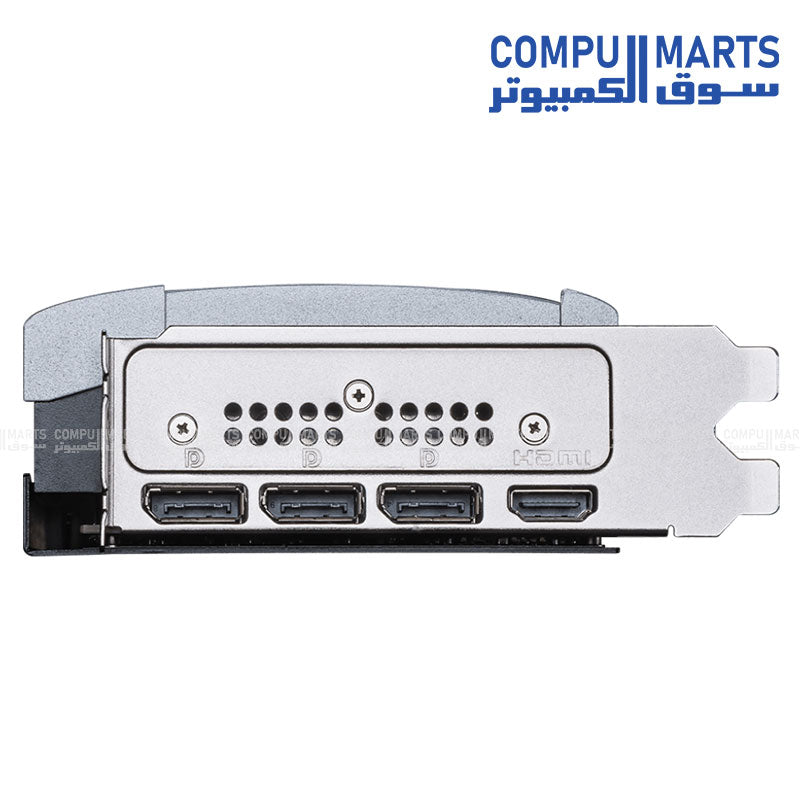

CONNECTIONS
1. DisplayPort
2. HDMI™
FEATURES

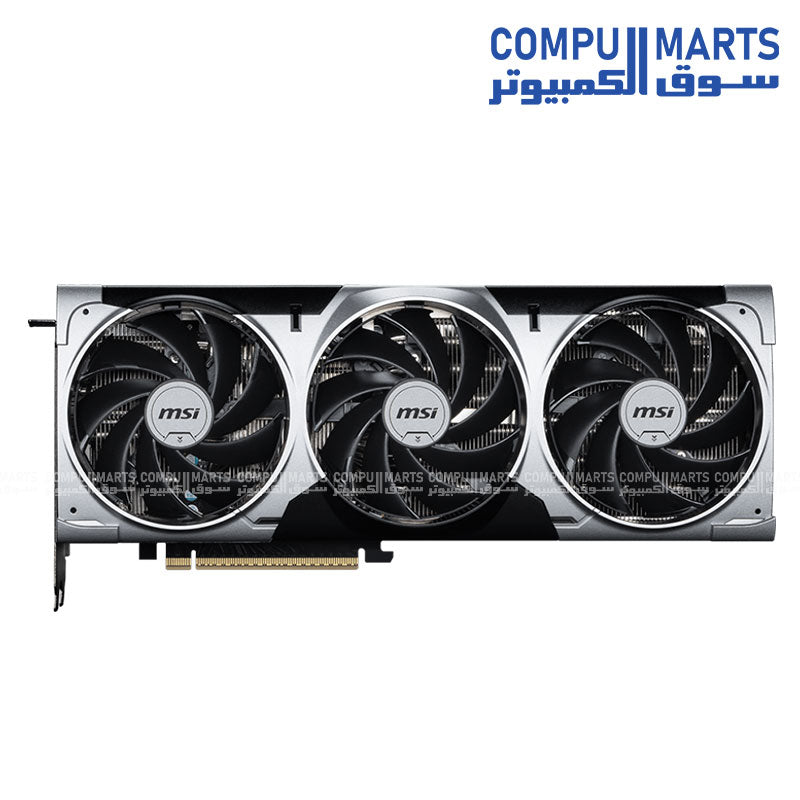

Triple Fan
Three fans and a huge heatsink ensure a cool and quiet
experience for you.
TORX FAN 5.0
Fan blades linked by ring arcs and a fan cowl work together to
stabilize and maintain high-pressure airflow.
Nickel-plated Copper Baseplate
Heat from the GPU and memory is swiftly captured by a nickelplated copper baseplate and transferred.
Core Pipes
Core Pipes feature a square design to maximize contact with the
GPU baseplate for optimal thermal management.

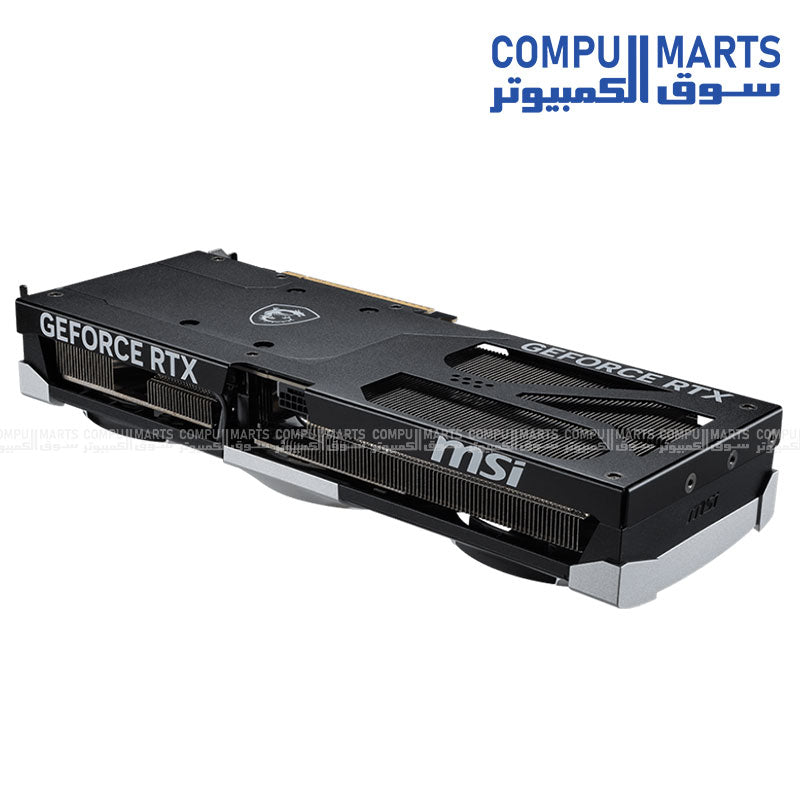

Metal Backplate
A sturdy metal backplate strengthens the graphics card while the
airflow vent design reduces excess heat.
Zero Frozr
The fans completely stop when temperatures are relatively low,
eliminating all noise.
DrMOS
DrMOS power stage solutions provide great efficiency with low
power loss and enhanced voltage controls.
Fuse
Additional fuses built into the custom PCB provide additional
safeguards against electrical damage.
MSI Center
The exclusive MSI Center software lets you monitor, tweak and
optimize MSI products in real-time.
Afterburner
Take full control with the most recognized and widely used
graphics card overclocking software in the world.
