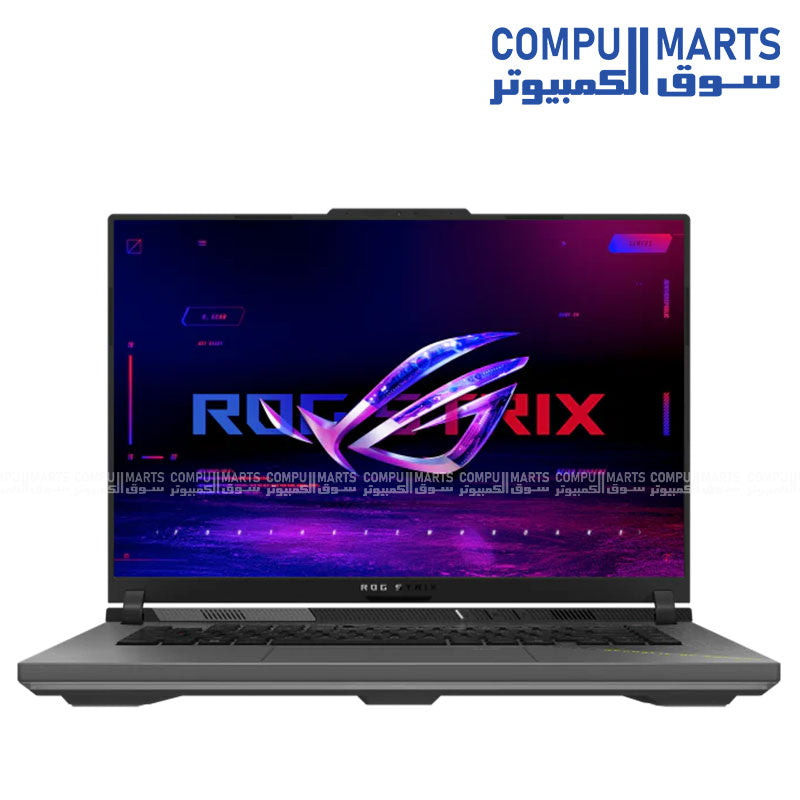

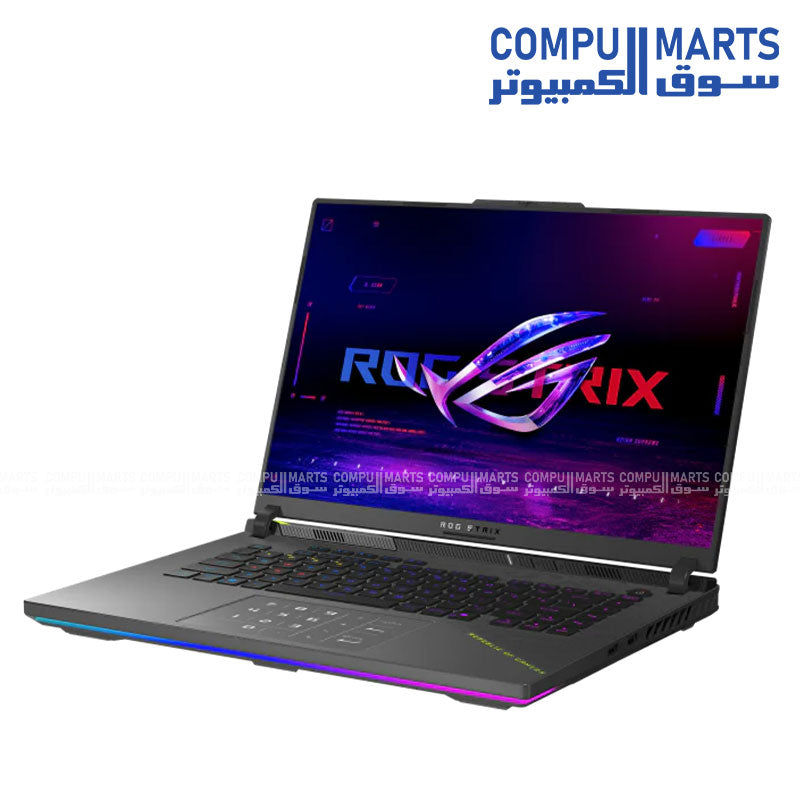

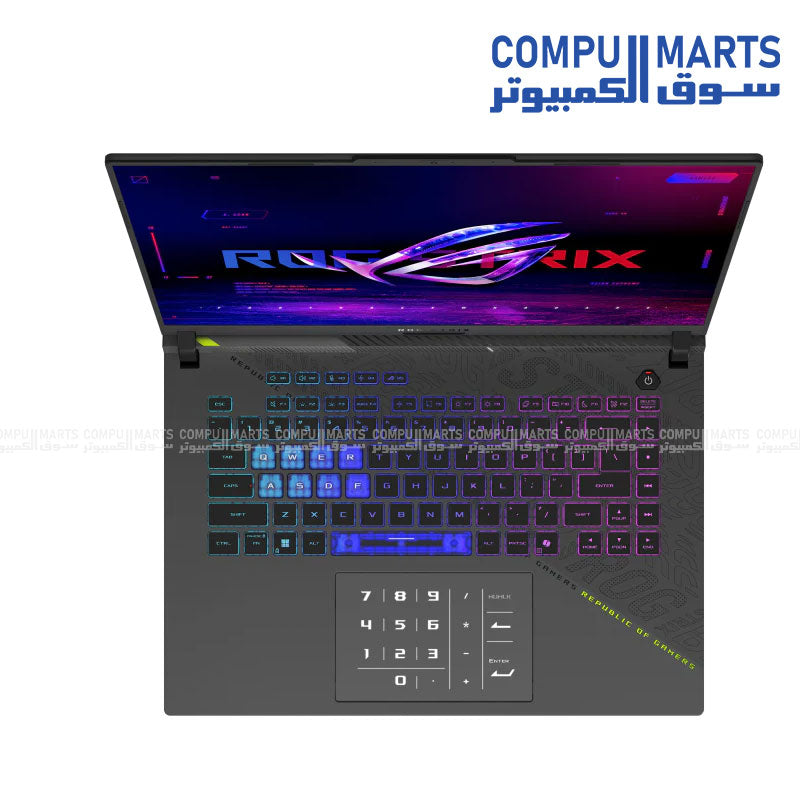

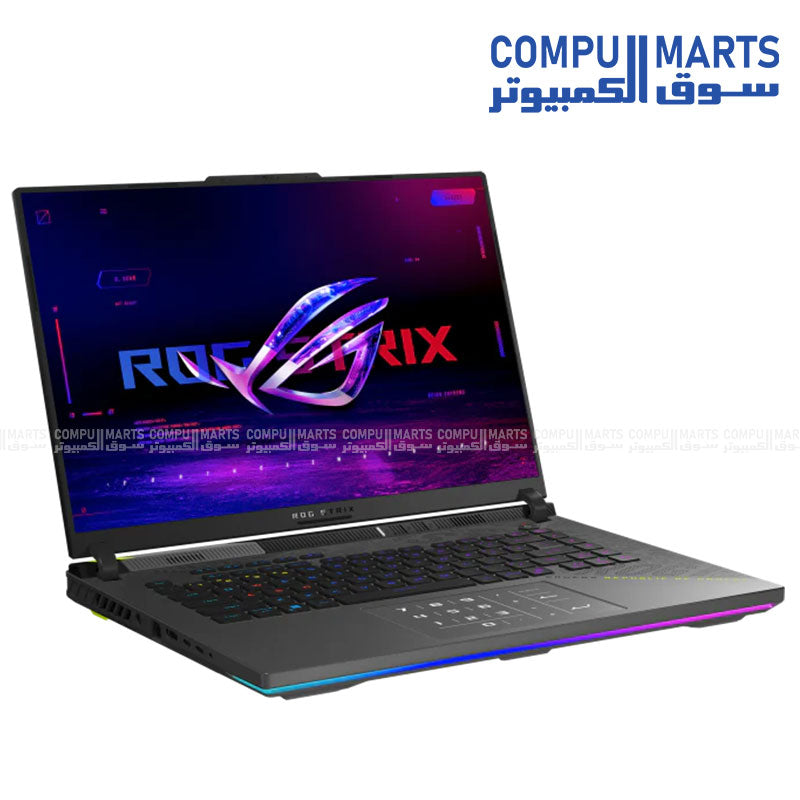

ASUS ROG Strix G16 G614PR-RV132W Ryzen 9 8940HX, RTX 5070 Ti 12GB 16GB DDR5, 1TB SSD, 16-inch FHD+ 165Hz ROG BAG

Part No

90NR0NJ7-M003W0

Sales Model Name

G614PR-RV161W

EAN Code

4711636040341

UPC Code

199291040342

WEEE

3.223

BASE UNIT

VSNR0NJ7-BU2000

Marketing Name

ROG Strix G16

Operating System

Windows 11 Home

Office

1-month trial for new Microsoft 365 customers. Credit card required.

Color

Eclipse Gray

Dimension (W x D x H)

35.4 x 26.4 x 2.26 ~ 3.04 cm (13.94" x 10.39" x 0.89" ~ 1.20")

Weight

2.50 Kg (5.51 lbs)

Processor

AMD Ryzen™ 9 8940HX Processor 2.4GHz (80MB Cache, up to 5.3GHz, 16 cores, 32 Threads)

Chipset

N/A

Intergrated GPU

AMD Radeon™ Graphics

Discrete/Optimus

MUX Switch + NVIDIA® Advanced Optimus

Graphic

NVIDIA® GeForce RTX™ 5070 Ti Laptop GPU

Graphic Wattage

ROG Boost: 1565MHz* at 140W (1515MHz Boost Clock+50MHz OC, 115W+25W Dynamic Boost)

Graphic Memory

12GB GDDR7

Panel Size

16-inch

Resolution

FHD+ 16:10 (1920 x 1200, WUXGA)

Refresh Rate

165Hz

Response Time (G2G)

3ms

Viewing Angle

170

Panel Tech

IPS-level

Brightness

300nits

Contrast Ratio

1000:1

SRGB %

100%

Glare

Anti-glare display

Adaptive-Sync technology

G-Sync

Pantone

N/A

Support Dolby Vision HDR

Yes

Thermal Feature

ROG intelligent cooling

On board memory

N/A

DIMM Memory

16GB DDR5-5200 SO-DIMM

Total System Memory

DDR5 16GB

Memory Slot

2x SO-DIMM slots

Memory Max.

64GB

Storage

1TB PCIe® 4.0 NVMe™ M.2 SSD

M.2 slots support either SATA or NVMe

2

M.2 SSD Support List

1TB /2TB G4x4 Value PCIe SSD

Expansion Slot (includes used)

2x DDR5 SO-DIMM slots

2x M.2 PCIe

LAN

10/100/1000 Mbps

Wireless

Wi-Fi 6E(802.11ax) (Triple band) 2*2 + Bluetooth® 5.3 Wireless Card (*Bluetooth® version may change with OS version different.)

I/O Ports

1x RJ45 LAN port

1x Type-C USB 4 with support for DisplayPort™ / G-SYNC (data speed up to 40Gbps)

1x Type-C USB 4 with support for DisplayPort™ / power delivery / G-SYNC (data speed up to 40Gbps)

2x USB 3.2 Gen 2 Type-A (data speed up to 10Gbps)

Display output

1x HDMI 2.1 FRL

Camera

1080P FHD camera

Mic

Built-in array microphone

Keyboard Type

Backlit Chiclet Keyboard 4-Zone RGB

With Copilot key

*Copilot in Windows (in preview) is rolling out gradually within the latest update to Windows 11 in select global markets. Timing of availability varies by device and market. Learn more: https://www.microsoft.com/en-us/windows/copilot-ai-features?r=1#faq

Aura Sync

Yes

Touchpad

Touchpad

N/A

Speakers

2-speaker system with Smart Amplifier Technology

Audio

1x 3.5mm Combo Audio Jack

Built-in array microphone

Audio Tech

AI noise-canceling technology

Dolby Atmos

Hi-Res certification (for headphone)

Smart Amp Technology

Security

BIOS Administrator Password and User Password Protection

Trusted Platform Module (Firmware TPM)

Antivirus

McAfee® 30 days free trial

Battery

90WHrs, 4S1P, 4-cell Li-ion

Fast charging

Recharge from 0-50% in 30 minutes

Power

ø6.0, 280W AC Adapter, Output: 20V DC, 14A, 280W, Input: 100~240C AC 50/60Hz universal

Required charging power

Min: 45W

Max: 100W

*The indicated wattage is for demonstrating the system’s support capability as required by EU regulations. For optimal system performance, please use the standard-wattage adapter or higher.

Xbox Game Pass

Xbox Game Pass for PC_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass for PC. Eligible markets are determined at activation. Game catalog varies by region, device, and time.)

Included in the Box

ROG backpack

Ecolabels & Compliances

N/A

Reparability Index (for FR)

9.9

Reparability Index (for BNL)

9.7
