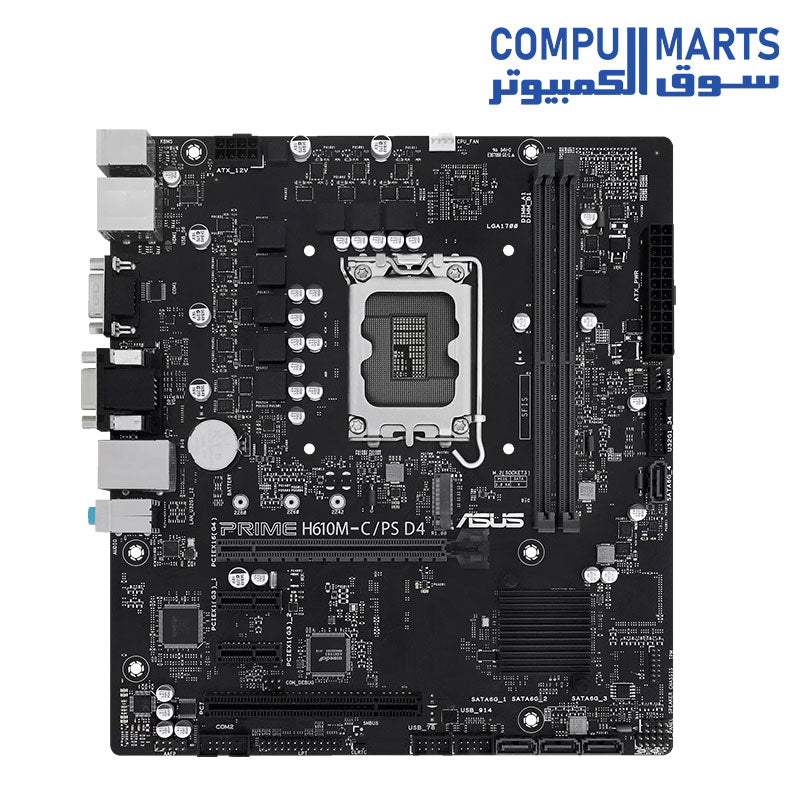

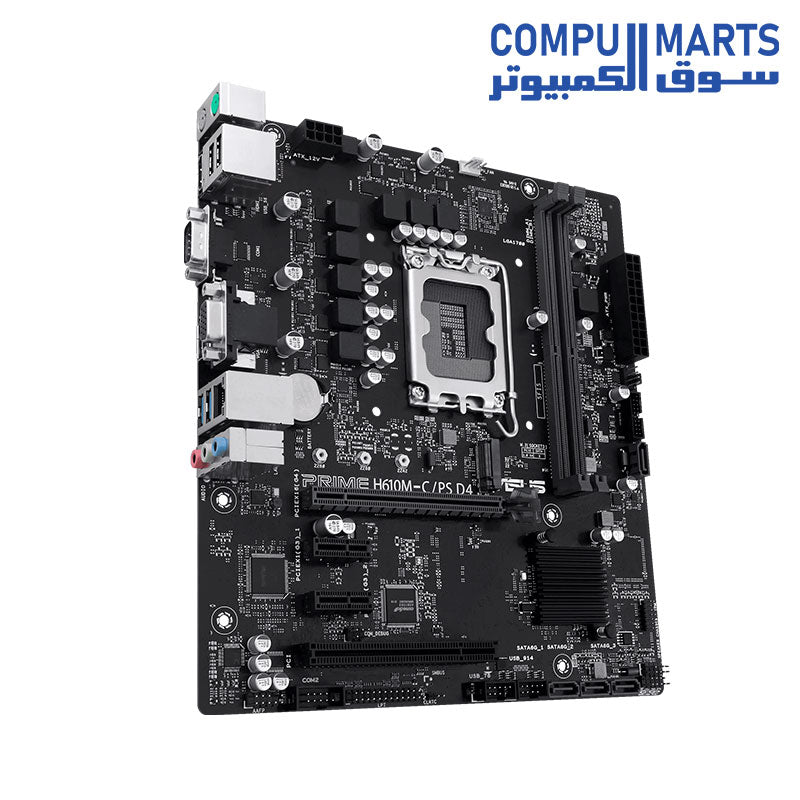

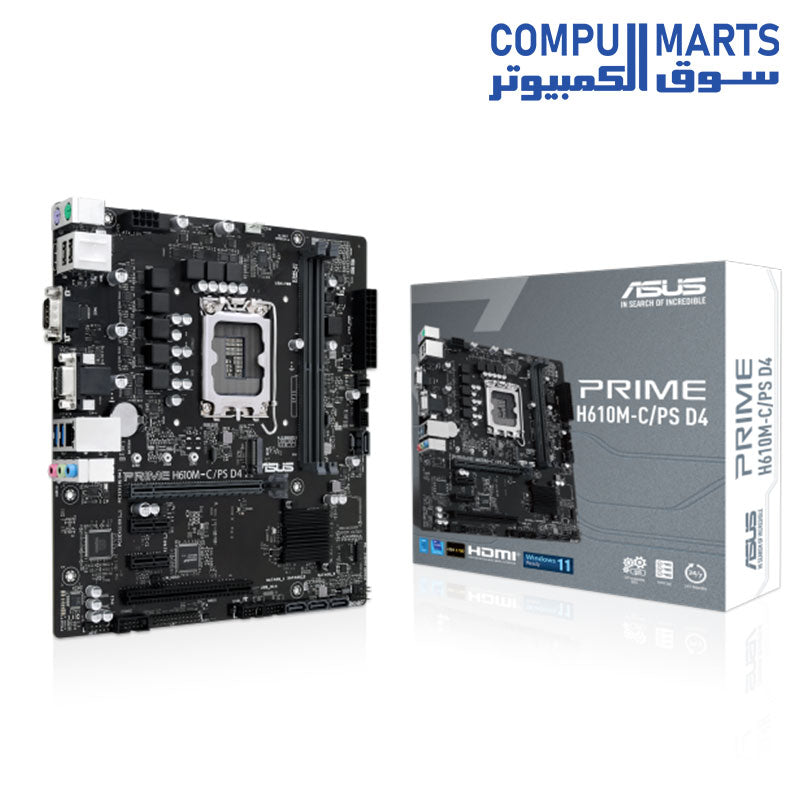

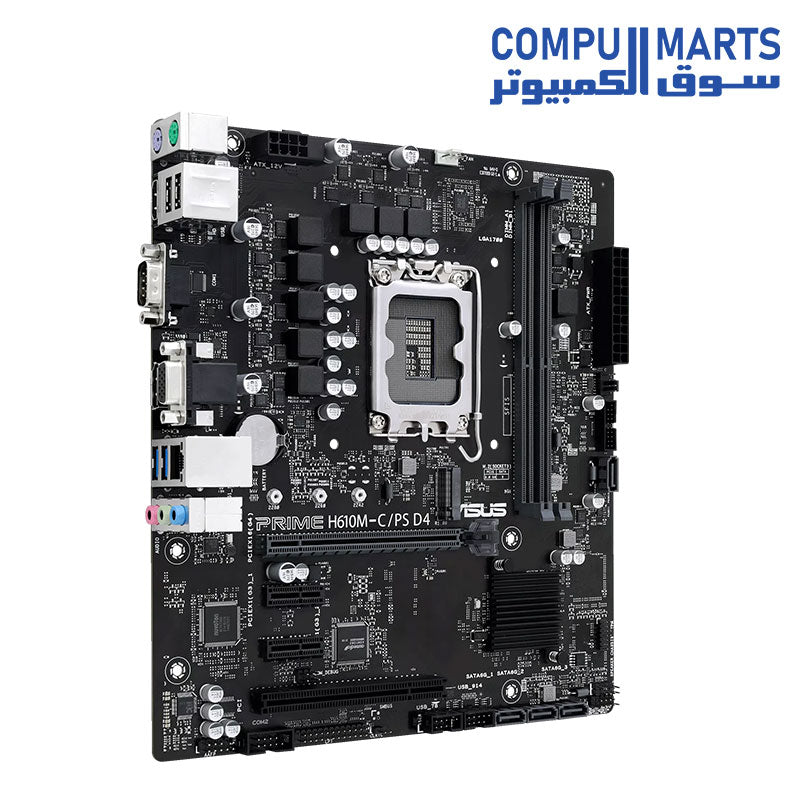

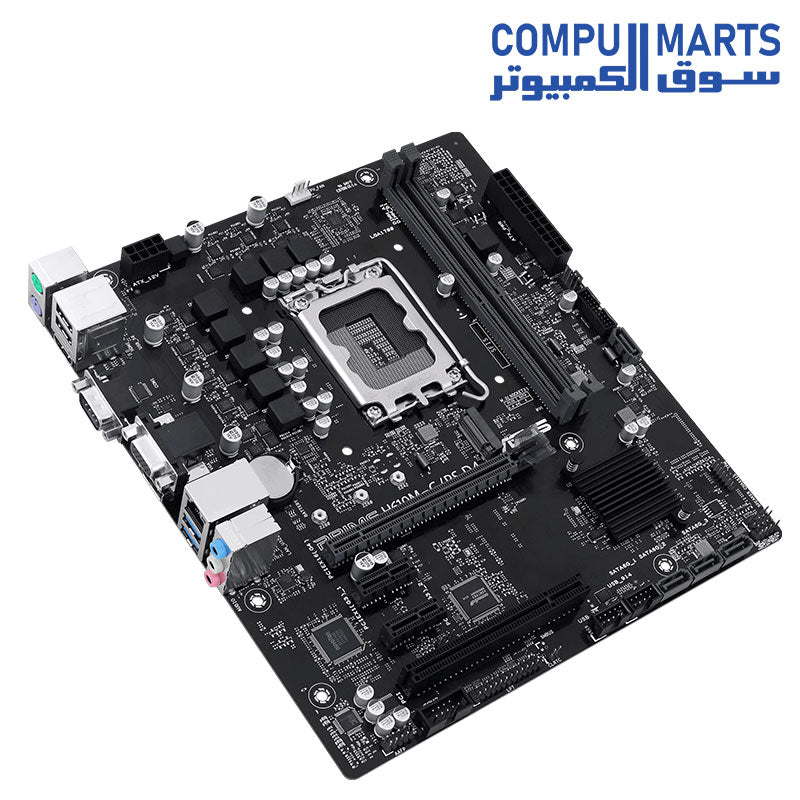

ASUS PRIME H610M-C/PS chrome-extension://difoiogjjojoaoomphldepapgpbgkhkb/assets/logo-O35E636P.pngD4 (LGA 1700) mATX motherboard with PCIe 4.0, M.2 slot, Intel 1Gb Ethernet , DP, HDMI, D-Sub, USB 3.2 Gen1 Type-A, SATA 6Gbps, COM header

ASUS PRIME H610M-C/PS D4  (LGA 1700) mATX motherboard with PCIe 4.0, M.2 slot, Intel 1Gb Ethernet , DP, HDMI , D-Sub, USB 3.2 Gen1 Type-A, SATA 6Gbps, COM header

• Intel LGA 1700 socket: Ready for 12^th Gen Intel processors

• ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup

• ASUS COM debug header for more efficient troubleshooting

• Event log for capturing and managing detailed system information

• Ultrafast connectivity: PCIe 4.0 and Intel 1 Gb Ethernet

Storage

M.2 slot (up to 32 Gbps)

PRIME H610M-C/PS D4 offers one M.2 slot that supports data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives.

PCIe 4.0

Prime H610 motherboards are designed specifically for 12^th Generation Intel Core CPUs and offer PCIe 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly

USB 3.2 Gen 1 ports

Numerous USB ports support high-end rigs loaded with peripherals, including rear-panel USB Type-A ports with fast USB 3.2 Gen 1 for transmission speeds of up to 5 Gbps.

CPU

Intel Socket LGA1700 for Intel Core 14^th & 13^th Gen Processors, Intel Core 12^th Gen, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0
and Intel Turbo Boost Max Technology 3.0
Support the next Gen Intel Processors

list.
 Intel Turbo Boost Max Technology 3.0
support depends on the CPU types.

Chipset

Intel H610 Chipset

Memory

2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

Supports Intel Extreme Memory Profile (XMP)

Graphics

1 x DisplayPort

1 x D-Sub port

1 x HDMI port

Supports max. 4K60Hz as specified in DisplayPort 1.4.

Supports 4K60Hz as specified in HDMI 2.1.

Expansion Slots

Intel Core Processors (14^th & 13^th & 12^th Gen)

1 x PCIe 4.0 x16 slot

Intel H610 Chipset

2 x PCIe 3.0 x1 slots

1 x PCI slot

Storage

Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports
Intel Core Processors (14^th & 13^th & 12^th Gen)

Intel H610 Chipset

M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)

4 x SATA 6Gb/s ports

Ethernet

1 x Intel 1Gb Ethernet

ASUS LANGuard

USB

Rear USB (Total 4 ports)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 6 ports)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback"

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

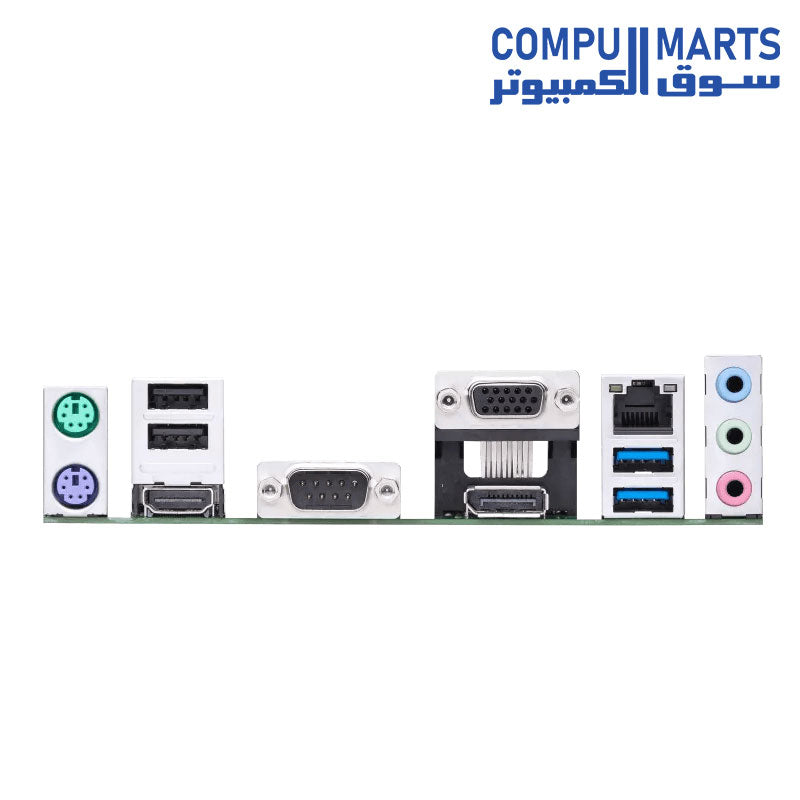

Back Panel I/O Ports

2 x USB 3.2 Gen 1 ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x D-Sub port

1 x HDMI port

1 x Intel 1Gb Ethernet port

3 x Audio jacks

1 x COM port

1 x PS/2 Keyboard (purple) port

1 x PS/2 Mouse (green) port

Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header

Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector

Storage related
1 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 1 header supports
additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4
USB 2.0 ports

Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrude header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x COM debug header
1 x LPT header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header

Special Features

ASUS EZ DIY
- Box Headers

Bespoke Motherboard Design & Business
Focused Features
- Q-LED Core
- ASUS Self Recovering BIOS
- ASUS Event Log
- 24/7 Reliability
- Overcurrent Protection

BIOS : 128 Mb Flash ROM

Manageability : WOL by PME, PXE

Accessories

Cables : 2 x SATA 6Gb/s cables

Miscellaneous
1 x I/O Shield
1 x M.2 SSD screw package

Installation Media : 1 x Support DVD

Documentation : 1 x User guide

Operating System

Windows 11 64-bit, Windows 10 64-bit
