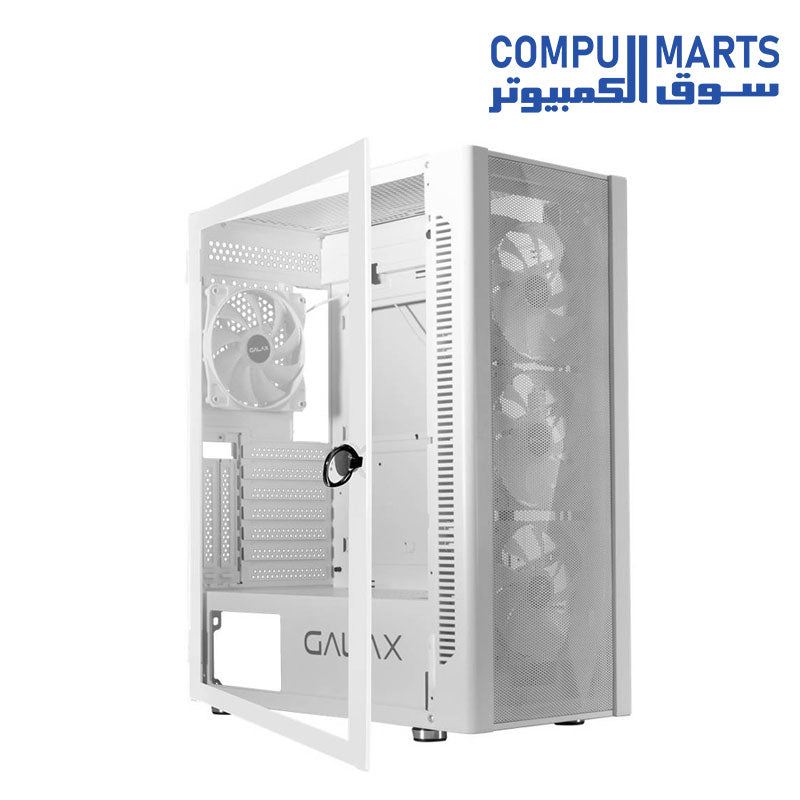

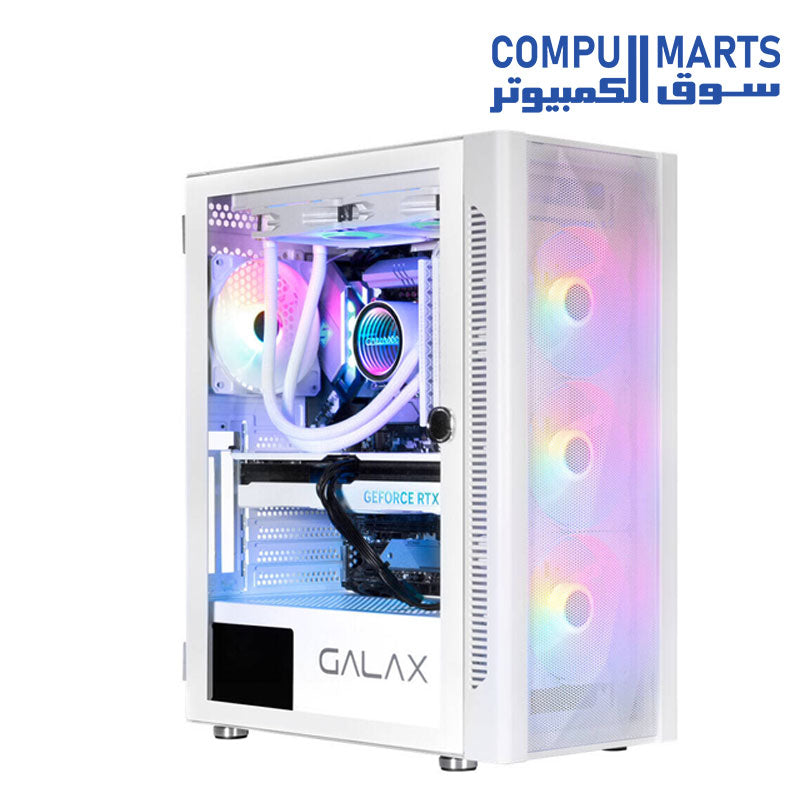

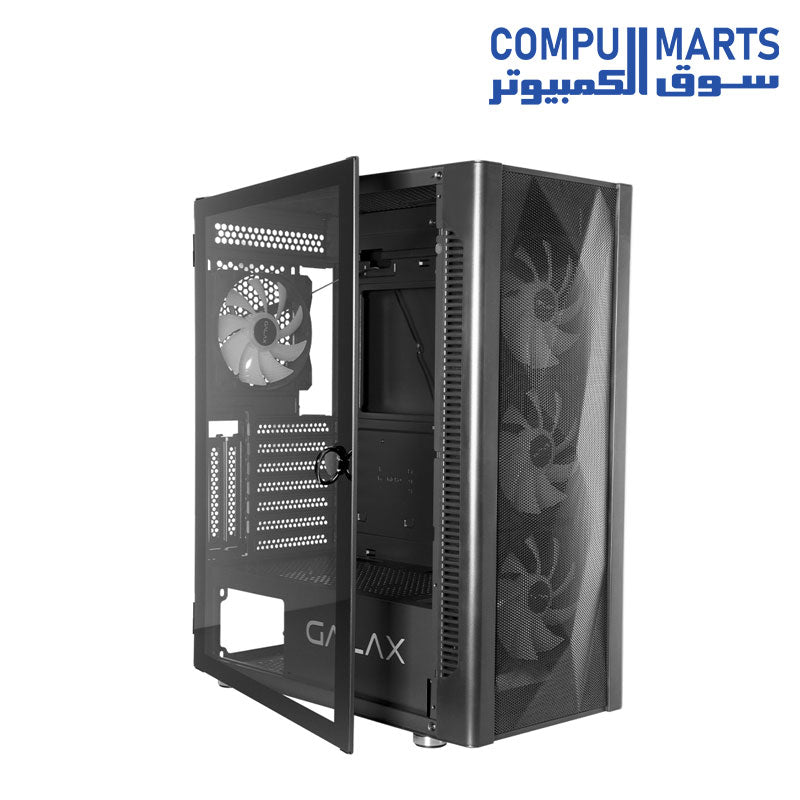

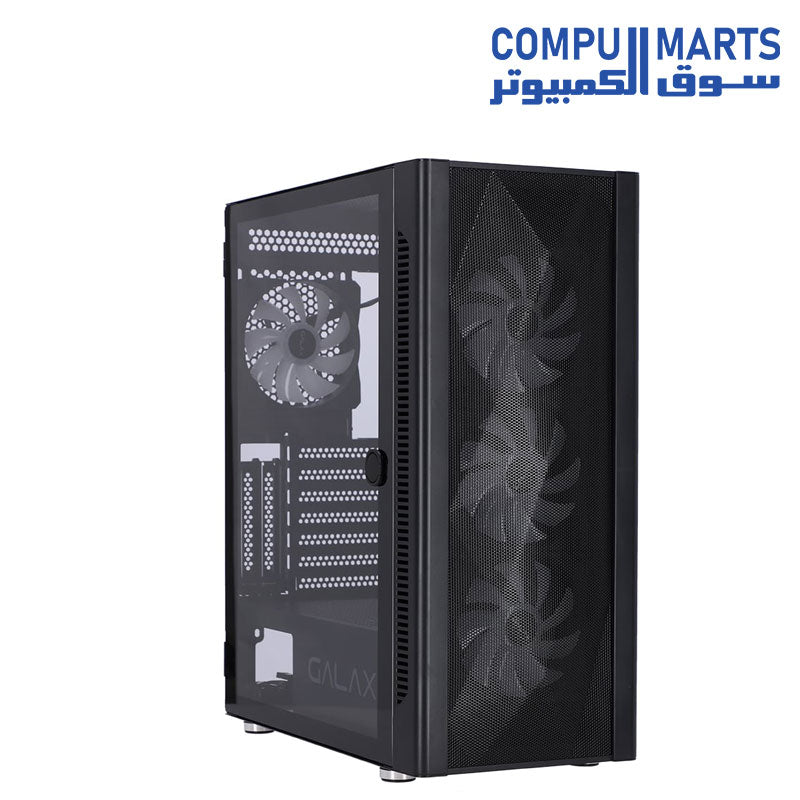

Case Gaming Revolution - 06 Galax

Case Gaming Revolution - 06 Galax

• All photos, specifications, contents are used for reference only and are subject to change without notice. Actual products in different countries varies and are best to consult your local distributor / importer for confirmation.

• 	Form Factor (Midi, Micro, Mini ITX, Full)	ATX, M-ATX, ITX
  	Chassis	SPCC + Tempered Glass
  	PSU Form Factor	ATX ≤160mm ≤140*150*86mm
  	M/B Form Factor	ATX, M-ATX, ITX
  	Front Panel	ABS, Mesh cover
  	Top Panel	Metal cover
  Side Panel	Left	Tempered Glass
  	Right	Metal cover
  Internal Drive Bay(s)	3.5" (HDD)	*2
  	2.5" (SSD)	*3
  I/O	Buttons	*2
  	USB1.1 Port(s)	*0
  	USB2.0 Port(s)	*2
  	USB3.0 Port(s)	*1
  	HD Audio Support	*1
  Cooling Fan Support	Front	3x120mm (Fan optional)
  	Top	2x120mm，2x140mm (Fan optional)
  	Rear	1x120mm (Fan optional)
  	Side	0
  Water Cooling Support (Radiator Size)	Front	240mm/280mm/360mm
  	Top	240mm/280mm
  	Rear	120mm
  Dimensions	Chassis	(L)350*(W)205*(H)470mm
  	Full Case (inc Fascia)	(L)400.6*(W)205*(H)481.5mm
  	Carton	(L)532*(W)258*(H)465mm
  	Net Weight (Kg)	4.3KG
  	Gross Weight (Kg)	4.95KG
  	VGA Card Length	up to 330mm
  	CPU Cooler Height	160mm
  	Cable Management Depth	18mm
  	ARGB Fan	4 included
