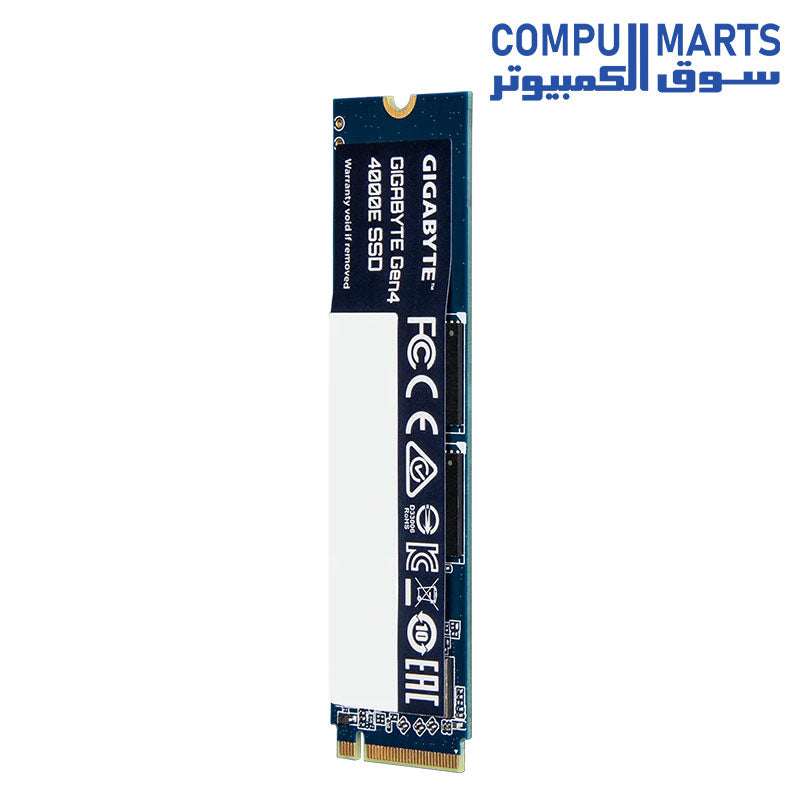

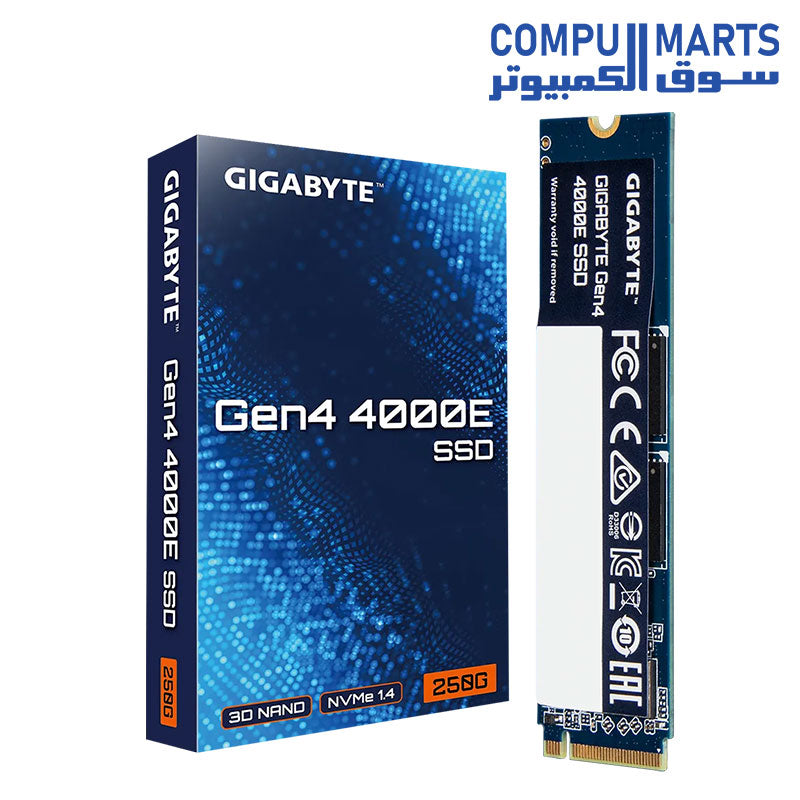

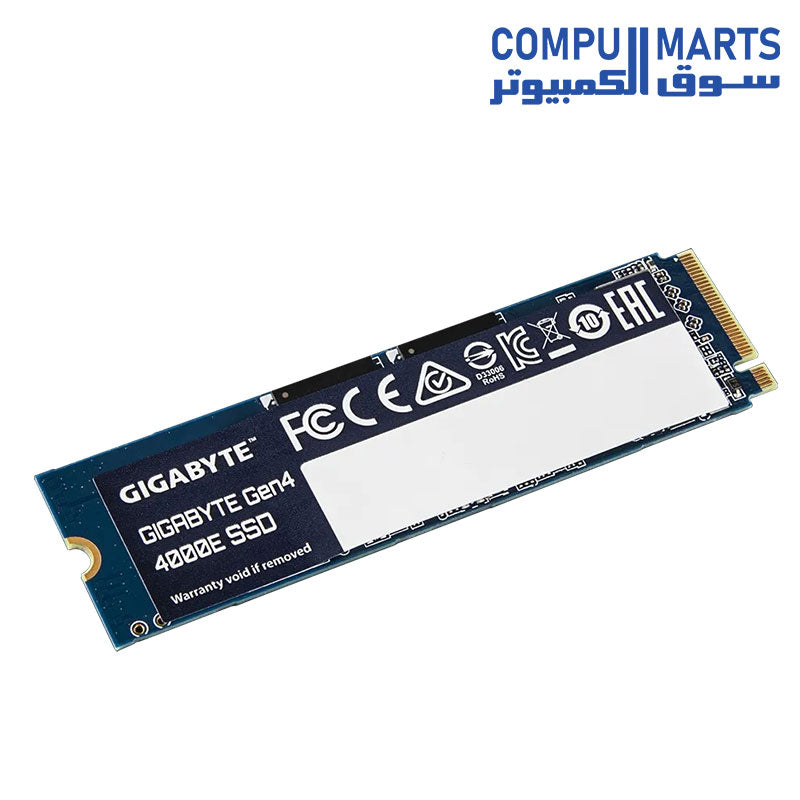

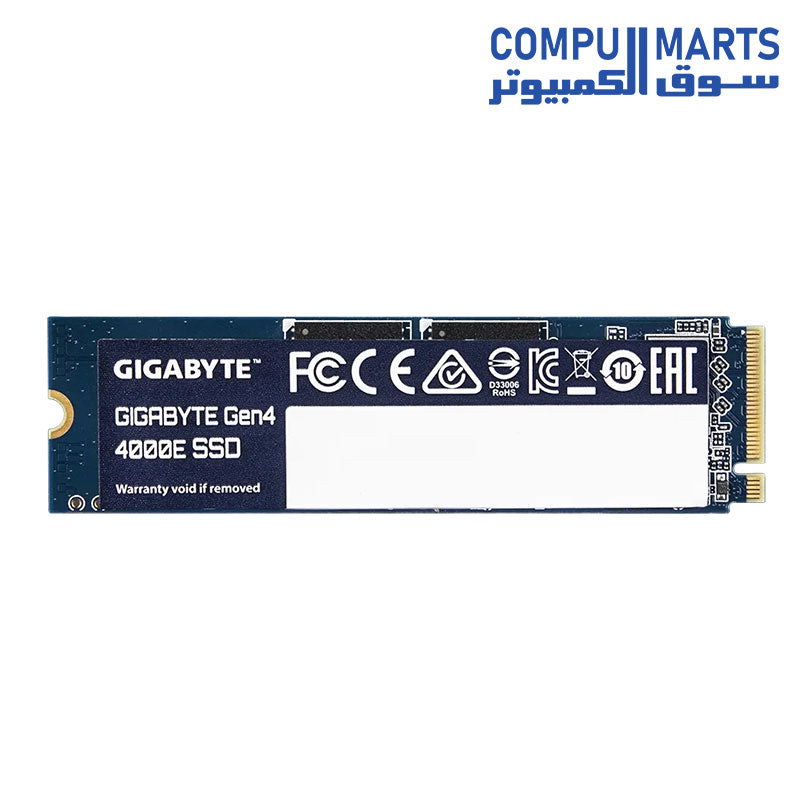

GIGABYTE Gen4 4000E SSD

GIGABYTE Gen4 4000E SSD

• Interface

  PCI Express 4.0x4, NVMe 1.4

• Form Factor

  M.2 2280

• Total Capacity

  250-500GB

• External DDR Cache

  N/A

• Sequential Read speed

  Up to 3500 MB/s

• Sequential Write speed

  Up to 1800MB/s

• Dimension

  22 x 2.3 x 80 mm

• Mean time between failure (MTBF)

  1.5 million hours

• Max. Operating Power

  Read: 4200mW
  Write: 4000mW

• Power Consumption (Idle, PS3)

  50mW

• Power Consumption(PS4, L1.2)

  5mW

• Temperature (Operating)

  0°C to 70°C

• Temperature (Storage)

  -40°C to 85°C

• Warranty

  1. Limited 3 years or 150TBW.
  2. Limited warranty based on 3 years or 150TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )
  *TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.
  3. When the usage of an NVME SSD as indicated by the ""Percentage Used"" (SMART ID: 05) in SMART page of ""GIGABYTE SSD toolbox"" reaches 100 means out of warranty. (A new unused product will show the number of 0)

• Note

  • Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
  • Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.
  • Speeds based on internal testing. Actual performance may vary.
  • 1GB = 1 billion bytes. Actual useable capacity may vary.
