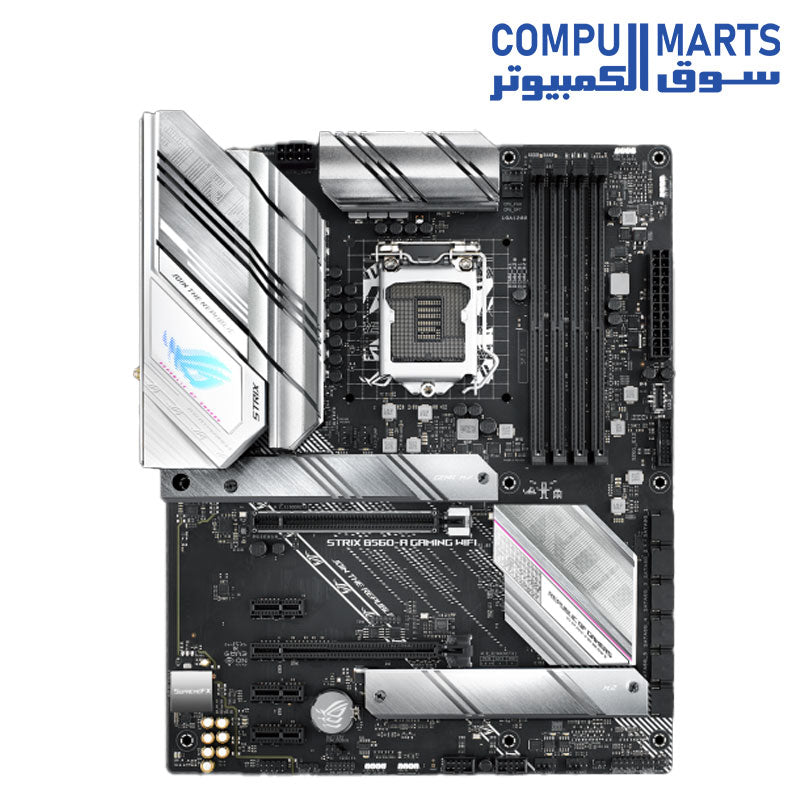

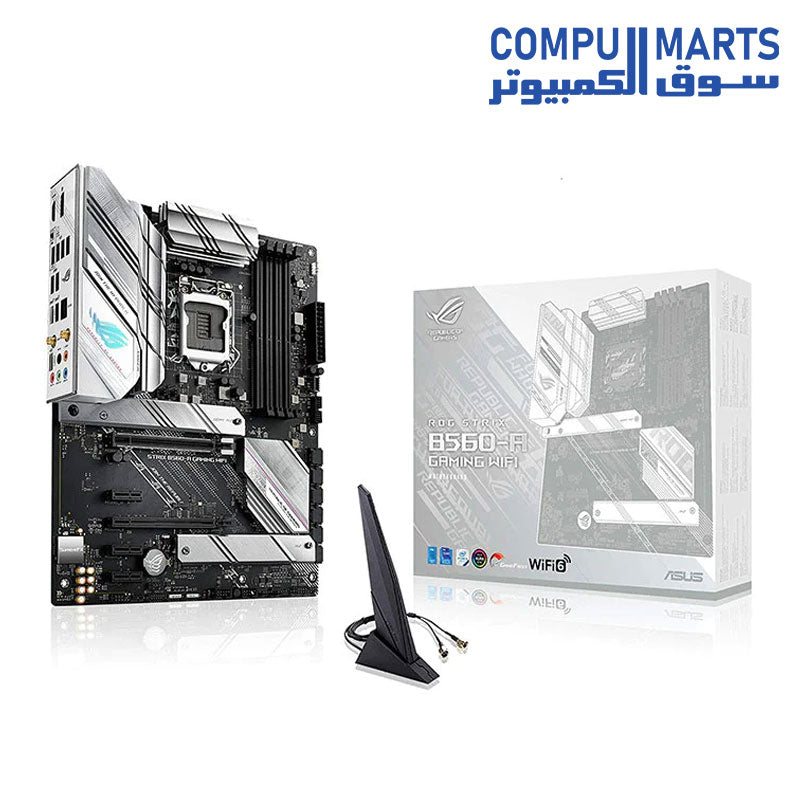

ASUS ROG Strix B560-A Gaming WiFi LGA 1200 (Intel 11th/10th Gen) ATX Motherboard (PCIe 4.0, 8+2 Power Stages, Two-Way Noise Cancelation, WiFi 6, 2.5 Gb LAN, 2xM.2 Slots, USB 3.2 Gen 2x2 USB Type-C)

Supports Intel 14 nm CPU

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

 Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

B560

Dual Channel Memory Architecture

Supports Intel Extreme Memory Profile (XMP)

OptiMem II

 10th Gen Intel i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.

 11th Gen Intel processors support 3200/2933/2800/2666/2400/2133 natively.

 Graphics specifications may vary between CPU types.

Only Intel 11th processors, support DisplayPort 1.4 with max. resolution of 5120 x 2880 60Hz, others would only support DisplayPort 1.4 with max. resolution of 4096 x 2304 60Hz

 Only Intel 11th processors support HDMI 2.0 with max. resolution of 4K 60Hz, others will only support HDMI 1.4 with max. resolution of 4K 30Hz.

Intel 11th &10th Gen Processors

1 x PCIe 4.0/3.0 x16 slot(s)

- Intel 11th processors support PCIe 4.0 x16 mode

- Intel10th processors support PCIe 3.0 x16 mode

Intel B560 Chipset

1 x PCIe 3.0 x16 slot (supports x4 mode)*

3 x PCIe 3.0 x1 slots

Rear USB:Total 9 ports

1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)

1 x USB 3.2 Gen 2 port (1 x Type-A)

2 x USB 3.2 Gen 1 port (2 x Type-A)

5 x USB 2.0 port(s) (4 x Type-A, 1 x audio USB Type-C)

Front USB:Total 7 ports

1 x USB 3.2 Gen 1 connector(s) (suppport(s) USB Type-C)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)

1 x USB 3.2 Gen 2 port(s) (1 x Type-A)

2 x USB 3.2 Gen 1 port(s) (2 x Type-A)

5 x USB 2.0 port(s) (4 x Type-A, 1 x audio USB Type-C^®)

1 x HDMI port

1 x DisplayPort

1 x ASUS Wi-Fi Module

1 x Realtek 2.5Gb Ethernet

5 x Audio jacks

1 x BIOS FlashBack button

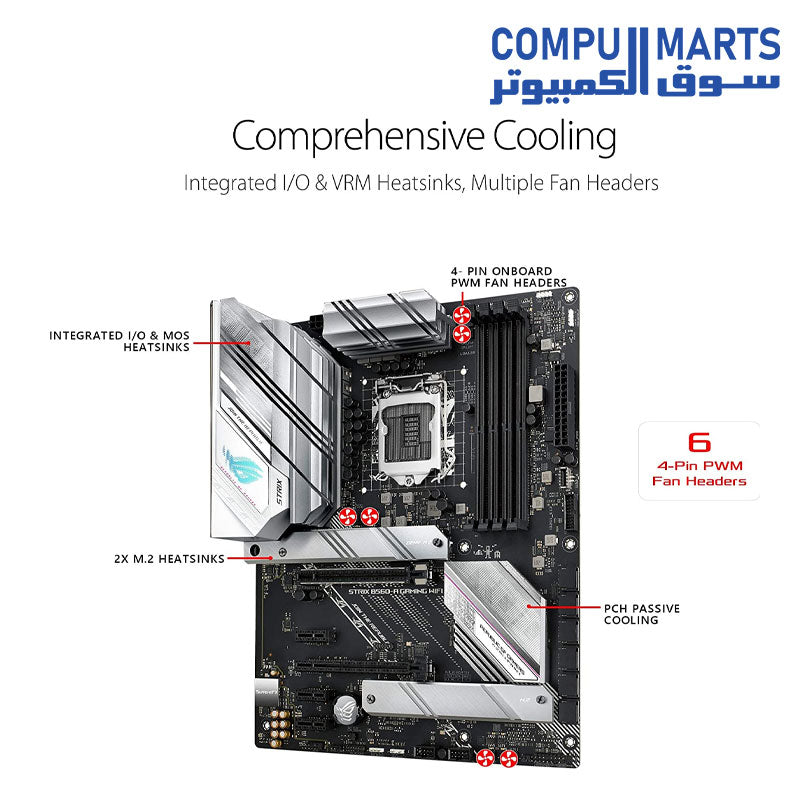

Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin CPU OPT Fan header(s)

1 x 4-pin AIO Pump header(s)

3 x 4-pin Chassis Fan header(s)

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 connector (support(s) USB Type-C)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Miscellaneous

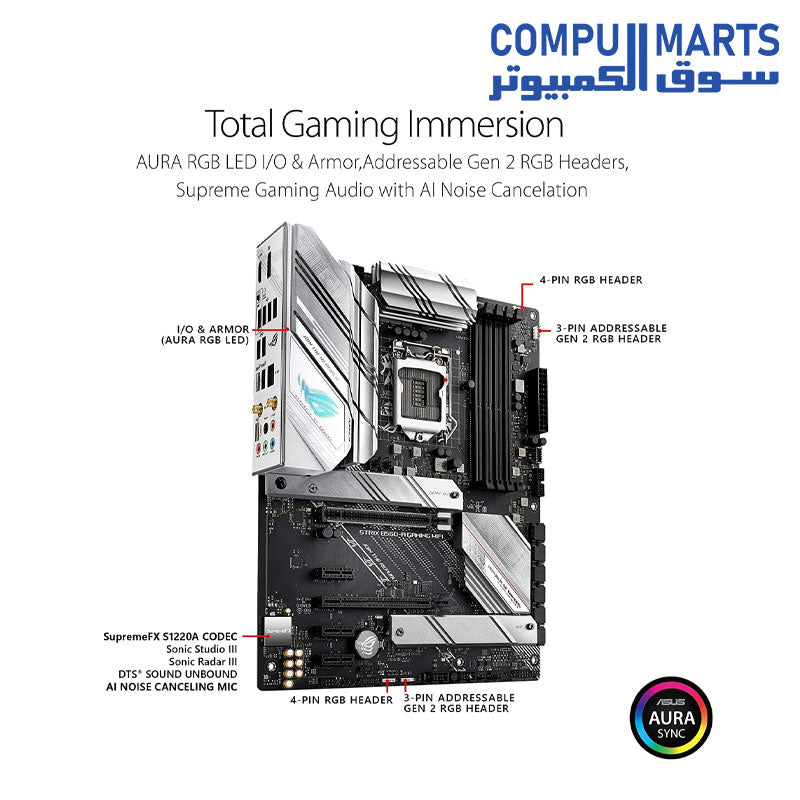

2 x AURA Addressable Gen 2 header(s)

2 x AURA RGB header(s)

1 x Clear CMOS header

1 x Front Panel Audio header (AAFP)

1 x SPI TPM header (14-1pin)

1 x 20-5 pin System Panel heade

1 x Thunderbolt header

1 x S/PDIF Out header
