ASUS ROG Zephyrus G14 GA402RJ-GRY07W Ryzen 7 6800HS 16GB 1TB SSD RX 6700S Win 11

AMD Ryzen 9 Series and AMD processors
Radeon RX 6800S mobile graphics
Up to AMD Ryzen 9 processors and AMD Radeon RX 6800S mobile graphics with MUX Switch fuel this powerful machine.

ROG smart cooling icon
ROG Smart Cooling: A dedicated vapor chamber and liquid metal support 0dB surround cooling.

16:10 aspect ratio display icon
ROG Nebula Display: 16:10 aspect ratio, QHD/120Hz panel, Pantone verification, 100% PCI-P3, Dolby Vision HDR.

AniMe Matrix icon
The AniMe Matrix has been upgraded featuring more lively animations as well as new functions and minigames.

Battery life icon up to 10 hours
Fast charging up to 50% in 30 minutes, 100W USB Type-C charging, Wi-Fi 6E support.

Quad speaker icon
Quad speakers and a 3D microphone array for voice capture and Dolby Atmos support allow for crystal clear sound.

Enter the matrix
AniMe Matrix and Virtual Pet OMNI just got an upgrade. More LEDs mean more animation possibilities, and OMNI is back with a whole host of mini games, like Slot Machine, Shoot’em Up and Whack-A-Mole. Games will also light up your AniMe Matrix as you progress, and getting high scores will unlock more OMNI animations as he joins you on your desktop.

Endless customization
Make your Zephyrus G14 uniquely yours with customizable animation options. Display text messages or system notifications, set the matrix to respond in real time to your audio source, or create your own custom animations.

All AMD muscles
The all-new 2022 Zephyrus G14 is powered by AMD and Windows 11 out of the box. With new Ryzen 9 processors and Radeon RX 6800S mobile graphics, this powerful AMD unit is ready for whatever gaming or multitasking you throw at it. G14 also takes advantage of AMD technologies like Smartshift and Smart Access Memory for an added advantage. AMD Smartshift allows the CPU and GPU to dynamically allocate power when and where it’s needed most, and AMD Smart Shift Memory gives the CPU full access to the GPU’s full VRAM, improving performance in games.

Windows 11

OS
AMD
Ryzen 9 6900HS
CPU
AMD
Radeon RX 6800S
graphics
5-10% on average
mux key
improve the performance

ROG MUX switch
Most gaming laptops use powerful dedicated graphics chips for high performance, but they route those frames through the graphics integrated into the CPU before they reach the display for maximum battery life. This prevents your GPU from delivering its absolute best performance, which is why we’ve provided a MUX switch for all 2022 ROG laptops. For competitive gaming, you can enable GPU Direct mode that reduces latency and boosts performance by up to 5- 10% on average.

ROG logo_Intelligent Cooling
Powerful hardware requires powerful cooling, especially in a compact body. The Zephyrus G14 has a CPU and GPU vapor chamber with liquid metal thermal compound for superior heat transfer from even the hottest components. In silent mode during low-power tasks, 0dB technology allows the fans to be automatically disabled for a truly silent experience.
*Learn more about ROG Intelligent Cooling™ here

The steam room dissipates heat faster
Compared to traditional heat pipes that only conduct heat along their axis, steam room designs spread heat across their entire surface, creating a wider surface area for fast heat dissipation in small spaces. Reducing the temperature of these power components helps improve long-term stability and reliability.

48.2%
thermal coverage
25 watts
higher thermal rise*
*Improvements compared to using heat pipes, as tested in Turbo mode internally by ASUS.

Keep your CPU and GPU cool with Liquid Metal
reach to
10 degrees cooler
CPU temperature
reach to
14 times better
thermal conductivity
Grizzly_Logo
*Temperature improvements over the previous thermal compound, as tested internally by ASUS. Thermal conductivity compared to industry standards.

0 db technology,

Zero distractions
Enjoy truly silent cooling under light workloads with 0dB technology. In silent mode, the cooling system turns off all fans during low-power tasks to dissipate heat passively. This allows you to focus on your work and immerse yourself in movies with minimal distractions. If the CPU or GPU temperatures rise, such as during a gaming session, the fans will automatically turn on again.

I feel like winning
5.1.2-channel virtual surround sound powered by Dolby Atmos® technology puts you in the center of the action, with volume up to 1.78 times louder than the previous generation G14. Dual speakers blast sound straight at you, while smart dual speakers bounce off the table below the device. Switch between 6 preset modes that optimize settings based on game type and media, or make manual adjustments to suit your preferences. Two-way AI noise cancellation filters both audio input and output, making broadcasts, conversations, and recording clearer than ever.

Dolby Atmos logo

quad
Amplifiers

1.78X
higher volume
in two directions
AI noise cancellation
Diversified capabilities
3D microphone
Matrix group

mash
The 2022 Zephyrus G14 features a larger touchpad to match the new 16:10 display for responsive control. Overstroke technology activates a higher level on each keystroke for faster response, and the ErgoLift design raises the keyboard at an angle to make typing more comfortable. A dazzling prismatic gloss covers the keyboard, which offers dedicated hot keys that put volume, mic mute, and ROG Armory Crate software within easy reach. Hot keys are also fully customizable, and can be programmed to launch applications, assigned as a function key, or used as a macro.

Desktop inspired
Planning
the games
Hot keys
With macro function

N key
roll over

quick Boot
Master keys

The next generation of Wi-Fi
Even when there are many clients on the network, Wi-Fi 6E will keep you connected. When compatible networks are available, enjoy near-wireless speeds while gaming and video conferencing.

Adaptive connection

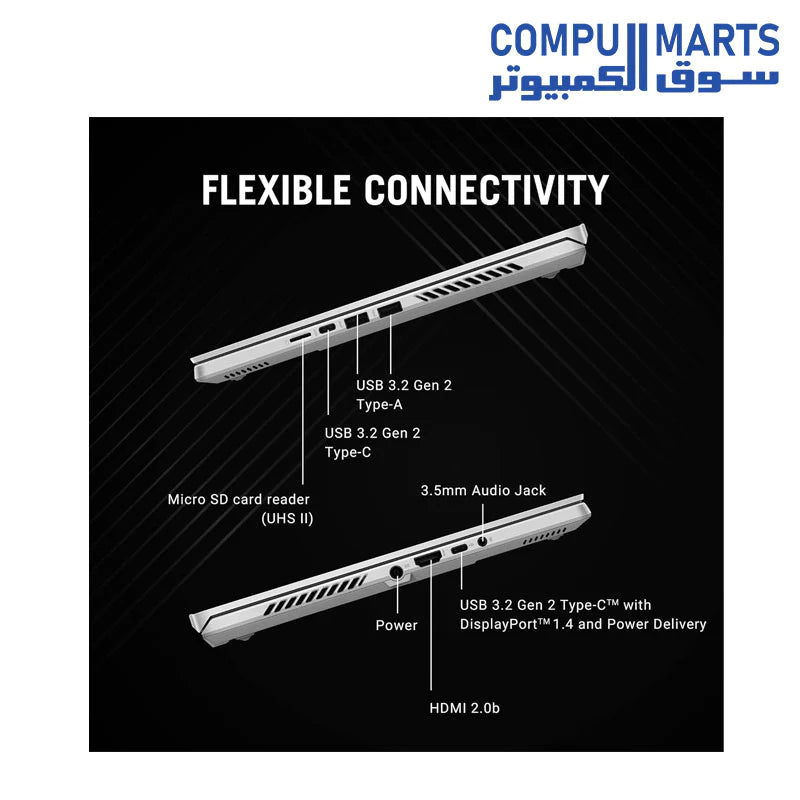

Dual USB Type-C ports, one with Power Delivery and DisplayPort™ 1.4 support, plus a pair of USB 3.2 Type-A ports provide ample connectivity options. The all-new addition of a Micro SD card reader is ideal for creatives who need to transfer data on the go.

ROG’s OMNI mascot serves as a fun sidekick that also doubles as an interactive assistant. OMNI lives on your desktop after activation and reacts in real time to changes in system load and battery level. The virtual pet can also be configured to hang out on the Zephyrus G14’s AniMe Matrix™ display.

get ready
Assemble your ROG Zephyrus G14 with an array of gaming peripherals and accessories. Navigate smoothly and precisely with the ROG Impact gaming mouse. Lighten your load with a smaller 100W inverter that provides enough power to keep you productive anywhere. And give your laptop an extra measure of security on the road in a convenient, perfectly sized sleeve.

*Bundled peripherals may vary by region. Please check with your local sellers for exact offers.

• Operating System

Windows 11 Home

• Processor

AMD Ryzen R7 6800HS Mobile Processor (8-core/16-thread, 16MB cache, up to 4.9 GHz max boost)

• Graphics

AMD Radeon RX 6700S

ROG Boost: up to 105W(SmartShift)

8GB GDDR6

• Display

ROG Nebula Display
14-inch
QHD+ 16:10 (2560 x 1600, WQXGA)
IPS-level
Anti-glare display
DCI-P3:100%
Refresh Rate:120Hz
Response Time:3ms
Adaptive-Sync
Pantone Validated
MUX Switch
Support Dolby Vision HDR :Yes

• Memory

16GB DDR5 on board

16GB DDR5-4800 SO-DIMM

Max Capacity:32GB
Support dual channel memory

• Storage

1TB PCIe 4.0 NVMe M.2 SSD

• I/O Ports

1x 3.5mm Combo Audio Jack
1x HDMI 2.0b
2x USB 3.2 Gen 2 Type-A
1x USB 3.2 Gen 2 Type-C support DisplayPort™
1x USB 3.2 Gen 2 Type-C support DisplayPort™ / power delivery
1x card reader (microSD) (UHS-II)
Keyboard and Touchpad
Backlit Chiclet Keyboard 1-Zone RGB
Touchpad

• Camera

720P HD IR Camera for Windows Hello

• Audio

Smart Amp Technology
Dolby Atmos
AI noise-canceling technology
Hi-Res certification
Built-in 3-microphone array
4-speaker system with Smart Amplifier Technology

• Network and Communication

Wi-Fi 6E(802.11ax) (Triple band) 2*2 + Bluetooth 5.3 Wireless Card (*Bluetooth version may change with OS version different.)

• Battery

76WHrs, 4S1P, 4-cell Li-ion

• Power Supply

ø6.0, 240W AC Adapter, Output: 20V DC, 12A, 240W, Input: 100~240C AC 50/60Hz universal
TYPE-C, 100W AC Adapter, Output: 20V DC, 5A, 100W, Input: 100~240V AC 50/60Hz universal

• AURA SYNC

Yes

• Weight

1.65 Kg (3.64 lbs)

• Dimensions (W x D x H)

31.2 x 22.7 x 1.85 ~ 1.85 cm (12.28″ x 8.94″ x 0.73″ ~ 0.73″)

• Xbox Game Pass

Xbox Game Pass Ultimate_1 month (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass Ultimate. Eligible markets are determined at activation. Game catalog varies by region, device, and time.)

• Security

BIOS Administrator Password and User Password Protection
Trusted Platform Module (Firmware TPM)

• Included in the Box

ROG Zephyrus G14 Sleeve (2022)
ROG Chakram Core mouse P511

• Device Lighting

AniMe Matrix
