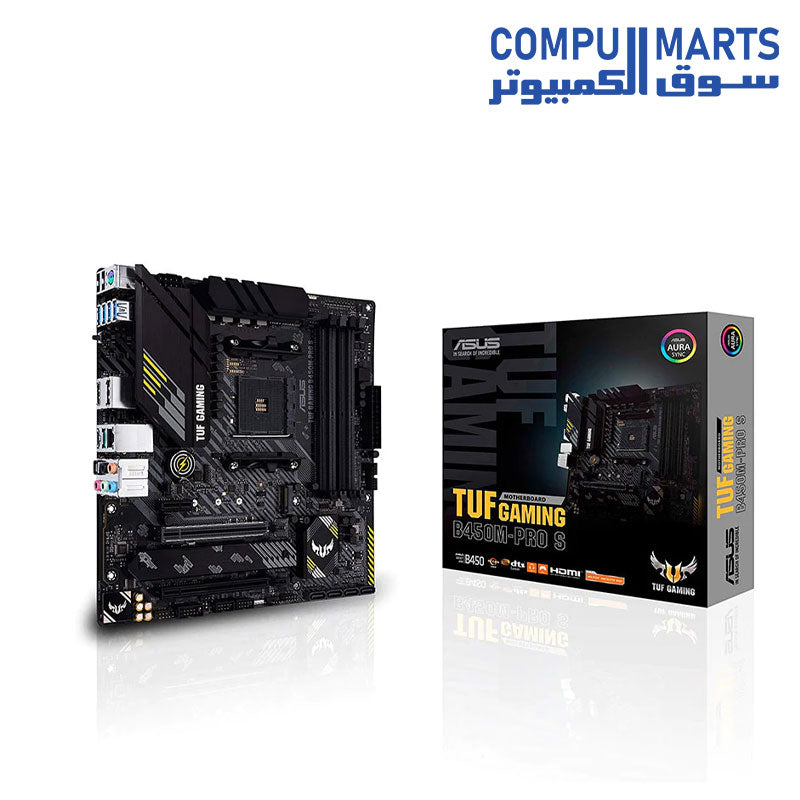

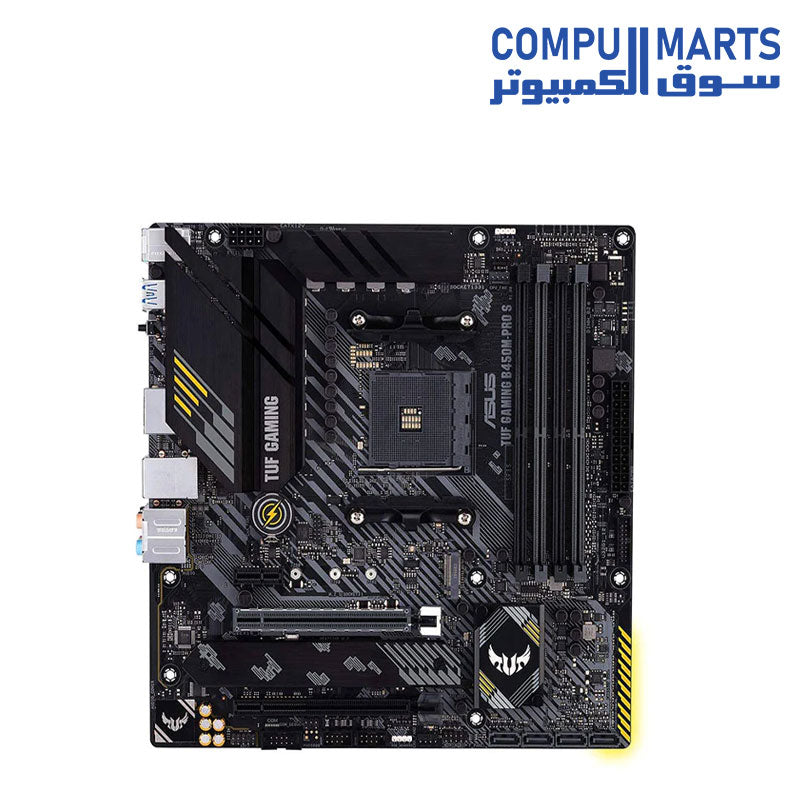

Motherboard ASUS TUF Gaming B450M-PRO S AMD AM4 (3rd Gen Ryzen Micro ATX )

Motherboard ASUS TUF Gaming B450M-PRO S AMD AM4 (3rd Gen Ryzen Micro ATX )

• Enhanced power solution: 8+2 DrMOS power stages, ProCool connector, military-grade TUF components, and Digi+ VRM for maximum durability

• Comprehensive cooling: VRM heatsinks, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 2+ utility

• Next-gen connectivity: USB 3.2 Gen 2 Type-A and Type-C support

• Made for online gaming: 2.5 Gb Ethernet, TUF LANGuard and TurboLAN technology

• Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in

• AI Noise-Canceling Microphone: provides crystal-clear in-game voice communication

The onboard VRM of TUF GAMING B450M-PRO S utilizes 8+2 DrMOS power stages that combine high-side and low-side MOSFETs and driver into a single package, delivering the power and efficiency that 3rd Gen AMD Ryzen Processors demand.

Supported CPU
CPU Socket Type :AM4
CPU Type: AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics Processors

Chipsets:
Chipset: AMD B450

Memory:
Number of Memory Slots 4×288pin
Memory Standard DDR4 4400(O.C.)/ 3533(O.C.)/ 3466(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory

Maximum Memory Supported 128GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 3.0 x16 3rd/2nd/1st Gen AMD Ryzen Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD Athlon with Radeon Vega Graphics Processors
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
PCI Express 2.0 x16 1 x PCIe 2.0 x16 (x4 mode) *1
*1 PCIEX16_2 shares bandwidth with M.2_2. When PCIEX16_2 runs, M.2_2 will be disabled.
PCI Express x1 1 x PCI Express 2.0 x1 slot
Storage Devices
SATA 6Gb/s 4 x SATA 6Gb/s
M.2 3rd/2nd/1st Gen AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics:
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode)
AMD Athlon with Radeon Vega Graphics Processors:
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)

AMD B450 chipset:
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 2.0 x4)*2
*2 M.2_2 shares bandwidth with PCIEX16_2. When M.2_2 runs, PCIEX16_2 will be disabled.
Onboard Video
Onboard Video Chipset Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics Processors
1 x DisplayPort 1.2
1 x HDMI 2.0b
*Graphics specifications may vary between CPU types.
Onboard Audio
Audio Chipset Realtek ALC S1200A Surround Sound High Definition Audio CODEC
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Realtek RTL8125B
Max LAN Speed 10/100/1000/2500Mbps
Rear Panel Ports
Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (2.5G) port(s)
2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C)
4 x USB 3.2 Gen 1 (blue) Type-A
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x BIOS FlashBack Button(s)
Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors 1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
2 x Aura RGB Strip Headers
1 x SPI TPM header
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
1 x Speaker connector
Physical Spec
Form Factor Micro ATX
LED Lighting RGB
Dimensions (W x L) 9.6" x 9.6"
Power Pin 1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
Features
Features Multi-GPU Support:
Supports AMD 2-Way Cross FireX Technology

Software Features:
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- AI Noise-Canceling Microphone
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 2+
- EZ update
TUF GAMING CPU-Z
AI Charger
ASUS Turbo LAN
DAEMON Tools
DTS Custom for GAMING Headsets
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

ASUS Special Features:
ASUS TUF PROTECTION
- ASUS DIGI+ VRM (Digital power design with DrMOS)
- ASUS Enhanced DRAM Overcurrent Protection
- ASUS ESD Guards
- TUF LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
AURA Sync
- AURA RGB headers

BIOS:
256MB Flash ROM, UEFI AMI BIOS

Manageability:
WOL by PXE

Operating System:
Windows 10 64-bit
Windows 7 64-bit *3
3 To support Windows 7 64-bit, please install an AMD Ryzen 2nd Generation or Ryzen 1st Generation Processor.
Packaging
Package Contents Accessories:
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x TUF Gaming Sticker
1 x TUF Certification card(s)
1 x M.2 SSD screw package(s)
1 x M.2 Rubber Package(s)
