GIGABYTE H610M D3H WIFI DDR4 Micro ATX Motherboard – Intel H610 Chi...
GIGABYTE H610M D3H WIFI DDR4 Micro ATX Motherboard – Intel H610 Chipset, LGA1700, DDR4 64GB, Dual M.2, PCIe 4.0, Wi-Fi 802.11ac, Bluetooth 5.1 is backordered and will ship as soon as it is back in stock.
Description
Description

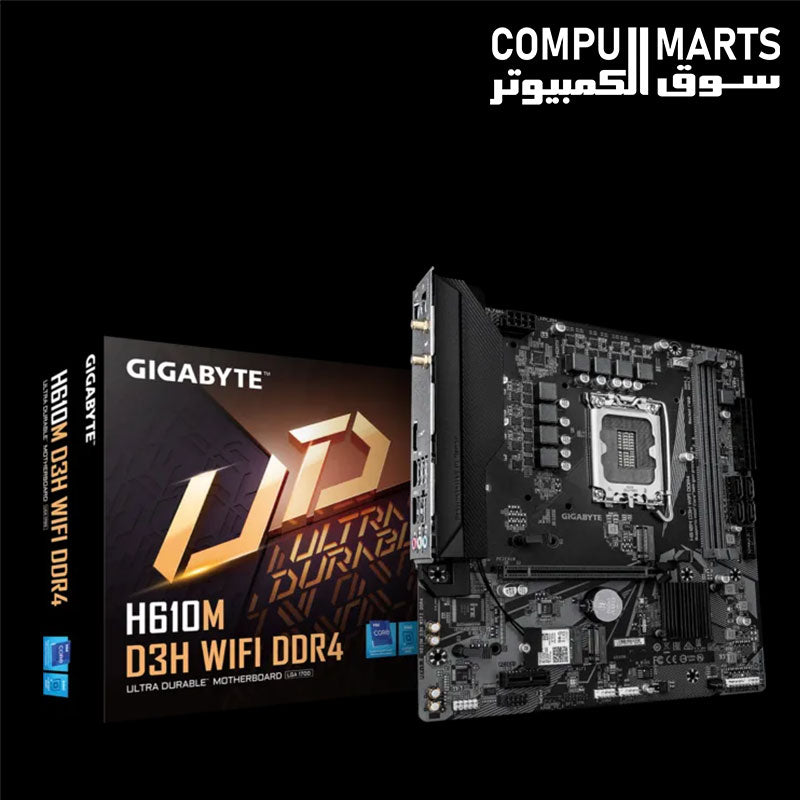

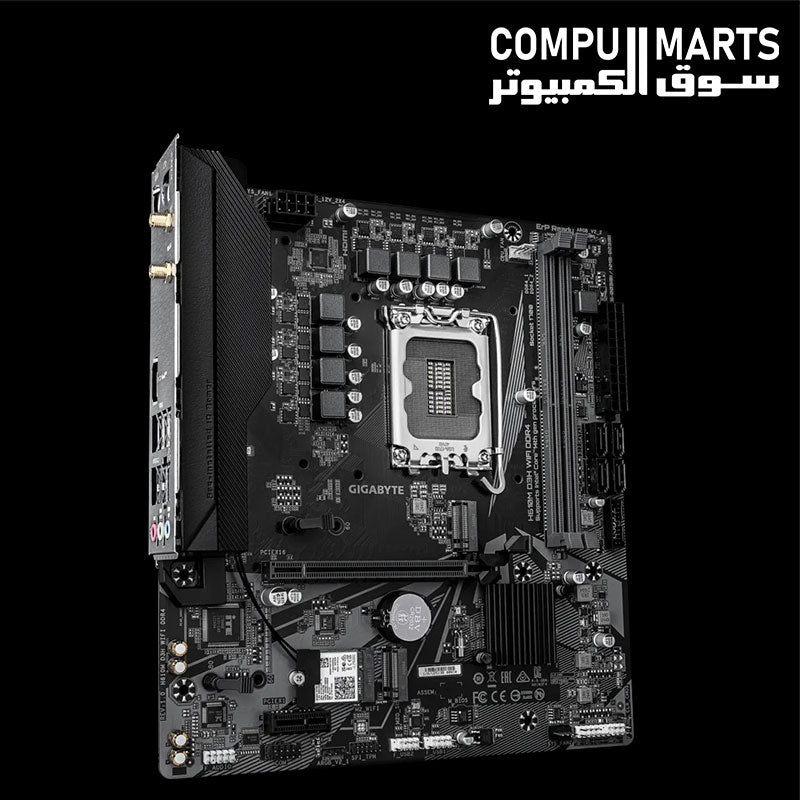

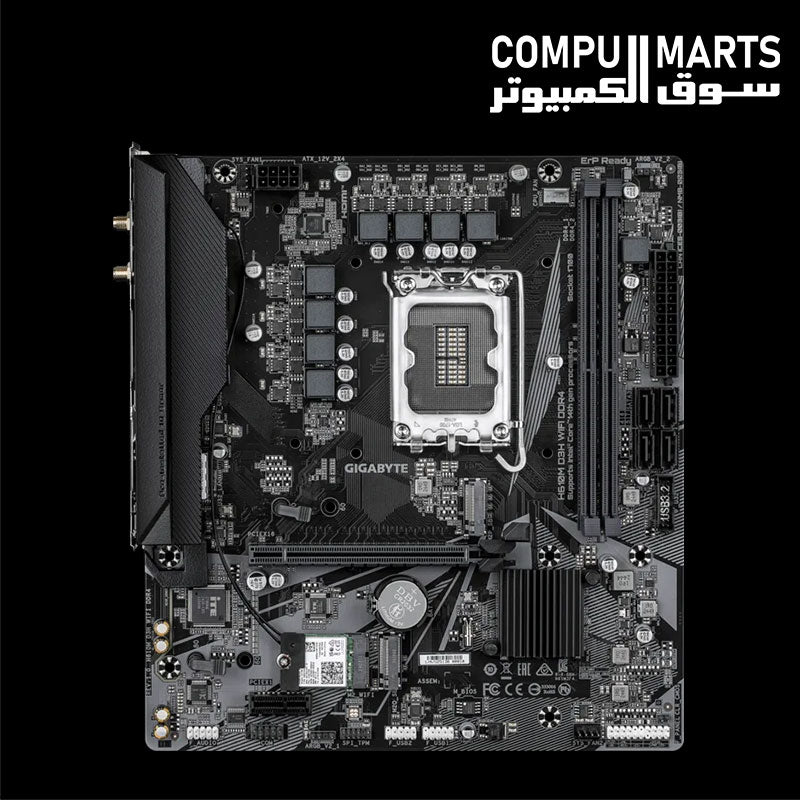

The GIGABYTE H610M D3H WIFI DDR4 is a Micro ATX motherboard featuring the Intel® H610 Express Chipset and an LGA1700 socket supporting 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® processors. Its two DDR4 DIMM slots support up to 64 GB of system memory, with memory speeds up to 3200 MT/s listed in the specifications. Expansion options include a PCI Express 4.0 x16 slot and a PCI Express 3.0 x1 slot, while storage connectivity includes two M.2 connectors and four SATA 6Gb/s connectors. Wireless connectivity is provided by the Intel® Wireless-AC 9560 module with dual-band Wi-Fi and Bluetooth 5.1, alongside Realtek® Gigabit LAN. The board also features HDMI output supporting up to 4096x2160 at 60 Hz, Realtek® High Definition Audio, USB 3.2 Gen 1 and USB 2.0/1.1 connectivity, and support for Windows 11 64-bit and Windows 10 64-bit. Explore the GIGABYTE H610M D3H WIFI DDR4 motherboard at Compumarts in Egypt.
| MODEL | H610M D3H WIFI DDR4 |
| CHIPSET | Intel® H610 Express Chipset |
| CPU SOCKET | LGA1700 |
| SUPPORTED PROCESSORS | 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors |
| MEMORY TYPE | DDR4 |
| MEMORY SLOTS | 2 x DDR4 DIMM sockets |
| MAXIMUM MEMORY | Up to 64 GB |
| MEMORY SPEEDS | 3200/3000/2933/2666/2400/2133 MT/s |
| MEMORY ARCHITECTURE | Dual channel memory architecture |
| MEMORY SUPPORT | ECC Un-buffered DIMM (operate in non-ECC mode), non-ECC Un-buffered DIMM and XMP memory modules |
| EXPANSION SLOTS | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16; 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| M.2 STORAGE | 1 x M.2 connector, type 2280/2260, PCIe 3.0 x4/x2 SSD support; 1 x M.2 connector, type 2280/2260, PCIe 3.0 x2 SSD support |
| SATA STORAGE | 4 x SATA 6Gb/s connectors |
| WIRELESS | Intel® Wireless-AC 9560 |
| WI-FI | 802.11 a, b, g, n, ac; 2.4/5 GHz Dual-Band; 11ac 160MHz wireless standard |
| BLUETOOTH | Bluetooth 5.1 |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| GRAPHICS OUTPUT | 1 x HDMI port |
| MAXIMUM HDMI RESOLUTION | 4096x2160@60 Hz |
| HDMI FEATURES | HDMI 2.1 version and HDCP 2.3 |
| AUDIO | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel |
| USB 3.2 GEN 1 | 4 x USB 3.2 Gen 1 ports, including 2 rear ports and 2 ports available through the internal USB header |
| USB 2.0/1.1 | 6 x USB 2.0/1.1 ports through the chipset and USB hubs, including 4 rear ports and internal-header connectivity |

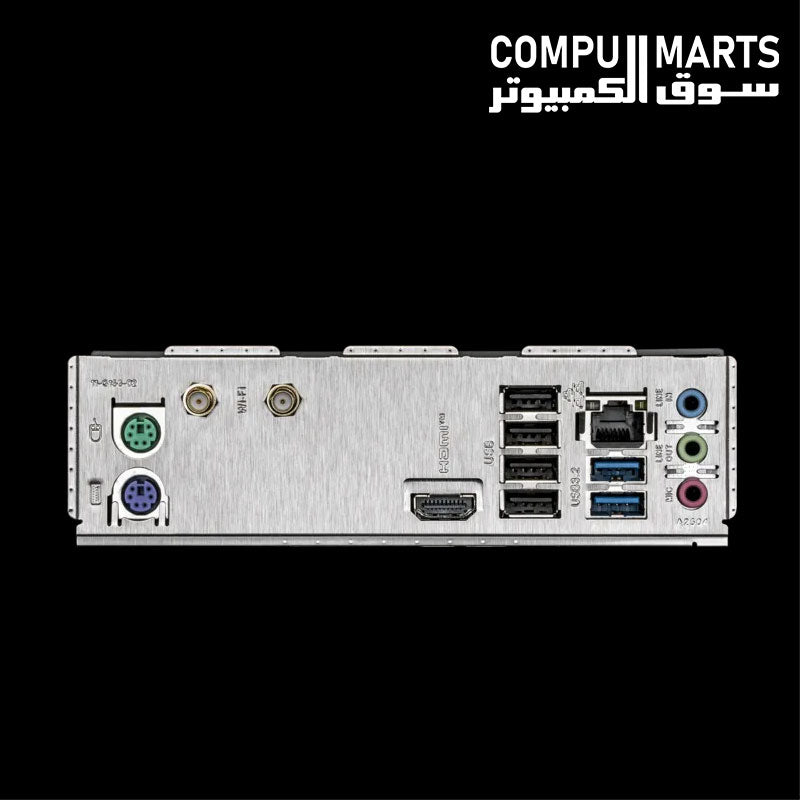

| REAR CONNECTIVITY | 1 x PS/2 keyboard port, 1 x PS/2 mouse port, 2 x SMA antenna connectors (2T2R), 1 x HDMI port, 2 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks |
| POWER CONNECTORS | 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector |
| FAN HEADERS | 1 x CPU fan header; 2 x system fan headers |
| ARGB HEADERS | 2 x addressable RGB Gen2 LED strip headers |
| INTERNAL CONNECTORS | 1 x front panel header; 1 x front panel audio header; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module header; 1 x serial port header; 1 x Clear CMOS jumper |
| I/O CONTROLLER | iTE® I/O Controller Chip |
| HARDWARE MONITORING | Voltage detection, temperature detection, fan speed detection, water cooling flow rate detection, fan fail warning and fan speed control |
| BIOS | 1 x 128 Mbit flash; licensed AMI UEFI BIOS |
| BIOS STANDARDS | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| SOFTWARE SUPPORT | GIGABYTE Control Center (GCC) and Q-Flash |
| BUNDLED SOFTWARE | Norton® Internet Security (OEM version); LAN bandwidth management software |
| OPERATING SYSTEM | Windows 11 64-bit; Windows 10 64-bit |
| FORM FACTOR | Micro ATX |
| DIMENSIONS | 24.4cm x 22.0cm |
