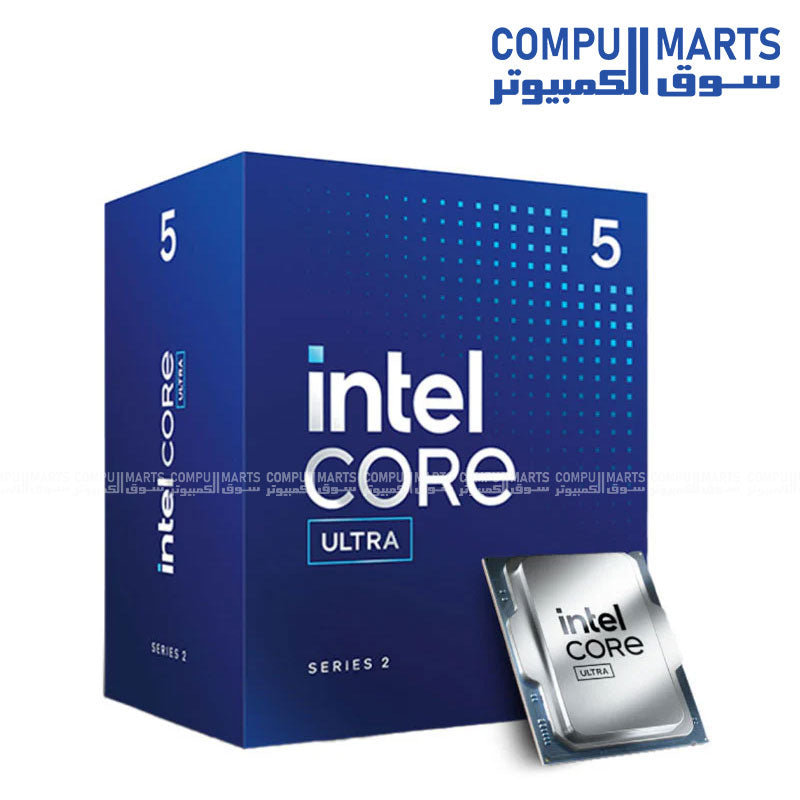

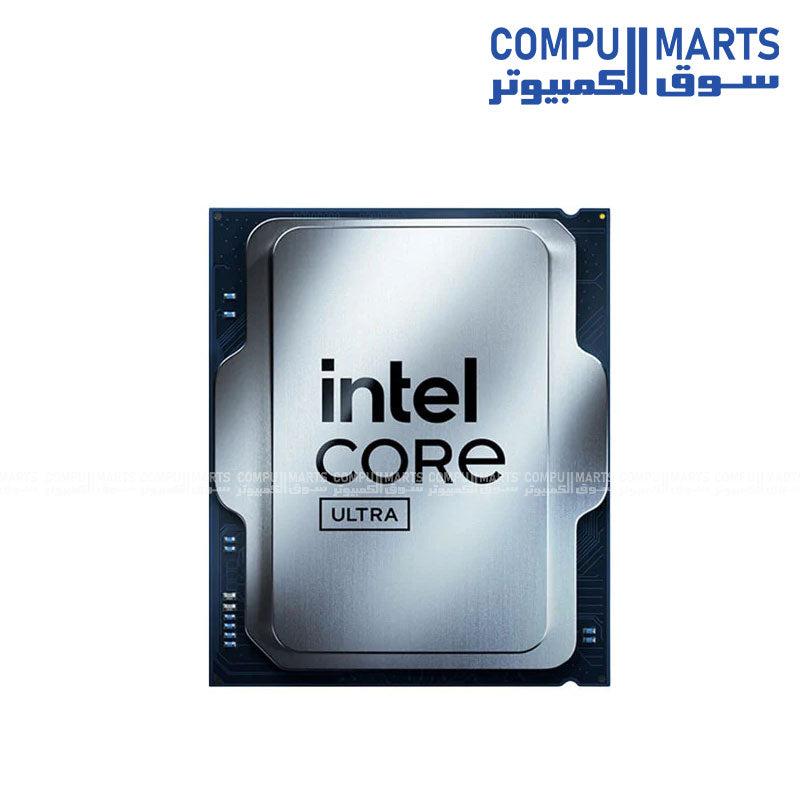

Intel Core Ultra 5 225F Desktop Processor – Core Ultra Series 2, 10 Cores/10 Threads, 4.9GHz Turbo, 20MB Cache, 65W

Intel Core Ultra 5 225F Desktop Processor – Core Ultra Series 2, 10 Cores/10 Threads, 4.9GHz Turbo, 20MB Cache, 65W

Total Cores
10
 of Performance-cores
6
 of Efficient-cores
4
Total Threads
10
Max Turbo Frequency
4.9 GHz
Performance-core Max Turbo Frequency
4.9 GHz
Efficient-core Max Turbo Frequency
4.4 GHz
Performance-core Base Frequency
3.3 GHz
Efficient-core Base Frequency
2.7 GHz
Cache
20 MB Intel Smart Cache
Total L2 Cache
22 MB
Processor Base Power
65 W
Maximum Turbo Power
121 W
Intel Deep Learning Boost (Intel DL Boost) on CPU
Yes
AI Software Frameworks Supported by CPU
OpenVINO, WindowsML, DirectML, ONNX RT, WebNN
CPU Lithography
TSMC N3B
Supplemental Information
Marketing Status
Launched
Launch Date
Q1'25
Embedded Options Available
No
Use Conditions
PC/Client/Tablet
Memory Specifications
Max Memory Size (dependent on memory type)
256 GB
Memory Types
Up to DDR5 6400 MT/s
Max of Memory Channels
2
NPU Specifications
NPU Name
Intel AI Boost
NPU Peak TOPS (Int8)
13
Sparsity Support
Yes
Windows Studio Effects Support
Yes
AI Software Frameworks Supported by NPU
OpenVINO, WindowsML, DirectML, ONNX RT, WebNN
Expansion Options
Direct Media Interface (DMI) Revision
4
Max of DMI Lanes
8
Intel Thunderbolt 4
Yes
Scalability
1S Only
PCI Express Revision
5.0 and 4.0
PCI Express Configurations ‡
Up to 1x16+2x4, 2x8+2x4,
1x8+4x4
Max of PCI Express Lanes
24
Package Specifications
Sockets Supported
FCLGA1851
Thermal Solution Specification
PCG 2022C
Max Operating Temperature
105 °C
Advanced Technologies
IntelVolume Management Device (VMD)
Yes
Intel Gaussian & Neural Accelerator
3.5
Intel Thread Director
Yes
Intel Speed Shift Technology
Yes
Intel Turbo Boost Technology
2.0
Intel 64&nbsp
Yes
Instruction Set
64-bit
Instruction Set Extensions
Intel SSE4.1, Intel SSE4.2, Intel AVX2
Idle States
Yes
Enhanced Intel SpeedStep Technology
Yes
Thermal Monitoring Technologies
Yes

Security & Reliability
Intel Standard Manageability (ISM)
Yes
Intel Control-Flow Enforcement Technology
Yes
Intel AES New Instructions
Yes
Secure Key
Yes
Intel Trusted Execution Technology ‡
Yes
Execute Disable Bit ‡
Yes
Intel OS Guard
Yes
Intel Boot Guard
Yes
Mode-based Execute Control (MBEC)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
