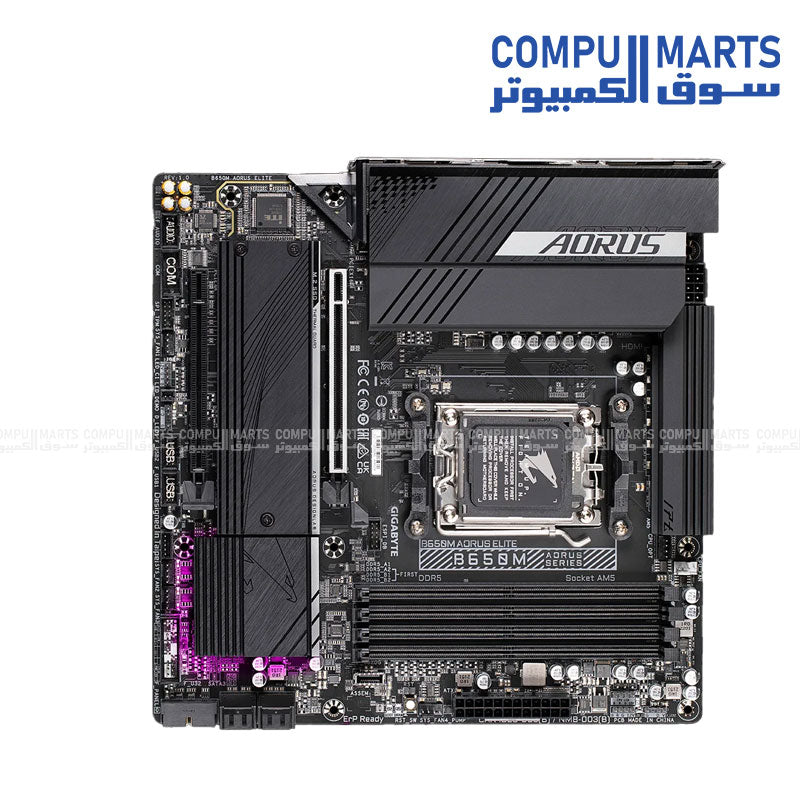

GIGABYTE B650M AORUS ELITE DDR5 Micro‑ATX Motherboard – AM5, PCIe 5.0

GIGABYTE B650M AORUS ELITE DDR5 Micro‑ATX Motherboard – AM5, PCIe 5.0

The GIGABYTE B650M AORUS ELITE is a high-performance micro‑ATX motherboard for AMD's AM5 platform, supporting Ryzen 7000/8000/9000 CPUs. It delivers DDR5 memory, PCIe 5.0 support, and advanced thermals—ideal for compact gaming and productivity setups in Egypt.

Key Specifications :

• CPU

  1. AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors.

• Chipset

  1. AMD B650

• Memory

  1. Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
  2. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

• Onboard Graphics

  Integrated Graphics Processor:

  1. 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
      Support for DisplayPort 1.4 version and HDR.
  2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
     Support for HDMI 2.1 version and HDCP 2.3.
     Support native HDMI 2.1 TMDS compatible ports.

• Audio

  1. Realtek Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel


  4. Support for S/PDIF Out

• LAN

  1. Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

• Expansion Slots

  1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

  1. AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 4.0 x16 mode
  2. AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
  3. AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
     The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

  Chipset:

  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

• Storage Interface

  1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:

  1. AMD Ryzen 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 5.0 x4/x2 SSDs
  2. AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
  3. AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

  1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:

  1. AMD Ryzen 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs
  2. AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
  3. AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

  4 x SATA 6Gb/s connectors
  RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
  RAID 0, RAID 1, and RAID 10 support for SATA storage devices

• USB

  CPU:

  1. 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
  2. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

  CPU + USB 2.0 Hub:

  1. 4 x USB 2.0/1.1 ports on the back panel

  Chipset:

  1. 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header
  2. 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
  3. 4 x USB 2.0/1.1 ports available through the internal USB headers

  Chipset+USB 3.2 Gen 1 Hub:

  1. 4 x USB 3.2 Gen 1 ports on the back pane

• Internal I/O Connectors

  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x water cooling CPU fan header
  5. 3 x system fan headers
  6. 1 x system fan/water cooling pump header
  7. 2 x addressable LED strip headers
  8. 2 x RGB LED strip headers
  9. 1 x CPU cooler LED strip/RGB LED strip header
  10. 2 x M.2 Socket 3 connectors
  11. 4 x SATA 6Gb/s connectors
  12. 1 x front panel header
  13. 1 x front panel audio header
  14. 1 x USB Type-C header, with USB 3.2 Gen 2x2 support
  15. 1 x USB 3.2 Gen 1 header
  16. 2 x USB 2.0/1.1 headers
  17. 1 x serial port header
  18. 1 x THB_U4 add-in card connector
  19. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  20. 1 x reset button
  21. 1 x reset jumper
  22. 1 x Clear CMOS jumper

• Back Panel Connectors

  1. 1 x Q-Flash Plus button
  2. 1 x DisplayPort
  3. 1 x HDMI port
  4. 1 x USB Type-C^® port, with USB 3.2 Gen 2 support
  5. 2 x USB 3.2 Gen 2 Type-A ports (red)
  6. 5 x USB 3.2 Gen 1 ports
  7. 4 x USB 2.0/1.1 ports
  8. 1 x RJ-45 port
  9. 1 x optical S/PDIF Out connector
  10. 2 x audio jacks

• I/O Controller

  1. iTE I/O Controller Chip

• H/W Monitoring

  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Fan fail warning
  6. Fan speed control



• BIOS

  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

  1. Support for GIGABYTE Control Center (GCC)
     * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  2. Support for Q-Flash
  3. Support for Q-Flash Plus

• Bundled Software

  1. Norton Internet Security (OEM version)
  2. LAN bandwidth management software

• Operating System

  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit

• Form Factor

  1. Micro ATX Form Factor; 24.4cm x 24.4cm

  Why buy from Compumarts Egypt?

  • Genuine GIGABYTE product with full local warranty

  • Compact yet future-ready: DDR5 + PCIe 5.0 + Wi‑Fi 6E

  • Ideal for gamers/creators building small rigs

  • Fast delivery and competitive pricing

  Frequently Asked Questions (FAQ):

  Q: Does it support DDR5 over 6000 MT/s?
  A: Yes, supports memory overclocking up to 8000 MT/s via EXPO/XMP

  Q: Is it stable with Ryzen 7/9 CPUs?
  A: Yes, its robust VRM handles high-performance CPUs under load with efficient thermal control
