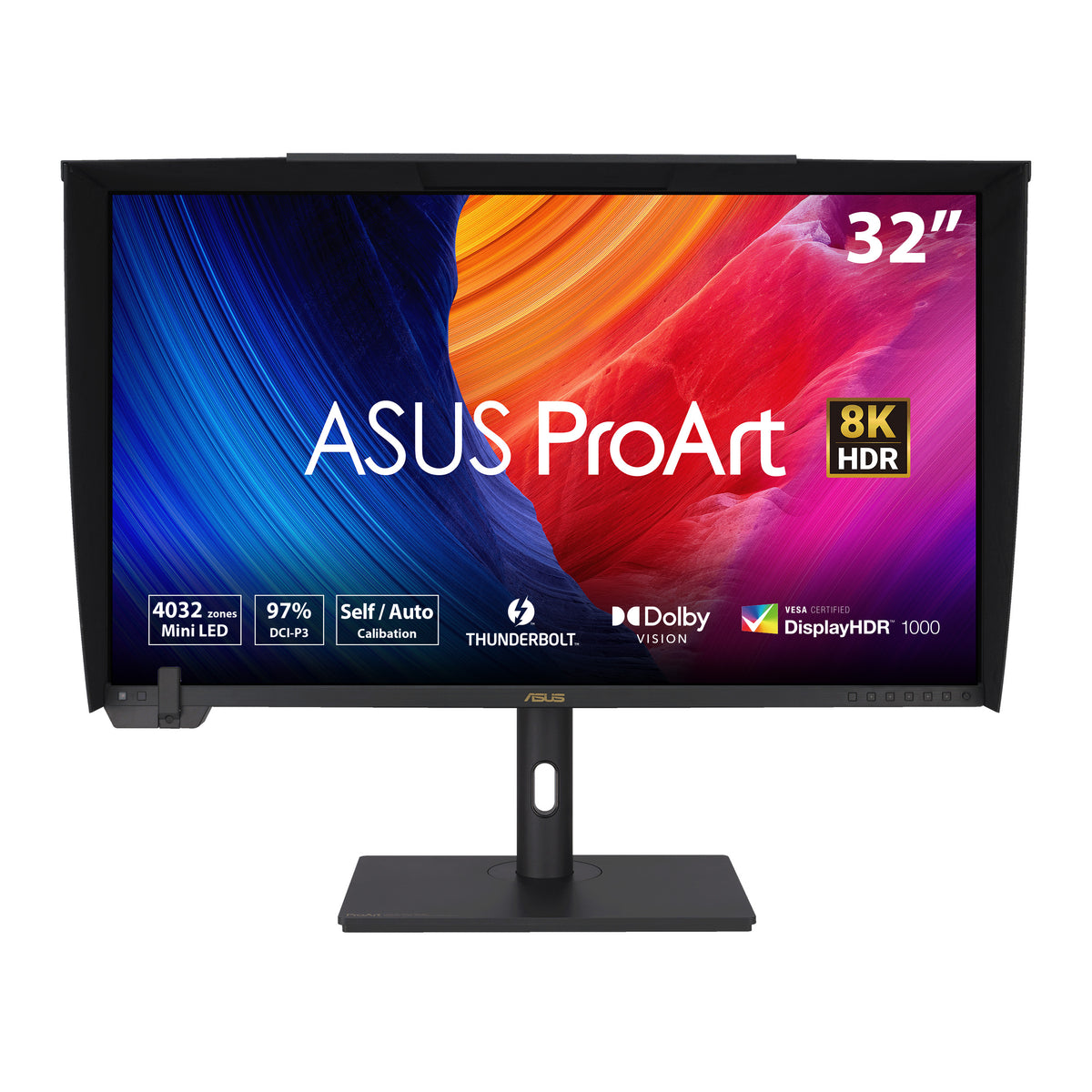

ASUS ProArt Display 8K PA32KCX – 32” Professional 8K UHD Mini LED Monitor

Model

ProArt Display PA32KCX

Display

Panel Size (inch) : 32

Pixels Per Inch (PPI) : 275

Aspect Ratio : 16:9

Display Viewing Area (H x V) : 708.48 x 398.52 mm

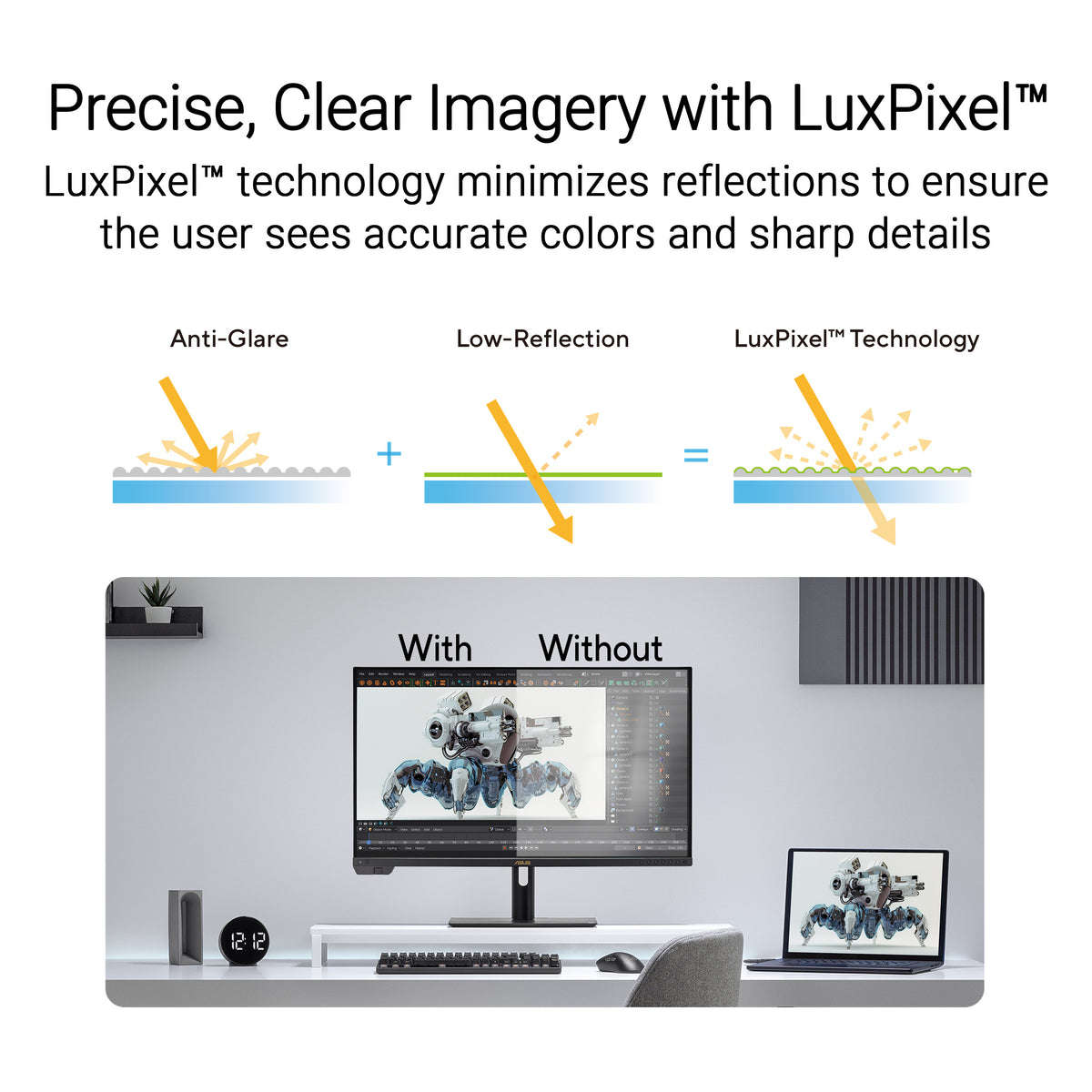

Display Surface : AGLR (Anti-Glare, Low-Reflection)

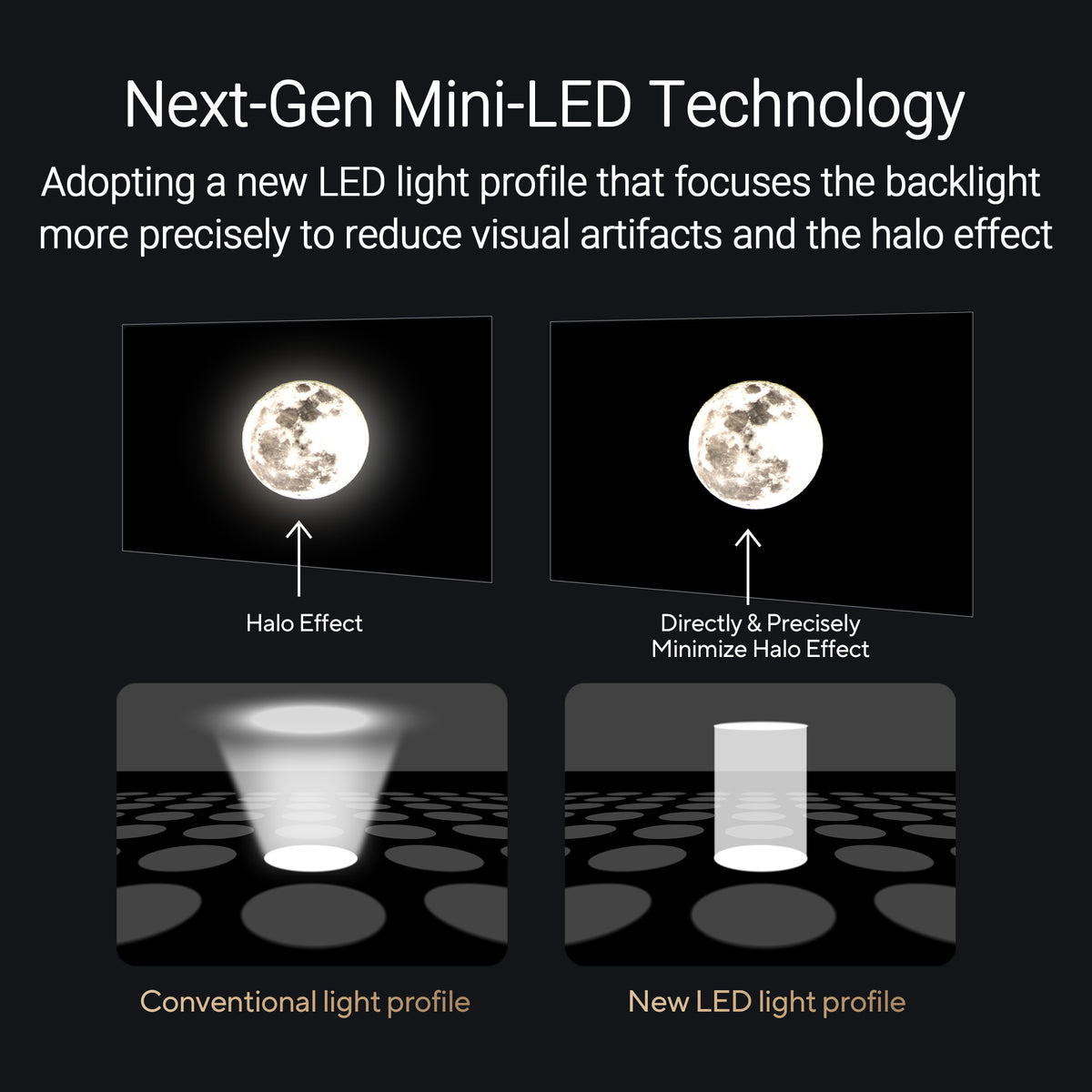

Backlight Type : Mini-LED

Panel Type : IPS

Viewing Angle (CR≧10, H/V) : 178°/ 178°

Pixel Pitch : 0.092mm

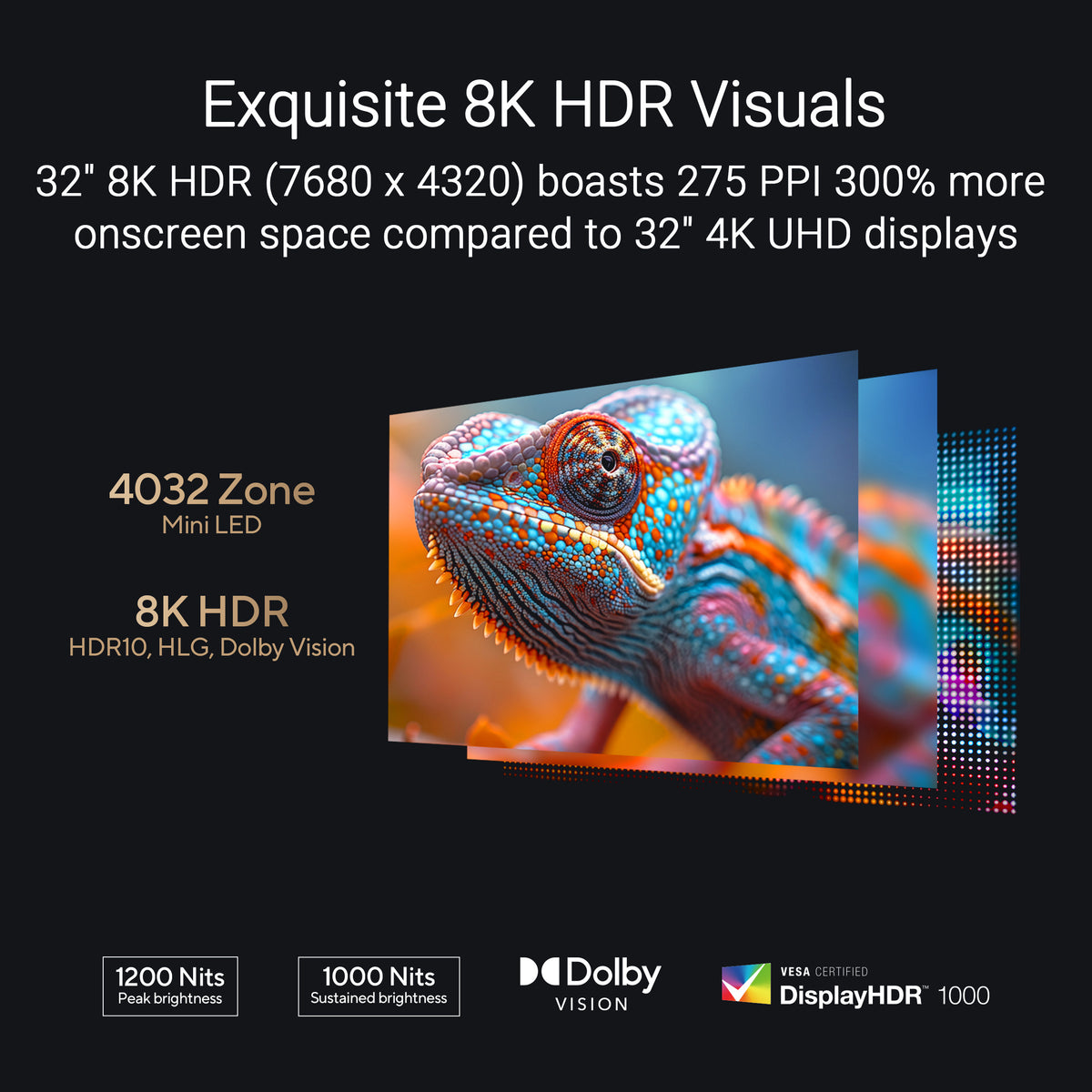

Resolution : 7680x4320

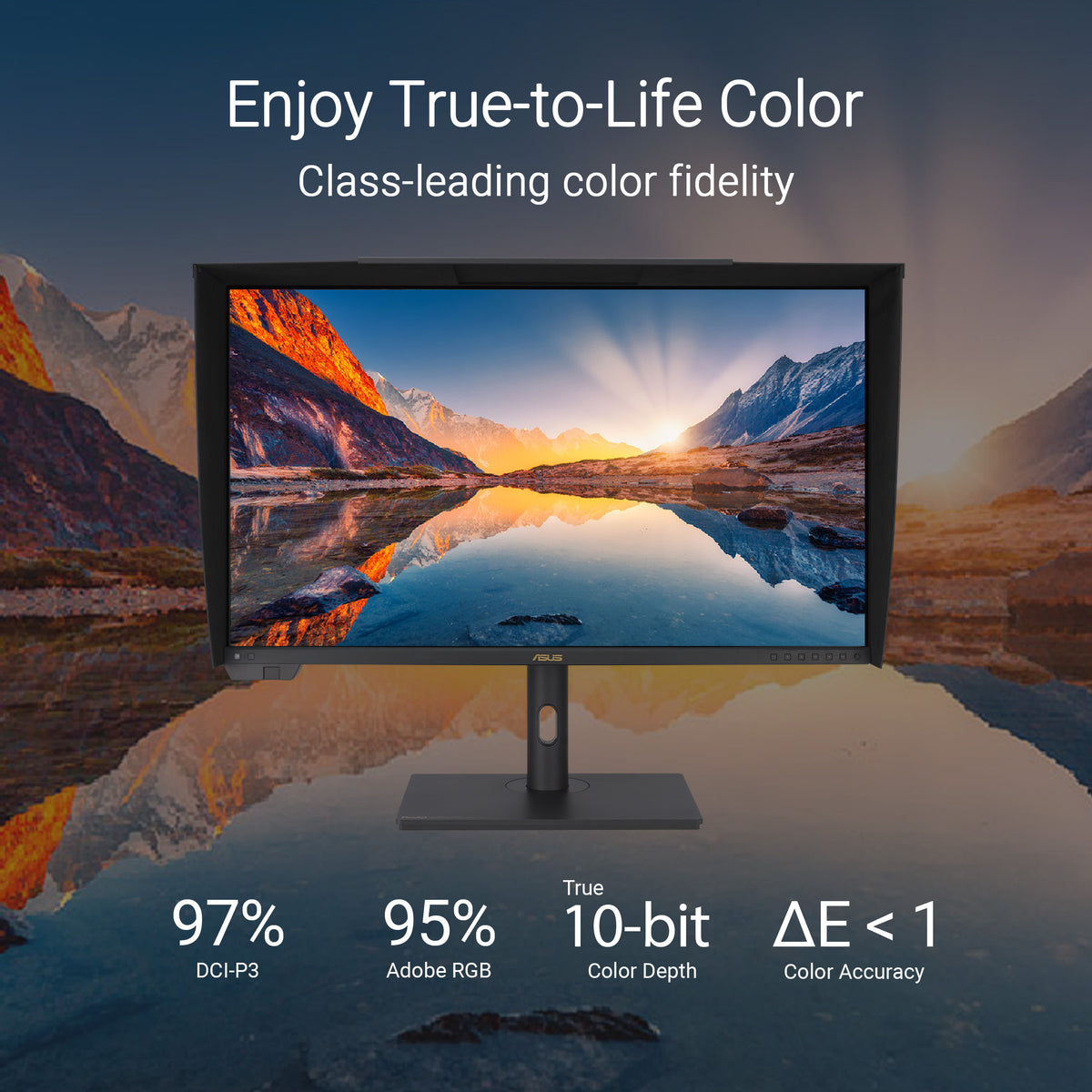

Color Space (sRGB) : 99%

Color Space (Adobe RGB) : 95%

Color Space (DCI-P3) : 97%

Brightness (HDR, Peak) : 1,200 cd/㎡

Brightness (Typ.) : 1000cd/㎡

Contrast Ratio (HDR, Max) : 1,000,000:1

Contrast Ratio (Typ.) : 1000:1

Display Colors : 1073.7M (10 bit)

Response Time : 5ms(GTG)

Refresh Rate (Max) : 60Hz

HDR (High Dynamic Range) Support : HDR10

HDR (High Dynamic Range) Support : HLG

HDR (High Dynamic Range) Support : Dolby Vision

Flicker-free : Yes

LCD ZBD Warranty : Yes(3 yr)

Features

Trace Free Technology : Yes

ProArt Preset : Native

ProArt Preset : sRGB

ProArt Preset : Adobe RGB

ProArt Preset : BT.2020

ProArt Preset : P3

ProArt Preset : DICOM

ProArt Preset : Rec.709

ProArt Preset : HDR_PQ DCI

ProArt Preset : HDR_PQ BT.2020

ProArt Preset : HDR_HLG BT.2100

ProArt Preset : HDR_HLG DCI

ProArt Preset : Dolby Vision

ProArt Preset : User mode1

ProArt Preset : User mode2

ProArt Preset : User mode3

Color Temp. Selection : Yes (5 modes)

Color Adjustment : RGB Tuning (Gain / Offset)

Gamma Adjustment : Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6)

Color Accuracy : △E< 1

ASUS ProArt Hardware Calibration : Yes

ProArt Palette : Yes

QuickFit Plus : Yes

PIP / PBP Technology : Yes

HDCP : Yes, 2.3

VRR Technology : Yes (Adaptive-Sync)

HDR Preview : Yes

DisplayWidget : Yes, DisplayWidget Center

Low Blue Light : Yes

Multiple HDR Mode : Yes

KVM Switch : Yes

Audio

Speaker : Yes(3Wx2)

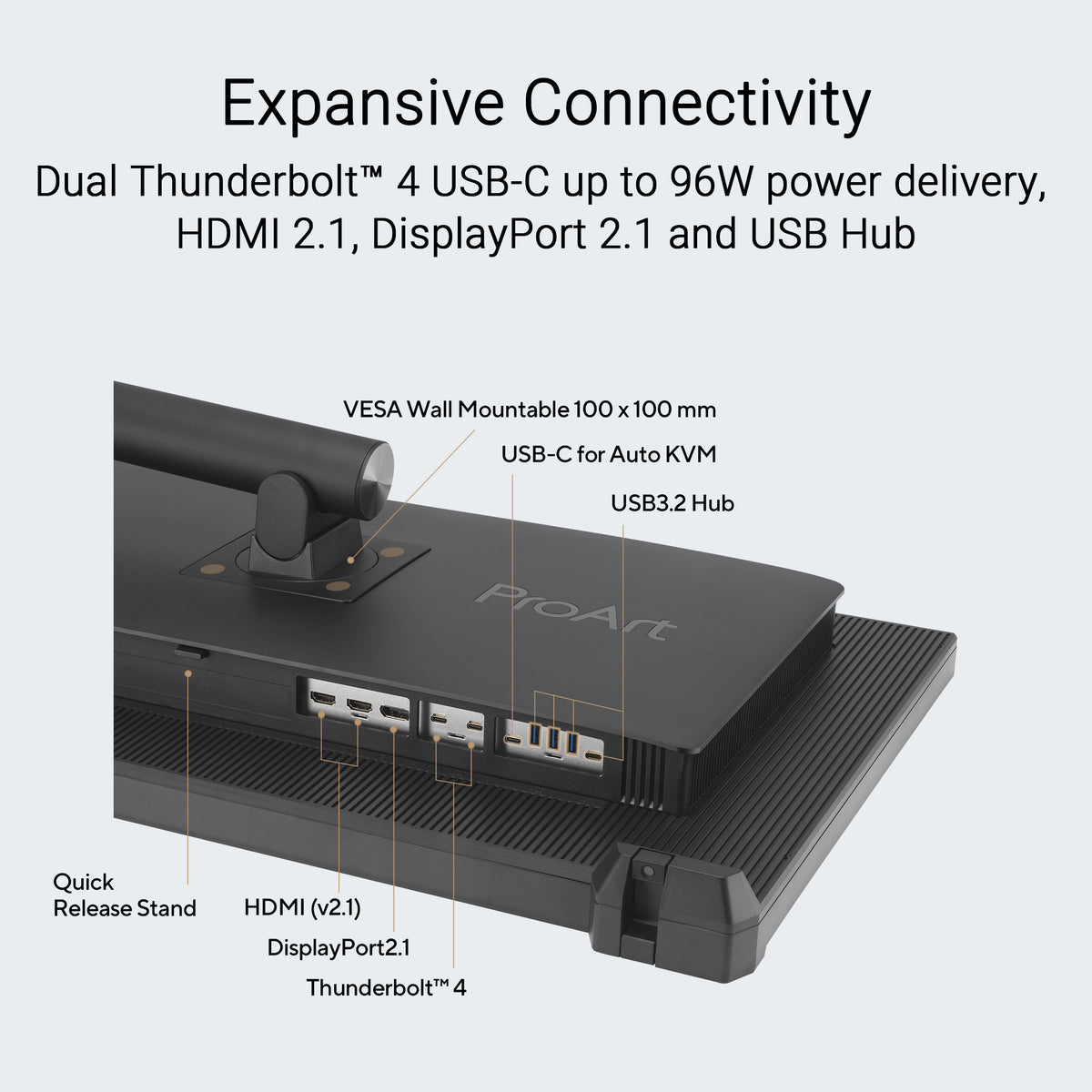

I/O Ports

Thunderbolt 4 x 2 (Daisy Chain)

DisplayPort 2.1 x 1

HDMI(v2.1) x 2

USB Hub : 3x USB 3.2 Gen 2 Type-A

USB Hub : 1x USB 3.2 Gen 2 Type-C

USB-C Power Delivery : 96W

USB 3.2 (Signal) : x 1 USB Type-C (For KVM Switch)

Signal Frequency

Digital Signal Frequency : 15~135 KHz (H) / 48~60 Hz (V)

Power Consumption

Power Consumption : <81.4W

Power Saving Mode : <0.5W

Power Off Mode : 0W (hard switch)

Voltage : 100-240V, 50/60Hz

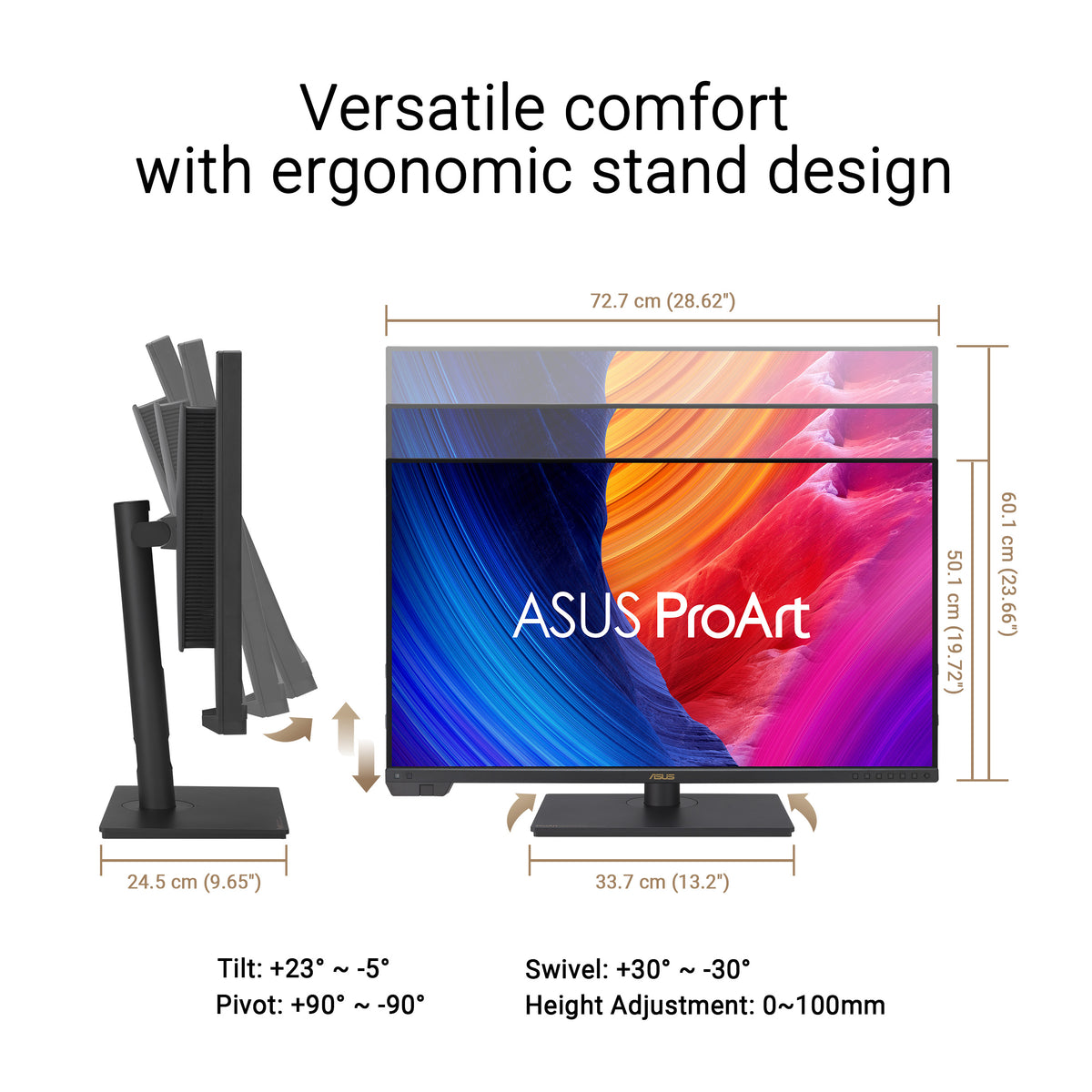

Mechanical Design

Tilt : Yes (+23° ~ -5°)

Swivel : Yes (+30° ~ -30°)

Pivot : Yes (+90° ~ -90°)

Height Adjustment : 0~100mm

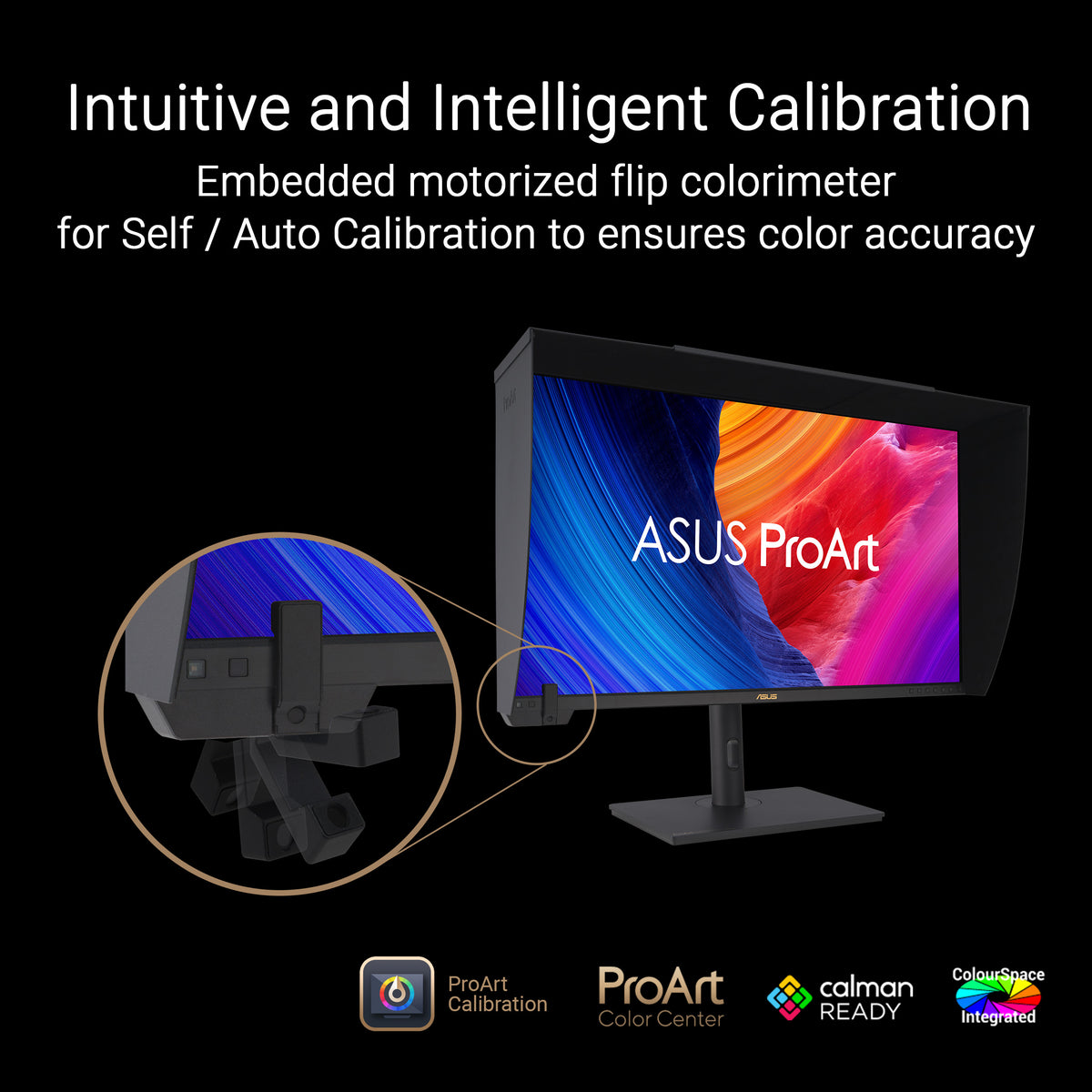

Embedded Colorimeter : Yes (Support Self-Calibration)

Ambient Light Sensor : Yes

Proximity Sensor : Yes

VESA Wall Mounting : 100x100mm

Kensington Lock : Yes

Dimensions (Esti.)

Phys. Dimension (W x H x D) : 72.7 x 60.1 x 24.5 cm (28.62" x 23.66" x 9.65")

Phys. Dimension without Stand (W x H x D) : 72.7 x 44.5 x 9.0 cm (28.62" x 17.52" x 3.54")

Box Dimension (W x H x D) : 89.2 x 57.1 x 37.6 cm (35.12" x 22.48" x 14.80")

Weight (Esti.)

Net Weight : 14.1 kg (31.09 lbs)

Net Weight without Stand : 9.2 kg (20.28 lbs)

Gross Weight : 21.5 kg (47.40 lbs)

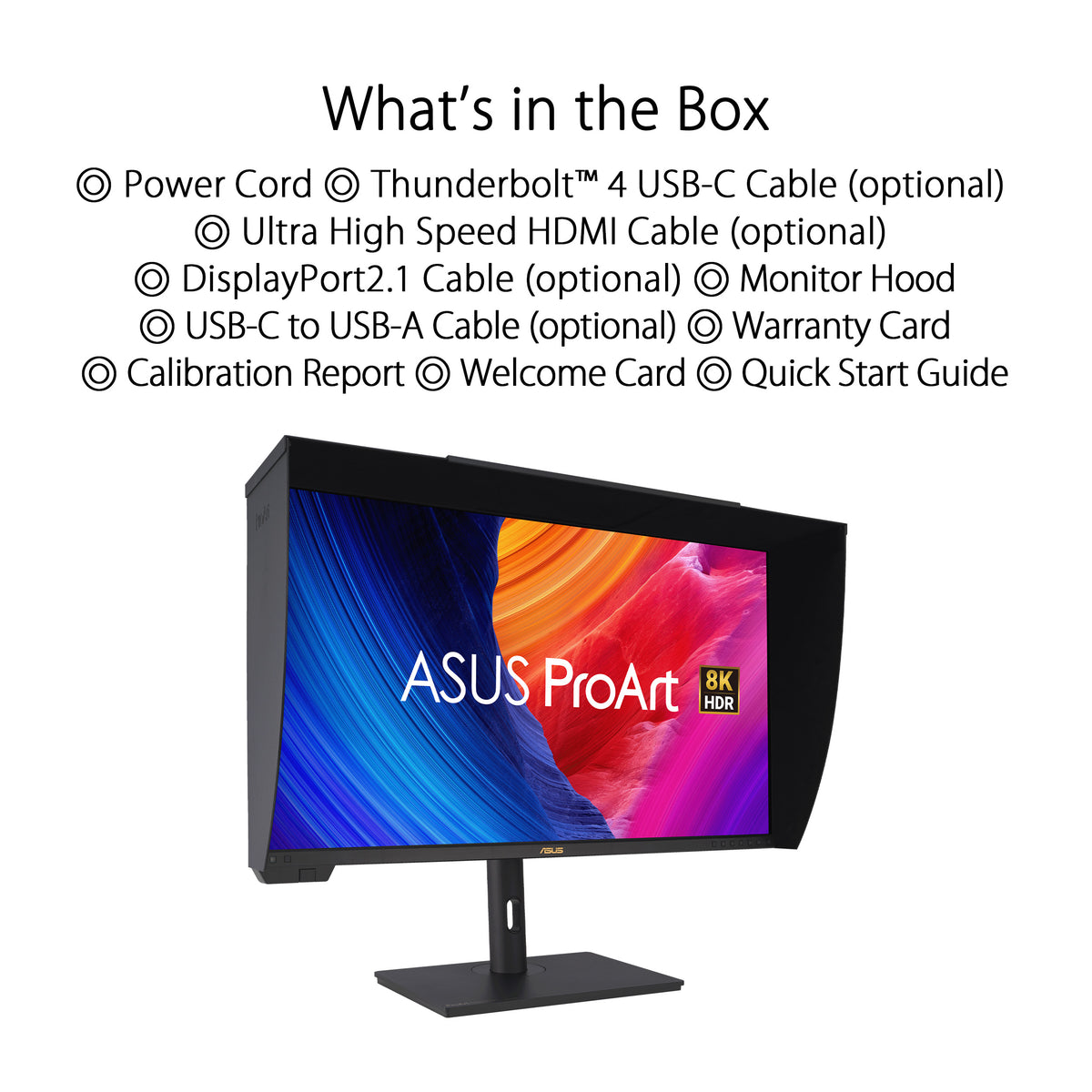

Accessories (vary by regions)

Color pre-calibration report

DisplayPort 2.1 (DP40) cable

HDMI Ultra High Speed Cable

Monitor hood

Power cord

Quick release stand

Quick start guide

Thunderbolt™ 4 Cable

USB-C to A cable

Warranty Card

Welcome Card

Certificate

Energy Star

TÜV Flicker-free

TÜV Low Blue Light

VESA DisplayHDR 1000

VESA MediaSync Display

Calman Ready

Mac Compliance
