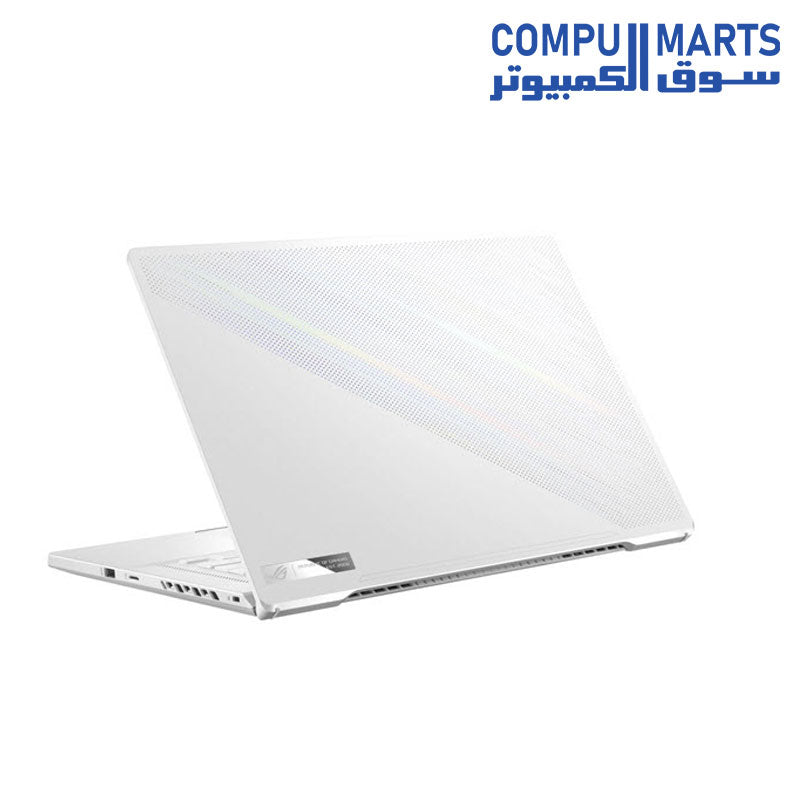

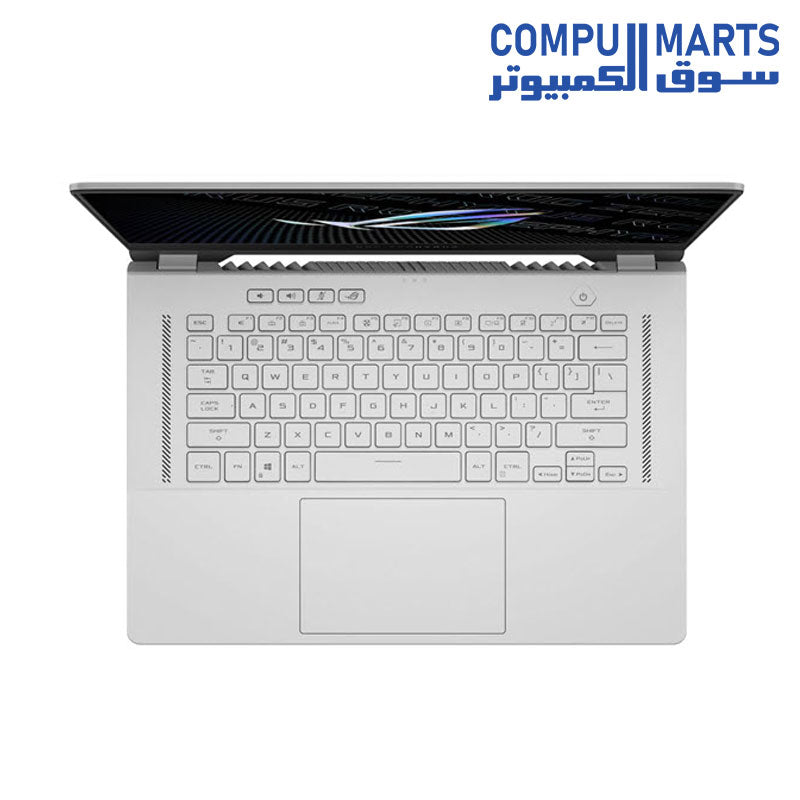

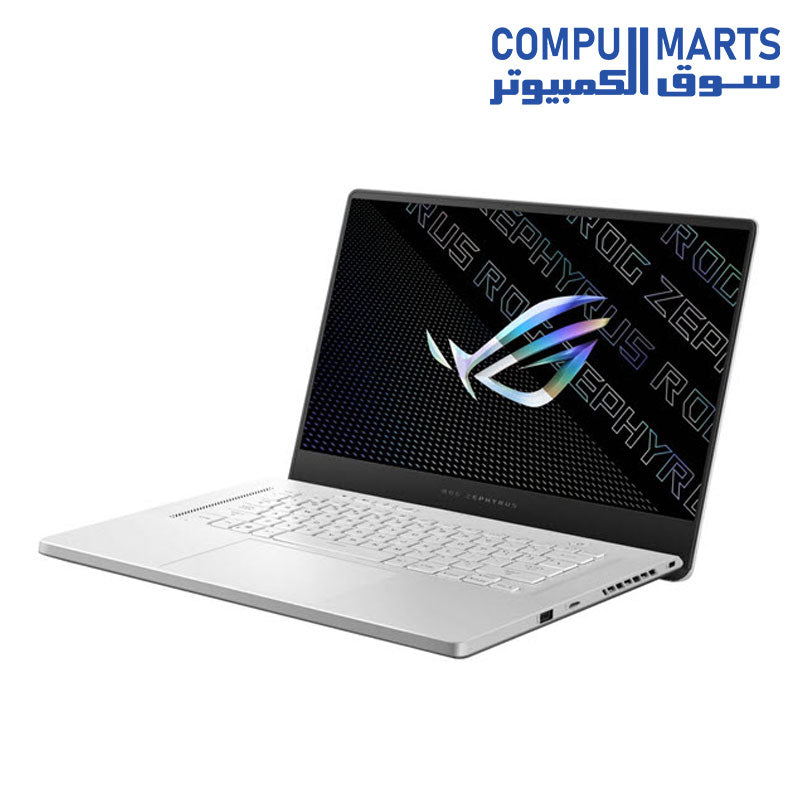

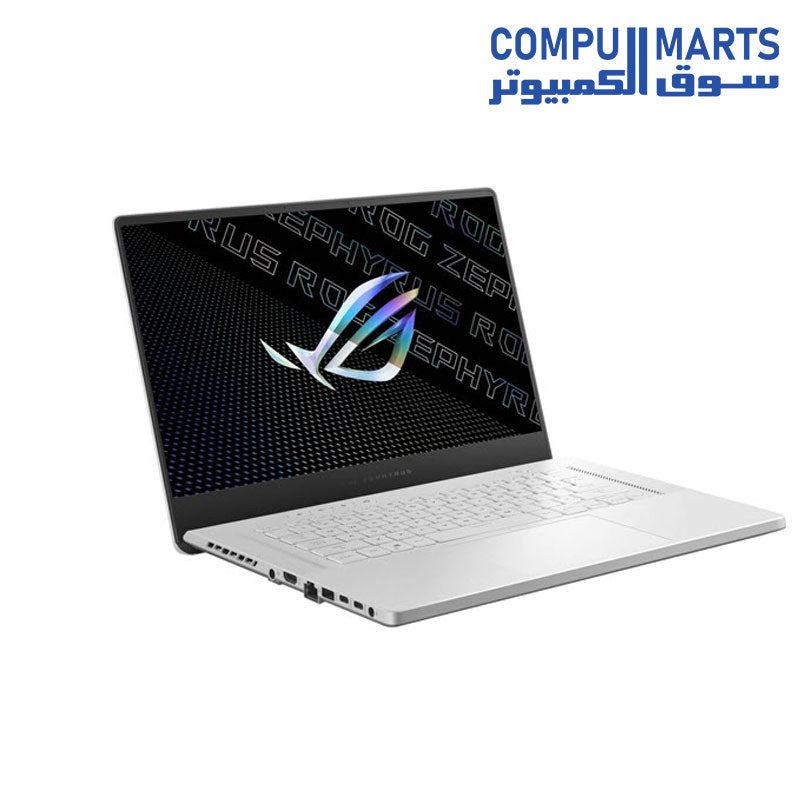

ASUS ROG ZEPHYRUS G15 GA503RW-LN054W Laptop - 15.6″ WQHD 240HZ - RYZEN 9 6900HS
To activate the warranty, you must register within 90 days for activation
https://eg.asus.click/pwe
-
Part No
90NR0821-M00390
Model Name
GA503RW-LN054W
EAN Code
4711081665915
UPC Code
195553665919
Marketing Name
ROG Zephyrus G15
Color
Moonlight White
Dimension (W x D x H)
35.5 x 24.3 x 1.99 ~ 1.99 cm (13.98" x 9.57" x 0.78" ~ 0.78")
Weight
1.90 Kg (4.19 lbs)
Processor
AMD Ryzen 9 6900HS Mobile Processor (8-core/16-thread, 16MB cache, up to 4.9 GHz max boost)
Chipset
N/A
Discrete/Optimus
MUX Switch + Optimus
Graphic
NVIDIA GeForce RTX 3070 Ti Laptop GPU
Graphic Wattage
ROG Boost: 1085MHz* at 120W (1035MHz Boost Clock+50MHz OC, 100W+20W Dynamic Boost)
Graphic Memory
8GB GDDR6
IGPU
AMD Radeon Graphics
Panel Size
15.6-inch
Resolution
WQHD (2560 x 1440) 16:9
Refresh Rate
240Hz
Response Time (G2G)
3ms
Viewing Angle
85/85/85/85
Panel Tech
IPS-level
Brightness
300nits
Contrast
1000:1
DCI-P3 %
100%
Anti glare
Anti-glare display
Adaptive-Sync technology
Adaptive-Sync
Pantone
Pantone Validated
Support Dolby Vision HDR
Yes
On board memory
16GB DDR5 on board
DIMM Memory
16GB DDR5-4800 SO-DIMM
Total System Memory
DDR5 32GB
Memory Slot
1x SO-DIMM slot
Memory Max.
48GB
Multi-channel memory technology
Support dual channel memory
How to upgrade memory
Upgradable
System Storage Installed
1TB PCIe 4.0 NVMe M.2 SSD
M.2 slots support either SATA or NVMe
2
M.2 SSD Support List
Value PCIe G4x4
SSD M2 2280 P4X4 512G
SSD M2 2280 P4X4 1TB
Expansion Slot (includes used)
1x DDR5 SO-DIMM slot
1x PCIe
LAN
10/100/1000/2500 Mbps
Wi-Fi/Bluetooth
Wi-Fi 6E(802.11ax) (Triple band) 2*2 + Bluetooth 5.3 Wireless Card (*Bluetooth version may change with OS version different.)
I/O Ports
1x RJ45 LAN port
2x USB 3.2 Gen 2 Type-A
2x USB 3.2 Gen 2 Type-C support DisplayPort / power delivery
1x card reader (microSD) (UHS-II)
Display output
1x HDMI 2.1 TMDS
Audio
1x 3.5mm Combo Audio Jack
Webcam
720P HD IR Camera for Windows Hello
Mic
Built-in array microphone
Keyboard Type
Backlit Chiclet Keyboard 1-Zone RGB
NumberPad
N/A
Aura Sync
N/A
Speakers
2x 2W dual-force woofer with Smart Amp Technology
2x 2W Tweeter
Audio Tech
AI noise-canceling technology
Dolby Atmos
Hi-Res certification
Smart Amp Technology
Operating System
Windows 11 Home
Antivirus
MCAFEE_30D
Xbox Game Pass
Xbox Game Pass Ultimate_1 month (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass Ultimate. Eligible markets are determined at activation. Game catalog varies by region, device, and time.)
Security
BIOS Administrator Password and User Password Protection
Kensington Security Slot
Trusted Platform Module (Firmware TPM)
Battery
90WHrs, 4S1P, 4-cell Li-ion
Power
ø6.0, 240W AC Adapter, Output: 20V DC, 12A, 240W, Input: 100~240C AC 50/60Hz universal
Reparability Index (for FR)
7.3
