GIGABYTE B760 GAMING X GEN5 – LGA 1700 ATX DDR5 Motherboard | Wi‑Fi 6E | PCIe 5.0

GIGABYTE B760 GAMING X GEN5 – LGA 1700 ATX DDR5 Motherboard | Wi‑Fi 6E | PCIe 5.0

• CPULGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core,

  Pentium Gold and Celeron Processors

  (Go to GIGABYTE's website for the latest CPU support list.)

  ŠL3 cache varies with CPU

• ChipsetIntel B760 Express Chipset

• Memory14th and 13th Generation Intel Core i9/i7 Processors:

  - Support for DDR5 5600/5200/4800/4400 MT/s memory modules

  13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors:

  - Support for DDR5 4800/4400 MT/s memory modules

  4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory

  Dual channel memory architecture

  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

  Support for Extreme Memory Profile (XMP) memory modules

  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

• Onboard GraphicsIntegrated Graphics Processor-Intel HD Graphics support:

  - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

  * Support for DisplayPort 1.2 version and HDCP 2.3

  - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

  * Support for HDMI 2.1 version and HDCP 2.3.
  ** Support for native HDMI 2.1 TMDS compatible ports.

  (Graphics specifications may vary depending on CPU support.)

• AudioRealtek Audio CODEC

  High Definition Audio

  2/4/5.1/7.1-channel

  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

  Support for S/PDIF Out

• LANRealtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

• Expansion SlotsCPU:

  - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

  * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

  Chipset:

  - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)

• Storage InterfaceCPU:

  - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

  Chipset:

  - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)

  - 4 x SATA 6Gb/s connectors

  RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

• USBChipset:

  - 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header

  - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

  - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support

  - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)

  - 1 x USB 2.0/1.1 port on the back panel

  Chipset+2 USB 2.0 Hubs:

  - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

• Internal I/O Connectors1 x 24-pin ATX main power connector

  1 x 8-pin ATX 12V power connector

  1 x CPU fan header

  1 x CPU fan/water cooling pump header

  3 x system fan headers

  1 x system fan/water cooling pump header

  3 x addressable RGB Gen2 LED strip headers

  1 x RGB LED strip header

  3 x M.2 Socket 3 connectors

  4 x SATA 6Gb/s connectors

  1 x front panel header

  1 x front panel audio header

  1 x S/PDIF Out header

  1 x USB Type-C header, with USB 3.2 Gen 2 support

  1 x USB 3.2 Gen 1 header

  2 x USB 2.0/1.1 headers

  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

  1 x serial port header

  1 x Q-Flash Plus button

  1 x reset jumper

  1 x Clear CMOS jumper

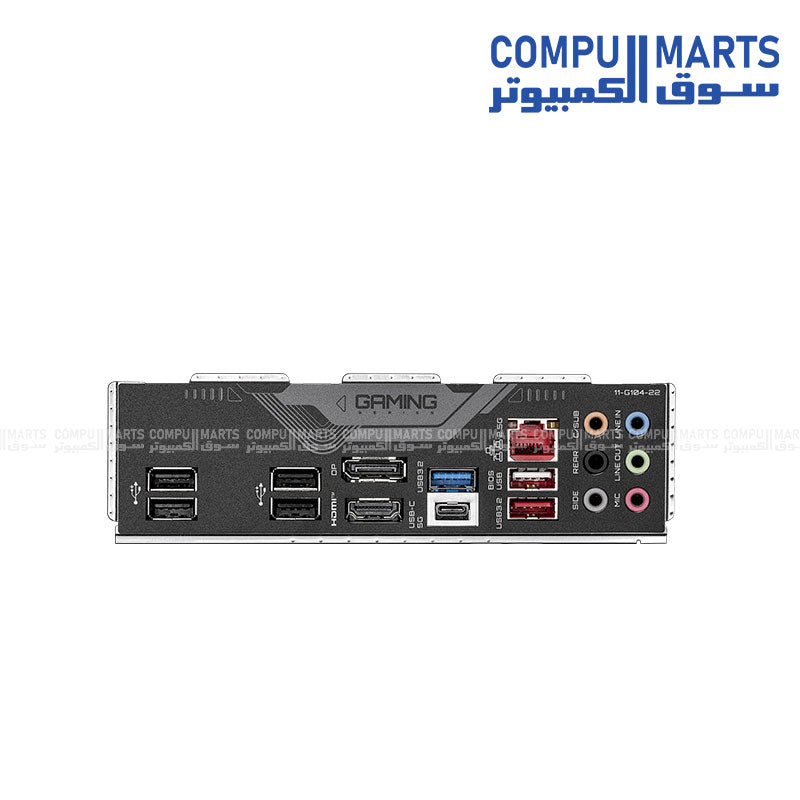

• Back Panel Connectors1 x USB 3.2 Gen 2 Type-A port (red)

  1 x USB Type-C port, with USB 3.2 Gen 1 support

  1 x USB 3.2 Gen 1 port

  5 x USB 2.0/1.1 ports

  2 x antenna connectors (2T2R)

  1 x DisplayPort (Note)

  1 x HDMI port (Note)

  1 x RJ-45 port

  6 x audio jacks

  (Note) Actual support may vary by CPU.

• I/O ControlleriTE I/O Controller Chip

• H/W MonitoringVoltage detection

  Temperature detection

  Fan speed detection

  Water cooling flow rate detection

  Fan fail warning

  Fan speed control

  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

• BIOS1 x 256 Mbit flash

  Use of licensed AMI UEFI BIOS

  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique FeaturesSupport for GIGABYTE Control Center (GCC)

  * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

  Support for Q-Flash

  Support for Q-Flash Plus

  Support for Smart Backup

• Bundled SoftwareNorton Internet Security (OEM version)

• Operating SystemSupport for Windows 11 64-bit

  Support for Windows 10 64-bit

• Form Factor

  ATX Form Factor; 30.5cm x 24.4cm
