Description
Description

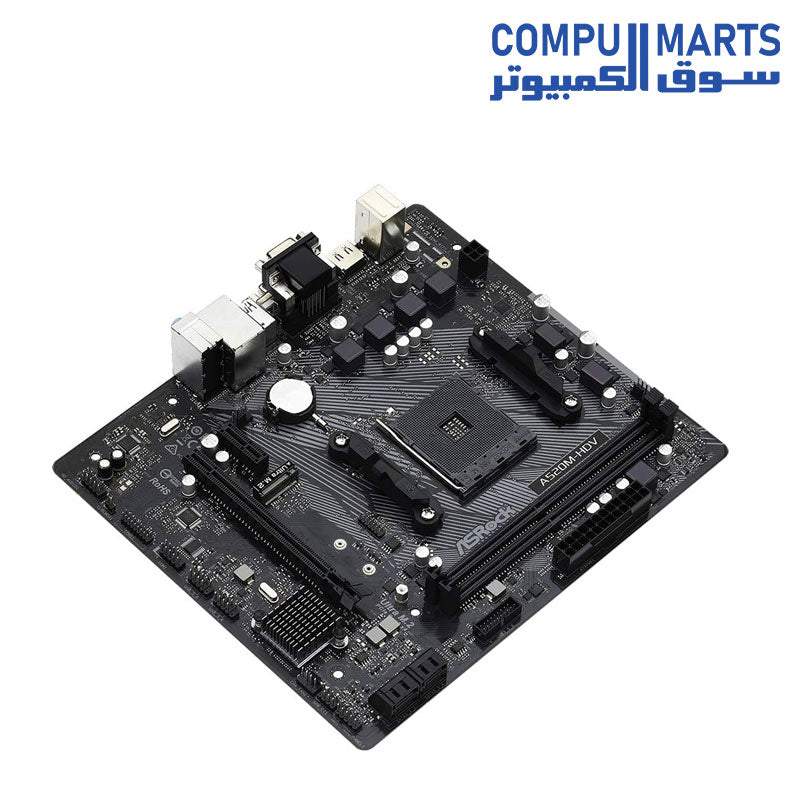

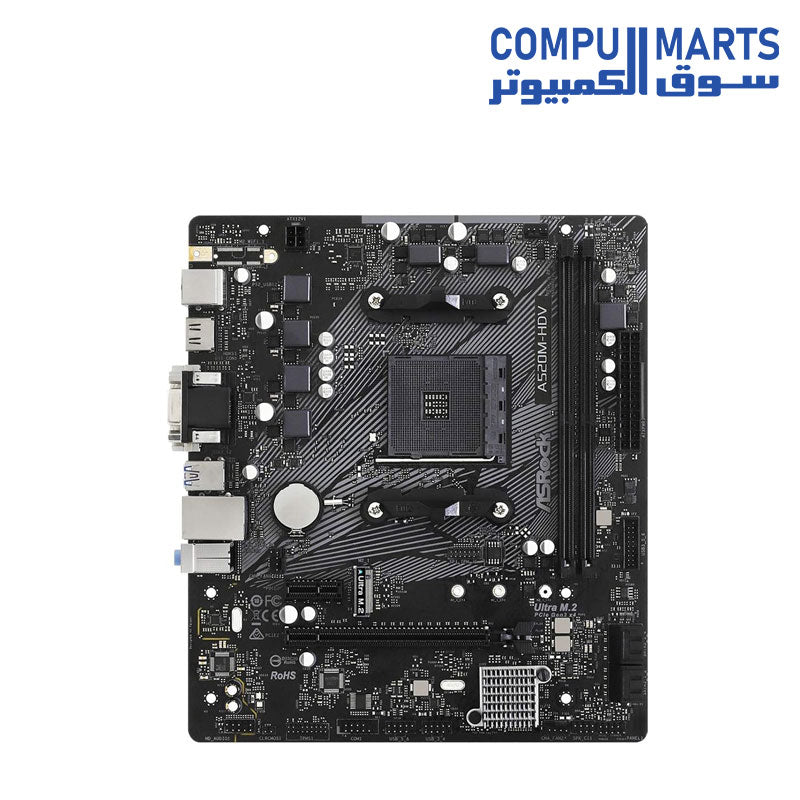

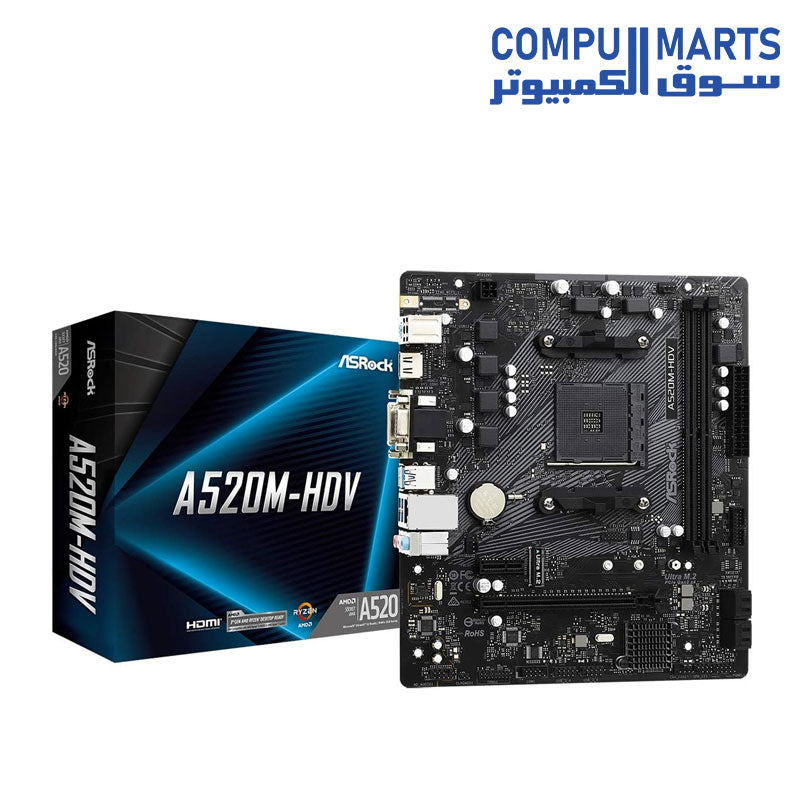

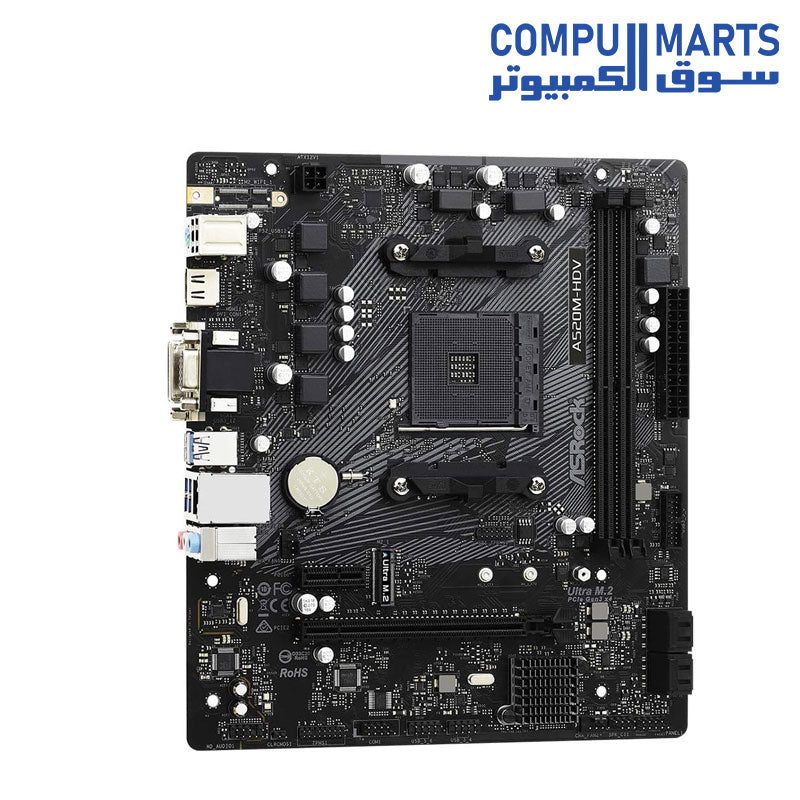

ASRock A520M-HDV AMD AM4 mATX Motherboard
-
Supports AMD AM4 Socket Ryzen 3000, 4000 G-Series and 5000 and 5000 G-Series Desktop Processors
-
6 Phase Power Design
-
Supports DDR4 4733+ (OC)
-
1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
-
Graphics Output Options: D-Sub, DVI-D, HDMI
-
7.1 CH HD Audio (Realtek ALC887 Audio Codec)
-
4 x SATA3, 1 x Ultra M.2(Gen3 x4 & SATA3)
-
6 x USB 3.2 Gen1(4 x Rear, 2 x Front)
6 x USB 2.0(2 x Rear, 4 x Front)
-
Realtek Gigabit LAN
Processor |
|
Processor manufacturer |
AMD |
Processor socket |
Socket AM4 |
Compatible processor series |
3rd Generation AMD Ryzen 3, 3rd Generation AMDRyzen 5, 3rd Generation AMD Ryzen 7, 3rd Generation AMD Ryzen 9 |
Memory |
|
Supported memory types |
DDR4-SDRAM |
Number of memory slots |
2 |
Memory slots type |
DIMM |
Memory channels |
Dual-channel |
Non-ECC |
Y |
Supported memory clock speeds |
2133,2400,2666,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4500,4533 MHz |
Maximum internal memory |
64 GB |
Unbuffered memory |
Y |
Storage controllers |
|
Supported storage drive interfaces |
M.2, SATA III |
Number of HDDs supported |
5 |
Graphics |
|
Graphics card family |
AMD |
Graphics card |
Radeon Vega |
Internal I/O |
|
USB 2.0 connectors |
2 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
Front panel audio connector |
Y |
ATX Power connector (24-pin) |
Y |
CPU fan connector |
Y |
Number of chassis fan connectors |
2 |
Number of COM connectors |
1 |
Rear panel I/O ports |
|
USB 2.0 ports quantity |
2 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
Ethernet LAN (RJ-45) ports |
1 |
PS/2 ports quantity |
1 |
VGA (D-Sub) ports quantity |
1 |
HDMI ports quantity |
1 |
Microphone in |
Y |
Network |
|
Ethernet LAN |
Y |
Ethernet interface type |
Gigabit Ethernet |
LAN controller |
Realtek RTL8111H |
Wake-on-LAN ready |
Y |
Wi-Fi |
N |
| Features | |
Component for |
PC |
Motherboard form factor |
micro ATX |
Motherboard chipset family |
AMD |
Audio output channels |
7.1 channels |
Harmonized System (HS) code |
84733020 |
Expansion slots |
|
PCI Express x1 (Gen 3.x) slots |
1 |
PCI Express x16 (Gen 3.x) slots |
1 |
BIOS |
|
BIOS type |
UEFI AMI |
Weight & dimensions |
|
Width |
230 mm |
Depth |
201 mm |
