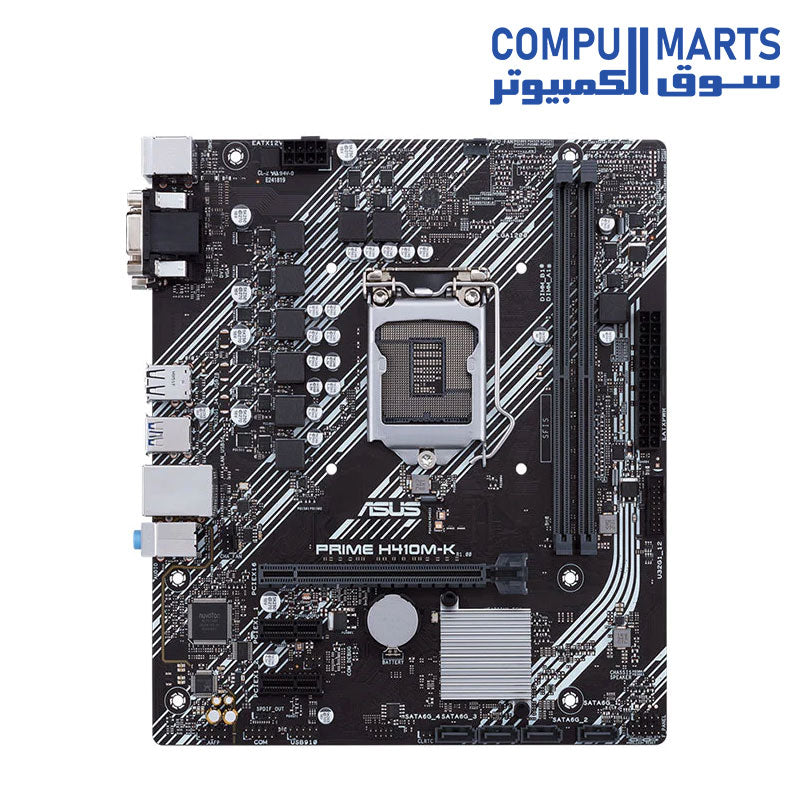

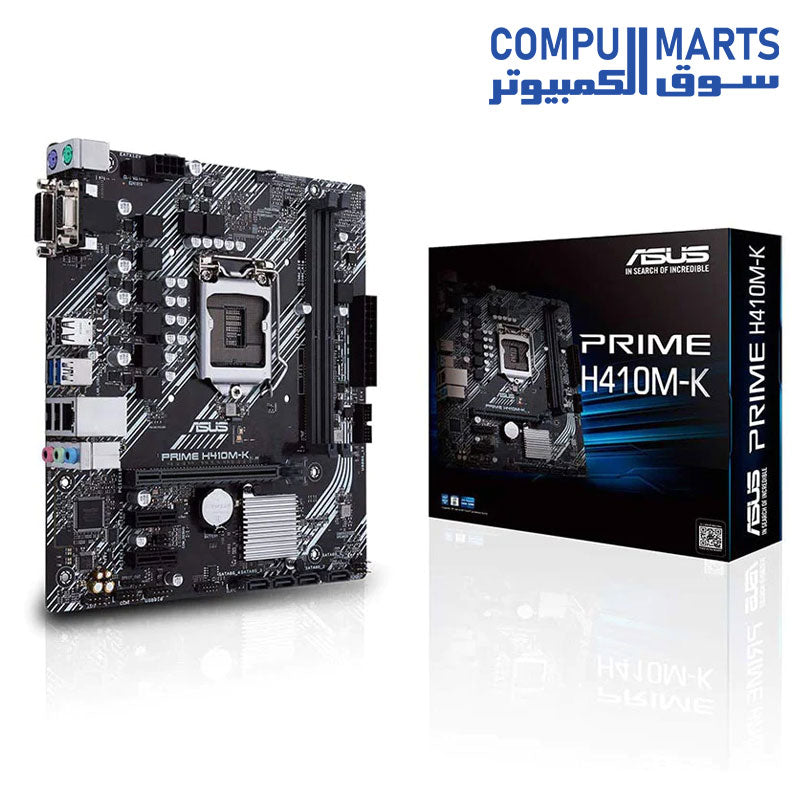

ASUS PRIME H410M -K Intel H410 LGA 1200 mic-ATX motherboard

ASUS PRIME H410M -K Intel H410 LGA 1200 mic-ATX motherboard

• CPU

  Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
  Supports Intel 14 nm CPU
  Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
  Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

• Chipset

  Intel H410

• Memory

  2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

• Dual Channel Memory Architecture
  Supports Intel Extreme Memory Profile (XMP)
  OptiMem

•  10th Gen Intel Core i9/i7 CPUs support 2933/2800/2666/2400/2133 natively,

• Graphic

  Integrated Graphics Processor

• 1 x DVI-D

• 1 x D-Sub

• Graphics specifications may vary between CPU types.

• Expansion Slots

  Intel 10th Gen Processors
  1 x PCIe 3.0 x16 (x16 mode)
  Intel H410 Chipset
  2 x PCIe 3.0 x1

• Storage

  Total supports 4x SATA 6Gb/s ports
  Intel H410 Chipset :
  4 x SATA 6Gb/s port(s)

• LAN

  Realtek RTL8111H

• Audio

  Realtek ALC887 7.1-Channel High Definition Audio CODEC
  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback

• Audio Feature :
  - Audio Shielding
  - Dedicated audio PCB layers
  * Choose the chassis with HD audio module in front panel to support 8-channel audio output.

• USB Ports

  Rear USB Port ( Total 6 )
  2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
  4 x USB 2.0 port(s)(2 x Type-A)
  Front USB Port ( Total 4 )
  2 x USB 3.2 Gen 1 port(s)
  2 x USB 2.0 port(s)

• Software Features

  ASUS Exclusive Software

• Armoury Crate

• AI Suite 3

• - Performance And Power Saving Utility

• TurboV EVO

• EPU

• Digi+ VRM

• Fan Xpert

• - EZ update

• ASUS CPU-Z

• AI Charger

• DAEMON Tools

• Norton Anti-virus software (Free Trial for 60 days)

• WinRAR

• UEFI BIOS

• ASUS EZ DIY

• - ASUS CrashFree BIOS 3

• - ASUS EZ Flash 3

• - ASUS UEFI BIOS EZ Mode

• ASUS Special Features

• ASUS 5X PROTECTION III

• - ASUS DIGI+ VRM

• - ASUS LANGuard

• - ASUS Overvoltage Protection

• - ASUS SafeSlot Core

• - ASUS Stainless-Steel Back I/O

• ASUS Q-Design

• - ASUS Q-DIMM

• - ASUS Q-Slot

• ASUS Thermal Solution

• - Aluminum heatsink design

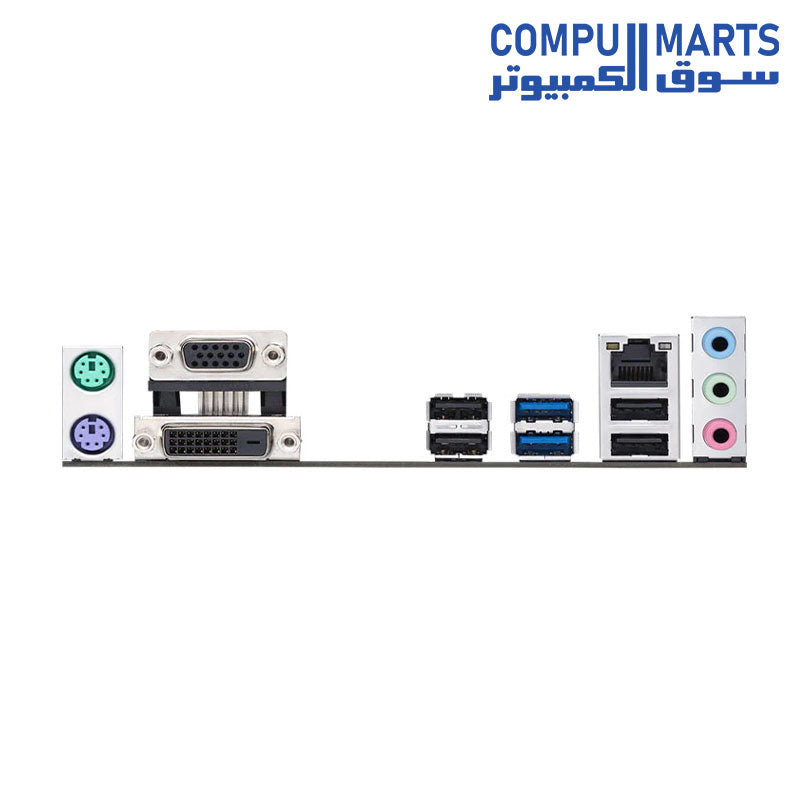

• Back I/O Ports

• 1 x PS/2 keyboard (purple)

• 1 x PS/2 mouse (green)

• 1 x DVI-D

• 1 x D-Sub

• 1 x LAN (RJ45) port(s)

• 2 x USB 3.2 Gen 1 Type-A

• 4 x USB 2.0

• 3 x Audio jack(s)

• Internal I/O Ports

• 1 x CPU Fan connector(s)

• 1 x Chassis Fan connector(s)

• 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s)

• additional 2 USB 3.2 Gen 1 port(s)

• 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

• 4 x SATA 6Gb/s connector(s)

• 1 x S/PDIF out header(s)

• 1 x 24-pin EATX Power connector(s)

• 1 x 8-pin EATX 12V Power connectors

• 1 x Front panel audio connector(s) (AAFP)

• 1 x Clear CMOS jumper(s)

• 1 x System panel connector

• 1 x COM port header

• 1 x Speaker connector

• Accessories

• I/O Shield

• 2 x SATA 6Gb/s cable(s)

• 1 x Supporting DVD

• User manual

• BIOS

  128 Mb Flash ROM, UEFI AMI BIOS

• Manageability

  WOL by PME, PXE

• Operating System

  Windows 10 64-bit

• Form Factor

  mATX Form Factor
  8.9 inch x 7.9 inch ( 22.6 cm x 20.3 cm )
