ASUS | SKU:
90MB1J70-M0EAY0

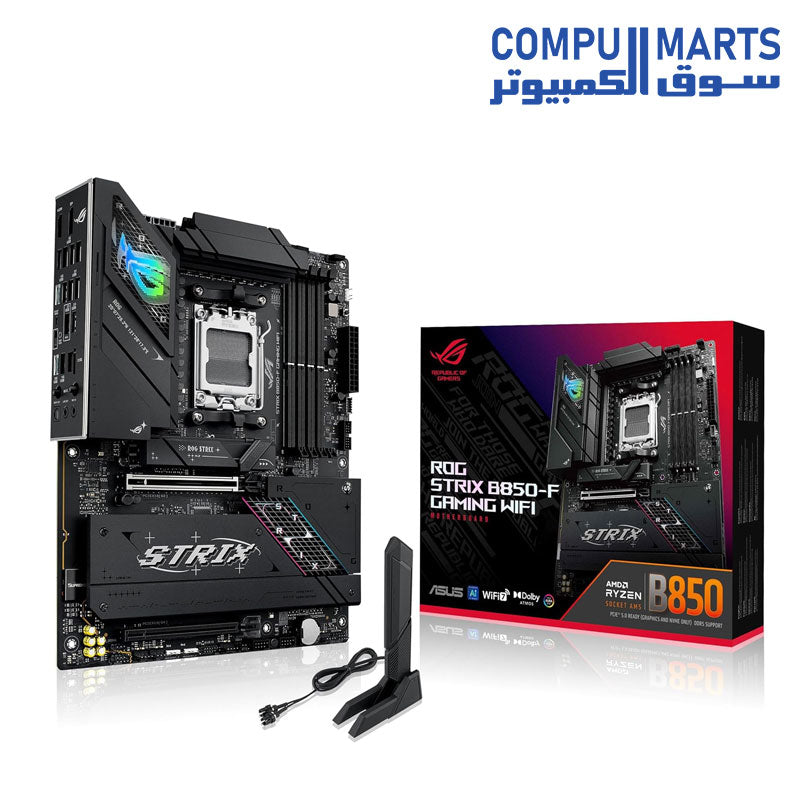

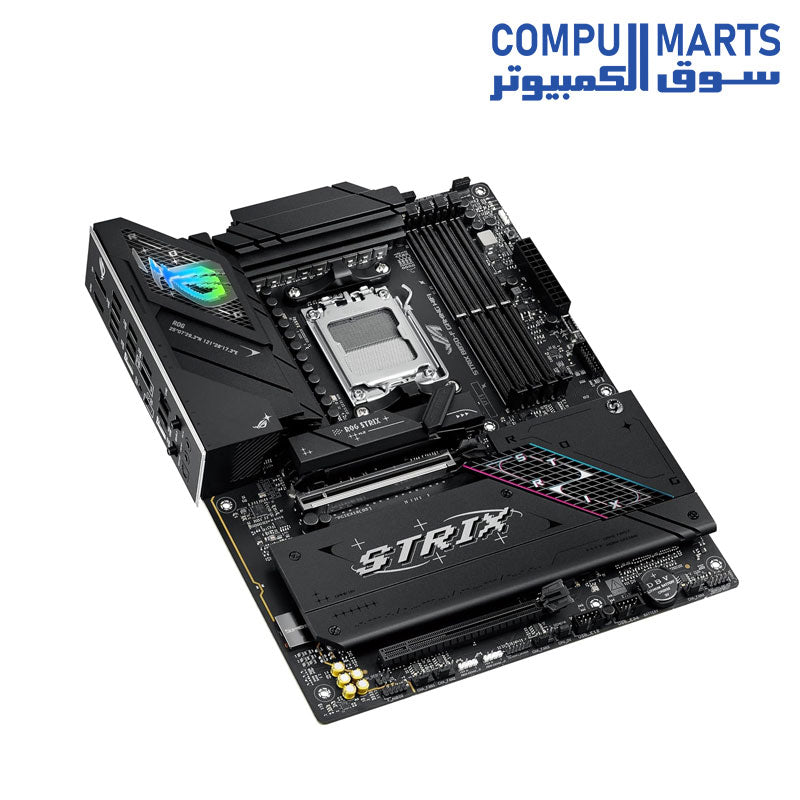

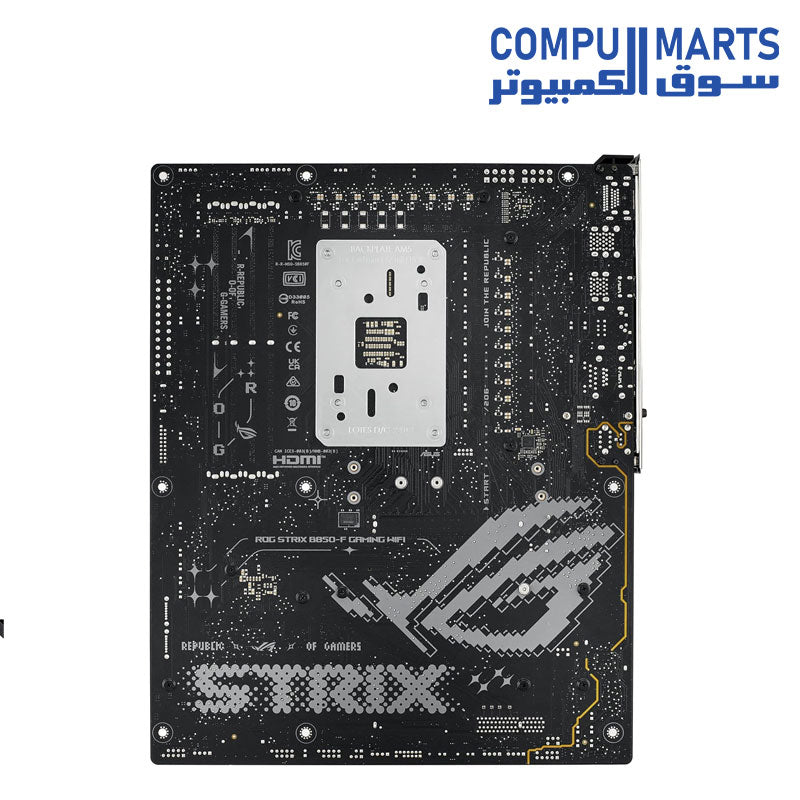

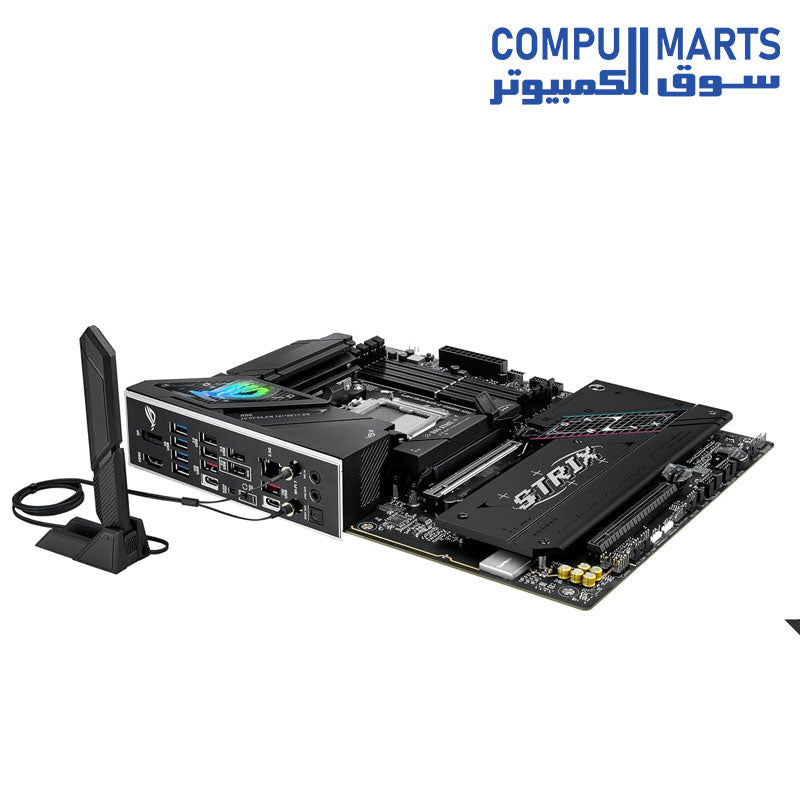

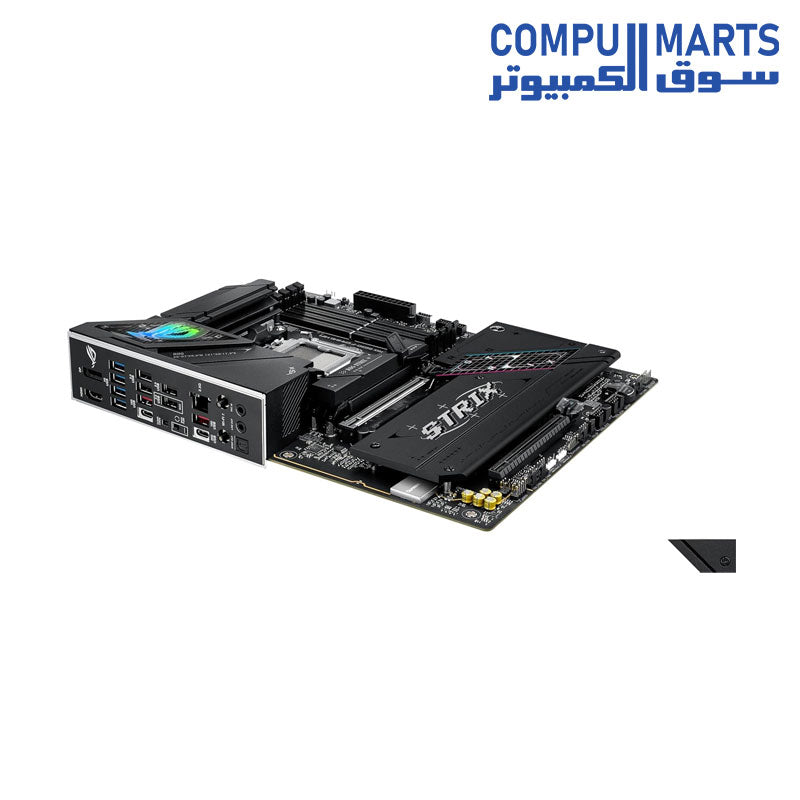

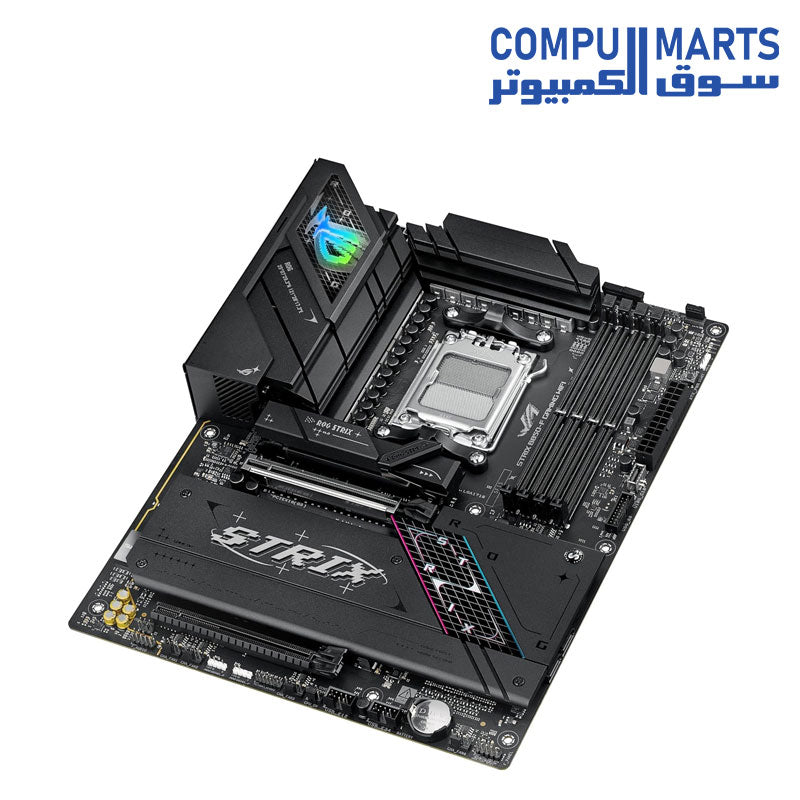

ASUS ROG Strix B850-F Gaming WiFi AMD AM5- ATX Motherboard
Regular price
15,500.00 EGP
Unit price
/
Unavailable
Shipping calculated at checkout.
ASUS ROG Strix B850-F Gaming WiFi AMD AM5- ATX Motherboard is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fast shipping to your doorstep! Get your order delivered within 1-5 days based on location.
Subscribe to our newsletter
Sign up for exclusive offers.
ASUS ROG Strix B850-F Gaming WiFi AMD AM5- ATX Motherboard
Regular price
15,500.00 EGP
Unit price
/
Unavailable
ASUS ROG Strix B850-F Gaming WiFi AMD AM5- ATX Motherboard
description:
Chipset |
AMD B850 |
CPU Socket |
AM5 |
Memory Slots |
4x 288-Pin |
Memory Support |
DDR5 8000 MT/s |
Storage Slots |
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
|
Expansion Slots |
1x PCIe 5.0 x16
|
Wi-Fi |
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2) |
Form Factor |
ATX |
CPU
Chipset |
AMD B850 |
CPU Socket |
AM5 |

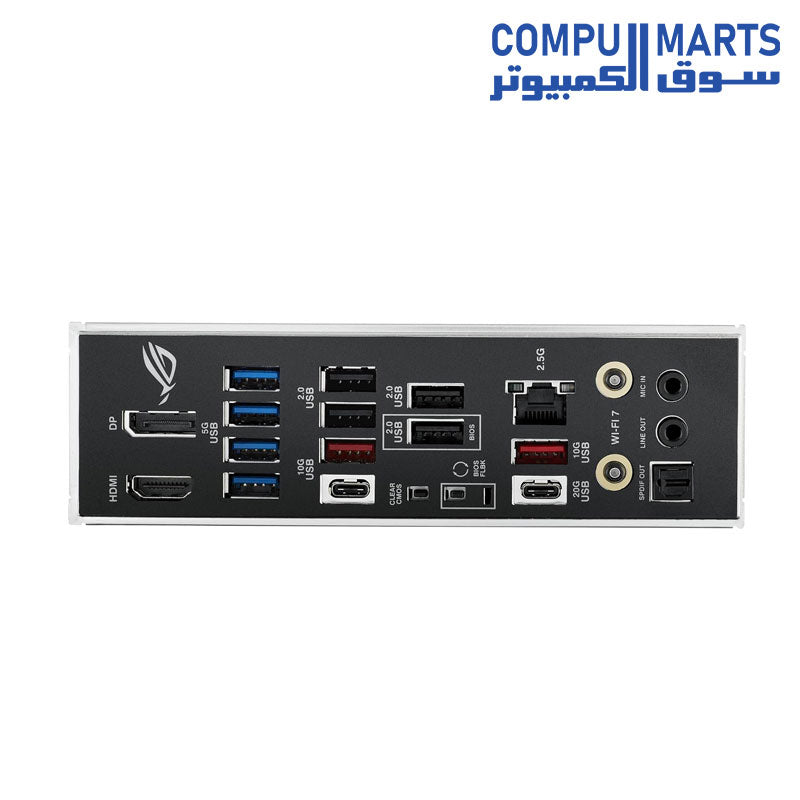

Back Panel I/O
USB |
1x USB-C (USB 3.2 Gen 2x2)
|
Thunderbolt |
No |
Display |
1x HDMI 2.1
|
Audio |
2x 1/8" / 3.5 mm
|
Ethernet / Controller |
1x Intel 2.5Gigabit |
Wi-Fi Antenna |
2x Connector |
Buttons |
BIOS Flashback, Clear CMOS |
Memory
Memory Slots |
4x 288-Pin |
Memory Support |
DDR5 8000 MT/s |
Maximum Capacity |
192 GB |
Channel Architecture |
Dual Channel |
ECC Support |
Non-ECC, ECC Unbuffered |
Storage Expansion
SATA |
2x SATA III |
Storage Slots |
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 5.0 x4)
|
Optane Memory Support |
No |
RAID Support |
RAID 0, 1, 5, 10 |
Internal I/O
Expansion Slots |
1x PCIe 5.0 x16
|
USB |
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
|
Air Cooling |
2x 4-Pin CPU
|
Liquid Cooling |
1x 4-Pin Pump |
Power Connectors |
1x 24-Pin Mainboard
|
LED Header |
3x RGB |
Audio |
1x Speaker |
Diagnostics |
Voltage Regulation |
Add-On |
1x Thunderbolt Header |
BIOS
ROM |
256 Mb |
Front Panel I/O
Front Panel I/O |
AAFP, USB 2.0, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2 |
Audio
Audio Codec |
SupremeFX ALC4080 (7.1-Channel) |
DAC |
No |
Wireless
Wi-Fi |
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2) |
Bluetooth |
5.4 |
Module Support |
1 E Key M.2 |
Software
OS Compatibility |
Windows 11 |
Physical
Form Factor |
ATX |
Dimensions |
12 x 9.6" / 304.8 x 243.8 mm |
Packaging Info
Package Weight |
4.99 lb |
Box Dimensions (LxWxH) |
14.8 x 11.1 x 2.8" |
-
