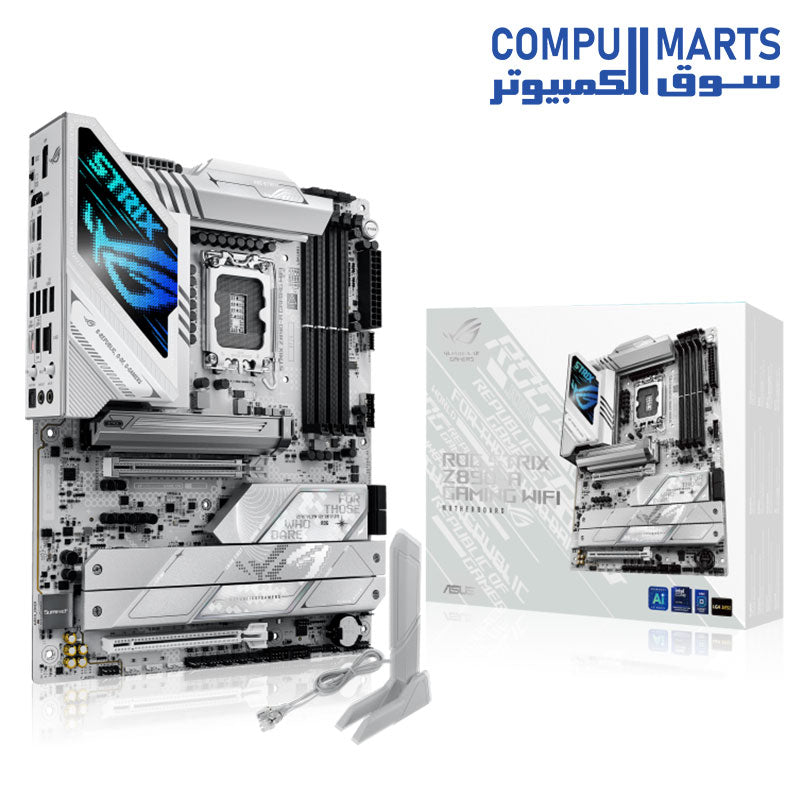

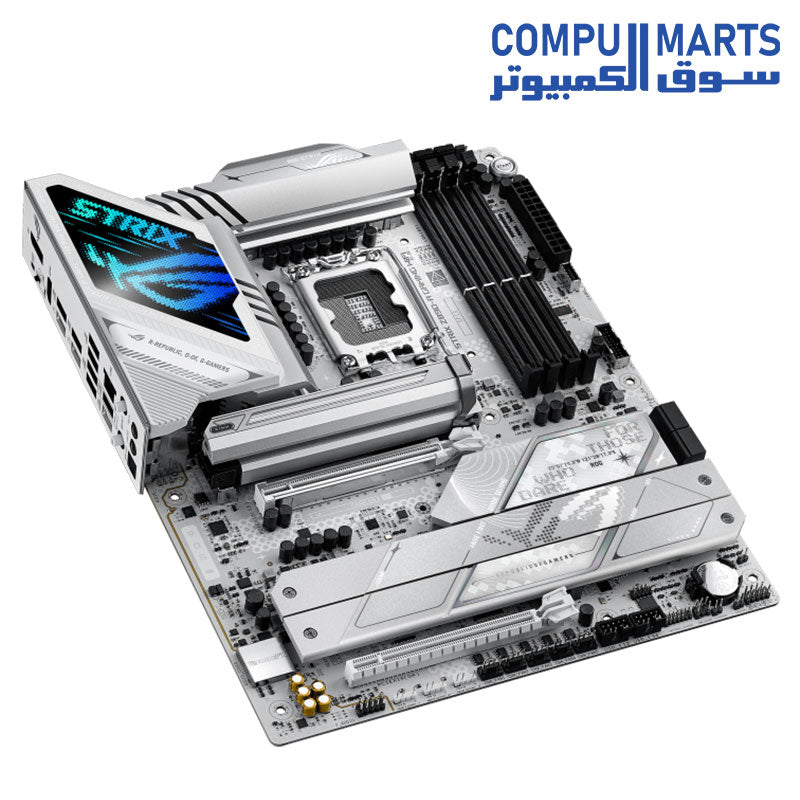

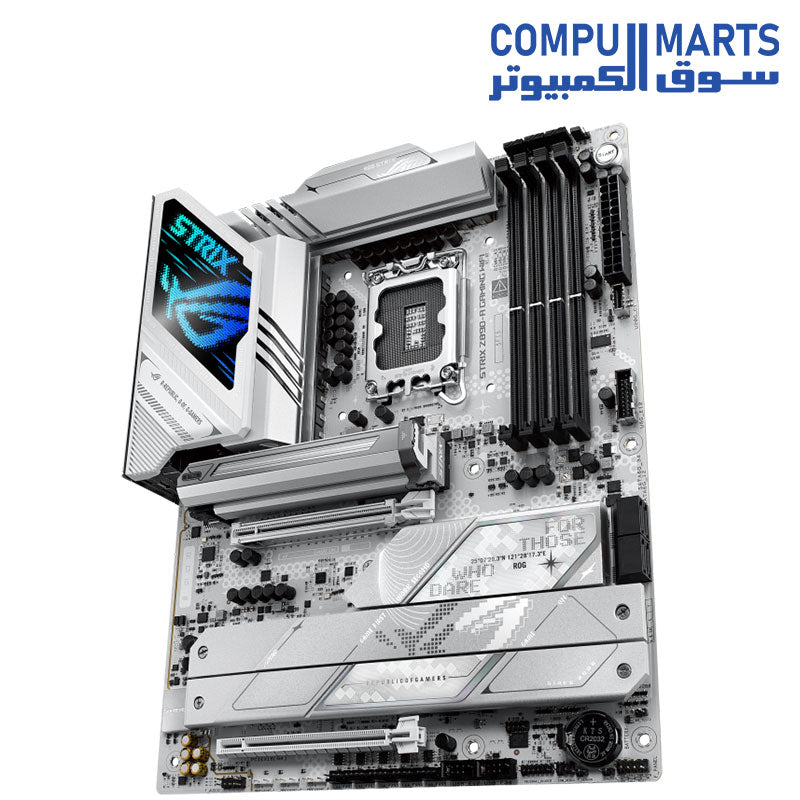

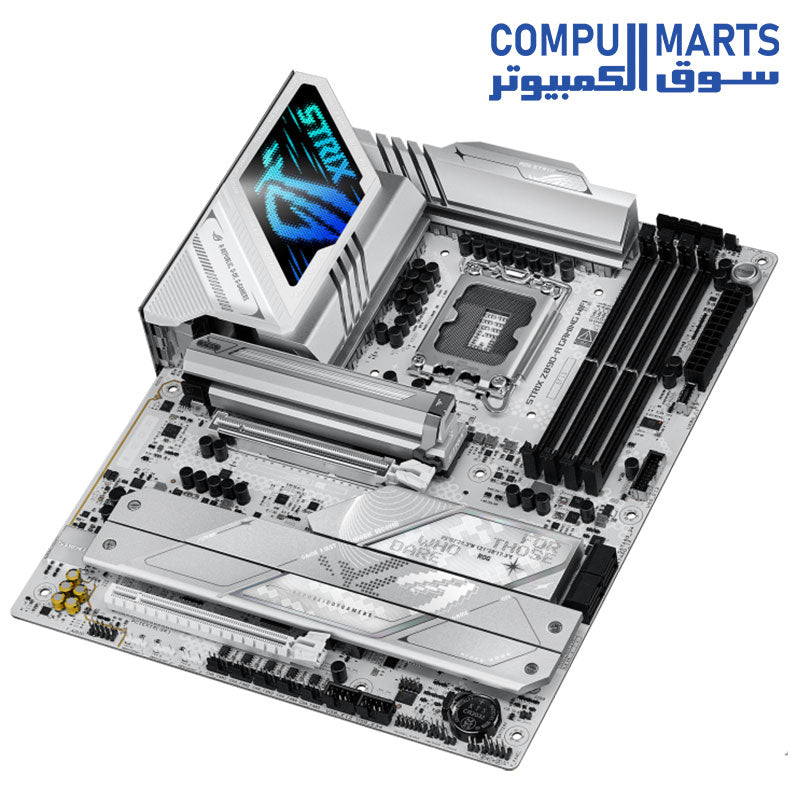

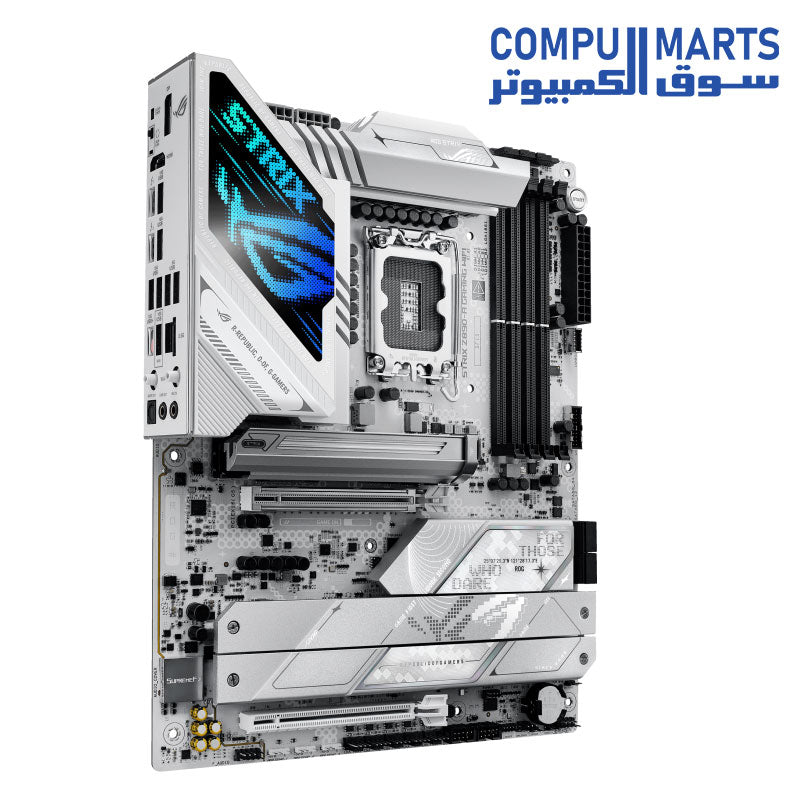

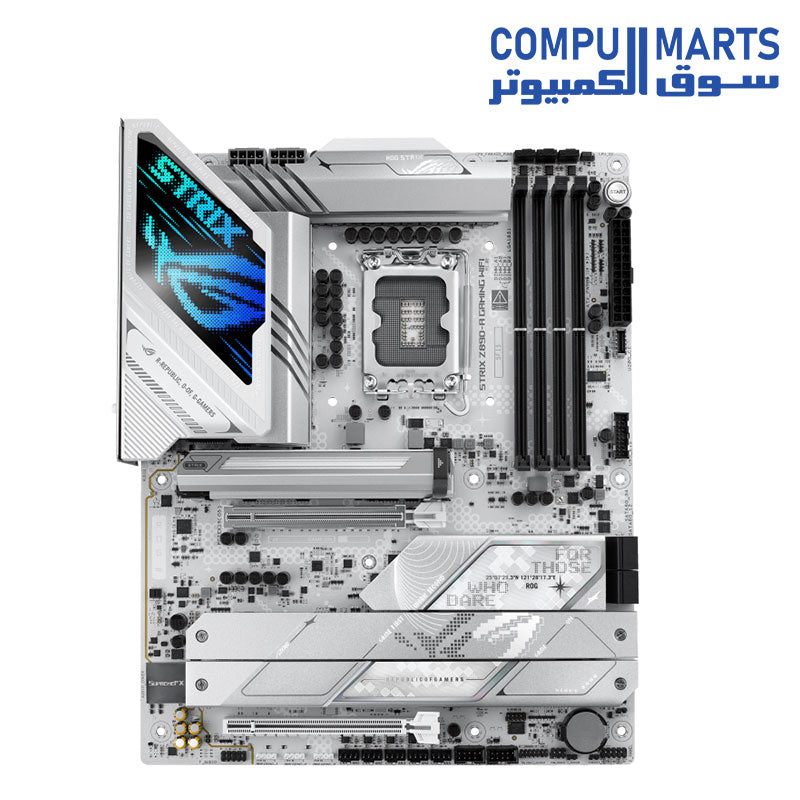

ASUS ROG STRIX Z890-A WIFI GAMING MOTHERBOARD

ASUS ROG STRIX Z890-A WIFI GAMING MOTHERBOARD

• Model

• ROG STRIX Z890-A GAMING WIFI

  CPU

  Support Intel Core Ultra Processors (Series 2)*

  Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**

  ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

  Chipset

  Intel Z890 Chipset

  Memory

  4 x DIMM slots, max. 256GB, DDR5

  Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*

  Dual channel memory architecture

  Supports Intel  Extreme Memory Profile (XMP) memory module

  Supports DIMM Flex

  Supports DIMM FIT

  ASUS Enhanced Memory Profile III (AEMPIII)

  * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration,

  * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

  Graphics

  1 x DisplayPort*

  1 x HDMI port**

  2 x Intel Thunderbolt  4 support DisplayPort and Thunderbolt  video outputs***

  - Graphics specifications may vary between CPU types.

  * Supports max. 8K@60Hz as specified in DisplayPort 1.4.

  ** Supports 4K@60Hz as specified in HDMI 2.1.

  *** In Thunderbolt  4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, supports up to UHBR20.

  **** VGA resolution support depends on processors' or graphic cards' resolution.

  ***** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

  Expansion Slots

  Intel Core Ultra Processors (Series 2)

  1 x PCIe 5.0 x16 slot

• Intel Z890 Chipset

  1 x PCIe 4.0 x16 slot (supports x4 mode)

  Storage

  Total Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports

• Intel Core Ultra Processors (Series 2)*

  M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)

  M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

• Intel  Z890 Chipset

  M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

  M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)

  M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

  4 x SATA 6Gb/s ports

• * Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.

  Ethernet

  1 x Intel 2.5Gb Ethernet

  ASUS LANGuard

  Wireless & Bluetooth

  Wi-Fi 7*

   2x2 Wi-Fi 7 (802.11be)

   Supports 2.4/5/6GHz frequency band**

   Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.

   Bluetooth v5.4***

   *Wi-Fi features may vary depending on the operating system

    For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.

    For Windows 10, only Wi-Fi 6 is supported.

   ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.

   *** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

  USB

  Rear USB (Total 10 ports)

  2 x Thunderbolt 4 ports (2 x USB Type-C)*

  6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C with up to 30W PD/PPS Fast-charge)**

  2 x USB 5Gbps ports (2 x Type-A)

• Front USB (Total 7 ports)

  1 x USB 20Gbps connector (supports USB Type-C )*

  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

  2 x USB 2.0 headers support 4 additional USB 2.0 ports

• * USB Type-C power delivery output: max. 5V/3A

  ** USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A

  Audio

  ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*

   - Impedance sense for front and rear headphone outputs

   - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking

   - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input

   - Supports up to 32-Bit/384 kHz playback on front panel

• Audio Features

  - SupremeFX Shielding Technology

  - Savitech SV3H712 AMP

  - Rear optical S/PDIF out port

  - Premium audio capacitors

  - Audio cover

• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

  ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

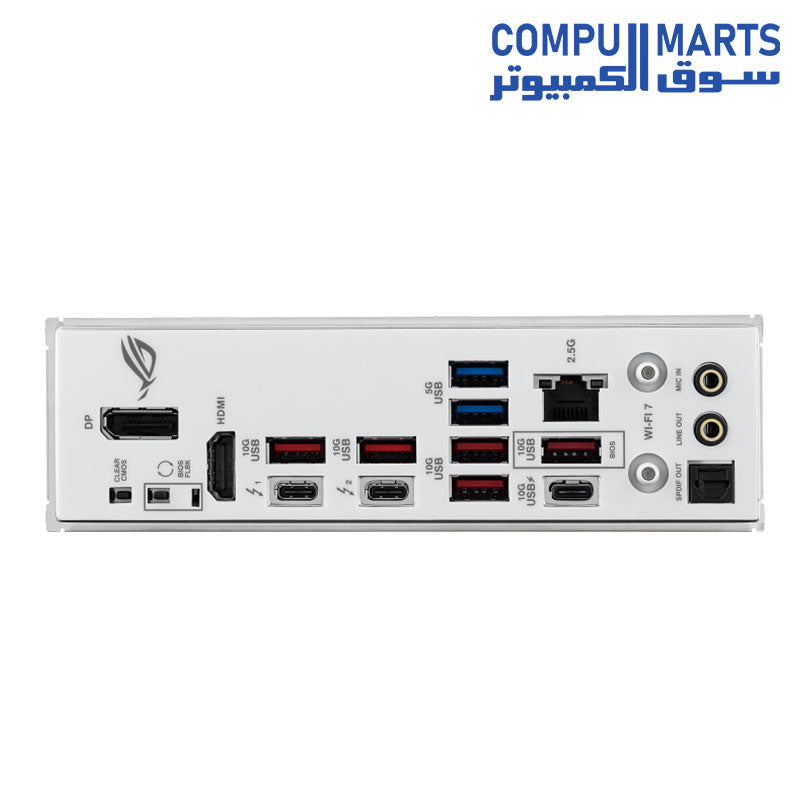

  Back Panel I/O Ports

  2 x Thunderbolt 4 ports (2 x USB Type-C)*

  6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-Cwith up to 30W PD/PPD Fast-charge)

  2 x USB 5Gbps ports (2 x Type-A)

  1 x DisplayPort

  1 x HDMI port

  1 x Wi-Fi module

  1 x Intel 2.5Gb Ethernet port

  2 x Audio jacks

  1 x Optical S/PDIF out port

  1 x BIOS FlashBack  button

  1 x Clear CMOS button

  Internal I/O Connectors

  Fan and Cooling Related

  1 x 4-pin CPU Fan header

  1 x 4-pin CPU OPT Fan header

  1 x 4-pin AIO Pump header

  5 x 4-pin Chassis Fan headers

• Power Related

  1 x 24-pin Main Power connector

  2 x 8-pin +12V CPU Power connectors

• Storage Related

  5 x M.2 slots (Key M)

  4 x SATA 6Gb/s ports

• USB

  1 x USB 20Gbps connector (supports USB Type-C)

  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

  2 x USB 2.0 headers support 4 additional USB 2.0 ports

• Miscellaneous

  3 x Addressable Gen 2 headers

  1 x Chassis Intrusion header

  1 x CPU Over voltage jumper

  1 x Front Panel Audio header (F_AUDIO)

  1 x Start button

  1 x 10-1 pin Front System Panel header

  1 x Thermal Sensor header

  1 x Thunderbolt  (USB4) header

  Special Features

  Extreme Engine Digi+

  - 5K Black metallic capacitors

• ASUS Q-Design

  - M.2 Q-Latch

  - M.2 Q-Release

  - M.2 Q-Slide

  - PCIe Slot Q-Release Slim (with PCIe SafeSlot)

  - Q-Antenna

  - Q-Dashboard

  - Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

  - Q-SlotASUS

• Thermal Solution

  - M.2 heatsink backplate

  - M.2 heatsink

• ASUS EZ DIY

  - BIOS FlashBack  button

  - BIOS FlashBack  LED

  - Clear CMOS button

  - CPU Socket lever protector

  - ProCool II

  - Pre-mounted I/O shield

  - SafeSlot

  - SafeDIMM

• Aura Sync

  - Addressable Gen 2 headers

  Software Features

  ROG Exclusive Software

  - ROG CPU-Z

  - Dolby Atmos

• ASUS Exclusive Software

  Armoury Crate

  - Aura Creator

  - Aura Sync

  - Fan Xpert 4 (with AI Cooling II)

  - GameFirst

  - Power Saving

• AIDA64 Extreme (60 days free trial)

  HWiNFO

  ASUS AI Advisor

  ASUS DriverHub

  ASUS GlideX

  USB Wattage Watcher

  TurboV Core

  Adobe Creative Cloud (30 Days Free Trial)

  Norton 360 for Gamers (60 Days Free Trial)

  WinRAR (40 Days Free Trial)

  UEFI BIOS

  AI Overclocking Guide

  NPU Boost

• ASUS EZ DIY

  - ASUS CrashFree BIOS 3

  - ASUS EZ Flash

  - ASUS UEFI BIOS EZ Mode

  - ASUS MyHotkey

  FlexKey

  BIOS

  256 Mb UEFI AMI BIOS

  Manageability

  WOL by PME, PXE

  Accessories

  Cables

  2 x SATA 6Gb/s cables

• Additional Cooling Kit

  1 x Thermal pad for M.2 22110

• Miscellaneous

  1 x ASUS WiFi Q-Antenna

  1 x Cable ties package

  1 x M.2 Q-Latch package

  1 x ROG key chain

  1 x ROG Strix stickers

  5 x M.2 rubbers

• Documentation

  1 x Quick start guide/Operating System

  Windows 11 (22H2 later)

  Form Factor

  ATX Form Factor

  12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
