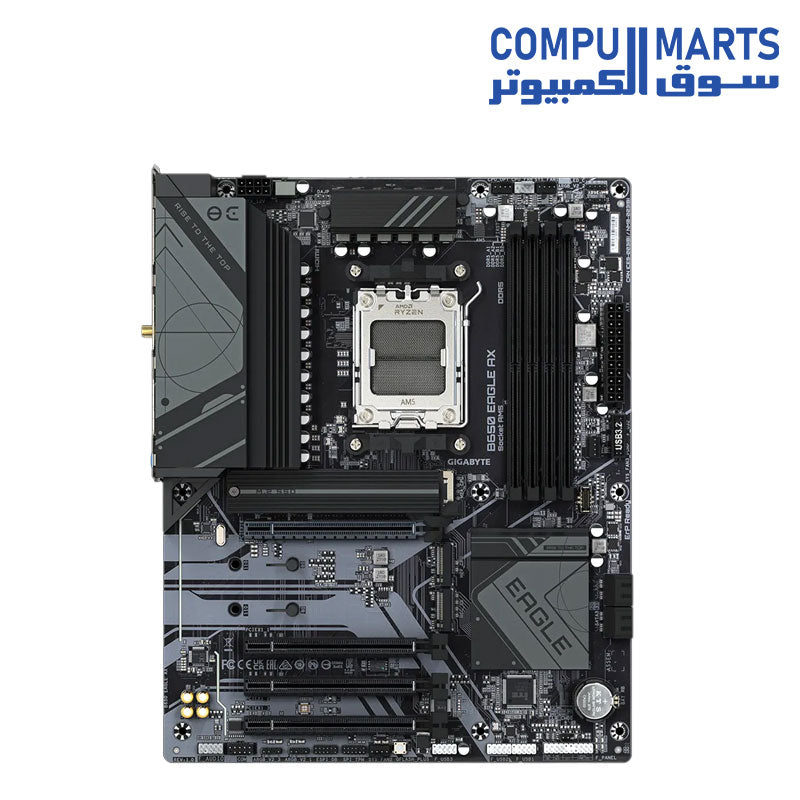

GIGABYTE B650 EAGLE AX AM5 LGA 1718 AMD B650 ATX DDR5 Triple M.2, PCIe 5.0, USB 3.2 Gen2x2 Type-C, AMD Wi-Fi 6E, Realtek GbE LAN

GIGABYTE B650 EAGLE AX AM5 LGA 1718 AMD B650 ATX DDR5 Triple M.2, PCIe 5.0, USB 3.2 Gen2x2 Type-C, AMD Wi-Fi 6E, Realtek GbE LAN

• AMD Socket AM5：Supports AMD Ryzen 7000/ Ryzen 8000 Series Processors

• Unparalleled Performance：12+2+2 Phases Digital VRM Solution

• Dual Channel DDR5：4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support

• SuperSpeed Storage：1*PCIe 5.0 + 2*PCIe 4.0 M.2 Connectors

• Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 M.2 SSD Performance

• EZ-Latch：PCIe x16 Slot with Quick Release Design

• Fast Networks：Wi-Fi 6E 802.11ax & GbE LAN

• Extended Connectivity：DP, HDMI, Rear USB 10Gb/s

• Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

• Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

• CPU

  AMD Socket AM5, support for:
  AMD Ryzen 7000 Series Processors / AMD Ryzen 8000 Series Processors


• Chipset

  AMD B650

• Memory

  Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
  4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
  Dual channel memory architecture
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

• Onboard Graphics

  Integrated Graphics Processor with AMD Radeon™ Graphics support:
  - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

  - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

  (Graphics specifications may vary depending on CPU support.)

• Audio

  Realtek Audio CODEC
  High Definition Audio
  2/4/5.1/7.1-channel


• LAN

  Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

• Wireless Communication module

  Realtek Wi-Fi 6E RTL8852CE
  - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  - BLUETOOTH 5.3
  - Support for 11ax 160MHz wireless standard
  (Actual data rate may vary depending on environment and equipment.)

• Expansion Slots

  1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
  - AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode
  - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
  - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

  2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU, supporting PCIe 3.0 and running at x1



• Storage Interface

  1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
  - AMD Ryzen 7000 Series Processors support PCIe 5.0 x4/x2 SSDs
  - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
  - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
  1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
  - AMD Ryzen 7000 Series Processors support PCIe 4.0 x2 SSDs
  - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs
  - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

  1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)
  4 x SATA 6Gb/s connectors
  RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
  RAID 0, RAID 1, and RAID 10 support for SATA storage devices


• USB

  CPU:
  - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
  CPU+USB 2.0 Hub:
  - 4 x USB 2.0/1.1 ports on the back panel
  Chipset:
  - 2 x USB 3.2 Gen 1 ports available through the internal USB header
  - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
  - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  Chipset+USB 2.0 Hub:
  - 4 x USB 2.0/1.1 ports available through the internal USB headers

• Internal I/O Connectors

  1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  1 x CPU fan/water cooling pump header
  2 x system fan headers
  1 x system fan/water cooling pump header
  3 x addressable RGB Gen2 LED strip headers
  1 x RGB LED strip header
  3 x M.2 Socket 3 connectors
  4 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x USB Type-C header, with USB 3.2 Gen 1 support
  1 x USB 3.2 Gen 1 header
  3 x USB 2.0/1.1 headers
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
  1 x Q-Flash Plus button
  1 x serial port header j
  1 x Clear CMOS jumper

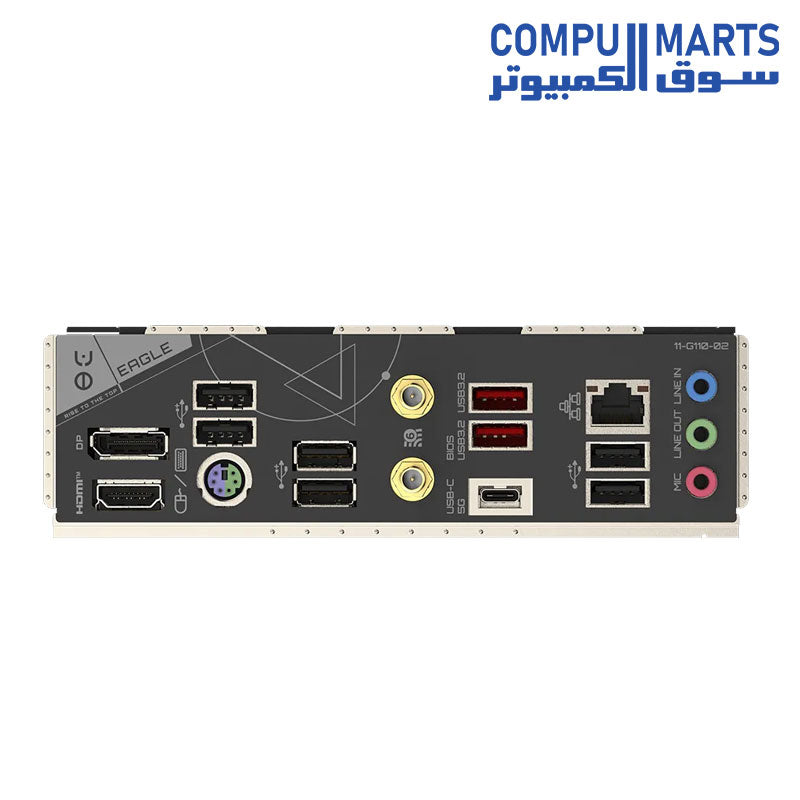

• Back Panel Connectors

  1 x DisplayPort
  1 x HDMI port
  1 x PS/2 keyboard/mouse port
  2 x SMA antenna connectors (2T2R)
  1 x USB Type-C port, with USB 3.2 Gen 1 support
  2 x USB 3.2 Gen 2 Type-A ports (red)
  6 x USB 2.0/1.1 ports
  1 x RJ-45 port
  3 x audio jacks

• I/O Controller

  iTE I/O Controller Chip

• H/W Monitoring

  Voltage detection
  Temperature detection
  Fan speed detection
  Water cooling flow rate detection
  Fan fail warning
  Fan speed control


• BIOS

  1 x 256 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

  Support for GIGABYTE Control Center (GCC)

  Support for Q-Flash
  Support for Q-Flash Plus

• Bundled Software

  Norton Internet Security (OEM version)
  LAN bandwidth management software

• Operating System

  Support for Windows 11 64-bit
  Support for Windows 10 64-bit

• Form Factor

  ATX Form Factor; 30.5cm x 24.4cm
