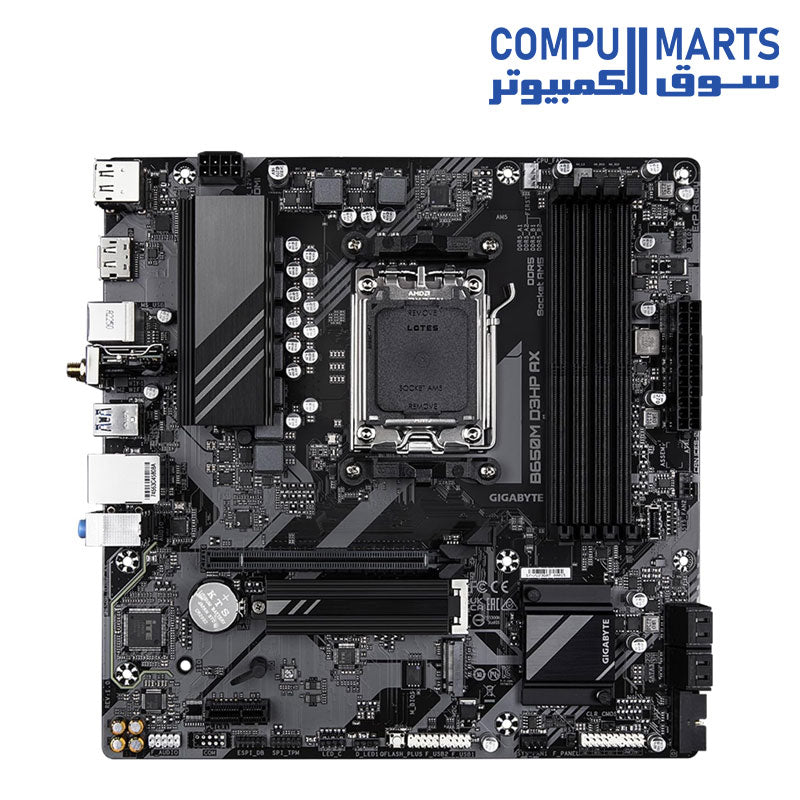

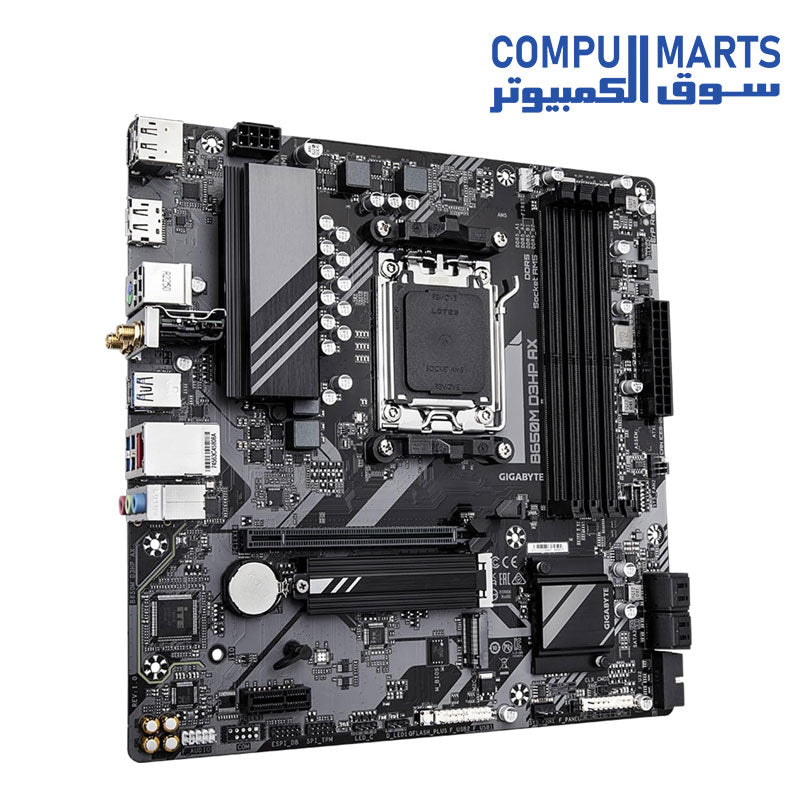

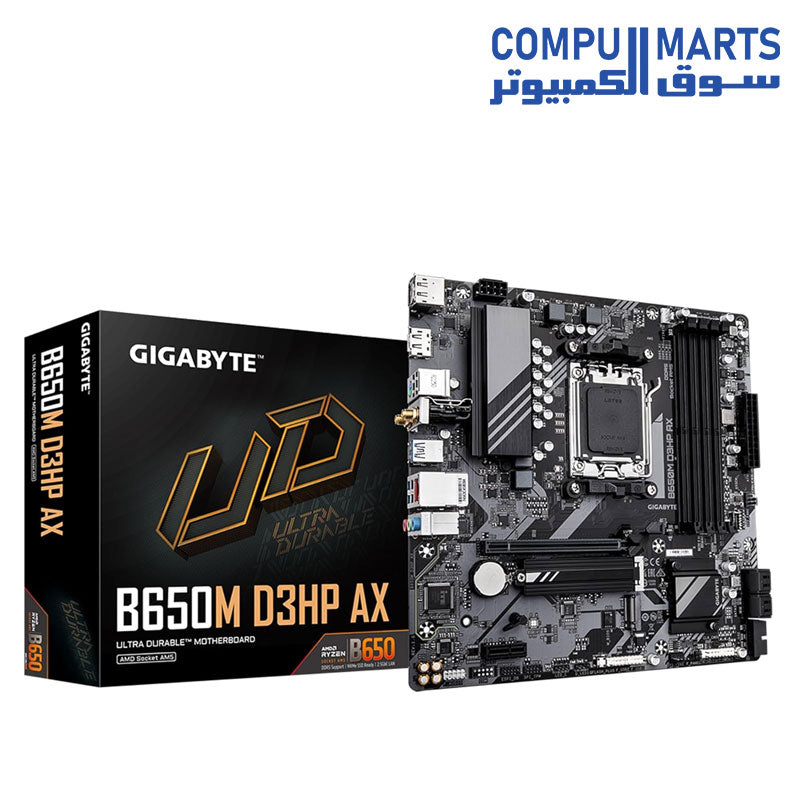

GIGABYTE B650M D3HP AX (rev. 1.0) Motherboard – M-ATX, AM5 Socket (LGA 1718), AMD B650 Chipset, DDR5, Wi-Fi 6E

GIGABYTE B650M D3HP AX (rev. 1.0) Motherboard – M-ATX, AM5 Socket (LGA 1718), AMD B650 Chipset, DDR5, Wi-Fi 6E

CPU

• AMD Socket AM5

• Supports AMD Ryzen 7000 / 8000 / 9000 Series Processors

Chipset

• AMD B650

Memory

• Supports DDR5: 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 MT/s

• 4 x DDR5 DIMM slots, up to 256GB (64GB per DIMM)

• Dual channel memory architecture

• Supports non-ECC Un-buffered DIMMs

• Supports AMD EXPO and Intel XMP profiles

Integrated Graphics

• Integrated AMD Radeon Graphics (dependent on CPU)

• 2 x DisplayPorts (max resolution 3840x2160 @144Hz) — DisplayPort 1.4

• 1 x HDMI port (max resolution 4096x2160 @60Hz) — HDMI 2.1, HDCP 2.3

• Supports up to 3 displays simultaneously

Audio

• Realtek® Audio CODEC

• High Definition Audio

• Supports 2/4/5.1/7.1-channel audio

  (Audio jack functionality can be configured via software)

LAN

• Realtek® 2.5GbE LAN chip

• Speeds: 2.5 Gbps / 1 Gbps / 100 Mbps

Wireless Communication

• Realtek® Wi-Fi 6E RTL8852CE

• Supports Wi-Fi a/b/g/n/ac/ax on 2.4GHz, 5GHz, and 6GHz bands

• Bluetooth 5.3

• 160MHz channel width supported

  (Actual performance may vary depending on environment and equipment)

Expansion Slots

• 1 x PCIe x16 slot (CPU-connected):

  • Ryzen 7000 / 9000 Series: PCIe 4.0 x16

  • Ryzen 8000 Phoenix 1: PCIe 4.0 x8

  • Ryzen 8000 Phoenix 2: PCIe 4.0 x4

    Supports GPU or NVMe SSD only

• 1 x PCIe x1 slot (Chipset-connected): PCIe 3.0 x1

Storage

• 1 x M.2 (M2A_CPU): PCIe 4.0 x4/x2, type 2280 (CPU-connected)

• 1 x M.2 (M2C_SB): PCIe 4.0 x4/x2, type 22110/2280 (Chipset-connected)

• 4 x SATA 6Gb/s ports

• RAID 0/1/10 support for both NVMe and SATA storage

USB Ports

• CPU-side:

  • 1 x USB Type-C® (USB 3.2 Gen 1)

  • 1 x USB 3.2 Gen 1

  • 1 x USB 2.0

• Chipset-side:

  • 2 x USB 3.2 Gen 1 (rear)

  • 1 x USB Type-C® (internal header)

  • 2 x USB 3.2 Gen 1 (internal header)

  • 5 x USB 2.0 (1 rear, 4 internal)

Internal I/O Connectors

• 1 x 24-pin ATX main power connector

• 1 x 8-pin ATX 12V power connector

• 1 x CPU fan header

• 2 x System fan headers

• 2 x Addressable RGB headers

• 1 x RGB LED header

• 2 x M.2 slots

• 4 x SATA 6Gb/s ports

• 1 x Front panel header

• 1 x Front panel audio header

• 1 x USB Type-C® header (USB 3.2 Gen 1)

• 1 x USB 3.2 Gen 1 header

• 2 x USB 2.0 headers

• 1 x TPM header

• 1 x Q-Flash Plus button

• 1 x Reset jumper

• 1 x Clear CMOS jumper

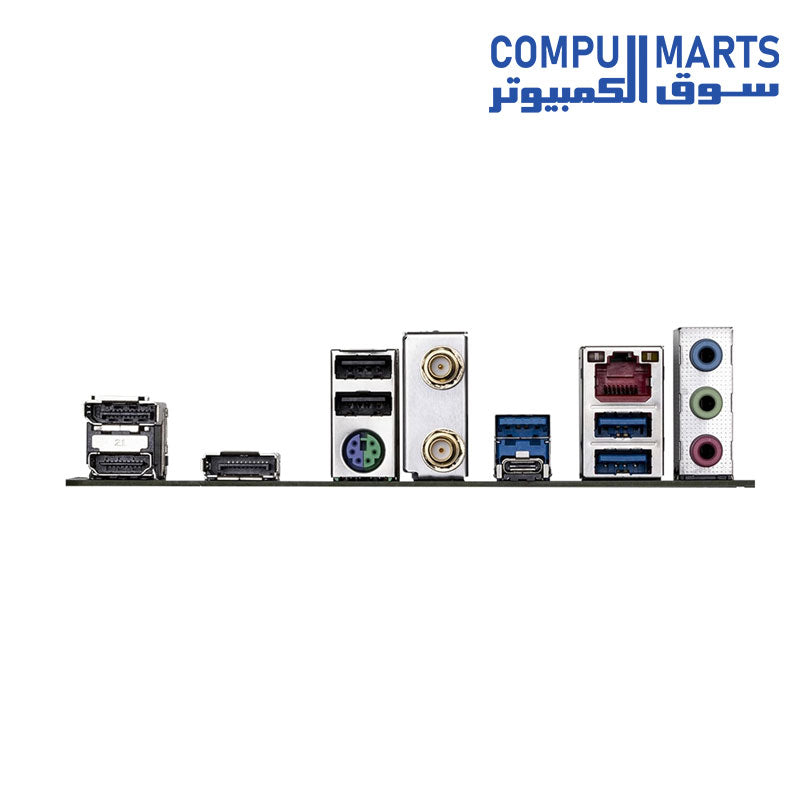

Back Panel I/O

• 1 x PS/2 keyboard/mouse port

• 1 x USB Type-C (USB 3.2 Gen 1)

• 3 x USB 3.2 Gen 1

• 2 x USB 2.0

• 1 x HDMI port

• 2 x DisplayPorts

• 1 x RJ-45 LAN port

• 3 x Audio jacks

I/O Controller

• iTE® Controller Chip

Hardware Monitoring

• Voltage detection

• Temperature detection

• Fan speed detection

• Fan fail warning

• Fan speed control (fan-dependent)

BIOS

• 256 Mbit flash

• AMI UEFI BIOS

• Supports: PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0

Unique Features

• Support for GIGABYTE Control Center (GCC)

• Q-Flash and Q-Flash Plus support

Bundled Software

• Norton Internet Security (OEM)

• LAN bandwidth management utility

Operating System

• Windows 11 64-bit

• Windows 10 64-bit

Form Factor

• Micro ATX

• Dimensions: 24.4 cm x 24.4 cm
