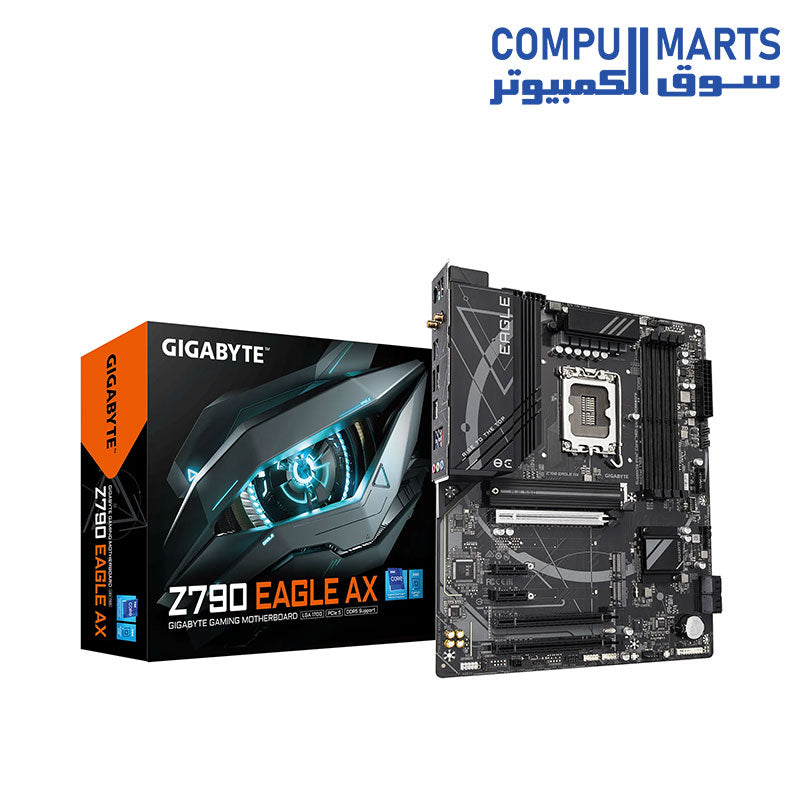

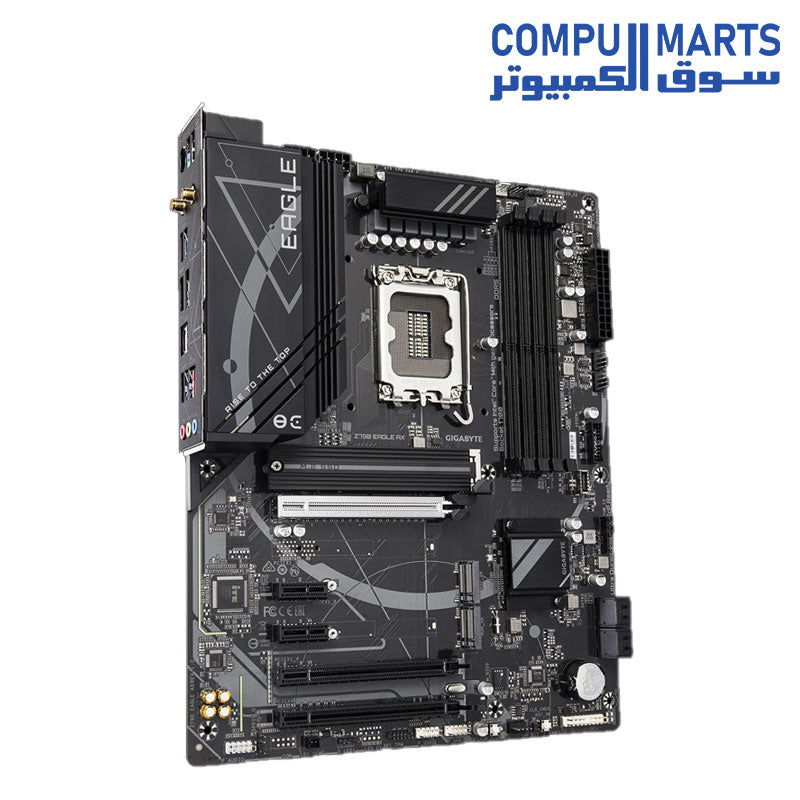

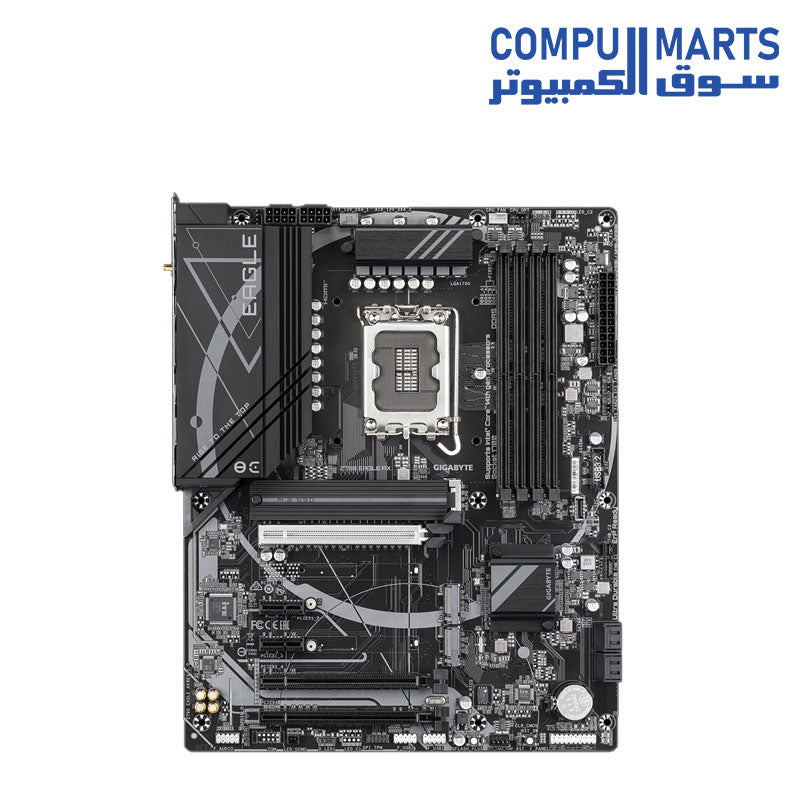

GIGABYTE Z790 Eagle AX LGA 1700 Intel Z790 ATX DDR5 Motherboard

GIGABYTE Z790 Eagle AX LGA 1700 Intel Z790 ATX DDR5 Motherboard

• CPU

  LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
  L3 cache varies with the CPU



• Chipset

  Intel Z790 Express Chipset

• Memory

  14th and 13th Generation Intel Core i9/i7 Processors:

  - Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules

  13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors:

  - Support for DDR5 4800/4400 MT/s memory modules

  4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory

  Dual channel memory architecture

  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

  Support for Extreme Memory Profile (XMP) memory modules

  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules

• Onboard Graphics

  * Support for HDMI 2.1 version and HDCP 2.3.
  Integrated Graphics Processor-Intel HD Graphics support:
  - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

  - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

• AudioRealtek Audio CODEC

  High Definition Audio

  2/4/5.1/7.1-channel

  Support for S/PDIF Out

• LANRealtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

• Wireless Communication moduleIntel Wi-Fi 6E AX211 (PCB rev. 1.0)

  - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

  - BLUETOOTH 5.3

  - Support for 11ax 160MHz wireless standard

  Realtek Wi-Fi 6E RTL8852CE(PCB rev. 1.1)

  - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

  - BLUETOOTH 5.3

  - Support for 11ax 160MHz wireless standard

• Expansion SlotsCPU:

  - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

  Chipset:

  - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

  - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)

  - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)

• Storage InterfaceCPU:

  - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

  Chipset:

  - 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

  - 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)

  - 4 x SATA 6Gb/s connectors

  RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

  RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

• USBChipset:

  - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support

  - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header

  - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

  - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

  - 2 x USB 2.0/1.1 ports on the back panel

  Chipset+USB 2.0 Hub:

  - 4 x USB 2.0/1.1 ports, available through the internal USB headers

• Internal I/O Connectors1 x 24-pin ATX main power connector

  2 x 8-pin ATX 12V power connectors

  1 x CPU fan header

  1 x CPU fan/water cooling pump header

  3 x system fan headers

  1 x system fan/water cooling pump header

  2 x addressable LED strip headers

  3 x M.2 Socket 3 connectors

  4 x SATA 6Gb/s connectors

  1 x front panel header

  1 x front panel audio header

  1 x S/PDIF Out header

  1 x USB Type-C header, with USB 3.2 Gen 1 support

  1 x USB 3.2 Gen 1 header

  2 x USB 2.0/1.1 headers

  2 x Thunderbolt™ add-in card connectors

  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

  1 x reset button

  1 x Q-Flash Plus button

  1 x reset jumper

  1 x Clear CMOS jumper

• Back Panel Connectors1 x PS/2 keyboard/mouse port

  1 x USB Type-C port, with USB 3.2 Gen 2 support

  1 x USB 3.2 Gen 2 Type-A port (red)

  4 x USB 3.2 Gen 1 ports

  2 x USB 2.0/1.1 ports

  2 x SMA antenna connectors (1T1R)

  1 x HDMI port

  1 x DisplayPort

  1 x RJ-45 port

  3 x audio jacks

• I/O ControlleriTE I/O Controller Chip

• H/W MonitoringVoltage detection

  Temperature detection

  Fan speed detection

  Water cooling flow rate detection

  Fan fail warning

  Fan speed control

• BIOS1 x 256 Mbit flash

  Use of licensed AMI UEFI BIOS

  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique FeaturesSupport for GIGABYTE Control Center (GCC)

  Support for Q-Flash

  Support for Q-Flash Plus

  Support for Smart Backup

• Bundled SoftwareNorton Internet Security (OEM version)

  LAN bandwidth management software

• Operating SystemSupport for Windows 11 64-bit

  Support for Windows 10 64-bit

• Form Factor

  ATX Form Factor; 30.5cm x 24.4cm
