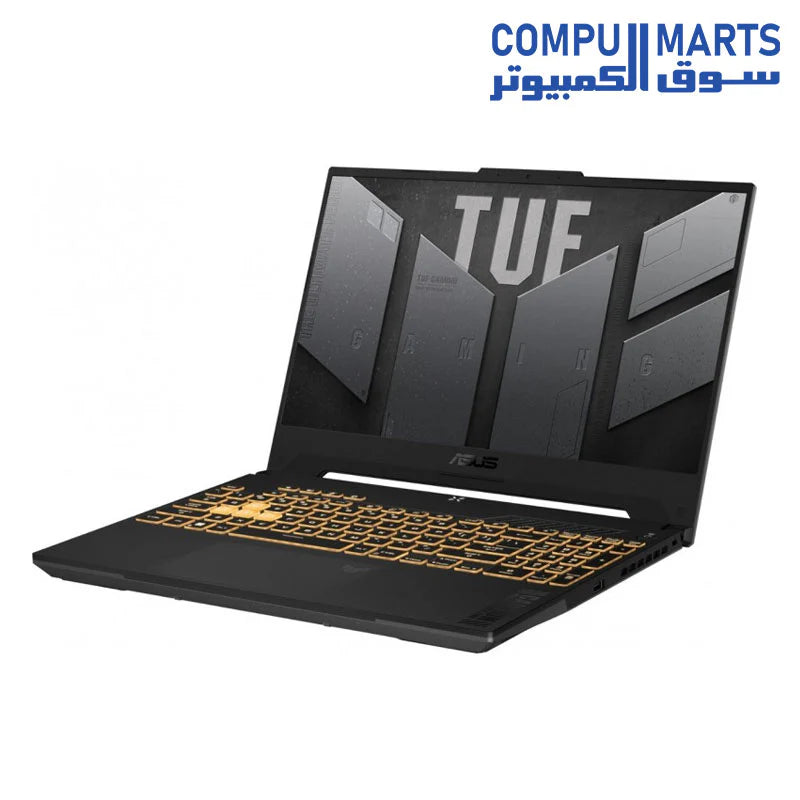

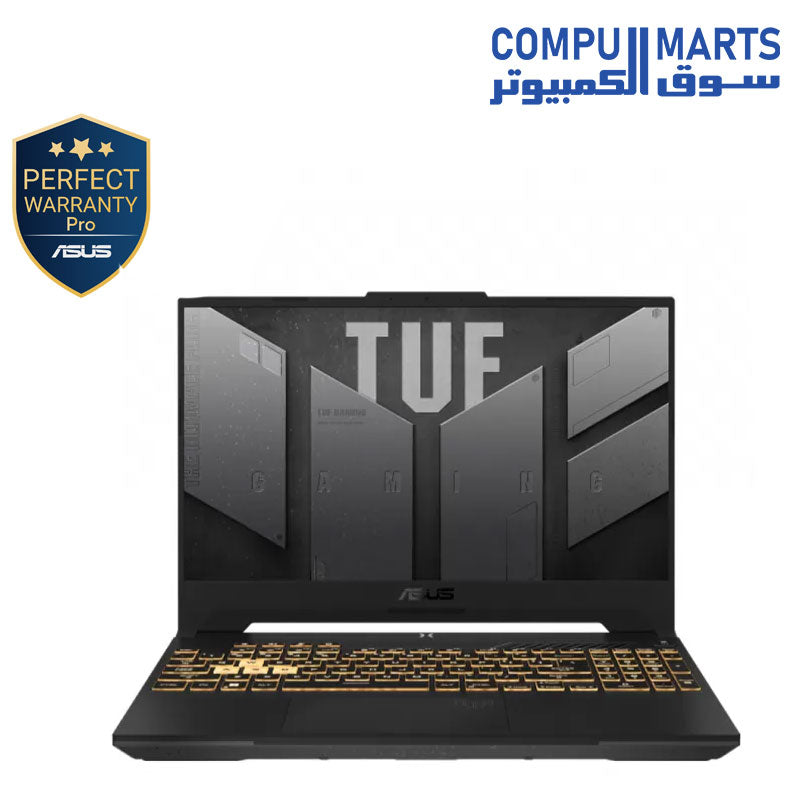

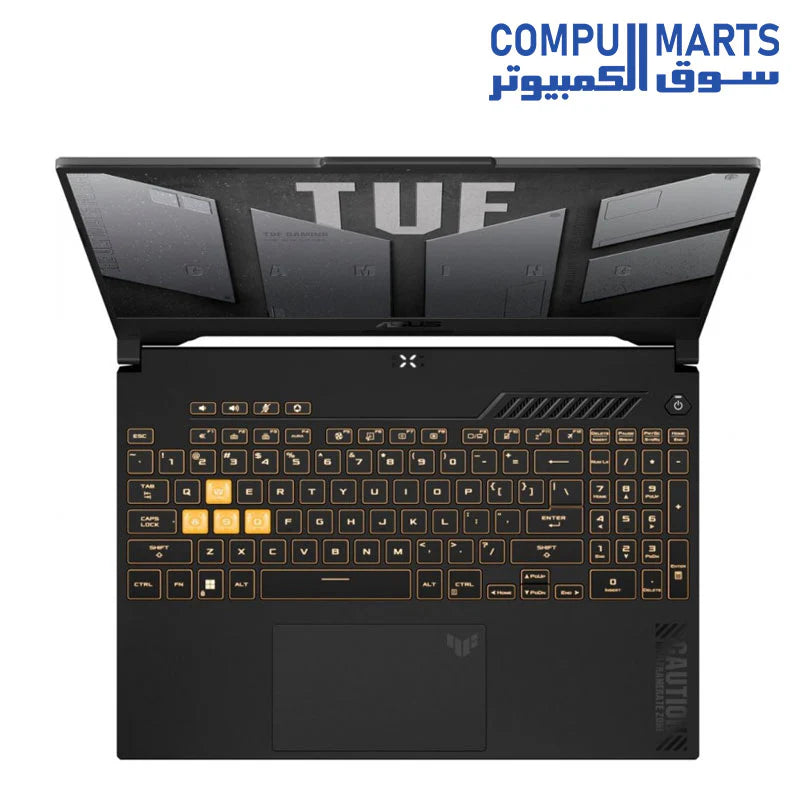

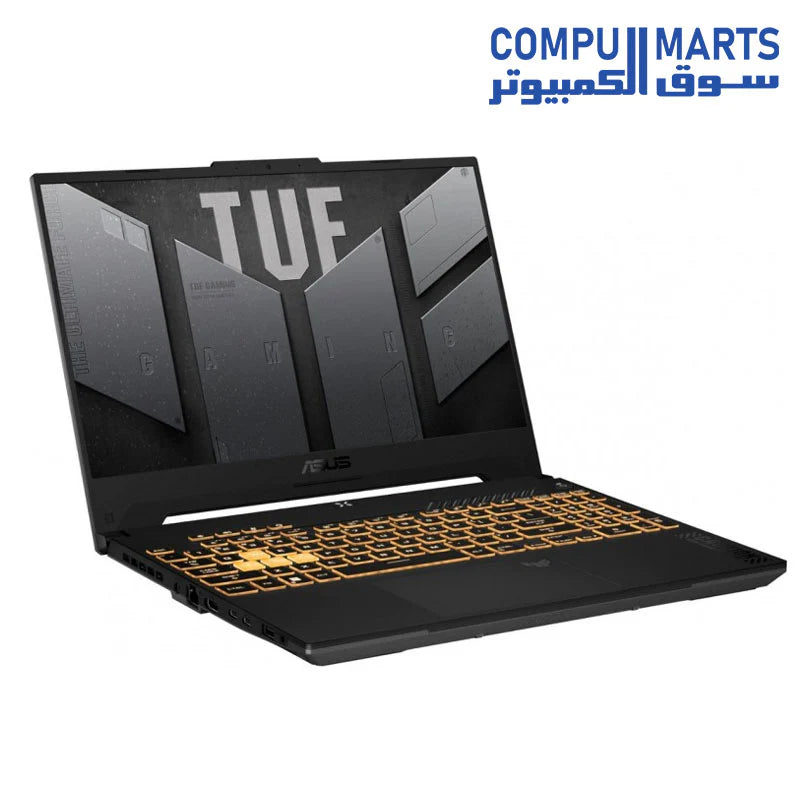

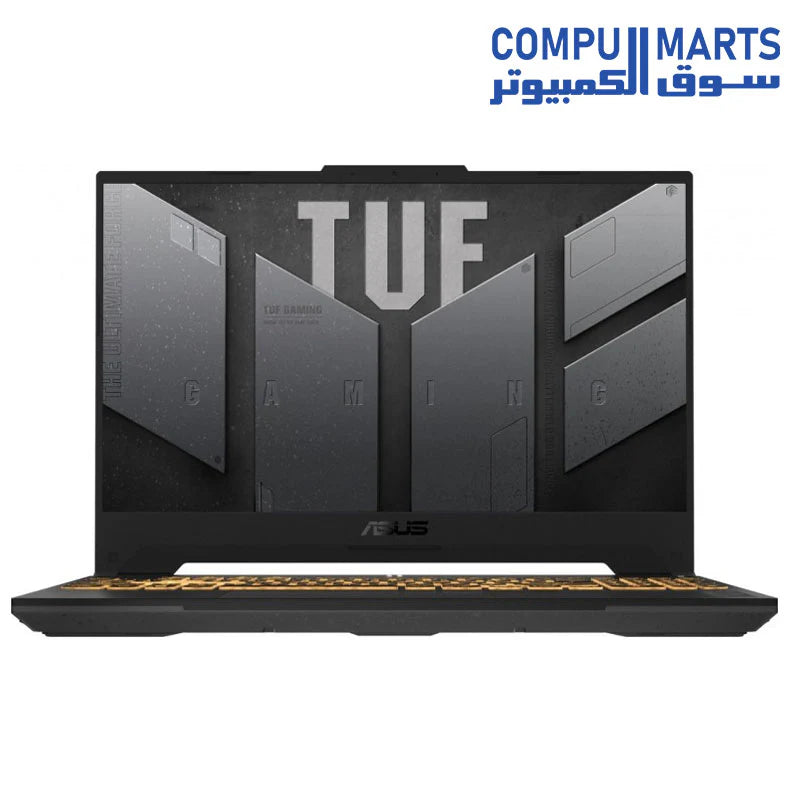

Asus Tuf Gaming FX507VV-LP156W Core i7-13620H DDR5 16GB 1TB PCIe 4.0 NVMe M.2 SSD NVIDIA GeForce RTX 4060 8GB 140W 15.6 FHD SRGB 100% 144HZ WIN 11

Part No

90NR0BV8-M009Y0

Sales Model Name

FX507VV-LP156W

EAN Code

4711387456941

UPC Code

197105456945

WEEE

2.349

BASE UNIT

VSNR0BV8-BU1000

Marketing Name

ASUS TUF Gaming F15

Operating System

Windows 11 Home

Office

1-month trial for new Microsoft 365 customers. Credit card required.

Color

Jaeger Gray

Dimension (W x D x H)

35.4 x 25.1 x 2.24 ~ 2.49 cm (13.94" x 9.88" x 0.88" ~ 0.98")

Weight

2.20 Kg (4.85 lbs)

Processor

13th Gen Intel Core i7-13620H Processor 2.4 GHz (24M  Cache, up to 4.9 GHz, 10 cores: 6 P-cores and 4 E-cores)

Chipset

N/A

Intergrated GPU

Intel Iris Xᵉ Graphics

Discrete/Optimus

MUX Switch + NVIDIA Advanced Optimus

Graphic

NVIDIA GeForce RTX 4060 Laptop GPU

Graphic Wattage

2420MHz* at 140W (2370MHz Boost Clock+50MHz OC, 115W+25W Dynamic Boost)

Graphic Memory

8GB GDDR6

Panel Size

15.6-inch

Resolution

FHD (1920 x 1080) 16:9

Refresh Rate

144Hz

Viewing Angle

85/85/85/85

Panel Tech

Value IPS-level

Brightness

250

Contrast Ratio

1000:1

NTSC %

72%

SRGB %

100%

Adobe %

75.35%

Glare

Anti-glare display

Adaptive-Sync technology

G-Sync

Pantone

N/A

Support Dolby Vision HDR

N/A

On board memory

N/A

DIMM Memory

8GB DDR5-4800 SO-DIMM 2

Total System Memory

DDR5 16GB

Memory Slot

2x SO-DIMM slots

Memory Max.

32GB

Multi-channel memory technology

Support dual channel memory

Storage

1TB PCIe 4.0 NVMe M.2 SSD

M.2 slots support either SATA or NVMe

2

M.2 SSD Support List

M.2  2TB G4X4 PCIe SSD

M.2 1TB G4X4 PCIe SSD

M.2 512GB G4X4 PCIe SSD

Expansion Slot (includes used)

2x DDR5 SO-DIMM slots

2x PCIe

LAN

10/100/1000 Mbps

Wireless

Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetooth 5.2 Wireless Card (*Bluetooth® version may change with OS version different.)

On board Wireless

Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetooth 5.1 Wireless Card (*Bluetooth® version may change with OS version different.)

I/O Ports

1x RJ45 LAN port

1x Thunderbolt™ 4 support DisplayPort™

1x USB 3.2 Gen 2 Type-C support DisplayPort™ / power delivery / G-SYNC

2x USB 3.2 Gen 1 Type-A

Display output

1x HDMI 2.1 FRL

Camera

720P HD camera

Mic

Built-in array microphone

Keyboard Type

Backlit Chiclet Keyboard 1-Zone RGB

Aura Sync

Yes

Touchpad

Touchpad

N/A

Speakers

2-speaker system

Audio

1x 3.5mm Combo Audio Jack

Built-in array microphone

Audio Tech

AI noise-canceling technology

Dolby Atmos

Hi-Res certification (for headphone)

Support Microsoft Cortana near field/far field

Security

BIOS Administrator Password and User Password Protection

Kensington Security Slot

Trusted Platform Module (Firmware TPM)

Antivirus

McAfee 30 days free trial

Battery

90WHrs, 4S1P, 4-cell Li-ion

Fast charging

Recharge from 0-50% in 30 minutes

Power

ø6.0, 240W AC Adapter, Output: 20V DC, 12A, 240W, Input: 100~240C AC 50/60Hz universal

Xbox Game Pass

Xbox Game Pass for PC_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass for PC. Eligible markets are determined at activation. Game catalog varies by region, device, and time.)

Ecolabels & Compliances

ENERGY STAR

EPEAT Bronze

Reparability Index (for France)

8.5
