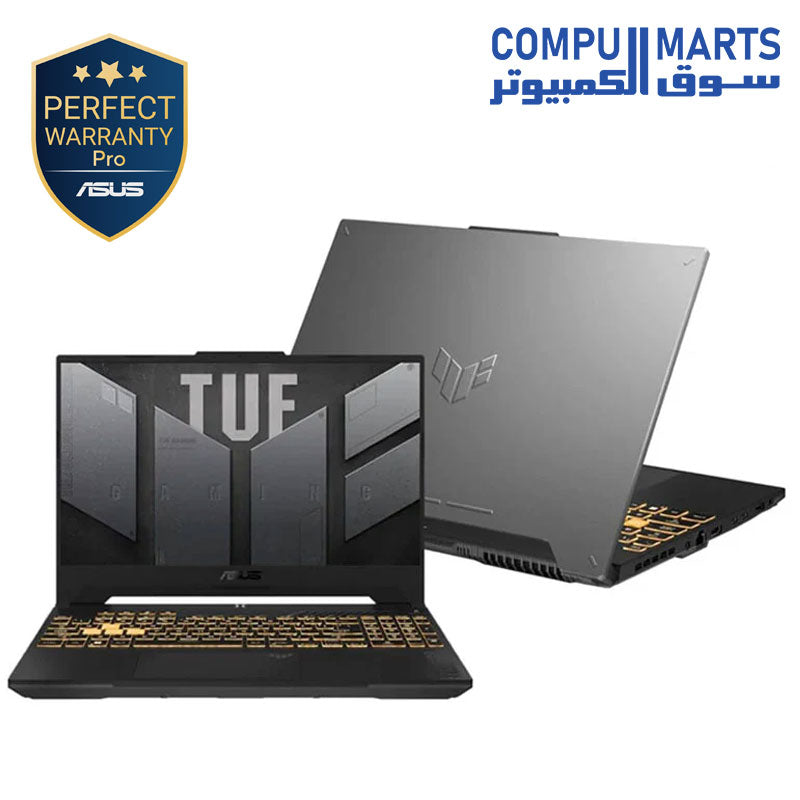

ASUS TUF Gaming F15 FX507ZI4-LP034W Core i7-12700H- 16GB DDR4 Ram- 512GB SSD- RTX 4070 8GB- 15.6 FHD IPS 144HZ- Win 11 ( 1 Year Perfect Warranty )

Part No

90NR0FV7-M002J0

Sales Model Name

FX507ZI4-LP034W

EAN Code

4711387577349

UPC Code

197105577343

WEEE

2.524

BASE UNIT

VSNR0FV7-BU1010

Marketing Name

ASUS TUF Gaming F15

Operating System

Windows 11 Home

Office

1-month trial for new Microsoft 365 customers. Credit card required.

Color

Mecha Gray

Dimension (W x D x H)

35.4 x 25.1 x 2.24 ~ 2.49 cm (13.94" x 9.88" x 0.88" ~ 0.98")

Weight

2.20 Kg (4.85 lbs)

Processor

12th Gen Intel Core  i7-12700H Processor 2.3 GHz (24M Cache, up to 4.7 GHz, 14 cores: 6 P-cores and 8 E-cores)

Chipset

N/A

Intergrated GPU

Intel  Iris Xᵉ Graphics

Discrete/Optimus

MUX Switch + NVIDIA Advanced Optimus

Graphic

NVIDIA GeForce RTX 4070 Laptop GPU (321 AI TOPs)

Graphic Wattage

2225MHz* at 140W (2175MHz Boost Clock+50MHz OC, 115W+25W Dynamic Boost)

Graphic Memory

8GB GDDR6

Panel Size

15.6-inch

Resolution

FHD (1920 x 1080) 16:9

Refresh Rate

144Hz

Viewing Angle

85/85/85/85

Panel Tech

Value IPS-level

Brightness

250

Contrast Ratio

1000:1

NTSC %

72

SRGB %

100

Adobe %

75.35

Glare

Anti-glare display

Adaptive-Sync technology

G-Sync

Pantone

N/A

Support Dolby Vision HDR

N/A

On board memory

N/A

DIMM Memory

8GB DDR4-3200 SO-DIMM *2

Total System Memory

DDR4 16GB

Memory Slot

2x SO-DIMM slots

Memory Max.

32GB

Multi-channel memory technology

Support dual channel memory

Storage

512GB PCIe  4.0 NVMe M.2 SSD

M.2 slots support either SATA or NVMe

2

M.2 SSD Support List

M.2  2TB G4X4 PCIe SSD

M.2 1TB G4X4 PCIe SSD

M.2 512GB G4X4 PCIe SSD

Expansion Slot (includes used)

2x DDR4 SO-DIMM slots

2x M.2 PCIe

LAN

10/100/1000 Mbps

Wireless

Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetooth 5.2 Wireless Card (*Bluetooth version may change with OS version different.)

I/O Ports

1x RJ45 LAN port

1x Thunderbolt4 with support for DisplayPort (data speed up to 40Gbps)

1x USB 3.2 Gen 2 Type-C with support for DisplayPort / power delivery / G-SYNC (data speed up to 10Gbps)

2x USB 3.2 Gen 1 Type-A (data speed up to 5Gbps)

Display output

1x HDMI 2.1 FRL

Camera

720P HD camera

Mic

Built-in array microphone

Keyboard Type

Backlit Chiclet Keyboard 1-Zone RGB

Aura Sync

Yes

Touchpad

Touchpad

N/A

FingerPrint

N/A

Speakers

2-speaker system

Audio

1x 3.5mm Combo Audio Jack

Built-in array microphone

Audio Tech

AI noise-canceling technology

Dolby Atmos

Hi-Res certification (for headphone)

Support Microsoft Cortana near field/far field

Security

BIOS Administrator Password and User Password Protection

Kensington Security Slot

Trusted Platform Module (Firmware TPM)

Antivirus

McAfee 30 days free trial

Battery

90WHrs, 4S1P, 4-cell Li-ion

Fast charging

Recharge from 0-50% in 30 minutes

Power

ø6.0, 240W AC Adapter, Output: 20V DC, 12A, 240W, Input: 100~240C AC 50/60Hz universal

Xbox Game Pass

Xbox Game Pass Ultimate_3 months (*Terms and exclusions apply. Offer only available in eligible markets for PC Game Pass. Eligible markets are determined at activation. Game catalog varies by region, device, and time.)

Included in the Box

Marketing Giveaway (TUF Sticker)

Ecolabels & Compliances

ENERGY STAR

EPEAT Bronze
