Eaton | SKU:
PB1D
Sold out

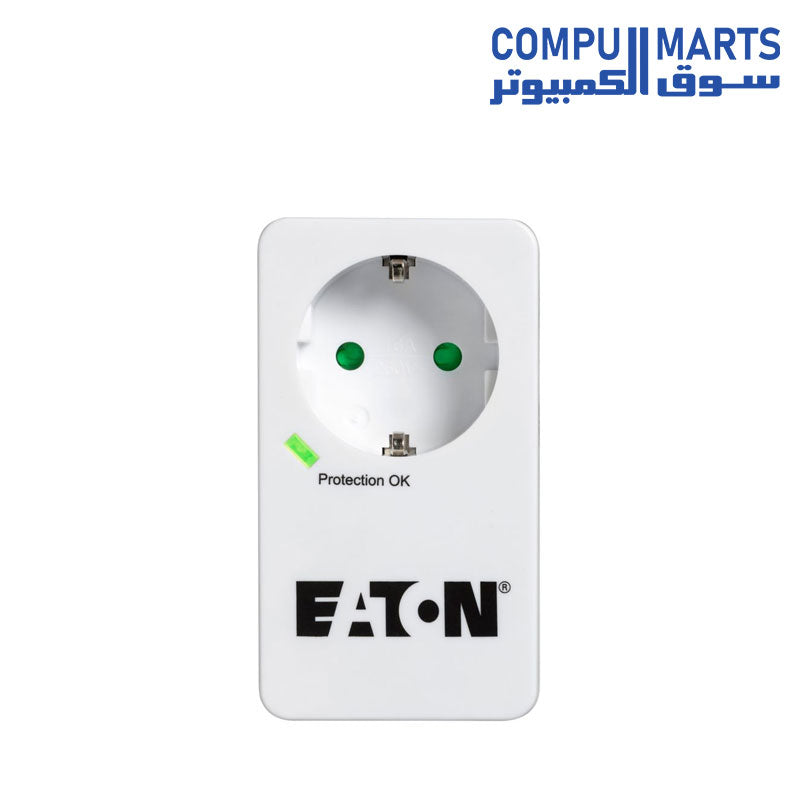

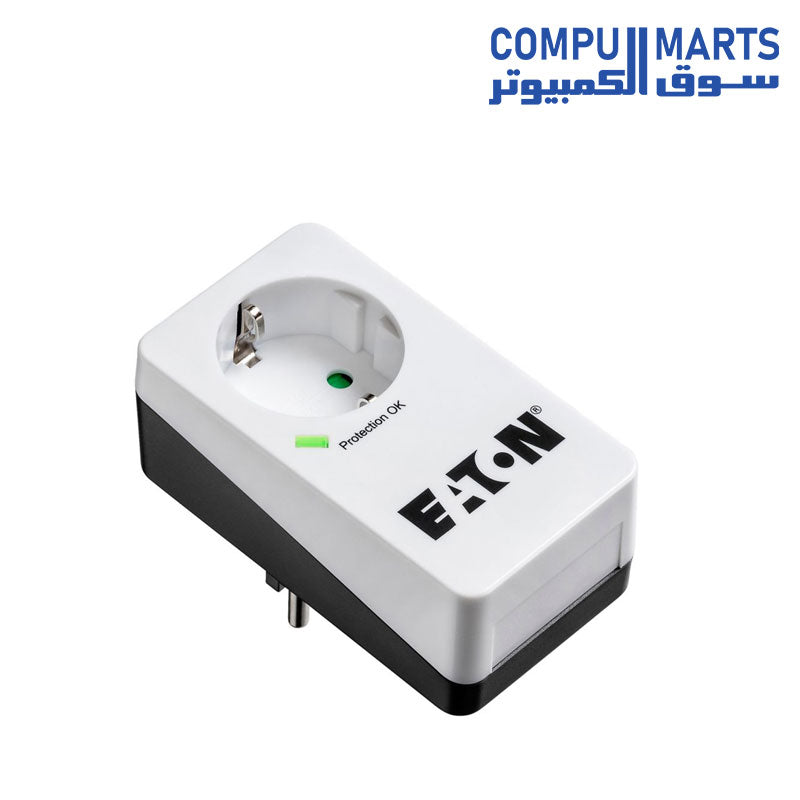

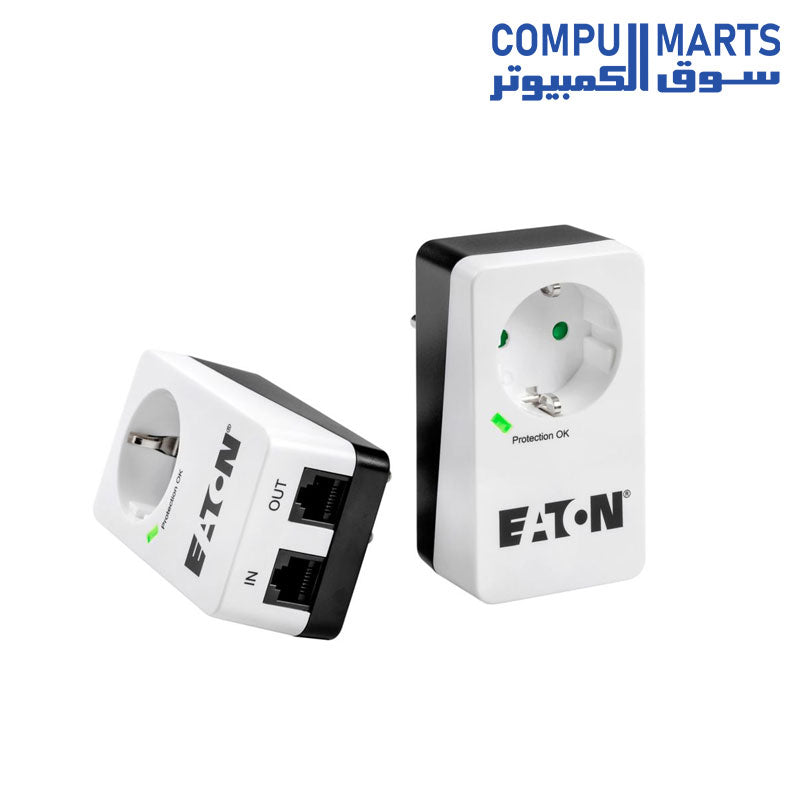

Eaton Protection Box 1 DIN
Regular price
650.00 EGP
Unit price
/
Unavailable
Shipping calculated at checkout.
Eaton Protection Box 1 DIN is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Fast shipping to your doorstep! Get your order delivered within 1-5 days based on location.
Subscribe to our newsletter
Sign up for exclusive offers.
Eaton Protection Box 1 DIN
General specifications:
Product Name:
Eaton Protection Box
Catalog Number:
PB1D
EAN:
3553340667152
Product Length/Depth:
98 mm
Product Height:
55 mm
Product Width:
72.5 mm
Product Weight:
0.115 kg
Compliances:
CE Marked:
EAC
Certifications:
IEC/EN 60884-1
IEC/EN 61643-11
Model Code:
Eaton Protection Box 1 DIN
Product specifications:
Type:
Surge Suppressor
Special features:
High end surge protection device implementing Schuko (DIN) socket, IEC 61643-11 compliant, including connected equipment warranty
Circuit breaker:
No
Core cross section:
0 mm²
Halogen Free:
No
Housing shape:
Rectangular
Input connection:
Protective contact (SCHUKO)
Internet/tel line protection:
No
Material quality:
Other
NEMA designation:
None
Nominal frequency:
50-60 Hz
Amperage Rating:
16A
Phase:
Single-phase
Surge current:
3000A
Indicator type:
Color LED
Number of NEMA-Outlets:
0
Number of socket outlets with protective contact:
1
Number of USB connections:
0
Package contents:
- Surge suppressor device
- Quickstart guide
Power cord length:
0
RAL-number:
9003
Residual current circuit breaker
No
Surface finish:
Matt/Matte
Surface protection:
Other
Switchable:
Yes
Transparent:
No
Angle of rotated central insert:
Other
Color:
Black/white
Number of outlets:
1
Operating voltage:
220-250 V
Surge rating:
1500 V
Operating temperature - max:
40 °C
Operating temperature - min:
0 °C
Mounting Method:
35 mm DIN rail
Material:
Plastic
Fitted with:
Fuse
Over voltage protection:
LED indication
Over voltage protection:
LED indication
Degree of Protection:
IP20
