Eaton  |  SKU: PB1D

Eaton Protection Box 1 DIN

650.00 EGP
Shipping calculated at checkout.

Delivery and Shipping

Fast shipping to your doorstep! Get your order delivered within 1-5 days based on location.

Subscribe to our newsletter

Sign up for exclusive offers.

Description

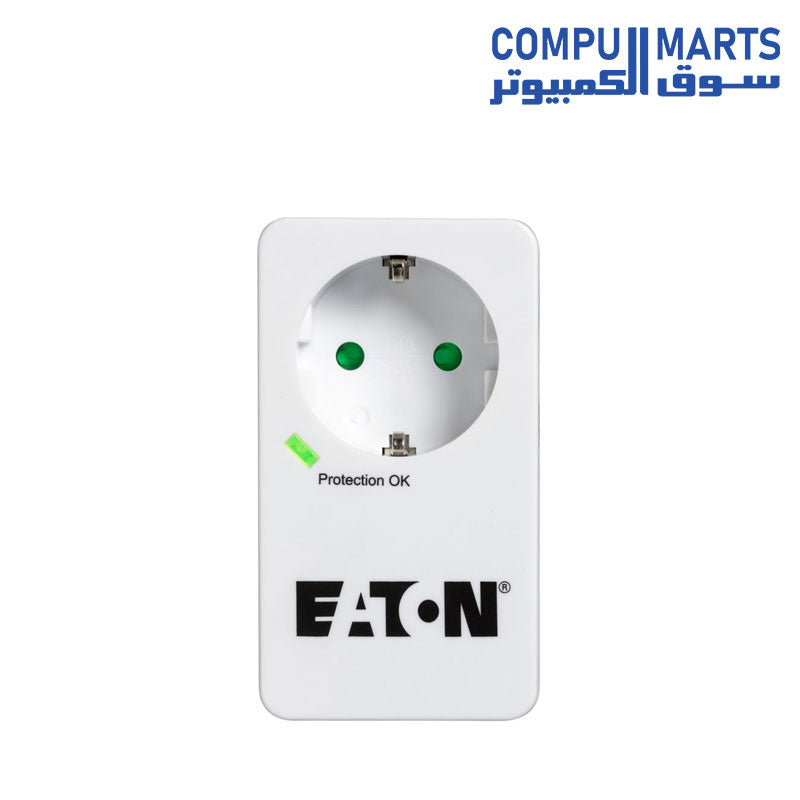

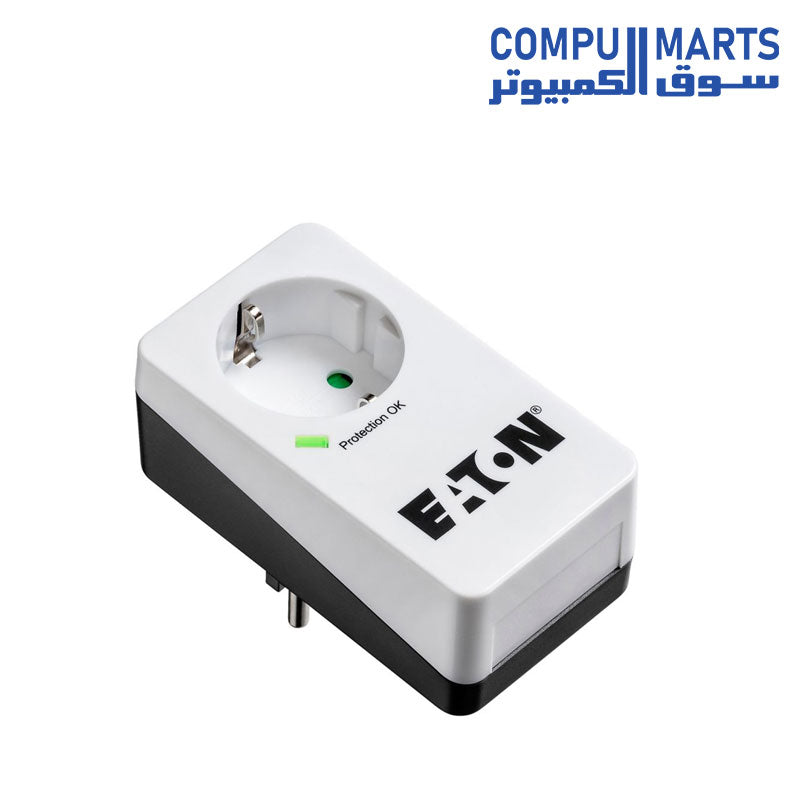

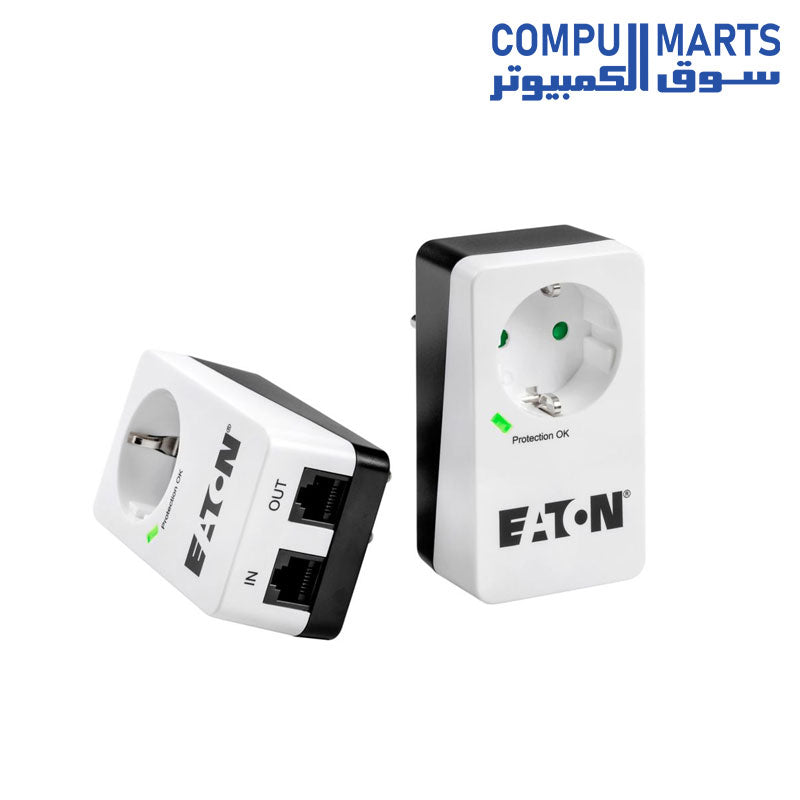

Eaton Protection Box 1 DIN



General specifications:

Product Name:

Eaton Protection Box

Catalog Number:

PB1D

EAN:

3553340667152

Product Length/Depth:

98 mm

Product Height:

55 mm

Product Width:

72.5 mm

Product Weight:

0.115 kg

Compliances:

CE Marked:
EAC

Certifications:

IEC/EN 60884-1
IEC/EN 61643-11

Model Code:

Eaton Protection Box 1 DIN

Product specifications:

Type:

Surge Suppressor

Special features:

High end surge protection device implementing Schuko (DIN) socket, IEC 61643-11 compliant, including connected equipment warranty

Circuit breaker:

No

Core cross section:

0 mm²
Halogen Free:
No
Housing shape:
Rectangular
Input connection:
Protective contact (SCHUKO)
Internet/tel line protection:
No
Material quality:
Other
NEMA designation:
None
Nominal frequency:
50-60 Hz
Amperage Rating:
16A
Phase:
Single-phase
Surge current:
3000A
Indicator type:
Color LED
Number of NEMA-Outlets:
0
Number of socket outlets with protective contact:
1
Number of USB connections:
0
Package contents:
  • Surge suppressor device
  • Quickstart guide
Power cord length:
0
RAL-number:
9003
Residual current circuit breaker
No
Surface finish:
Matt/Matte
Surface protection:
Other
Switchable:
Yes
Transparent:
No
Angle of rotated central insert:
Other
Color:
Black/white
Number of outlets:
1
Operating voltage:
220-250 V
Surge rating:
1500 V
Operating temperature - max:
40 °C
Operating temperature - min:
0 °C
Mounting Method:
35 mm DIN rail
Material:
Plastic
Fitted with:
Fuse
Over voltage protection:
LED indication

Degree of Protection:

IP20
