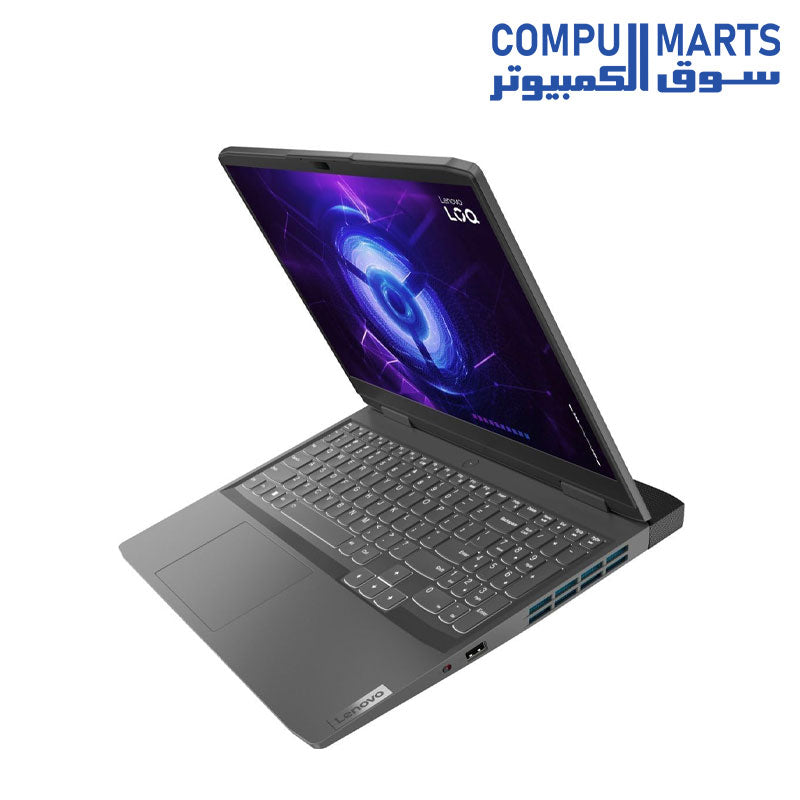

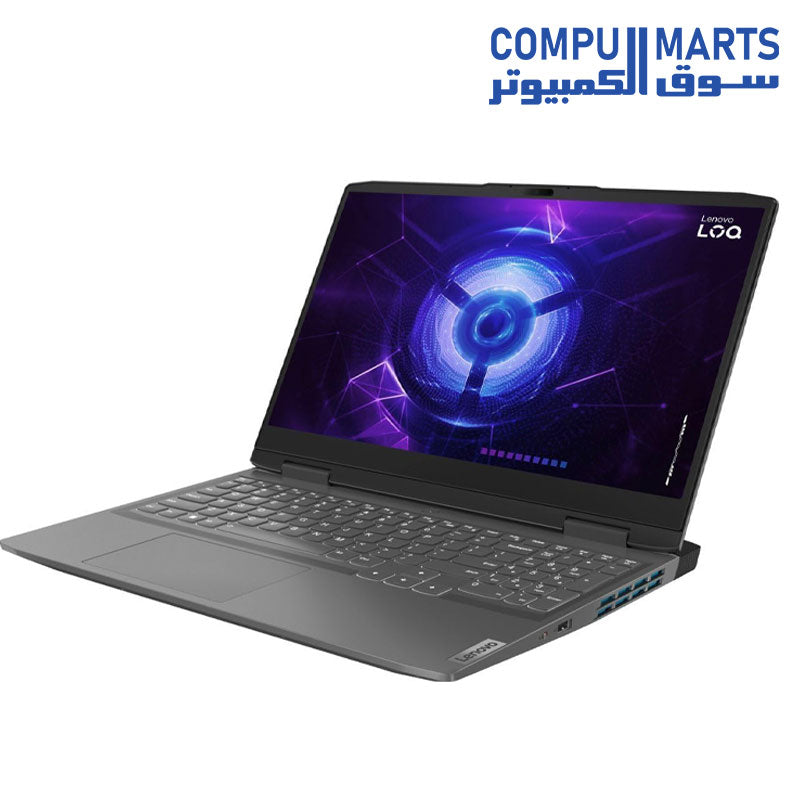

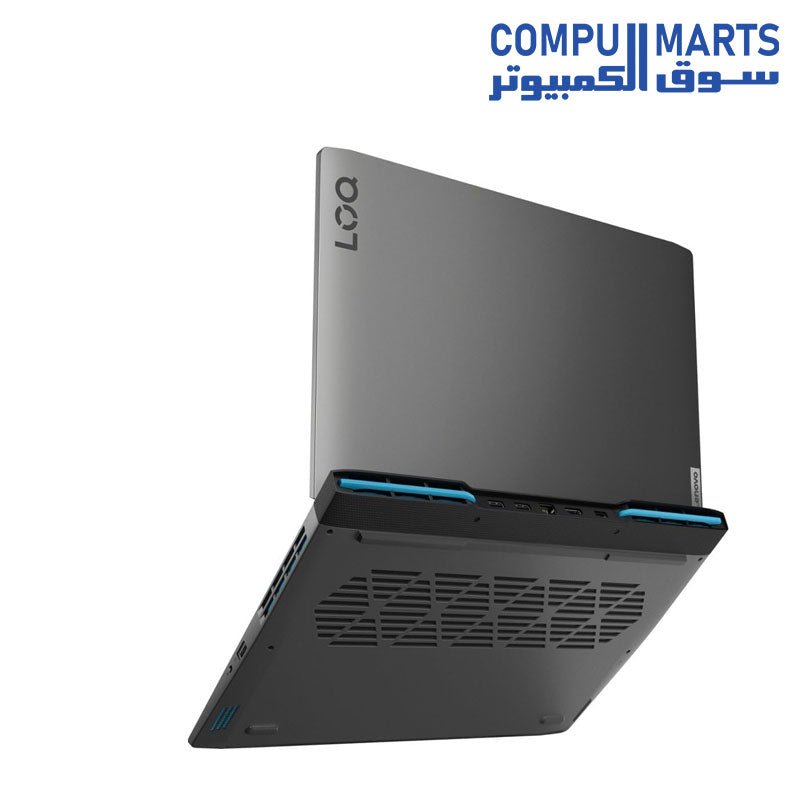

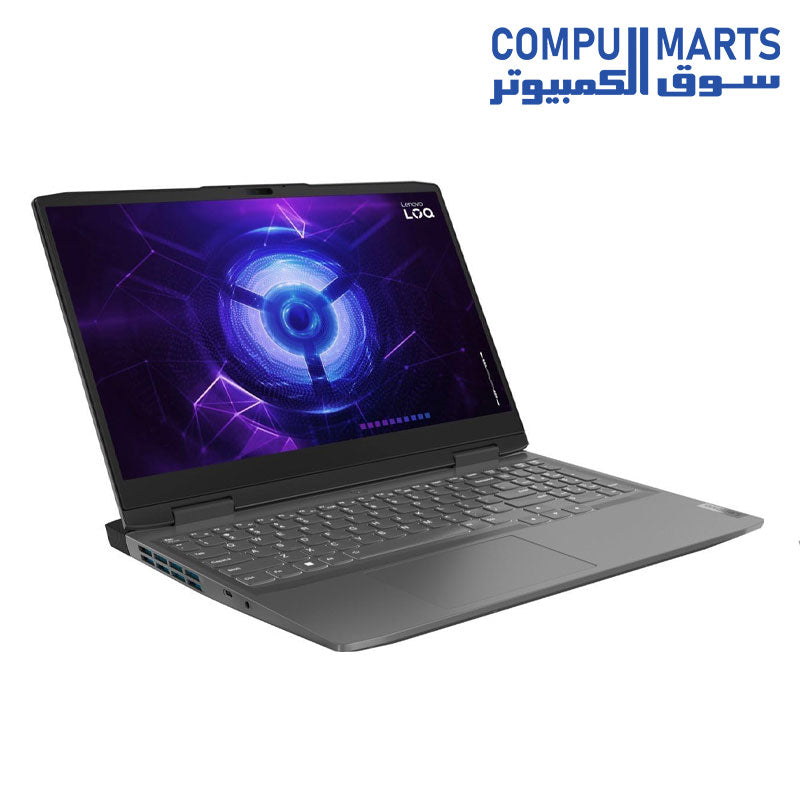

Lenovo LOQ 15IRH8 Gaming - 13th Intel Core i5-13420H 8-Cores, AI Chip: LA1, 6GB GDDR6 NVIDIA GeForce RTX 3050 Graphics, 8GB DDR5 RAM, 1TB SSD, 15.6" FHD (1920x1080) IPS 350nits 144Hz, Windows 11

LOQ 15IRH8

Model : 82XV002LUS

TopSeller

No

Announce Date

2023-03-03

EAN / UPC / JAN

196804152837

End of Support

2029-04-17

PERFORMANCE

Processor

Intel Core i5-13420H, 8C (4P + 4E) / 12T, P-core 2.1 / 4.6GHz, E-core 1.5 / 3.4GHz, 12MB

Graphics

NVIDIA GeForce RTX 3050 6GB GDDR6, Boost Clock 1732MHz, TGP 95W

Chipset

Intel SoC Platform

Memory

1x 8GB SO-DIMM DDR5-5200

Memory Slots

Two DDR5 SO-DIMM slots, dual-channel capable

Max Memory

Up to 32GB DDR5-5200

Storage

1TB SSD M.2 2242 PCIe 4.0x4 NVMe

Storage Support

Up to two drives, 2x M.2 SSD

• M.2 2242 SSD up to 1TB

Storage Slot

Two M.2 slots

• One M.2 2242 PCIe 4.0 x4 slot

• One M.2 2280 PCIe 4.0 x4 slot

Card Reader

None

Optical

None

Audio Chip

High Definition (HD) Audio, Realtek ALC3287 codec

Speakers

Stereo speakers, 2W x2, optimized with Nahimic Gaming Audio

Camera

FHD 1080p with E-shutter

Microphone

2x, Array

Battery

Integrated 60Wh

Power Adapter

170W Slim Tip (3-pin)

Special Features

AI Chip: LA1

DESIGN

Display[1]

15.6" FHD (1920x1080) IPS 350nits Anti-glare, 45% NTSC, 144Hz, G-SYNC

Touchscreen

None

Color Calibration

None

Keyboard

White Backlit, English (US)

Case Color

Storm Grey

Surface Treatment

Painting

Case Material

PC-ABS (Top), PC-ABS (Bottom)

Dimensions (WxDxH)

359.6 x 264.8 x 22.1-25.2 mm (14.16 x 10.43 x 0.87-0.99 inches)

Weight

Starting at 2.4 kg (5.29 lbs)

SOFTWARE

Operating System

Windows 11 Home, English

Bundled Software

Office Trial

CONNECTIVITY

Ethernet

100/1000M (RJ-45)

WLAN + Bluetooth

Wi-Fi 6, 11ax 2x2 + BT5.1

Standard Ports

1x Ethernet (RJ-45)

1x HDMI 2.1, up to 8K/60Hz

1x Headphone / microphone combo jack (3.5mm)

1x Power connector

1x USB 3.2 Gen 1

1x USB-C 3.2 Gen 2 (support data transfer, Power Delivery 140W and DisplayPort 1.4)

2x USB 3.2 Gen 2

Docking

Various docking solutions supported via Thunderbolt / USB-C. For more compatible docking solutions, please visit <a href="https://smartfind.lenovo.com/accessories/#/search?keyword=&pageIndex=1&pageSize=40&query=82XV"target="_blank"><u>Docking for LOQ 15IRH8</u></a>

SECURITY & PRIVACY

Security Chip

Firmware TPM 2.0 Enabled

Fingerprint Reader

None

Other Security

E-shutter

MANAGEABILITY

SERVICE

Base Warranty

1-year, Courier or Carry-in

Included Upgrade

None

ACCESSORIES

Bundled Accessories

None

CERTIFICATIONS

Green Certifications

ErP Lot 3

RoHS compliant
