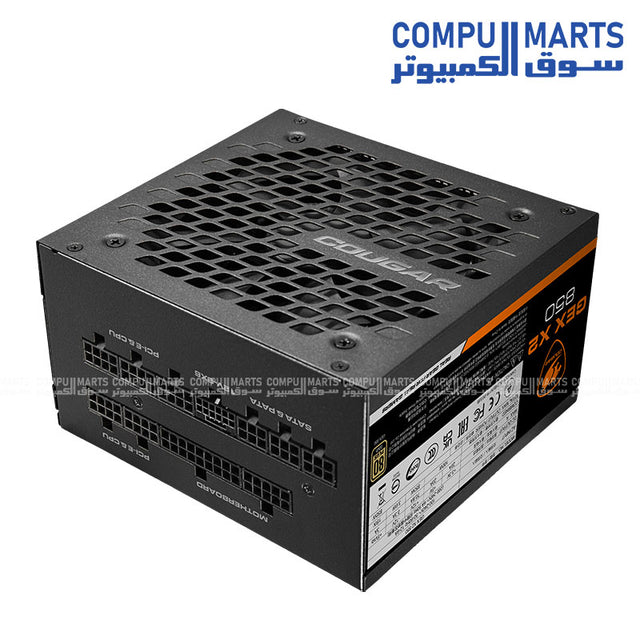

Cougar GEX X2 850W – 1000W Power Supply – 80 Plus Gold, Fully Modular, PCIe 5.0
Cougar
The GEX X2 passes the four strict power excursion tests from PSU ATX 3.1 Guide, in which the spike power consumption must bear up to 200% of the rated power for 100μs.
The modular 12+4pin, 12V-2X6, cable delivers perfect power supplies for next-gen graphics cards. Without any 6+2pin adaptor, the 650mm length can reduce connection risk while the PC installation.
an
Using COUGAR’s exclusive 120mm silent fan, the advanced frame increase the concentration of air-flow and its fan curvature has been fine-tuned to reduce vibration at any loads.
Refined Electronic Solution
Japanese Capacitors
MTBF：100,000 Hours
- Tight 2% voltage regulation for ultra-stable operation.
- Optimally perform in 40ºC working temperature environments.
Easy PC Builds
Compact Size: for All PC Cases
At 140mm in length, GEX X2 is one of the most compact fully modular PSU. This means it will fit in a wide range of cases, and give you additional flexibility for building your PC.
Fully Modular Cables / Flat Cables
Connect only the cables you need, reducing cable clutter and friction and improving the airflow and the ease of installation of DIY solutions.
Features
Support PCI Express 5.0 Graphics Cards 12+4 Pin Connector
Connect the 12V-2X6 with true 200% power excursion dynamic outputs
80 PLUS Gold Certified
Up to 91% efficiency power conversion to cut down your electricity bill
Durable HDB Fan
Hydro Dynamic Bearing Fan: Extended durability and lower noise levels
100% Refined Japanese Capacitors
Outstanding components extend the longevity of PSU.
Fully Modular Power Supply Unit
Connect only the cables you need for less clutter and better airflow
Zero Noise Mode and Fan Curve Tuning
Advanced technology for noise minimization
Compatible with The Lastest PC Technology
Created for user with current and next-generation multi-core CPU platforms
Flawless Operation at 40°C
Powerful performance at 40°C ambient temperature
Specifications
| Model Name | AC Input | DC output | |||||
| +3.3V | +5V | +12V | -12V | +5Vsb | Total | ||
| GEX X2 850 |
AC100-240V~ 50-60Hz 12-6A |
20A | 20A | 70.8A | 0.3A | 3A | 850W |
|---|---|---|---|---|---|---|---|
| 100W | 850W | 3.6W | 15W | ||||
| GEX X2 1000 |
AC100-240V~ 50-60Hz 13-7A |
20A | 20A | 83.3A | 0.3A | 3A | 1000W |
| 100W | 1000W | 3.6W | 15W | ||||
| Connector | Main | CPU | Peripherals | S-ATA | 12V-2X6 | PCI-E | |
| Pins | 24(20+4) | 8(4+4) | 8 | 4 | 5 | 12+4 | 8(6+2) |
| GEX X2 850 | 1 | 1 | 1 | 2 | 10 | 1 | 3 |
|---|---|---|---|---|---|---|---|
| GEX X2 1000 | 1 | 1 | 1 | 2 | 10 | 1 | 3 |
Awards & Reviews
GEX X2 850
Avg. Efficiency: 89%
Avg. Noise Output: 19dB(A)
Read More
Avg. Efficiency: 89%
Avg. Noise Output: 19dB(A)
GEX X2 1000
Avg. Efficiency: 89%
Avg. Noise Output: 26dB(A)
Read More
Avg. Efficiency: 89%
Avg. Noise Output: 26dB(A)
Read More
COUGAR GEX is a high-quality 80Plus Gold certified PSU with flawless power delivery at 40°C environments. Efficient, silent and durable, GEX is the best answer for those looking for the best value in PSUs.
Previous
Next
Downloads
Protection
UVP (Under Voltage Protection)
If the voltages fall below a certain tolerance value on the single lines, the PSU automatically switches off.
OCP (Overcurrent Protection)
If the current on a single line is higher than indicated, the PSU automatically switches off.
SCP (Short-Circuit Protection)
In the case of a short-circuit, this feature prevents damage to the core components of the PSU and its System components.
OVP (Over Voltage Protection)
If the voltages increase above a certain tolerance value on the single lines, the PSU automatically switches off.
OTP (Over Temperature Protection)
If the temperature gets too high, the PSU automatically switches off.
