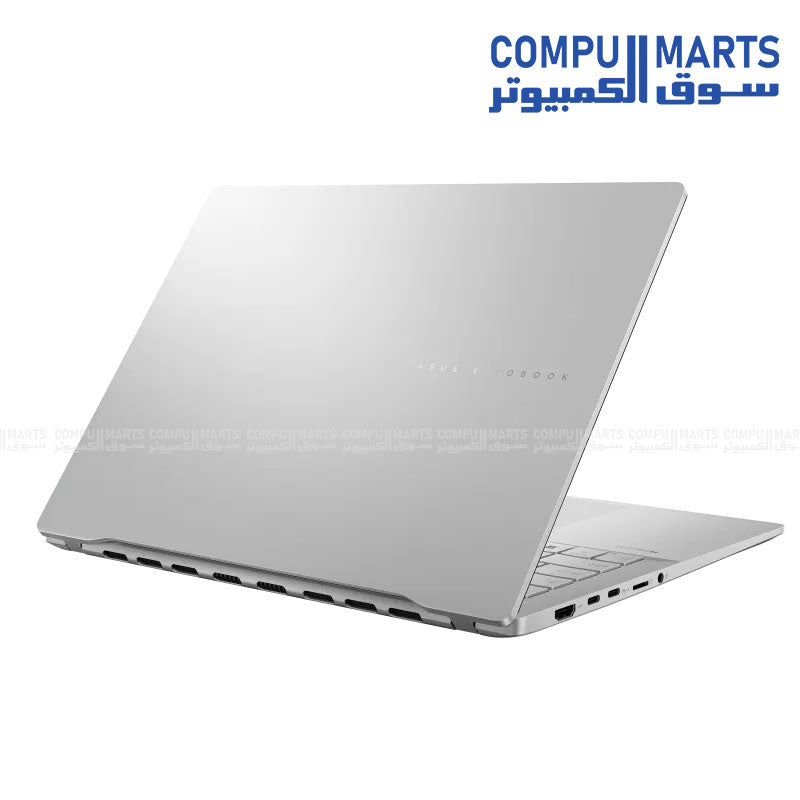

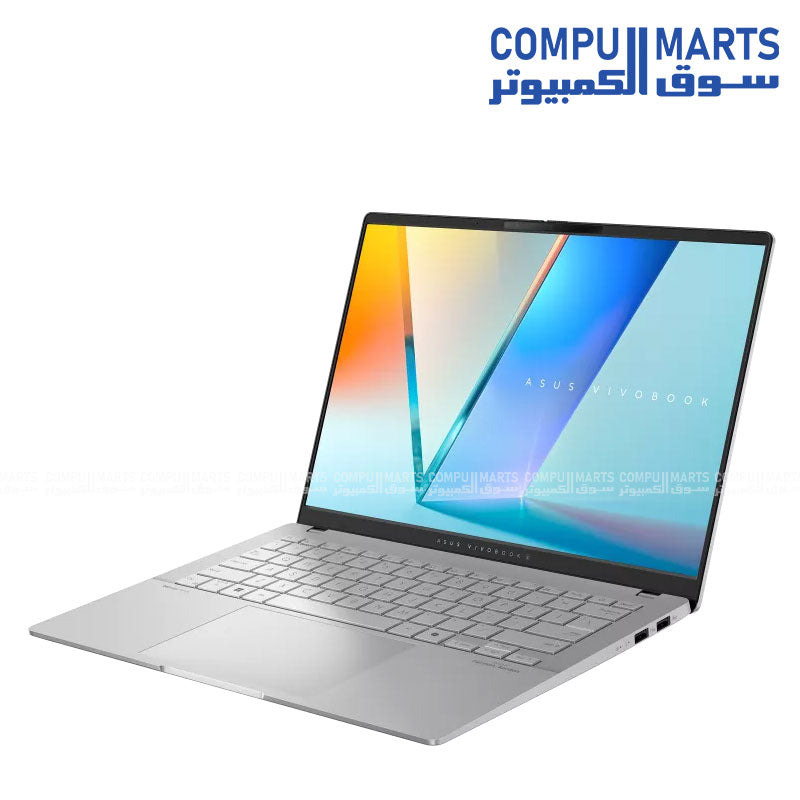

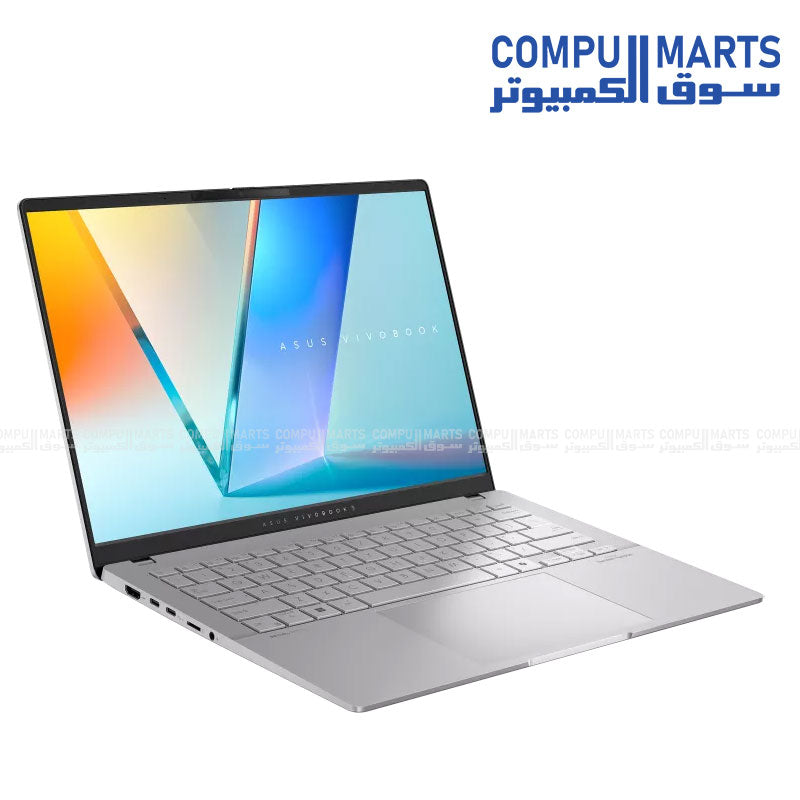

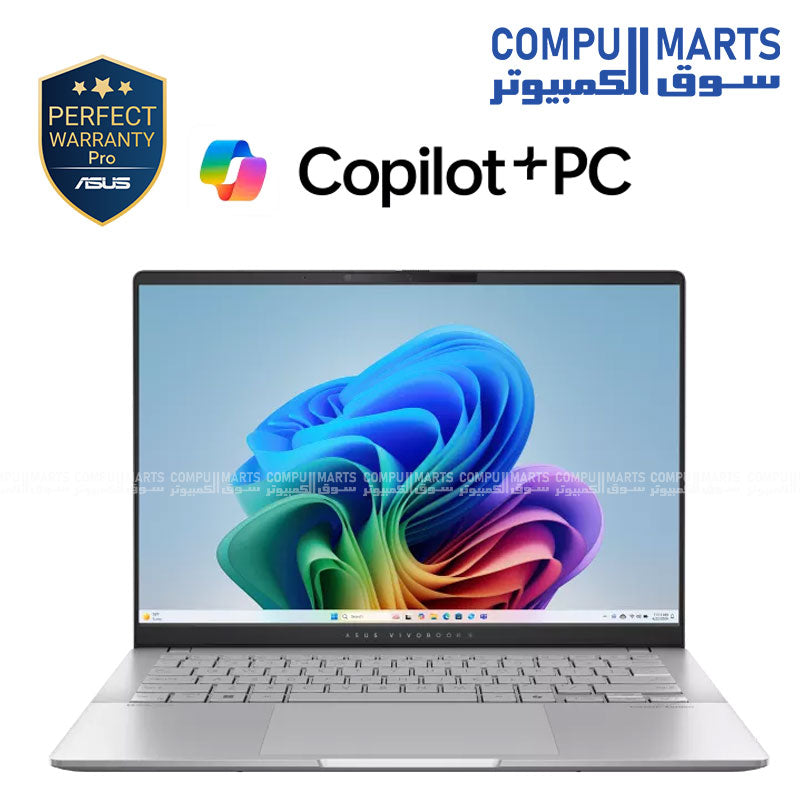

ASUS Vivobook S14 M5406WA-PP009W Ryzen AI 9 365 24GB RAM 1TB SSD 14" 3K OLED 120Hz Cool Silver

Part No

90NB14P1-M00BC0

Sales Model Name

M5406WA-PP009W

EAN Code

4711387977170

UPC Code

197105977174

WEEE

0.9

BASE UNIT

VSNB14P1-BU1000

Marketing Name

ASUS Vivobook S14

Operating System

Windows 11 Home - ASUS recommends Windows 11 Pro for business

Office

1-month trial for new Microsoft 365 customers. Credit card required.

LCD cover-material

Aluminum

LCD cover-color

Cool Silver

Top case-material

Aluminum

Top case-color

Cool Silver

Keyboard color

Silver

Bottom case-material

Aluminum

Bottom case-color

Cool Silver

Military grade

US MIL-STD 810H military-grade standard

Touch Panel

Non-touch screen

Panel Size

14.0-inch

Resolution

3K (2880 x 1800) OLED 16:10 aspect ratio

Refresh rate

120Hz refresh rate

Brightness

400nits

Peak Brightness

600nits HDR peak brightness

Color gamut

100% DCI-P3 color gamut

Contrast ratio

1,000,000:1

VESA CERTIFIED Display HDR

VESA CERTIFIED Display HDR True Black 600

Color depth

1.07 billion colors

Pantone

PANTONE Validated

Glare

Glossy display

Low blue light

65% less harmful blue light

Screen-to-body ratio

87%

Processor

AMD Ryzen™ AI 9 365 Processor 2.0GHz (34MB Cache, up to 5.0GHz, 10 cores, 20 Threads); AMD XDNA™ NPU up to 50TOPS

Chipset

N/A

Discrete/Share

Share

Intergrated GPU

AMD Radeon™ 880M Graphics

Neural Processor

AMD XDNA™ NPU up to 50TOPS

Expansion Slot(includes used)

1x M.2 2280 PCIe 4.0x4

On board memory

24GB LPDDR5X on board

Total System Memory

LPDDR5X 24GB

How to upgrade memory

Not Available

Storage

1TB M.2 NVMe™ PCIe® 4.0 SSD

Front-facing camera

FHD camera with IR function to support Windows Hello ; With privacy shutter

on board Wireless

Wi-Fi 6E(802.11ax) (Dual band) 2*2 + Bluetooth® 5.3 Wireless Card (*Bluetooth® version may change with OS version different.)

Keyboard type

Backlit Chiclet Keyboard 1-Zone RGB without Num-key

With Copilot key

*Copilot in Windows (in preview) is rolling out gradually within the latest update to Windows 11 in select global markets. Timing of availability varies by device and market. Learn more: https://www.microsoft.com/en-us/windows/copilot-ai-features?r=1#faq

Touchpad

Precision touchpad

FingerPrint

N/A

I/O ports

1x USB 3.2 Gen 1 Type-C with support for display / power delivery (data speed up to 5Gbps)

1x USB 4.0 Gen 3 Type-C with support for display / power delivery (data speed up to 40Gbps)

2x USB 3.2 Gen 1 Type-A (data speed up to 5Gbps)

1x HDMI 2.1 TMDS

1x 3.5mm Combo Audio Jack

Micro SD card reader

Audio

Smart Amp Technology

Built-in speaker

Built-in array microphone

harman/kardon (Mainstream)

Voice control

with Cortana support

Power

TYPE-C, 90W AC Adapter, Output 20V DC, 4.5A, 90W, Input: 100~240V AC 50/60Hz universal

Battery

75WHrs, 4S1P, 4-cell Li-ion

Replaceable Battery

No

Dimension (W x H x D)

31.05 x 22.19 x 1.39 ~ 1.59 cm (12.22" x 8.74" x 0.55" ~ 0.63")

Weight (with Battery)

1.30 kg (2.87 lbs)

Weight (without Battery)

1.10 kg (2.43 lbs)

Antivirus

McAfee® 30 days free trial

Security

IR webcam with Windows Hello support

McAfee®

Microsoft Pluton security processor

Trusted Platform Module (Firmware TPM)

MyASUS feature

System diagnosis

Battery health charging

Fan Profile

Splendid

Function key lock

WiFi SmartConnect

TaskFirst

Live update

ASUS OLED Care

AI Noise Canceling

Built-in Apps

MyASUS

ScreenXpert

GlideX

Adobe Creative Cloud Hard Bundle

One-Month Membership of Adobe Creative Cloud All Apps, Individual.

The redemption duration from September 15, 2021 to August 31, 2025.

Ecolabels & Compliances

EPEAT Silver

Energy star 8.0

RoHS

REACH

Reparability Index (for France)

8.4
