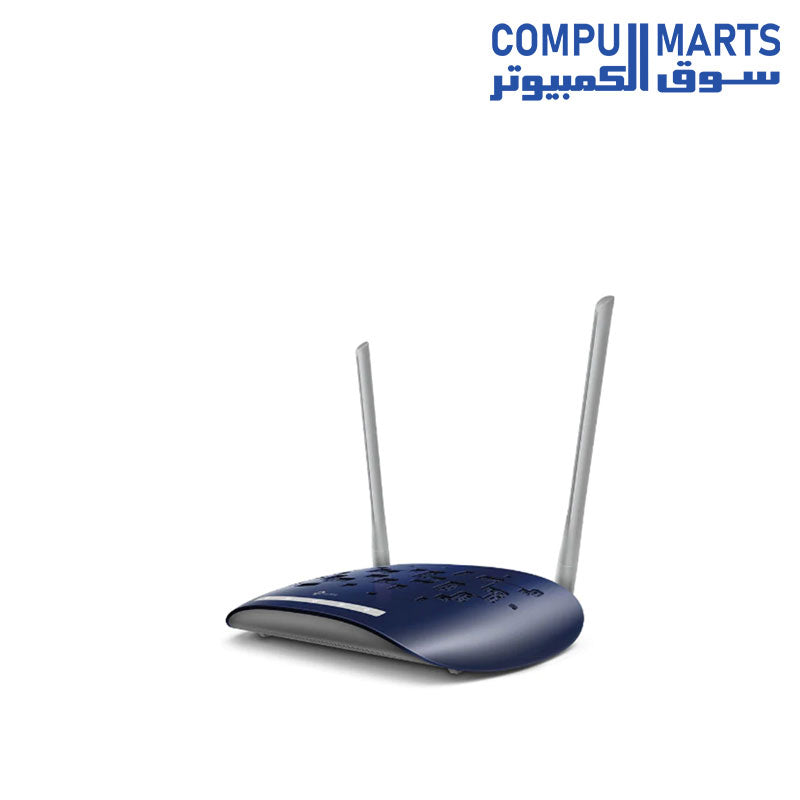

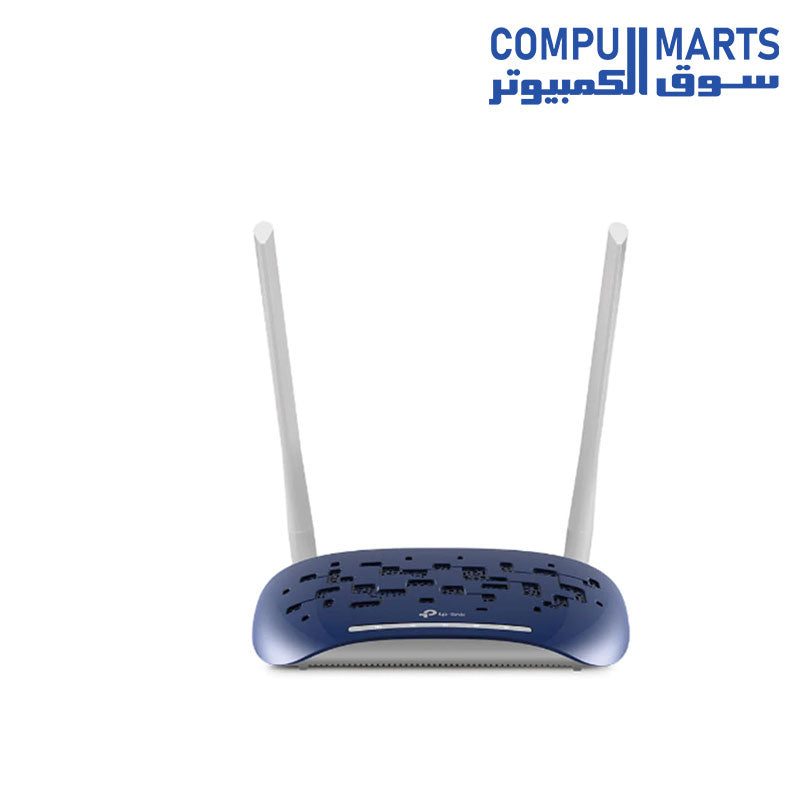

Modem Router TP-Link VDSL TD-W9960

Modem Router TP-Link VDSL  TD-W9960

HARDWARE FEATURES

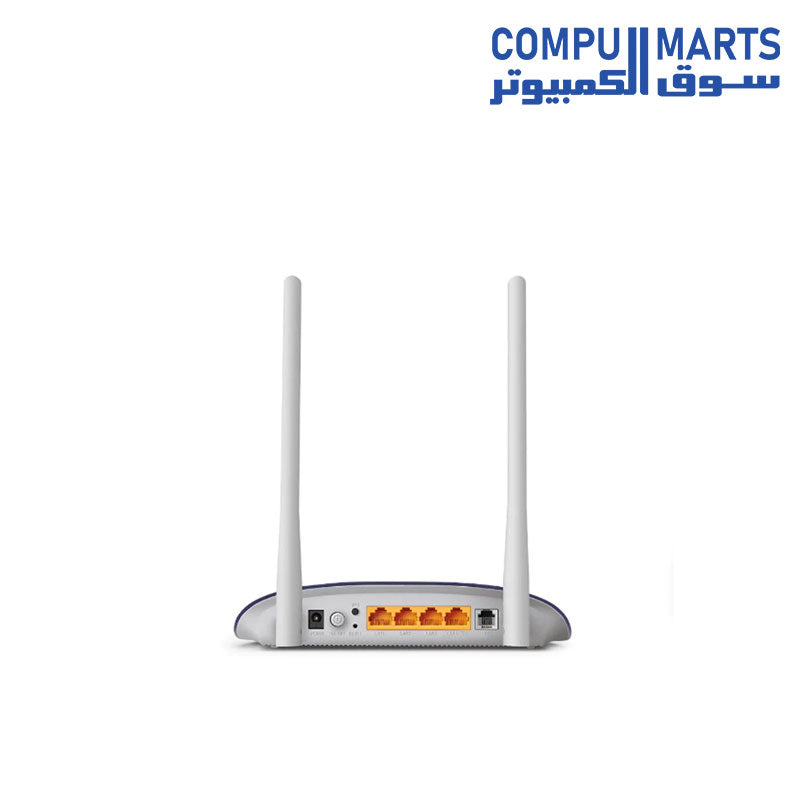

Interface 3 10/100Mbps RJ45 LAN Ports

1 10/100Mbps RJ45 LAN/WAN Port

1 RJ11 Port

Button WPS Button

RESET Button

Power ON/OFF Button

External Power Supply 9VDC/0.6A

IEEE Standards IEEE 802.3, 802.3u

VDSL2 Standards ITU-T G.993.2

ITU-T G.993.5 (G.vector)

ITU-T G.998.4 (G.INP)

Dimensions ( W x D x H ) 181.6 x 129.7 x 36.2mm

Antenna Type Omni directional, Fixed

Antenna Gain 2 x 5dBi

WIRELESS FEATURES

Wireless Standards IEEE 802.11b, 802.11g, 802.11n

Frequency 2.400-2.4835GHz

Transmit Power <20dBm(EIRP)

Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2
encryptions, Wireless MAC Filtering

SOFTWARE FEATURES

Quality of Service WMM, Bandwidth Control (IP QoS)

Security NAT Firewall, SPI Firewall, DoS Protection, IP & MAC Binding, Service Filtering, Access Control, Parental Controls

Operating Modes VDSL/ADSL Modem Router, Wireless Router,

Management Web Based Configuration (HTTP), Remote management,

CWMP(TR-069), Web Based Firmware Upgrade, Diagnostic Tools

VPN Pass-Through IPSec VPN

Protocols Supports IPv4 and IPv6

ATM/PPP Protocols PPPoE (RFC2516)

PPPoA (RFC 2364)

MERIPoE (RFC 1483 Routed)

IPoA (RFC1577/2225)

Bridge (RFC1483 Bridge)

Advanced Features Parental Controls, Network Address

Translation(NAT), Port Mapping(Grouping), Static Routing, RIP v1/v2(optional), DNS Relay, DDNS, IGMP V1/V2/V3

APP Tether App

NAT Virtual Server, Port Triggering, DMZ, ALG, UPnP

OTHERS

Certification CE, RoHS

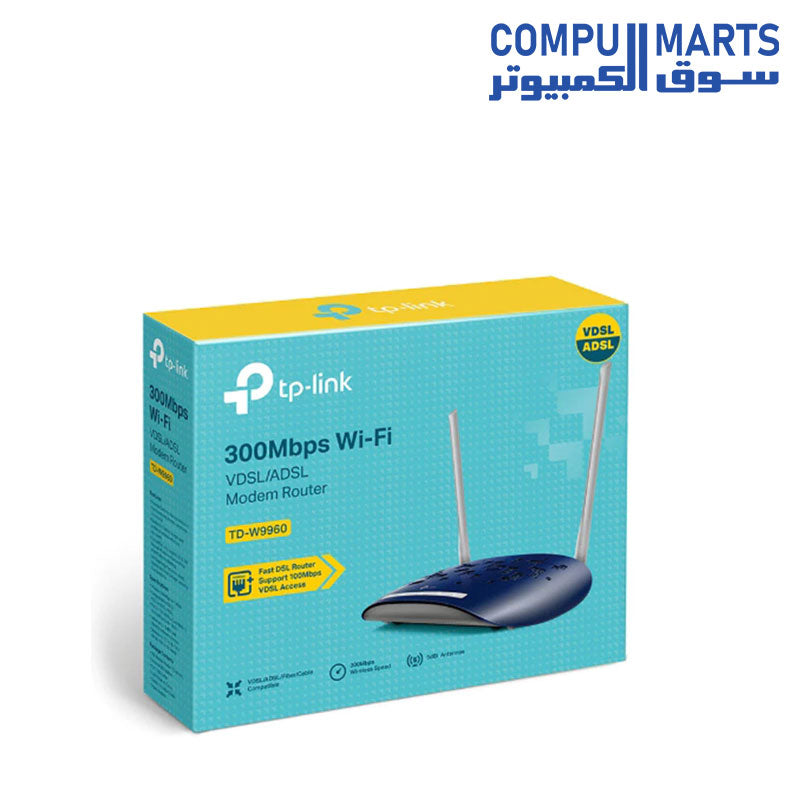

Package Contents TD-W9960

External DSL Splitter

RJ-11 DSL Cable

RJ-45 Ethernet Cable

Quick Installation Guide

Power Adapter

System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10,

Mac OS, NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser

Subscription with an internet service provider (for internet access)

Environment Operating Temperature: 0℃~40℃(32℉~104℉)

Storage Temperature: -40℃~70℃(-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
