GIGABYTE

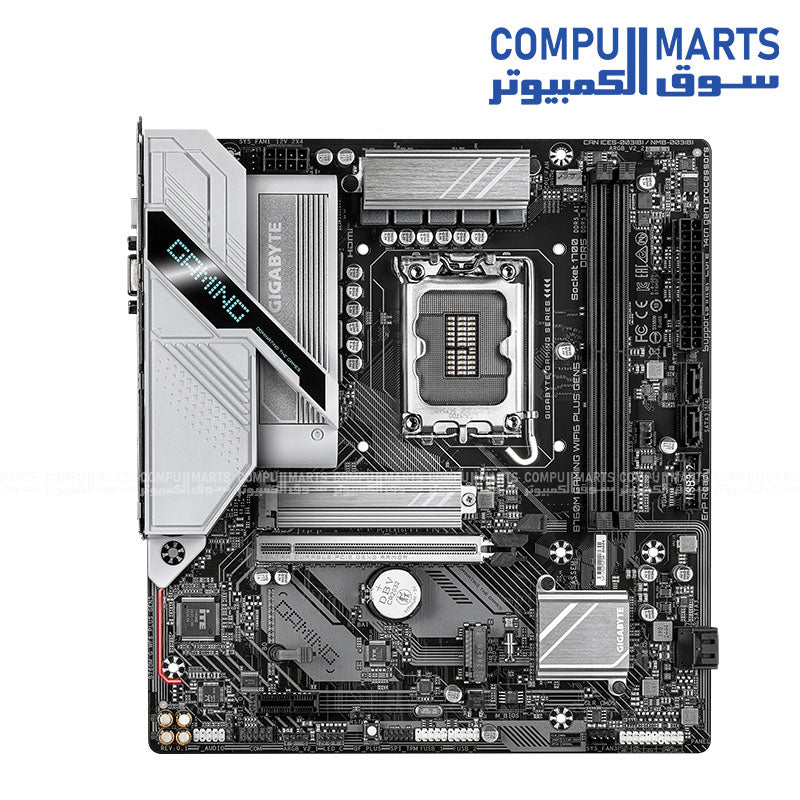

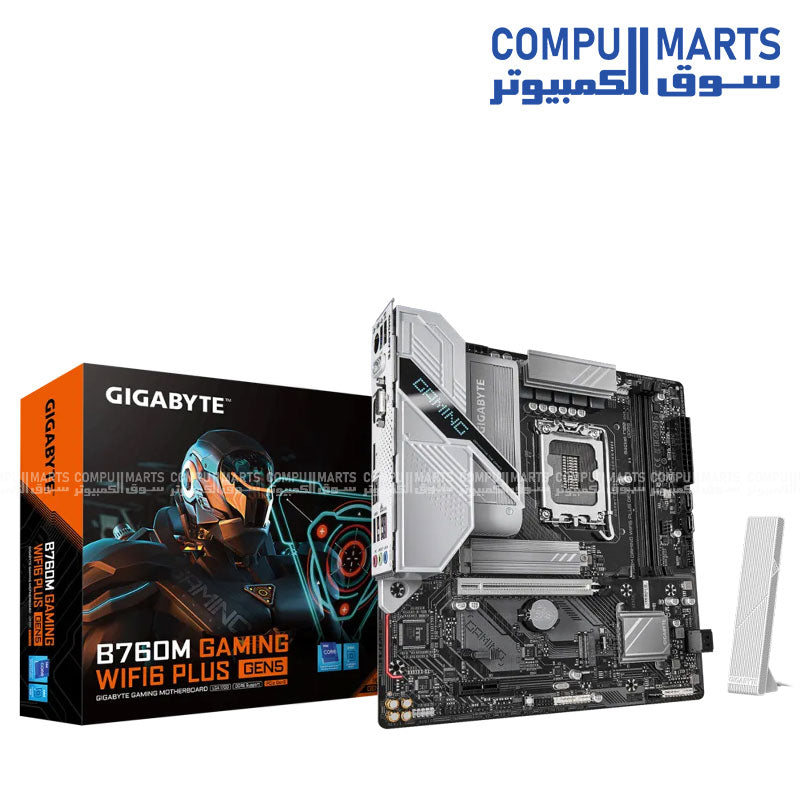

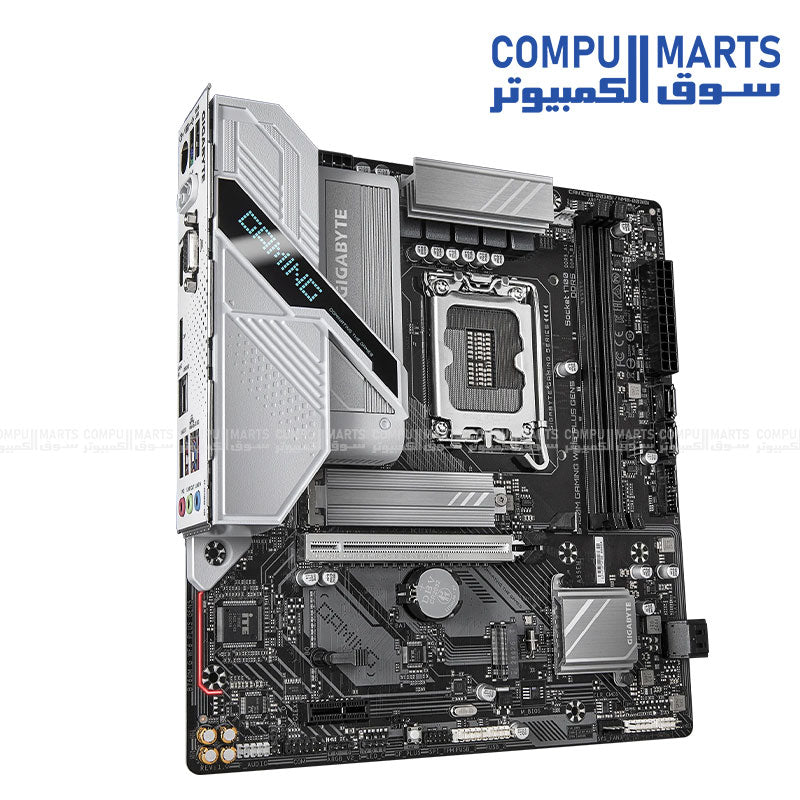

Gigabyte B760M Gaming WiFi6 Plus Gen5 Motherboard – Intel LGA1700, DDR5, PCIe 5.0, 2.5GbE LAN

6,800.00 EGP
Shipping calculated at checkout.

Delivery and Shipping

Fast shipping to your doorstep! Get your order delivered within 1-5 days based on location.

Subscribe to our newsletter

Sign up for exclusive offers.

Description

Gigabyte B760M Gaming WiFi6 Plus Gen5 Motherboard – Intel LGA1700, DDR5, PCIe 5.0, 2.5GbE LAN

  • CPU

    LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
    (Go to GIGABYTE's website for the latest CPU support list.)
    L3 cache varies with CPU

  • Chipset

    Intel® B760 Express Chipset

  • Memory

    14th and 13th Generation Intel® Core™ i9/i7 Processors:
    - Support for DDR5 5600/5200/4800/4400 MT/s memory modules
    13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium®Gold and Celeron® Processors:
    - Support for DDR5 4800/4400 MT/s memory modules
    2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

  • Onboard Graphics

    Integrated Graphics Processor-Intel® HD Graphics support:
    - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support for native HDMI 2.1 TMDS compatible ports.


    - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

    * Support for DisplayPort 1.2 version and HDCP 2.3


    (Graphics specifications may vary depending on CPU support.)
    Support for up to triple-display at the same time

  • Audio

    Realtek® Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel

    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.


    Support for S/PDIF Out

  • LAN

    Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

  • Wireless Communication module

    Realtek® Wi-Fi 6 RTL8851BE
    - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
    - BLUETOOTH 5.3
    - Support for 11ax 80MHz wireless standard
    (Actual data rate may vary depending on environment and equipment.)

  • Expansion Slots

    CPU:
    - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16

    * The PCIEX16 slot can only support a graphics card or an NVMe SSD.


    Chipset:
    - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

  • Storage Interface

    CPU:
    - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    Chipset:
    - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
    - 4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

  • USB

    Chipset:
    - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
    - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
    - 2 x USB 2.0/1.1 ports on the back panel
    Chipset+USB 2.0 Hub:
    - 4 x USB 2.0/1.1 ports available through the internal USB headers

  • Internal I/O Connectors

    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    3 x system fan headers
    2 x addressable RGB Gen2 LED strip headers
    1 x RGB LED strip header
    2 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x S/PDIF Out header
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
    1 x serial port header
    1 x Q-Flash Plus button
    1 x reset jumper
    1 x Clear CMOS jumper

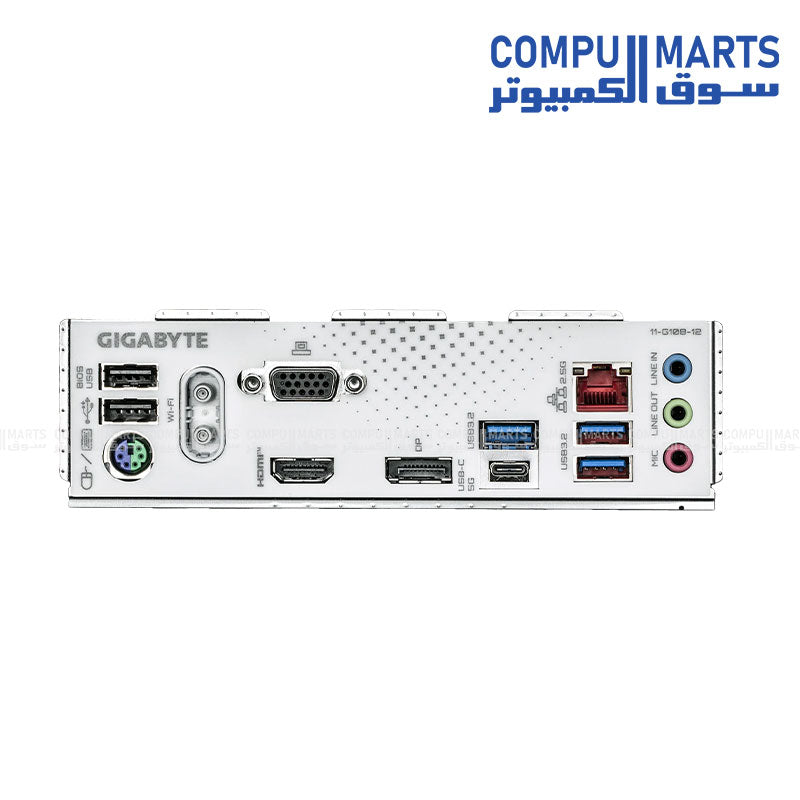

  • Back Panel Connectors

    2 x USB 2.0/1.1 ports
    1 x PS/2 keyboard/mouse port
    2 x antenna connectors (1T1R)
    1 x D-Sub port (Note)
    1 x HDMI port (Note)
    1 x DisplayPort (Note)
    3 x USB 3.2 Gen 1 ports
    1 x USB Type-C® port, with USB 3.2 Gen 1 support
    1 x RJ-45 port
    3 x audio jacks

    (Note) Actual support may vary by CPU.

  • I/O Controller

    iTE® I/O Controller Chip

  • H/W Monitoring

    Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Fan fail warning
    Fan speed control

    * Whether the fan speed control function is supported will depend on the fan you install.

  • BIOS

    1 x 128 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

  • Unique Features

    Support for GIGABYTE Control Center (GCC)

    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


    Support for Q-Flash
    Support for Q-Flash Plus
    Support for Smart Backup

  • Bundled Software

    Norton® Internet Security (OEM version)

  • Operating System

    Support for Windows 11 64-bit
    Support for Windows 10 64-bit

  • Form Factor

    Micro ATX Form Factor; 24.4cm x 22.5cm


* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
