MSI GeForce RTX 5060 Ti Ventus 2X Plus 8GB GDDR6 Graphics Card

MSI GeForce RTX 5060 Ti Ventus 2X Plus 8GB GDDR6 Graphics Card

SPECIFICATIONS
Marketing Name GeForce RTX 5060 Ti 8G VENTUS 2X PLUS
Model Name G506T-8V2P
Graphics Processing Unit NVIDIA
 GeForce RTX 5060 Ti
Interface PCI Express Gen 5 x16 (uses x8)
Core Clocks
Extreme Performance: 2587 MHz (MSI
Center)
Boost: 2572 MHz
CUDA
 CORES 4608 Units
Memory Speed 28 Gbps
Memory 8GB GDDR7
Memory Bus 128-bit
Output
DisplayPort x 3 (v2.1b)
HDMI x 1 (As specified in HDMI 2.1b: up
to 4K 480Hz or 8K 120Hz with DSC, Gaming
VRR, HDR)
HDCP Support Y
Power consumption 180 W
Power connectors 8-pin x1
Recommended PSU 600 W
Card Dimension (mm) 227 x 126 x 41 mm
Weight (Card / Package) 573 g / 834 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC®
 technology Y
Digital Maximum Resolution 7680 x 4320

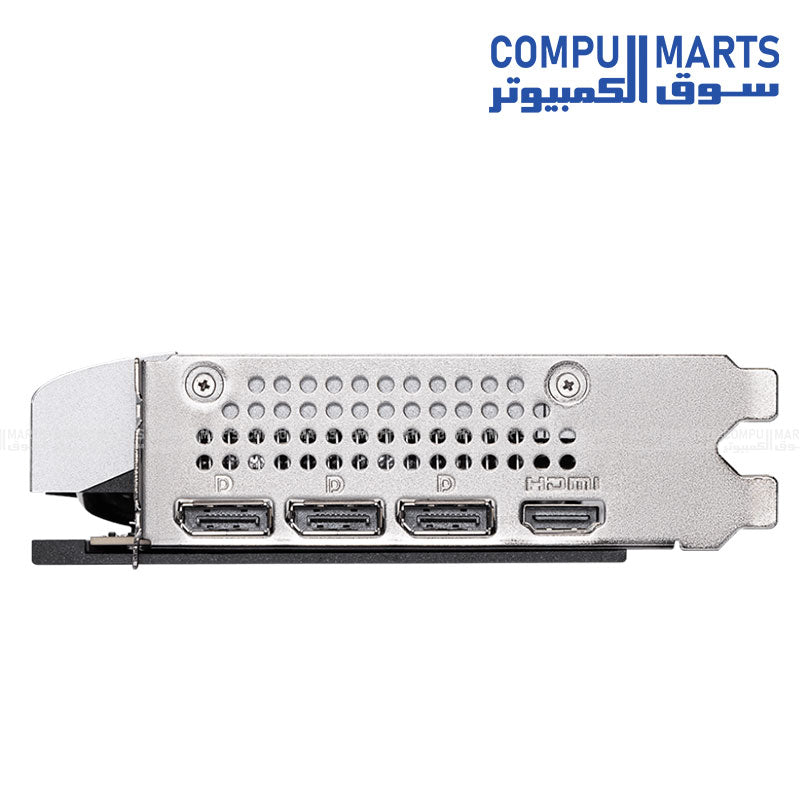

CONNECTIONS
1. DisplayPort
2. HDMI™
FEATURES

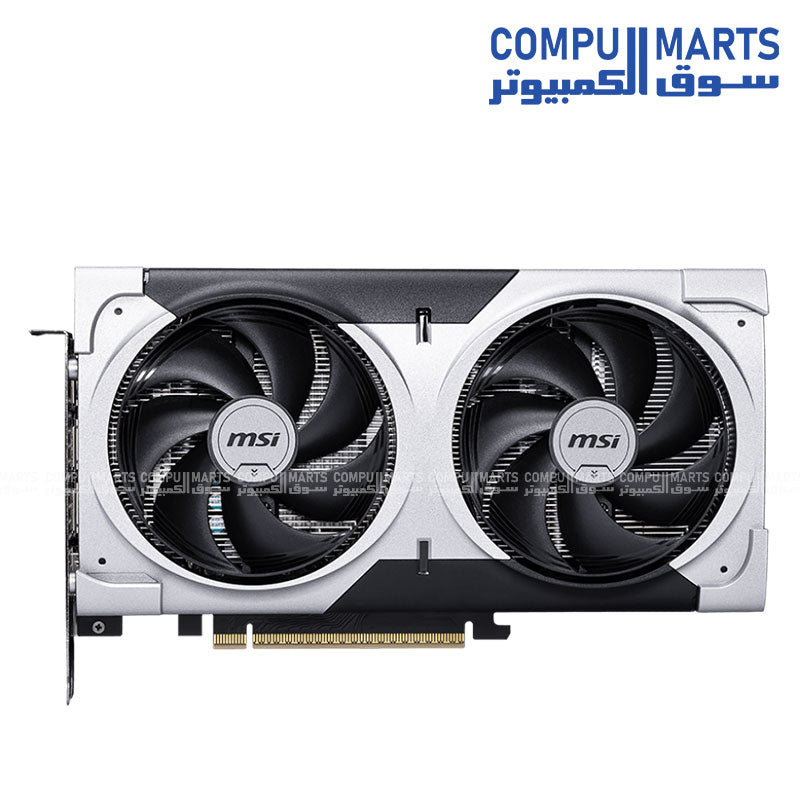

Dual Fan
Two fans and a huge heatsink ensure a cool and quiet experience
for you.
STORMFORCE FAN
Seven fan blades, claw texturing, and a circular arc are designed
for optimal airflow with minimal noise.

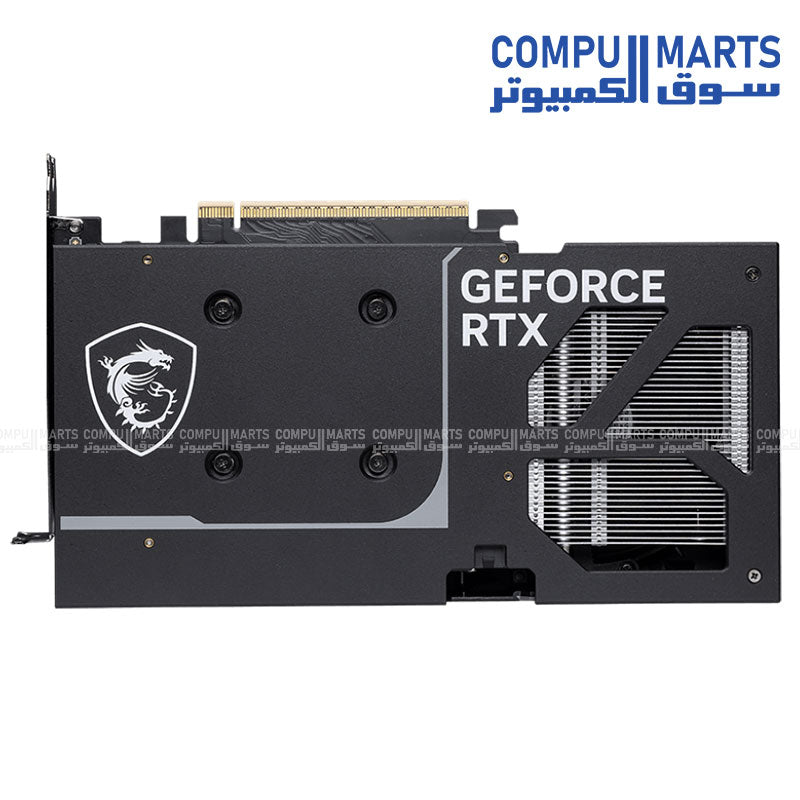

Reinforcing Backplate
The reinforcing backplate features a flow-through design that
provides additional ventilation.
Zero Frozr
The fans completely stop when temperatures are relatively low,
eliminating all noise.
DrMOS
DrMOS power stage solutions provide great efficiency with low
power loss and enhanced voltage controls.
Fuse
Additional fuses built into the custom PCB provide additional
safeguards against electrical damage.
MSI Center
The exclusive MSI Center software lets you monitor, tweak and
optimize MSI products in real-time.
Afterburner
Take full control with the most recognized and widely used
graphics card overclocking software in the world
