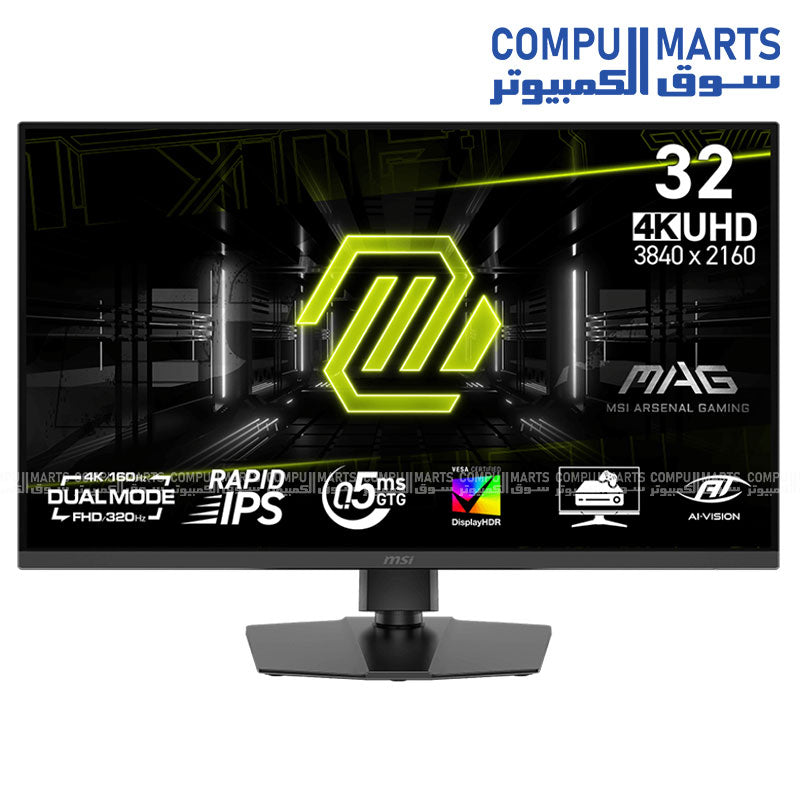

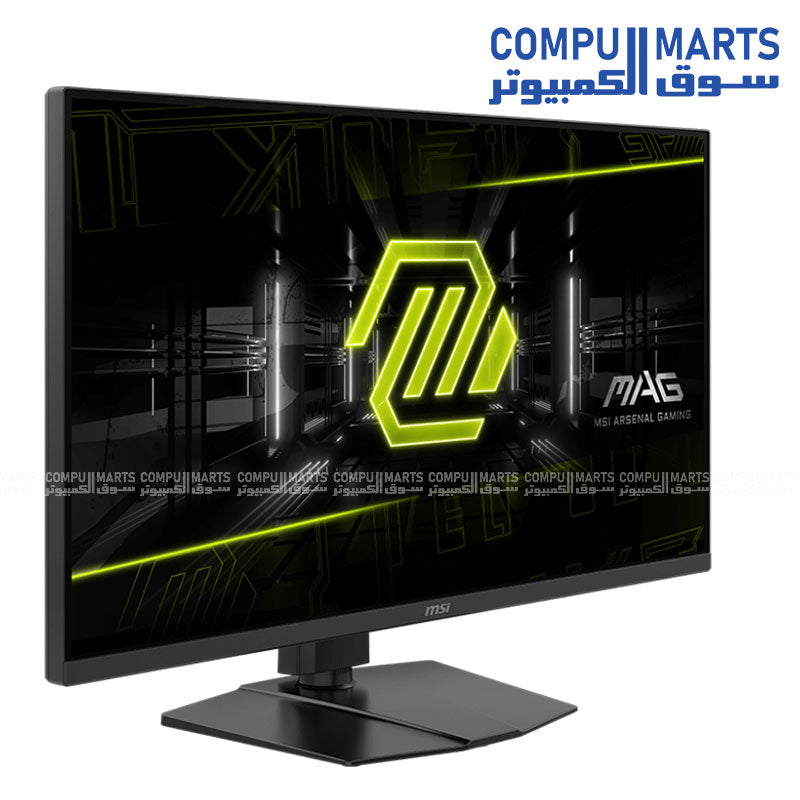

MSI MAG 322URDF E16 32" UHD Gaming Monitor – Dual Mode 4K/1080p, 320Hz, HDR400, Adaptive-Sync

MSI MAG 322URDF E16 32" UHD Gaming Monitor – Dual Mode 4K/1080p, 320Hz, HDR400, Adaptive-Sync

SPECIFICATIONS
Panel Size 31.5"
Active Display Area (mm) 695.04 (H) x 390.96 (V)
Curvature Flat
Panel Type Rapid IPS
Panel Resolution Normal: 3840 x 2160 (UHD)
Dual Mode: 1920 x 1080 (FHD)
Pixel Pitch (H x V) 0.181 (H) x 0.181 (V)
Aspect Ratio 16:9
Brightness (nits) SDR: 400 cd/m² (Typ.)
HDR: 450 cd/m² (Peak)
Contrast Ratio 1000:1 (Typ.)
DCR 100000000:1
Signal Frequency
Normal: 146.3~353.1KHz(H) /
48~160Hz(V)
Dual Mode: 352.2~356.1KHz(H) /
48~320Hz(V)
ACTIVATED RANGE Normal: 48~160Hz
Dual Mode: 48~320Hz
Refresh Rate Normal: 160Hz
Dual Mode: 320Hz
Response time 0.5ms (GtG, Min.)
DYNAMIC REFRESH RATE
TECHNOLOGY Adaptive-Sync
HDR Support VESA DisplayHDR 400
Video ports 1 x DisplayPort 1.4a (HBR3)
2 x HDMI™ 2.1 (4K@160Hz)
USB ports 2 x USB 2.0 Type-A
1 x USB 2.0 Type-B
Audio ports 1x Headphone-out
Viewing Angle 178° (H) / 178° (V)
Adobe RGB / DCI-P3 / sRGB 93% / 99% / 131% (CIE1976 Standard)
Surface Treatment Anti-glare
Display Colors 1.07B, 10 bits (8 bits + FRC)
Console Mode
Supported Resolution & Refresh Rate:
1080p: 60Hz and 120Hz
1440p: 60Hz and 120Hz
2160p: 60Hz and 120Hz
HDMI™ CEC: Supported
VRR: PS5 and Xbox Supported
Power Type Internal Power Board
FEATURES
Dual Mode
Easily switch between different resolutions and refresh rates,
allowing user to adjust settings based on the game.
Rapid IPS
Make sure the intensity and purity of colors when gaming.
0.5ms (GtG, Min.) Response Time
Eliminate screen tearing and choppy frame rates with 0.5ms (GtG,
Min.) Response Time.
VESA DisplayHDR 400
VESA certified eye-catching details through precise contrast and
shadow adjustment.
AI Vision
The new AI Vision technology can not only reveal details in dark
areas but also enhance overall brightness and saturate colors.

Power Input 100~240V, 50/60Hz

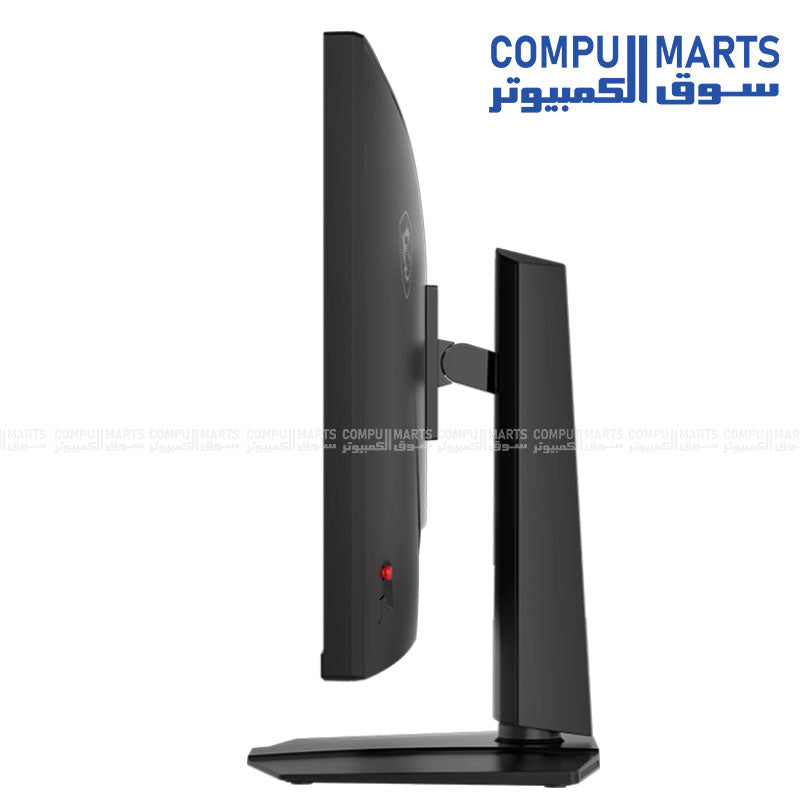

Adjustment (Tilt) -5° ~ 15°
Adjustment (Swivel) -30° ~ 30°
Adjustment (Pivot) -10° ~ 10°
Adjustment (Height) 0~110 mm
Kensington Lock Yes
VESA Mounting 100 x 100 mm
Dimension with Stand (W x D x
H)
714 x 227.8 x 564.5mm
(28.1 x 8.9 x 22.2 inch)
Dimension without Stand (W x
D x H)
714 x 72.9 x 421.3mm
(28.1 x 2.8 x 16.5 inch)
Weight (NW / GW) 9 kg (19.8lbs) / 13 kg (28.6lbs)
Carton Dimension (W X D X H) 985 x 183 x 513mm
(38.7 x 7.2 x 20.1 inch)
Accessories
1x DisplayPort Cable (1.4a), 1x USB TypeB to A Cable, 1x Power Cord (C13), 1x
Quick Guide, 4x Stand Screw
Note
HDMI™: Normal (UHD) : 3840 x 2160 (Up
to 160Hz)
Dual (FHD) : 1920 x 1080 (Up to 320Hz)
DisplayPort: Normal (UHD) : 3840 x 2160
(Up to 160Hz)
Dual (FHD) : 1920 x 1080 (Up to 320Hz)
Support: HDMI™ CEC, PIP/PBP; Non
Support: KVM

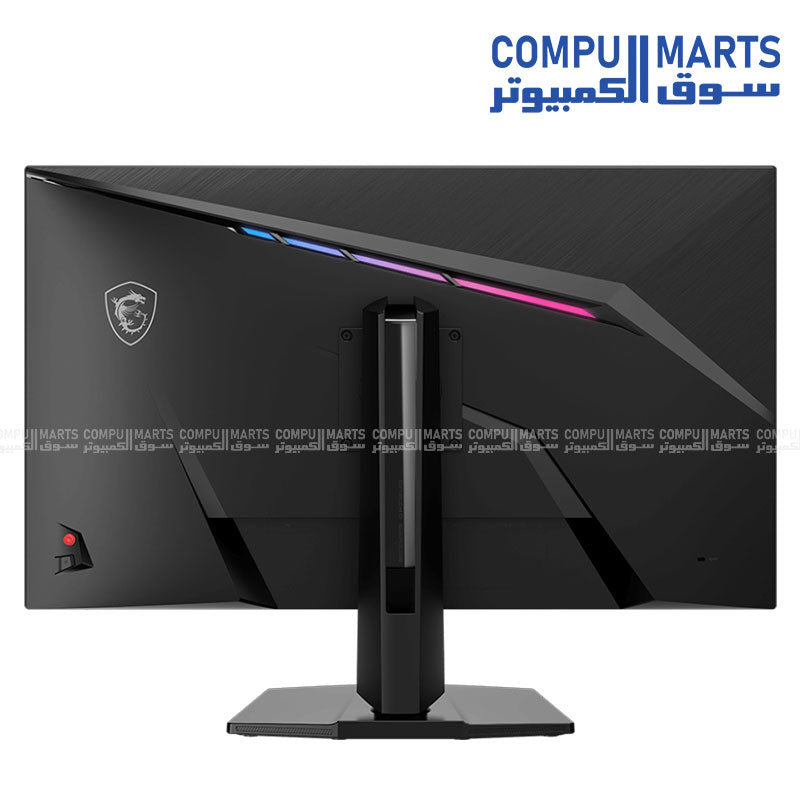

CONNECTIONS
1. 5-way Joystick Navigator
2. AC-in
3. 2 x HDMI™ 2.1 (UHD@160Hz)
4. DisplayPort 1.4a (HBR3)
5. USB 2.0 Type-B
6. 2 x USB 2.0 Type-A
7. Headphone out
8. Kensington Lock
