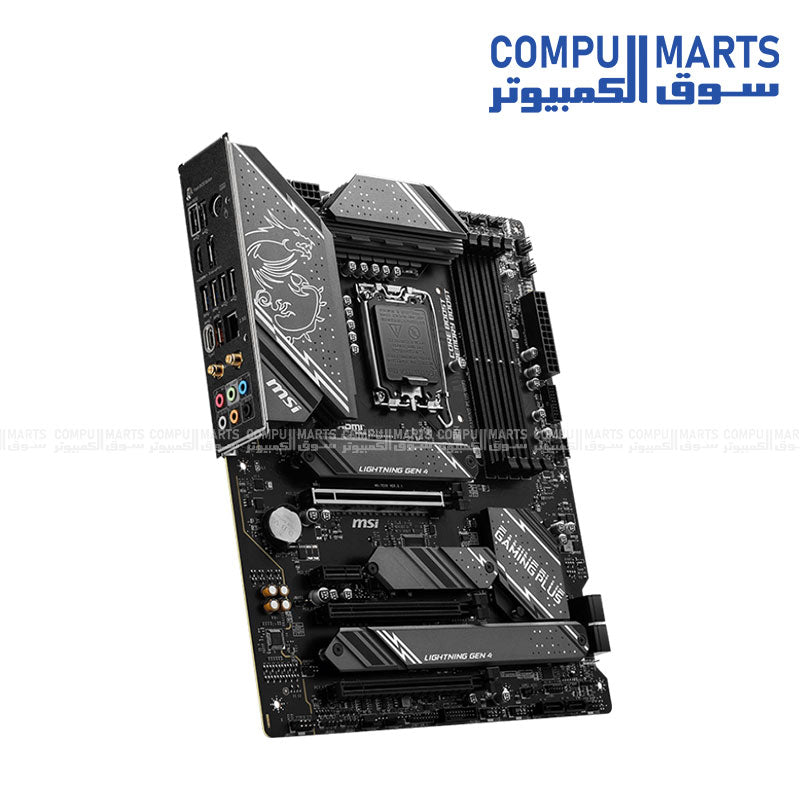

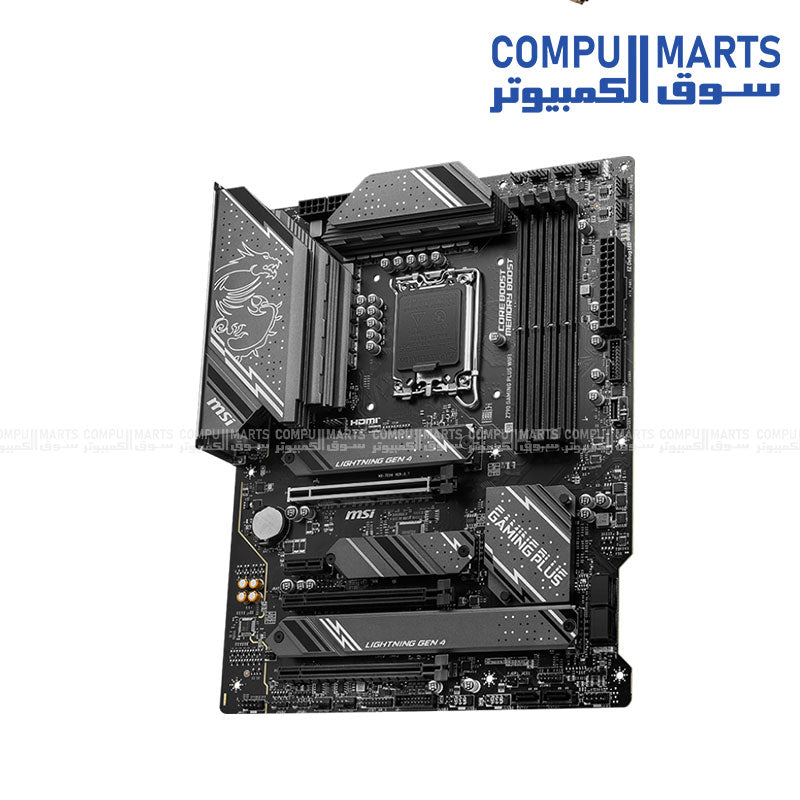

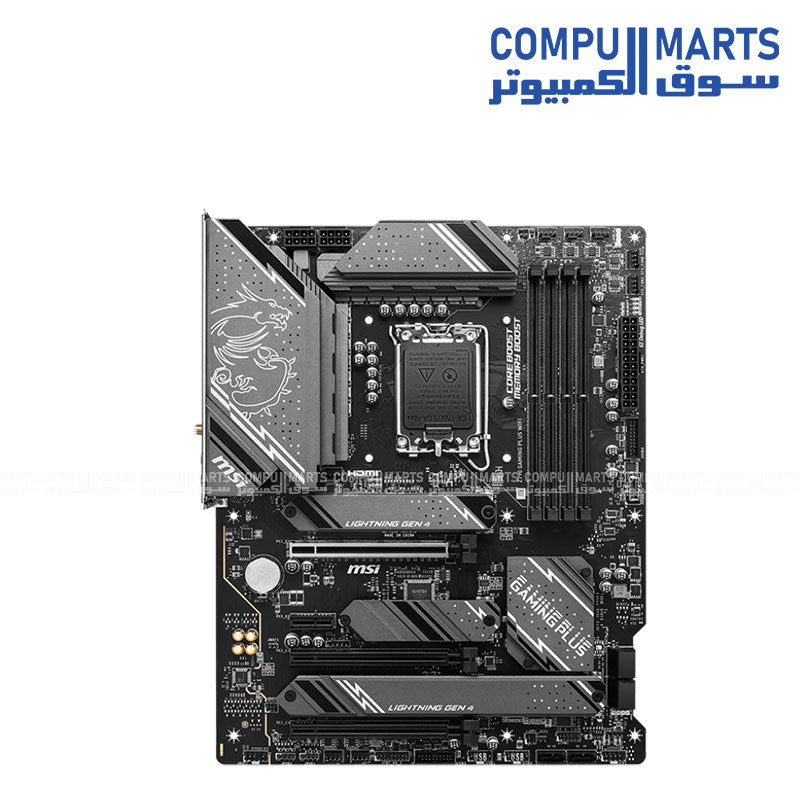

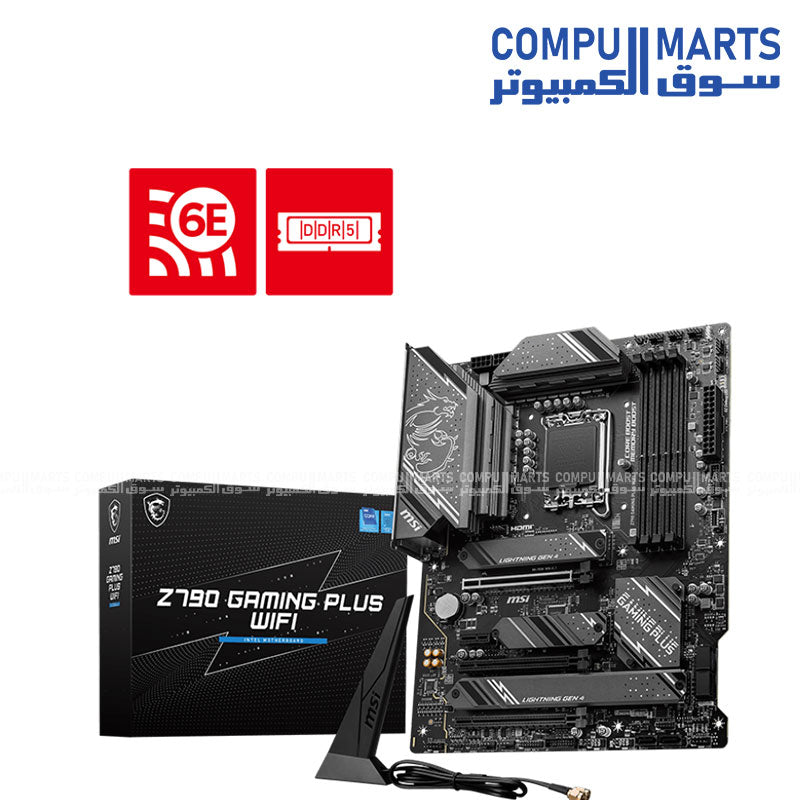

MSI MPG Z790 GAMING PLUS WIFI – Intel LGA 1700 ATX Motherboard | DDR5 | Wi-Fi 6E | PCIe 5.0

MSI MPG Z790 GAMING PLUS WIFI – Intel LGA 1700 ATX Motherboard | DDR5 | Wi-Fi 6E

 Model Name
 CPU Support
 Z790 GAMING PLUS WIFI
 Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel
 Pentium Gold and Celeron Processors
 CPU Socket
 Chipset
 Expansion Slots
 LGA 1700
 Intel Z790 Chipset
 1x PCIe 5.0 x16 slot, 1x PCIe 4.0 x16 slot, 2x PCIe 3.0 x1
 slots
 Display Interface Support 4K@60Hz as specified in HDMI 2.1, DisplayPort
 1.4 – Requires Processor Graphics
 Memory Support 4 DIMMs, Dual Channel DDR5-7200+MHz (OC)
 Storage
 4x M.2 Gen 4 x4 64Gbps slots
 6x SATA 6Gbps ports

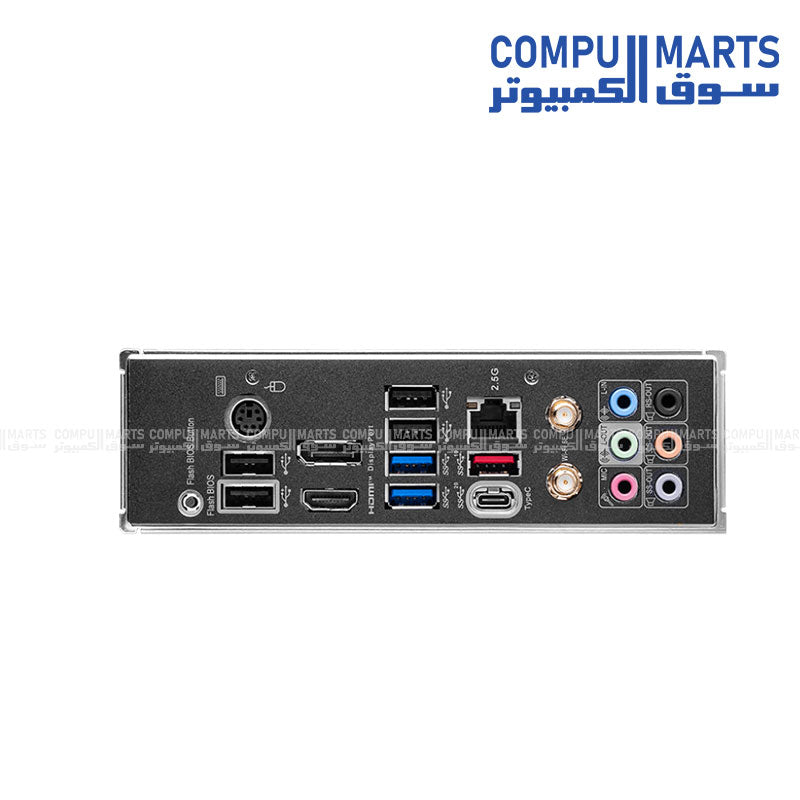

 USB ports
 1x USB 3.2 Gen 2x2 20Gbps (Type-C),
 2x USB 3.2 Gen 2 10Gbps (Type-C + Type-A),
 6x USB 3.2 Gen 1 5Gbps (6 Type-A),
 8x USB 2.0
 LAN
 Intel 2.5G LAN
 Wi-Fi / Bluetooth Intel Wi-Fi 6E, Bluetooth 5.3
 Audio
 8-Channel (7.1) HD Audio with Audio Boost

Latest DDR5 Memory
 A huge step of DDR performance enhancement with the latest
 DDR5 memory and MSI Memory Boost technology.
 Lightning Gen 5
 The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
 maximum transfer speed.
 Extended Heatsink Design
 MSI extended PWM heatsink and enhanced circuit design ensures
 even high-end processors to run in full speed.
 Quadruple M.2 Connectors
 Onboard quadruple M.2 connectors for the maximum storage
 performance.
 M.2 Shield FROZR
 M.2 thermal accessory keeps M.2 SSDs safe while preventing
 throttling, making them run faster.
 Core Boost
 With premium layout and fully digital power design to support
 more cores and provide better performance.
 2.5G Network Solution
 Featuring premium 2.5G LAN to deliver better network
 experience.
 Wi-Fi 6E
 The latest wireless solution supports 6GHz spectrum, MU-MIMO
 and BSS color technology, delivering speeds up to 2400Mbps.
 Audio Boost
 Reward your ears with studio grade sound quality for the most
 immersive audio experience.
