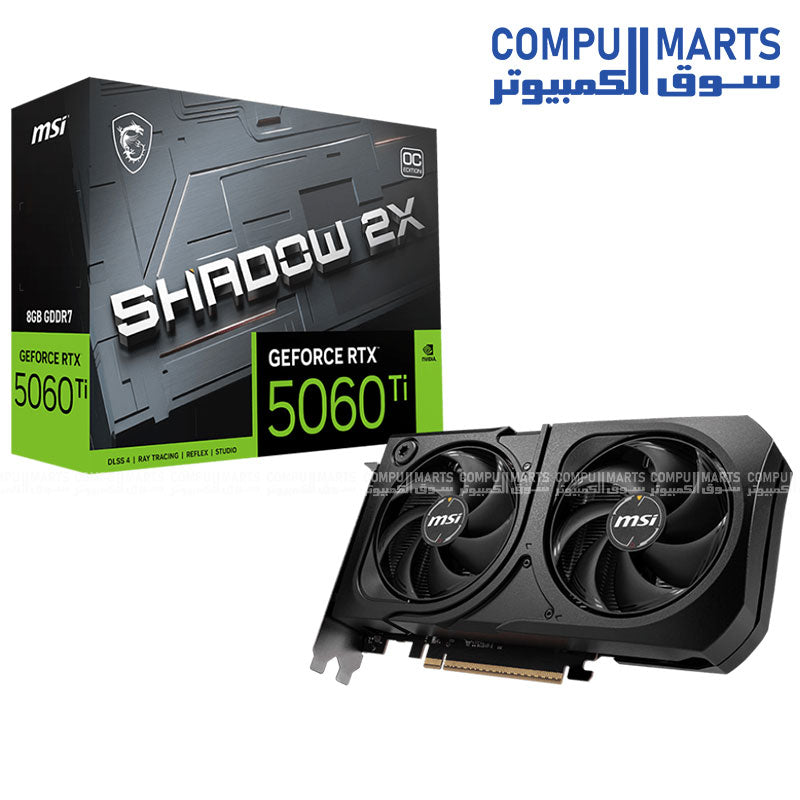

MSI GeForce RTX 5060 Ti SHADOW 2X OC PLUS – 8GB / 16GB GDDR7 Graphics Card

MSI GeForce RTX 5060 Ti SHADOW 2X OC PLUS – 8GB / 16GB GDDR7 Graphics Card

SPECIFICATIONS
Marketing Name GeForce RTX 5060 Ti SHADOW 2X OC
PLUS
Model Name G506T-16S2CP\G506T-8S2CP
Graphics Processing Unit NVIDIA GeForce RTX 5060 Ti
Interface PCI Express Gen 5 x16 (uses x8)
Core Clocks
Extreme Performance: 2617 MHz (MSI
Center)
Boost: 2602 MHz
CUDA®
 CORES 4608 Units
Memory Speed 28 Gbps
Memory 16GB GDDR7
Memory Bus 128-bit
Output
DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up
to 4K 480Hz or 8K 120Hz with DSC, Gaming
VRR, HDR)
HDCP Support Y
Power consumption 180 W
Power connectors 8-pin x 1
Recommended PSU 600 W
Card Dimension (mm) 226 x 126 x 41 mm
Weight (Card / Package) 578 g / 851 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC®
 technology Y
Digital Maximum Resolution 7680 x 4320

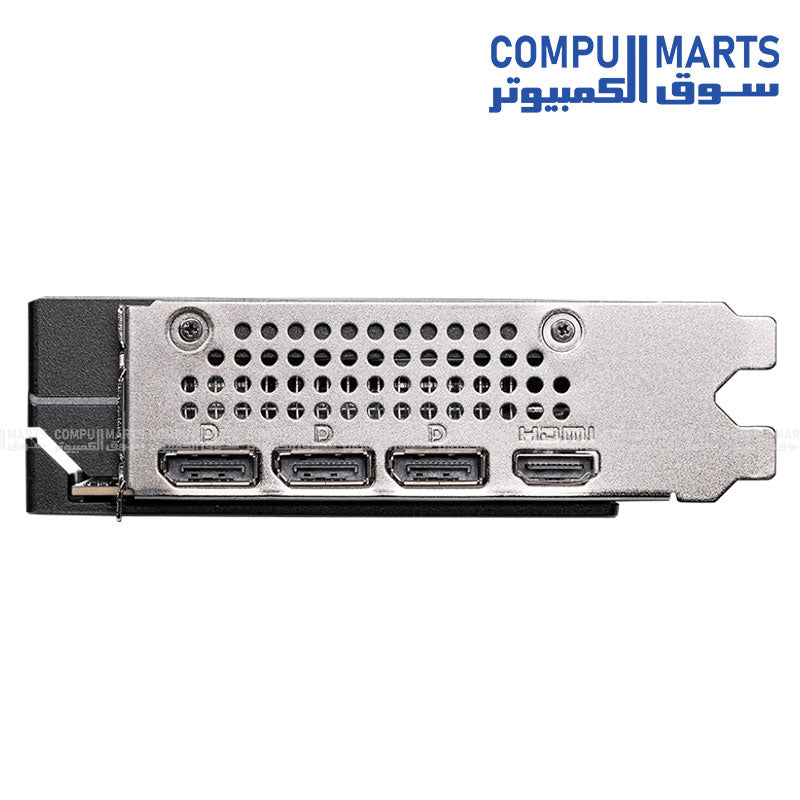

CONNECTIONS
1. DisplayPort
2. HDMI™
FEATURES

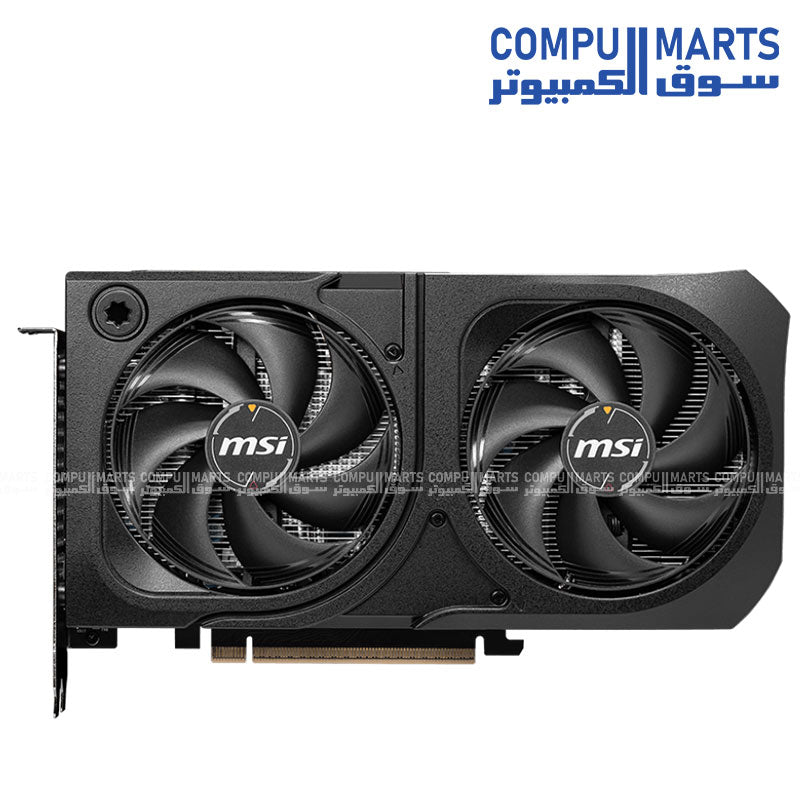

Dual Fan
Two fans and a huge heatsink ensure a cool and quiet experience
for you.
STORMFORCE FAN
Seven fan blades, claw texturing, and a circular arc are designed
for optimal airflow with minimal noise.

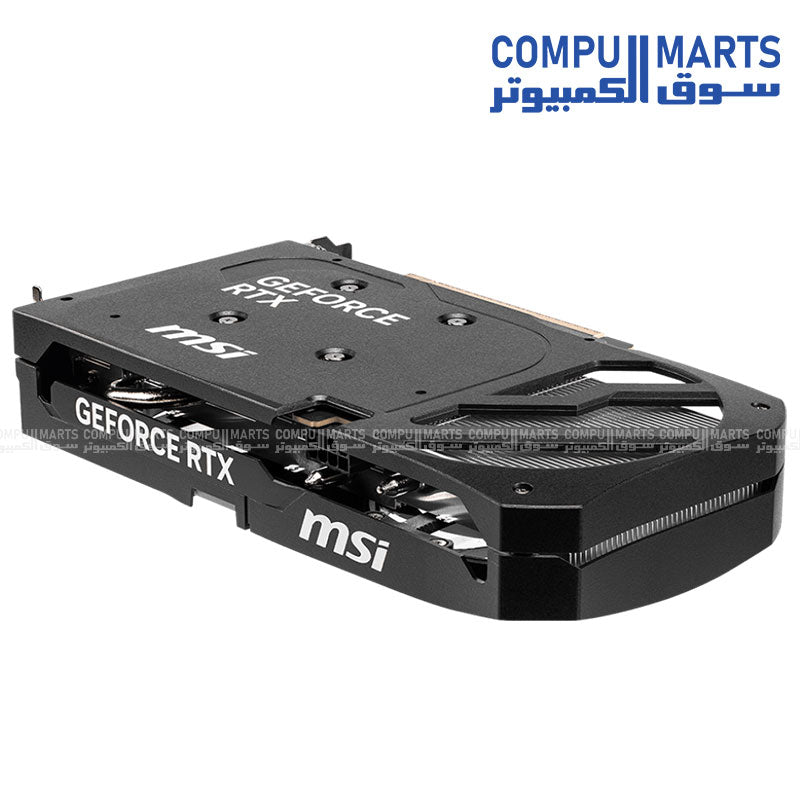

Metal Backplate
A reinforcing metal backplate with airflow vents and thermal pads
enhances cooling.
Zero Frozr
The fans completely stop when temperatures are relatively low,
eliminating all noise.
DrMOS
DrMOS power stage solutions provide great efficiency with low
power loss and enhanced voltage controls.
Fuse
Additional fuses built into the custom PCB provide additional
safeguards against electrical damage.
MSI Center
The exclusive MSI Center software lets you monitor, tweak and
optimize MSI products in real-time.
Afterburner
Take full control with the most recognized and widely used
graphics card overclocking software in the world.
