Case Antec DP505 White Mesh 3 Fan 3*120M ARGB

Case Antec DP505 White Mesh 3 Fan 3*120M ARGB

dp505white

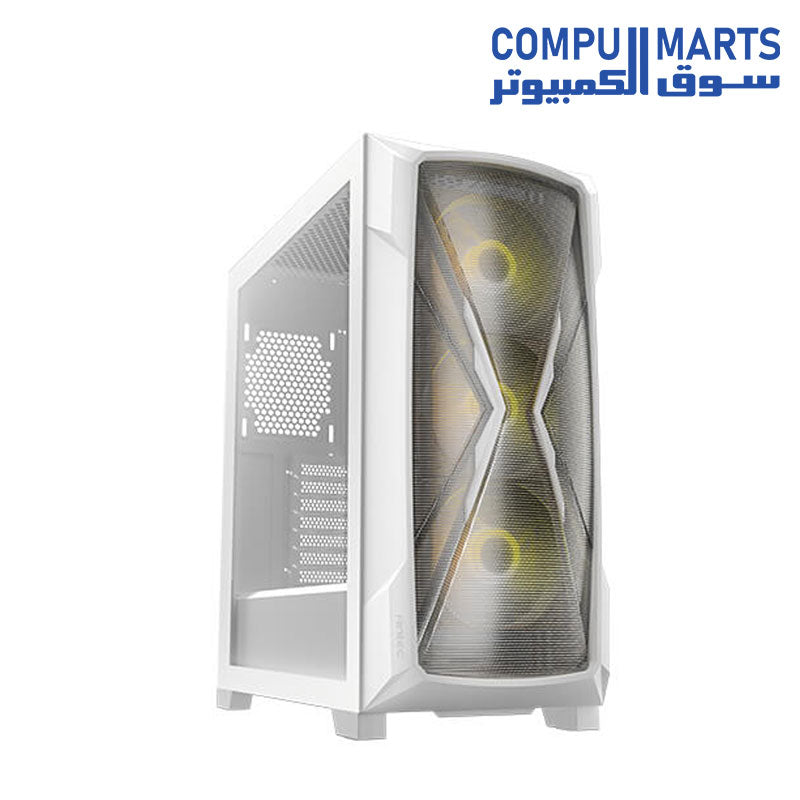

Mid-Tower E-ATX Gaming CaseOutstanding Compatible Performance

UNLIMITED CONFIGURATION OPTIONS

Maximum Expansion Potential

The DP505 White gaming case features an extensive interior and powerful compatibility. 2 x 360mm can be installed in the front & on the top simultaneously.

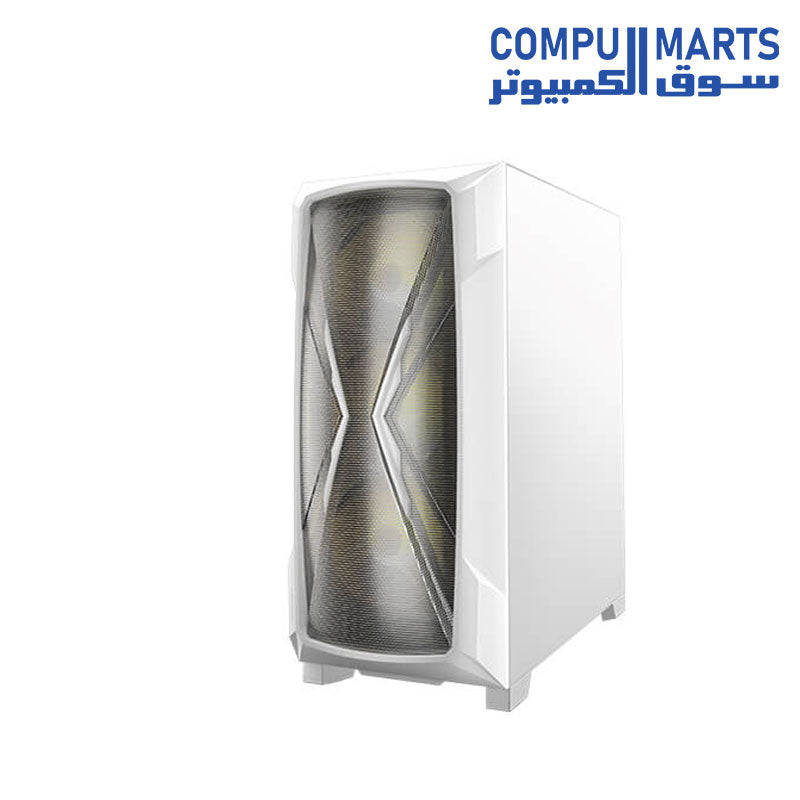

MASSIVE MESH

High-Airflow Mesh

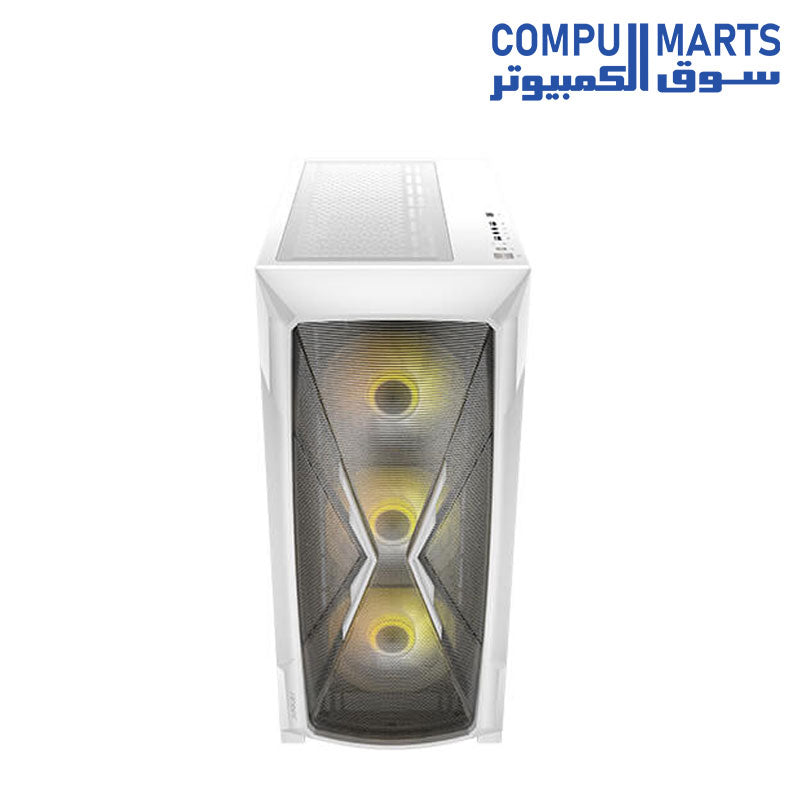

Front Panel with X-Shaped Design

Features a massive X-shaped mesh front panel and ventilation on the top, at the bottom, and in the PSU chamber, which will accelerate the airflow circulation and enhance the cooling performance.

• Massive Mesh Front Panel with X-Shaped Design.

• The Magnetic Dust Filter on the Top.

• Pull-Out Dust Filter at the Bottom.

Three addressable RGB fans Included

Pre-installed at the front for efficient airflow and customizable RGB lighting.

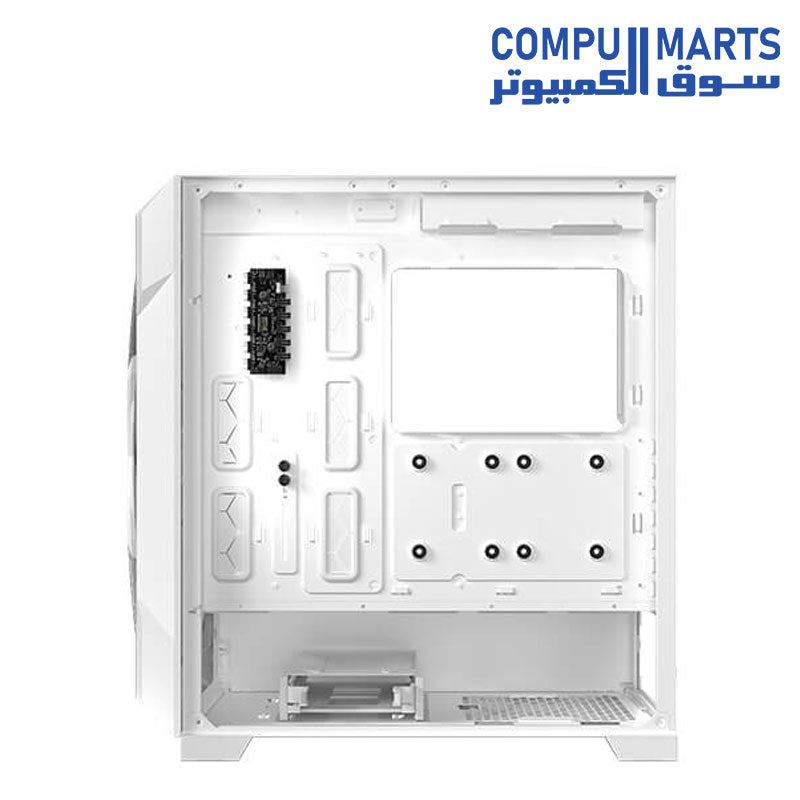

BUILT-IN DEVICES

ARGB & PWM
control Hub

The control hub supports up to 6 fans and 6 LED device.
Connect it to your motherboard for 16.8 million possible colors.

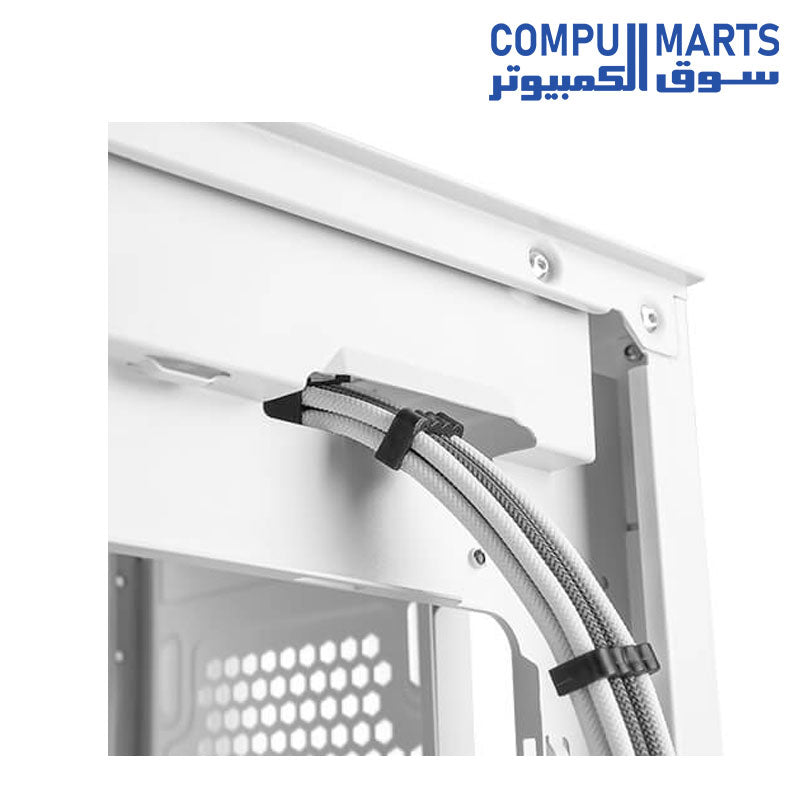

CABLE MANAGEMENT

Building a clean PC is Within easy Reach

Well-designed cable routing makes wiring easy and simple, with a spacious 23mm of space for cables.

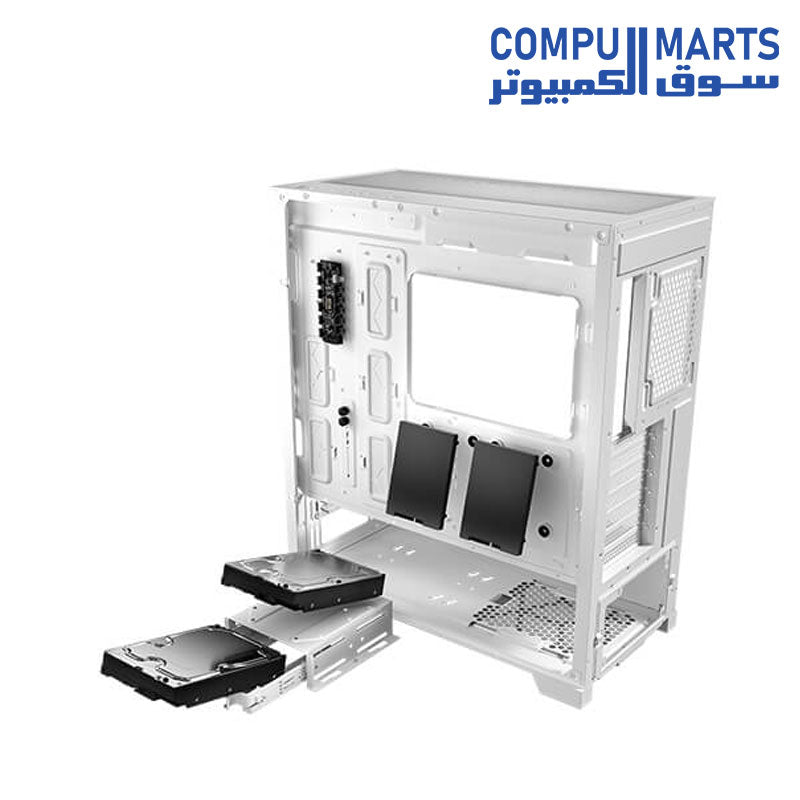

DRIVE BAYS COMPATIBILITY

Easy installation

Fits Up To 4 Drive Devices

• Snap-in 2.5" drive device for easy mounting.

• Removable hard drive cage.

• Tool-free 3.5" drive tray

HIGH-SPEED TRANSFER

TYPE-C 3.2 GEN 2 READY

COOLING COMPATIBILITY

9 fans simultaneously

3 x 120mm ARGB fans and a 360 mm radiator can be installed simultaneously in the front interior for better cooling performance.

CASE COMPATIBILITY

Unlimited upgrades

Fan
Dimensions 481 x 220 x 490mm (DWH) Form Factor Mid Tower Materials Steel + Plastic Mainboard Support E-ATX, ATX, Micro-ATX, ITX Front Access & Controls Power, LED control button, USB 3.0 x 2, TYPE-C 3.2 Gen 2 x 1, MIC x 1, HD-AUDIO x 1 Side Panel 4mm Tempered Glass



Drive Bays
Expansion Slots 7 3.5" /2.5" 2 / 2 2.5" 2

adiator Support
Front 120 / 140 / 240 / 280 / 360mm Top 120 / 140 / 240 / 280 / 360mm Rear 120mm

Clearance

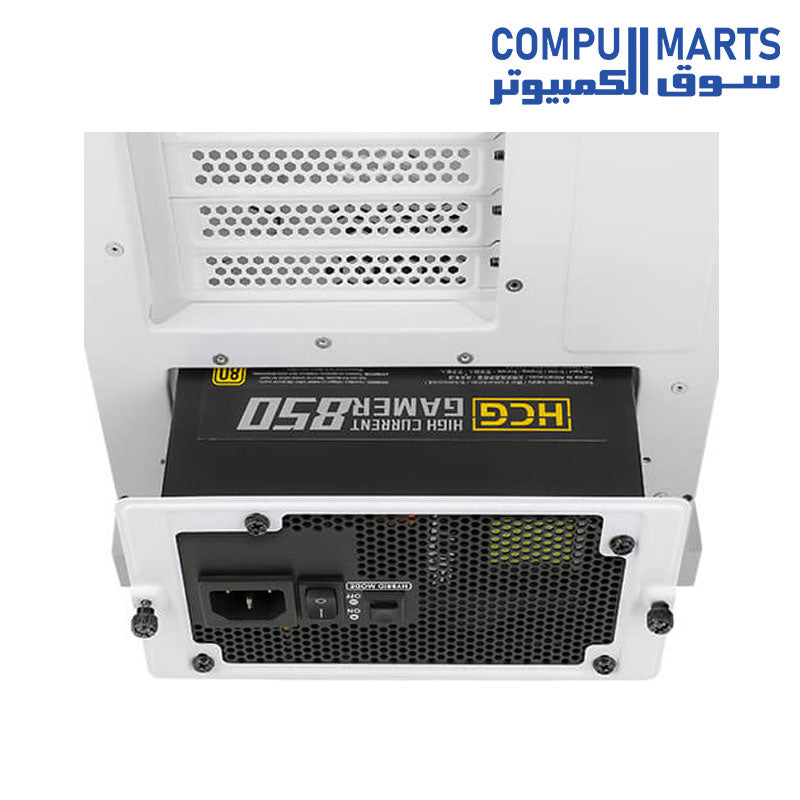

Max GPU Length ≤ 375mm Max CPU Cooler Height ≤ 170mm Max PSU Length ≤ 205mm(with HDD) ≤ 410mm(without HDD) Cable Routing Space ≤ 23mm

Accessories

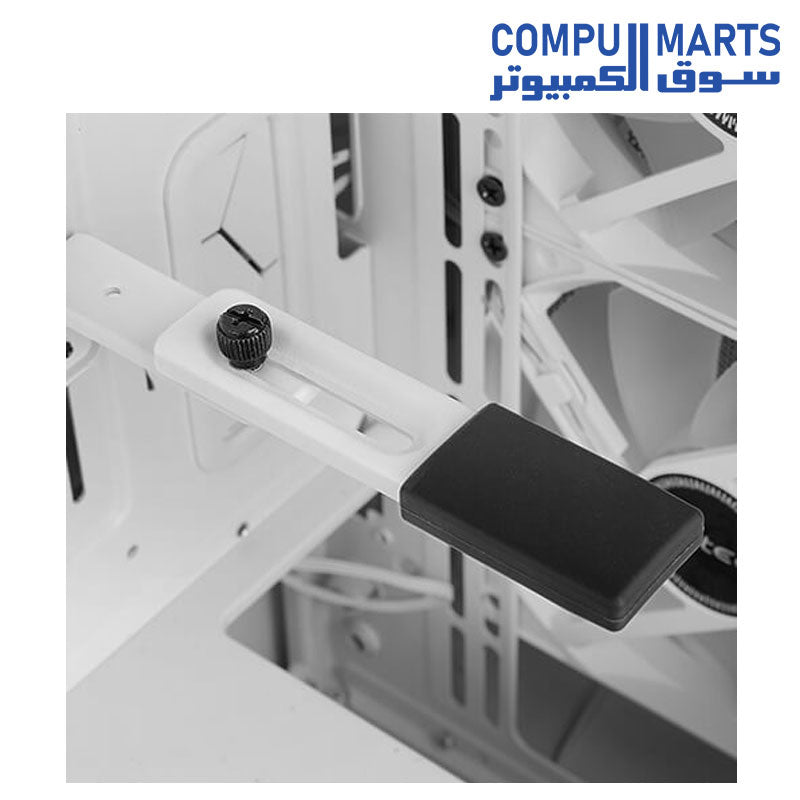

Fan & LED Control Hub Yes GPU Holder Yes Cable Routing Grommets Yes, 8 pcs Fixed Cable Ties Yes, 3 pcs Captive Thumb Screws Yes (Side panels, GPU Holder, PSU Brace)

Miscellaneous
Dust Filter Top / Bottom Dust Filter Top / Bottom Net Weight 8.1 kgs Gross Weight 9.1 kgs UPC# 0-761345-81076-0
